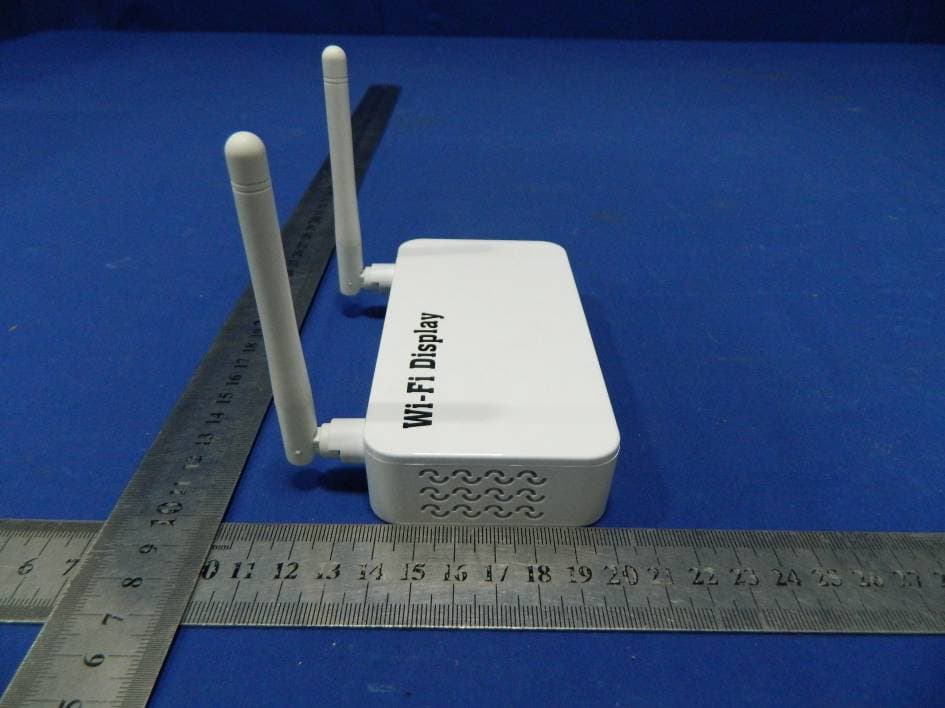

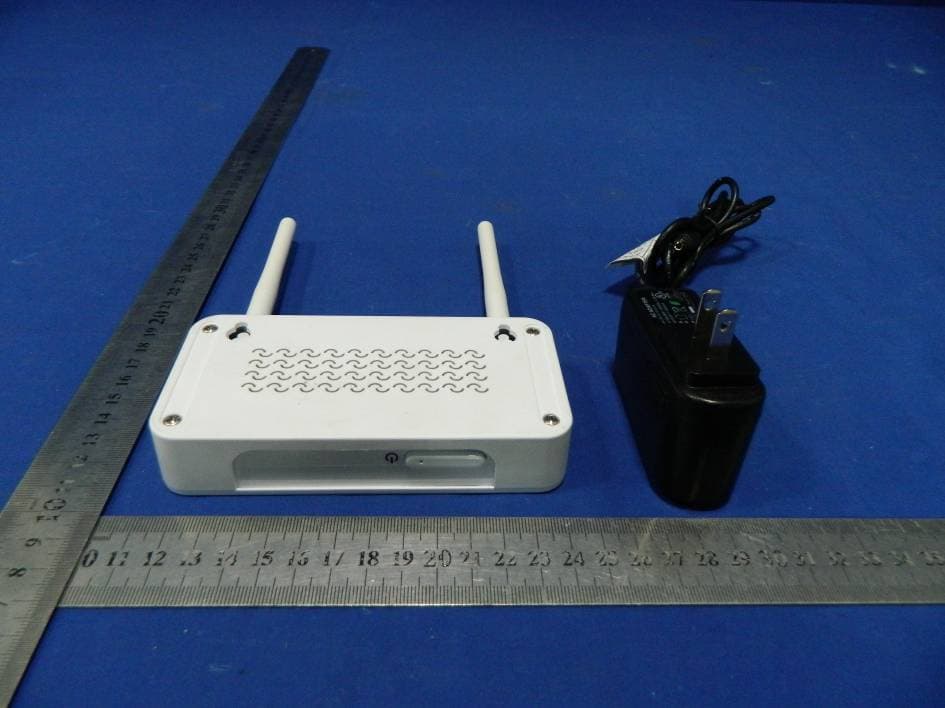

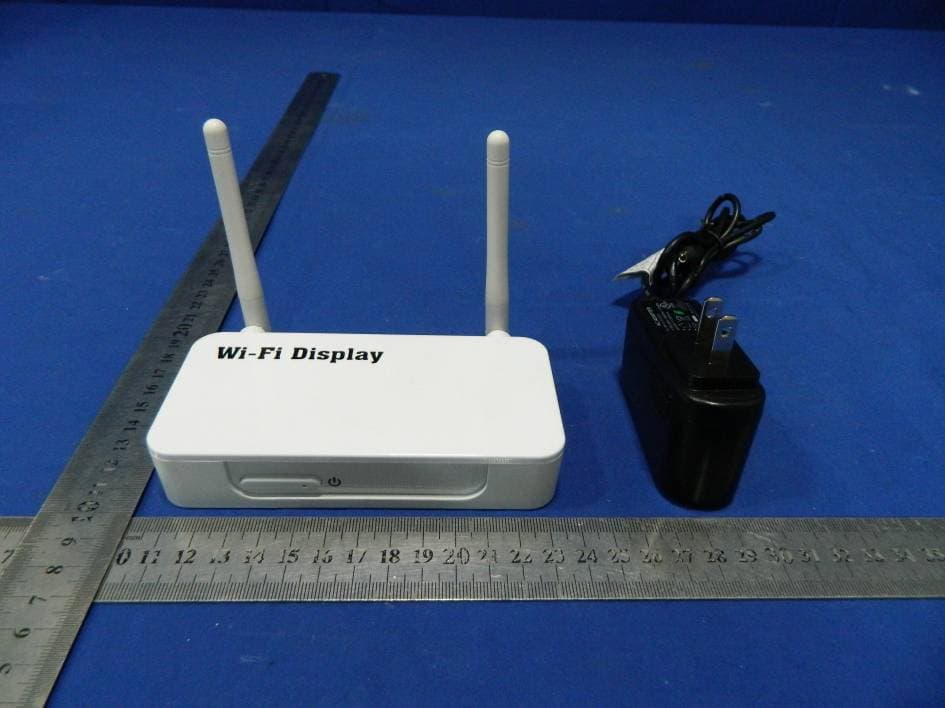

A4X-WD01Wi-Fi Display

Wi-Fi Display User’s Manual Contents 1. Package Contents ------------------------------------------------------------------------------3 2. Before you start ------------------------------------------------------------------------------4 3. Quick Start ------------------------------------------------------------------------------7 4. Using MirrorOp Sender for win-OS ------------------------------------------------------------------------------9 5. Using MirrorOp Sender for MAC-OS (Optional for User) ----------------------------------------------------------------------------19 6. Web Management ----------------------------------------------------------------------------27 7. Using DLNA Function via Wi-Fi Display ----------------------------------------------------------------------------33 8. System requirements ----------------------------------------------------------------------------38 Wi-Fi Display User’s Manual - 3 - 1. Package Contents: Please check the following items are included in your Wi-Fi Display package: „ Main Unit X1 „ Antennas X2 „ 5V/2A Power Adapter X1 „ Installation CD X1 „ User’s Manual (In the CD) X1 Wi-Fi Display User’s Manual - 4 - 2. Before you start Wi-Fi Display is the one device that can show all contents of your Windows® or Mac® computers on your TV wirelessly. You can easily control computers with your mouse and/or keyboard. You can share any content from your computers with your friends and family in your living room. Also, if your mobile phone or pad is Android OS with a built-in DLNA function, you can push the picture, music and audio from Android mobile devices to HDTV for sharing a big screen. Also,if your home Router have no Wi-Fi function, connecting this product to your home Router,you will get a Wi-Fi Router, then all mobile network devices can also access into the Internet,such as personal notebook, mobile phone,etc. Setup Possibilities: a) Ethernet Connection: Best performance for Windows or Mac computer Whenever possible, always use Ethernet cables to connect Wi-Fi Display device to your home network. This setup provides best performance for both remote operation and internet connection. b) Partly wireless Connection: Reasonable Performance for Windows or Mac computer If wireless connection is preferred, you can connect your home AP and Wi-Fi Display via cables, and access either from your home AP or Wi-Fi Display. Wi-Fi Display User’s Manual - 5 - c) Purely wireless Connection: Basic performance for Windows or Mac computer You can also try setting up Wi-Fi Display as a wireless client to your home AP via AP-Client mode. However, this setup is more complicated and vulnerable to any interference in Wi-Fi signal. d) DLNA function for Android mobile devices if your mobile phone or pad is Android OS with a built-in DLNA function, you can push the picture, music and audio from Android mobile devices to HDTV for sharing a big screen. For some mobile devices, maybe some media format can not be supported on this product. Wi-Fi Display User’s Manual - 6 - e) Wi-Fi Router Function Let Wire Router become Wi-Fi Router and mobile Wi-Fi devices can access into Internet by Wi-Fi, such as personal notebook, mobile phone,etc. Wi-Fi Display User’s Manual ‐ 7 ‐ 3. Quick Start 1. Connect the HDMI output on the Wi-Fi Display to your TV, and turn on your TV. 2. Connect the power adapter to your Wi-Fi Display, and plug in to your power outlet. 3. Press the Power button on Wi-Fi Display to turn on the device. 4. Wi-Fi Display will be powered ON. Waiting for about 35 seconds,the Main Menu as below will be shown on your TV screen while system is ready. 5. Insert Wi-Fi Display CD and follow on-screen instructions to install software from the CD-ROM. 6. Find the following icon in "Applications\MirrorOp" folder (on Mac) or "Programs\MirrorOp Sender" folder (on Windows) to launch MirrorOp Sender. 7. Search Wi-Fi Access Point. Select your Wi-Fi Display device (default SSID is MirrorOp) from the list and click the Connect button. Wi-Fi Display User’s Manual ‐ 8 ‐ 8. Connect to selected access point. 9. Connect to MirrorOp server. If only one server is found, it will automatically connect to the server. 10. The application will ask to adjust your PC resolution for best projection result, and then project your screen to TV. You should see your PC Desktop on TV screen now. 11. To finish projection, click the X button on the menu of MirrorOp Sender to leave projection. Your screen resolution would be restored to original one if you approve adjusting resolution with above step. Wi-Fi Display User’s Manual ‐ 9 ‐ 4. Using MirrorOp Sender for Win-OS 4.1 Start Program After installing the program, you will see the MirrorOp icon on your desktop: 1) Double click it to execute MirrorOp Sender client. 2) Program start to list all available Access Point List.(Auto Wi-Fi connect enabled) 3) Program start to search all available MirrorOP devices. 4) After MirrorOP device is found, click it to start projection. z Search for device z While Auto Wi-Fi connect is enabled, list all available access point list Wi-Fi Display User’s Manual ‐ 10 ‐ 4.2 Main User interface 4.3 Screen Projection Click the button for full or split screen; you can project the main screen on to the display immediately. Video Mode vs. App Mode On MirrorOp Sender you can find a switch button for two modes: Video Mode and App Mode; Video Mode is designed for smooth video experiences, so by default it has longer latency between your PC and TV. If you have very good network connection (by Ethernet) and prefer to use low latency mode at all times, you may drag the switch to App Mode. Menu Area Play/Stop button App/Video mode Wi-Fi Display User’s Manual ‐ 11 ‐ button Description Full Screen Projection Video Projection Application Projection 4.4 Menu Description 4.4.1 Remote Box Management Click <Remote Box Management> to initial web management. Menu Exit Wi-Fi Display User’s Manual ‐ 12 ‐ 4.4.2 Search Remote Box Click <Search Remot…

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 CE LINK LIMITED (2013-01-10) To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Permanent Confidentiality Request for FCC ID: A4X-WD01 We hereby request confidential treatment of information accompanying this application as outlined below: - Block diagram - Operation description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Sunny sun / Engineer E-mail: [email protected] Phone: (86) 755-27247356 Fax: (86) 755-88215310 Address Building G, LiCheng Technology Industrial Zone, GongHe Village, ShaJing Town, ShenZhen City, China

CE LINK LIMITED Date: January 11, 2013 We, CE LINK LIMITED declare that this EUT (FCC ID: A4X-WD01) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disabled by firmware for devices marketed to the US/Canada. For DTS part of this device, only channels 1-11 will used in North America. Country code selection is disabled. Note: This EUT supports 2.4GHz WiFi only without other RF function The maximum level is as below, and there is no tune up procedure for the end user, except the Factory Default Setting. 802.11b: 14.00dBm 802.11g: 12.80dBm 802.11nHT20: 12.00dBm 802.11nHT40: 10.20dBm Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Signature Sunny sun / Engineer E-mail: [email protected] Phone: (86) 755-27247356 Fax: (86) 755-88215310 Address Building G, LiCheng Technology Industrial Zone, GongHe Village, ShaJing Town, ShenZhen City, China

ID Label CE LINK LIMITED Wi-Fi Display FCC ID: A4X-WD01 MODEL No.: WD01 Made in China 40mm*30mm

Label Location Proposed Label Location on EUT

WIFI Module Antenna

FCC ID : A4X-WD01 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Power density limited: Antenna gain: Chain A: 2dBi, Chain B: 2dBi, Directional Gain= G ANT +10log(N ANT )dBi=5dBi (MIMO) 802.11b : Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412 13.55 22.65 1.58 0.0071 1 6 2437 13.64 23.12 1.58 0.0073 1 11 2462 13.60 22.91 1.58 0.0072 1 802.11g Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 12.31 17.02 1.58 0.0054 1 6 2437.00 12.27 16.87 1.58 0.0053 1 11 2462.00 12.26 16.83 1.58 0.0053 1 802.11n(H20) Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 1 2412.00 11.84 15.28 1.58 0.0048 1 6 2437.00 11.78 15.07 1.58 0.0047 1 11 2462.00 11.74 14.93 1.58 0.0047 1 802.11n(H40) Channel Channel Frequency (MHz) Output Peak power (dBm) Output Peak power (mW) Antenna Gain (dBi) Numeric Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 3 2422.00 9.83 9.62 1.58 0.0030 1 6 2437.00 9.83 9.62 1.58 0.0030 1 9 2452.00 9.71 9.35 1.58 0.0029 1

TRF No：FCC 15.247/A Page 1 of 97 Report No: ES120731281E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wi-Fi Display MODEL No.: WD01, 5002 FCC ID: A4X-WD01 Trademark: CELINK REPORT NO: ES120731281E ISSUE DATE: January 4, 2013 Prepared for CE LINK LIMITED Building G, LiCheng Technology Industrial Zone, GongHe Village, ShaJing Town, ShenZhen City, China Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No：FCC 15.247/A Page 3 of 97 Report No: ES120731281E Ta b l e o f C o n t e n t s 1. GENERAL INFORMATION ................................................................................................................................ 5 1.1 PRODUCT DESCRIPTION.................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT(S)................................................................................................................. 5 1.3 TEST METHODOLOGY....................................................................................................................................... 6 1.4 SPECIAL ACCESSORIES...................................................................................................................................... 6 1.5 EQUIPMENT MODIFICATIONS............................................................................................................................ 6 1.6 TEST FACILITY.................................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ................................................................................................................... 7 2.1 EUT CONFIGURATION....................................................................................................................................... 7 2.2 EUT EXERCISE................................................................................................................................................. 7 2.3 TEST PROCEDURE............................................................................................................................................. 7 2.4 CONFIGURATION OF TESTED SYSTEM............................................................................................................... 7 3. DESCRIPTION OF TEST MODES ..................................................................................................................... 9 4. SUMMARY OF TEST RESULTS....................................................................................................................... 10 5. CONDUCTED EMISSIONS TEST .................................................................................................................... 11 5.1 MEASUREMENT PROCEDURE.......................................................................................................................... 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 11 5.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 11 5.4 CONDUCTED EMISSION LIMIT......................................................................................................................... 11 5.5 MEASUREMENT RESULT.................................................................................................................................. 12 5.6 CONDUCTED MEASUREMENT PHOTO.............................................................................................................. 13 6. RADIATED EMISSION TEST ........................................................................................................................... 14 6.1 MEASUREMENT PROCEDURE.......................................................................................................................... 14 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 14 6.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 15 6.4 RADIATED EMISSION LIMIT............................................................................................................................. 15 6.5 MEASUREMENT RESULT.................................................................................................................................. 17 6.6 RADIATED MEASUREMENT PHOTOS................................................................................................................ 41 7. 6DB BANDWIDTH TEST................................................................................................................................... 43 7.1 MEASUREMENT PROCEDURE.......................................................................................................................... 43 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 43 7.3 MEASUREMENT EQUIPMENT USED................................................................................................................. 43 7.4 MEASUREMENT RESULTS................................................................................................................................43 8. MAXIMUM PEAK OUTPUT POWER TEST ..................................................................................................60 8.1 MEASUREMENT PROCEDURE.......................................................................................................................... 60 8.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGU…

Text truncated - open the document above for the full version.

Radiated Measurement Photo Conducted Measurement Photo
