A4X-WL-UTC-C2UFHVType-C to HDMI/VGA/USB-AX2/Type-CData or PD Charging Adapter with Wireless Charging

Type-C to HDMI/VGA/USB-AX2/Type-C Data or PD Charging Adapter with Wireless Charging User Manual For wireless charging Anti-slip silicon pad Type-C to HDMIX2/USB-AX2/Type-C Data or PD Charging Adapter with Wireless Charging Contents 1.0 INTRODUCTION .............................................. 1 2.0 FEATURES ...................................................... 1 3.0 SPECIFICATIONS ............................................ 3 4.0 NOTICE ......................................................... 4 5.0 PACKAGE CONTENTS ....................................... 4 6.0 CONNECTION DIAGRAM ................................... 6 Type-C to HDMIX2/USB-AX2/Type-C Data or PD Charging Adapter with Wireless Charging 1 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1.0 INTRODUCTION This is a Type-C 5-in-1 Adapter with wireless charging function. It integrates the function of a normal adapter and a wireless charging adapter into one, besides, its captive cable can be wrapped on the bottom, bringing customers great user experience and convenience. With wireless charging function, users can charge their devices with max 10W power by putting devices on the surface which is designed with anti-slip silicon pad. What’s more, this product provides video, data and PD charging port to extend a single Type-C port of the host to be multiple ports. It can work on all Type-C and Thunderbolt TM 3 host that supports DP Alt mode. When working on Thunderbolt TM 3 host, this product transmits DP signal. 2.0 FEATURES Wireless Charging:  Support wireless charging with max 10W power，auto-adjust to 2.5W/5W/7.5W based on requirement the connected device and the capacity of power source When PD Adapter is connected, PC is not connected  Support max 10W wireless charging when PD Adapter power is over or equal to 27W, support max 5W wireless charging when PD Adapter power is less than 27W When PC is connected, PD Adapter is not connected  Support max 5W wireless charging when host charging capacity is over or equal to 15W, support max 2.5W wireless charging when host charging capacity is less than 15W When both PC and PD Adapter are connected  Support max 10W wireless charging when PD Adapter power is over or equal to 30W, support max 5W wireless charging when PD Adapter power is less than 30W Type-C to HDMIX2/USB-AX2/Type-C Data or PD Charging Adapter with Wireless Charging 2  Support over-temperature protection, when the surface temperature surpasses threshold temperature, the wireless charging function will stop to work and will not return to work automatically until the temperature reduces within the safe temperature, so as to keep the charging device from being damaged due to high temperature  Support DP1.2 Alt mode, with bandwidth max 5.4Gbps per lane, 4 lanes 21.6Gbps  Support HDMI max 4K/30Hz，VGA max 1920x200/60Hz  Support to output HDMI and VGA simultaneously under SST mode (output the same picture) with max 1080P/60Hz  Support HDCP2.2&1.4  Compact design  Type-C captive cable can be wrapped on the bottom of this design, offering great convenience for users  Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter  Supports max 5Gbps data transmission for USB-A port, one USB-A supports max 1.5A downstream charging，2 USB-A share max 1.5A downstream charging  Support over-circuit protection, over-current protection  Type-C female supports max 100W PD Charging or 5Gbps data transmission  Type-C female supports Dynamic Current Detection and Power Distribution which enables to distribute power according to actual consumption of the connected device , taking full advantage of power supply and dynamically charging the host with more power. Note: 3W is reserved for the product when no external device connected, more power will be dynamically provided based on the required power of the connected devices.  Type-C to HDMIX2/USB-AX2/Type-C Data or PD Charging Adapter with Wireless Charging 3 3.0 SPECIFICATIONS Connector Parameter Upstream Type-C Male x1 Support DP1.2 Alt mode, 5.4Gpbs per lane, 4 lanes 21.6Gbps Downstream HDMIX1  max 4K/30Hz  8/10/12 bit color depth  RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2  HDCP2.2&1.4 VGAX1  Max 1920X1200/60Hz Support to output HDMI VGA simultaneously under SST with max 1080P/60Hz USB-AX2  Max 5Gbps data transmission  One USB-A supports max 7.5W (5V/1.5A)  Another USB-A supports max 4.5W(5V/900mA)  2 ports share max 7.5W(5V/1.5A) Type-C Femalex1  Support max 100W PD Charging  Support fast role swap of PD3.0  Max 5Gbps data transmission Wireless Charging Max 10W, auto-adjust to 7.5W/5W/2.5W based on the requirement of the connected device and the capacity of power source Mechanical Size (L-W-H) 90*90*24.5mm Weight (Net) 148g Warranty Limited Warranty 1 Year Environmental Operating Temperature 0°C to +45°C Operating Humidity 10% to 90 % RH (no condensation) Storage Temperature -10°C to +70°C Storage Humidity 10% to 90 % RH (no condensation) Power Supply USB-C PD Charging Port 100W(20V/5A) Regulatory Approvals Certifications FCC,CE Type-C to HDMIX2/USB-AX2/Type-C Data or PD Charging Adapter with Wireless Charging 4 Accessory Adapter User Manual English Version 4.0 PACKAGE CONTENTS To achieve the most effective wireless charging effect, please keep the following tips: 1) It is suggested to keep the surrounding temperature to be around 25°C and keep ventilation; 2) Make sure that wireless charging coil of the mobile phone is put rightly on the center of the wireless charging area; 3) It is suggested not to wireless charge mobile phone when this product is full loaded or heavily loaded. (Note: when in full loa ded or heavily loaded mode, this product will be in a higher te mperature than in no loaded or light loaded state, then those mobile phon…

Text truncated - open the document above for the full version.

CE LINK LIMITED Building M, Li Cheng Technology Industrial Zone,Gong He Village, Sha Jing Town,Shen Zhen, China --------------------------------------------------------------------------------------------------------------------- Date: 2020-10-26 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A4X-WL-UTC-C2UFHV Confidentiality Request To whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, CE LINK LIMITED ------------------------------- (Changhong Chen) (Engineer)

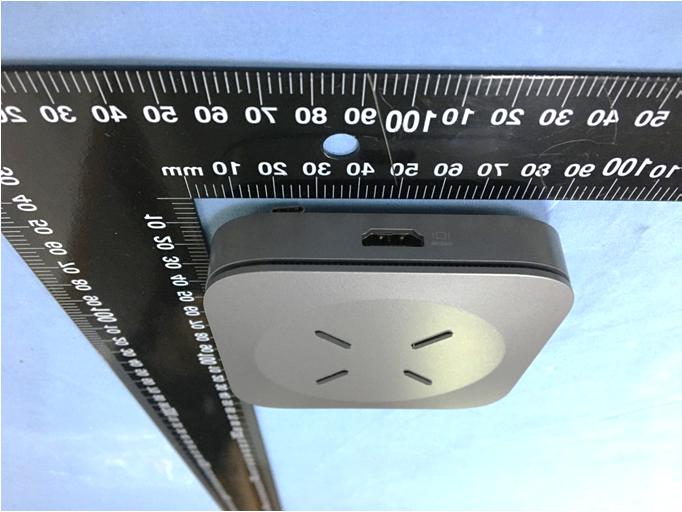

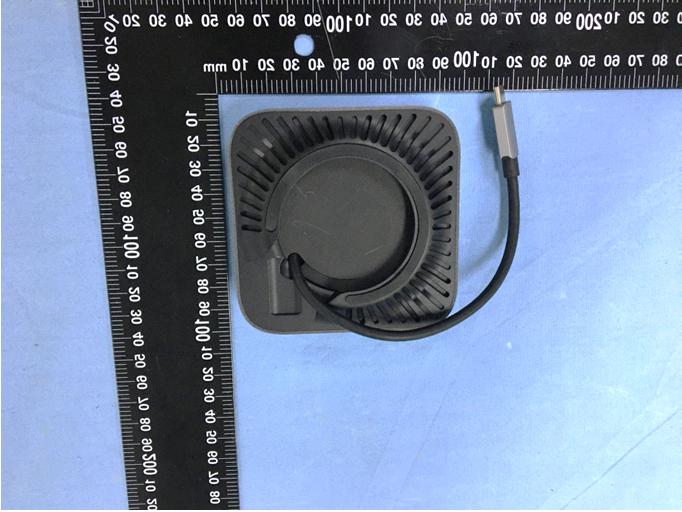

Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 3 EUT View 4 Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 5 EUT View 6 Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT View 7

Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: A4X-WL-UTC-C2UFHV Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC Label Location

Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EUT Housing and Board View 3 Solder Board-Component View 1 Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Solder Board-Component View 2 Antenna View Coil Antenna

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 9 TEST REPORT Reference No. .................... : WTX20X08060455W-2 FCC ID ................................ : A4X-WL-UTC-C2UFHV Applicant ........................... : CE LINK LIMITED Address.............................. : Building M,LiCheng Technology Industrial Zone,GongHe Village,ShaJing Town,ShenZhen City,China Product Name ................... : Type-C to HDMI/VGA/USB-AX2/Type-CData or PD Charging Adapter with Wireless Charging Test Model. ........................ : WL-UTC-C2UFHV-WR Standards .......................... : KDB 680106 D01 V03 Date of Receipt sample .... : Aug.27, 2020 Date of Test........................ : Aug.27, 2020 to Sept.16, 2020 Date of Issue ..................... : Sept.17, 2020 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX20X08060455W-2 Page 2 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 2 of 9 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................5 2. RF EXPOSURE TEST REPORT.............................................................................................................................6 2.1 STANDARD APPLICABLE .........................................................................................................................................6 2.2 TEST CONDITIONS ..................................................................................................................................................6 2.3 TEST PROCEDURE ...................................................................................................................................................7 2.4 TEST RESULT..........................................................................................................................................................7 2.5 TEST PHOTOS .........................................................................................................................................................9 Reference No.: WTX20X08060455W-2 Page 3 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 3 of 9 Report version Version No. Date of issue Description Rev.00 Sept.17, 2020 Original / / / Reference No.: WTX20X08060455W-2 Page 4 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 4 of 9 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: CE LINK LIMITED Address of applicant: Building M,LiCheng Technology Industrial Zone, GongHe Village,ShaJing Town,ShenZhen City,China Manufacturer: CE LINK LIMITED Address of manufacturer: Building M,LiCheng Technology Industrial Zone, GongHe Village,ShaJing Town,ShenZhen City,China Factory#1: ANFU CE LINK LIMITED Address of factory Anfu County Industrial Zone,Ji'an city,Jiangxi Province, P.R. China. Factory#2: CE LINK VIETNAM LIMITED Address of factory Lo FJ-25, Song Khe-Noi Hoang Industrial Zone, Noi Hoang Village, Yen Dung Town,Bac Giang Province, Vietnam. General Description of EUT Product Name: Type-C to HDMI/VGA/USB-AX2/Type-CData or PD Charging Adapter with Wireless Charging Trade Name: CE-LINK Model No.: WL-UTC-C2UFHV-WR Adding Model(s): / Power Adapter: / Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Frequency Range: 115-205kHZ Modulation Type: ASK Antenna Type: Coil Antenna Input: DC5-20V Wireless output: Output:10W Reference No.: WTX20X08060455W-2 Page 5 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 5 of 9 1.2 Test Equipment List and Details Description Manufacturer Model Serial No. Cal Date Due Date MPE Measuring Instrument Narda ELT-400 M-0155/M-0170 2020-07-15 2021-07-14 Broadband Field Meter Narda NBM-520 D-1699 2020-06-21 2021-06-20 Reference No.: WTX20X08060455W-2 Page 6 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 6 of 9 2. RF Exposure Test Report 2.1 Standard Applicable According to §1.1310 system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. 2.2 Test Conditions Test Mode Description Remark TM1 Wireless Charging AC120V 60Hz for adapter Measurement Distance: 15 cm Reference No.: WTX20X08060455W-2 Page 7 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 7 of 9 2.3 Test Procedure a. The measurement probe was placed at test distance(15 cm for A,B,C,D,F and 20 cm for E) which is between the edge of the charger and the geometric center of probe. b. The highest emission level was recorded at the measurement points(A, B, C, D, E, F). c. The EUT was measured according to the distance of KDB 680106 D01 V03. 2.4 Test Result The EUT dose comply with item 5.2 of KDB 680106 D01V03 1. Power transfer frequency is less tha…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Page 1 of 18 TEST REPORT Reference No. .................... : WTX20X08060455W-1 FCC ID ................................ : A4X-WL-UTC-C2UFHV Applicant ........................... : CE LINK LIMITED Address.............................. : Building M,LiCheng Technology Industrial Zone,GongHe Village,ShaJing Town,ShenZhen City,China Product Name ................... : Type-C to HDMI/VGA/USB-AX2/Type-CData or PD Charging Adapter with Wireless Charging Test Model. ........................ : WL-UTC-C2UFHV-WR Standards .......................... : FCC Part 18 Date of Receipt sample .... : Aug.27, 2020 Date of Test........................ : Aug.27, 2020 to Sept.16, 2020 Date of Issue ..................... : Sept.17, 2020 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Mike Shi / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX20X08060455W-1 Page 2 of 18 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND OPERATION MODE ......................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................6 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................7 2. SUMMARY OF TEST RESULTS ...........................................................................................................................8 3. CONDUCTED EMISSIONS ....................................................................................................................................9 3.1 STANDARD APPLICABLE .........................................................................................................................................9 3.2 TEST PROCEDURE ...................................................................................................................................................9 3.3 BASIC TEST SETUP BLOCK DIAGRAM .....................................................................................................................9 3.4 ENVIRONMENTAL CONDITIONS ..............................................................................................................................9 3.5 TEST RECEIVER SETUP ......................................................................................................................................... 10 3.6 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 4. RADIATED EMISSIONS ....................................................................................................................................... 12 4.1 TEST PROCEDURE ................................................................................................................................................. 13 4.2 TEST RECEIVER SETUP ......................................................................................................................................... 15 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 15 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 15 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 15 Reference No.: WTX20X08060455W-1 Page 3 of 18 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Report version Version No. Date of issue Description Rev.00 Sept.17, 2020 Original / / / Reference No.: WTX20X08060455W-1 Page 4 of 18 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: CE LINK LIMITED Address of applicant: Building M,LiCheng Technology Industrial Zone, GongHe Village,ShaJing Town,ShenZhen City,China Manufacturer: CE LINK LIMITED Address of manufacturer: Building M,LiCheng Technology Industrial Zone, GongHe Village,ShaJing Town,ShenZhen City,China Factory#1: ANFU CE LINK LIMITED Address of factory Anfu County Industrial Zone,Ji'an city,Jiangxi Province, P.R. China. Factory#2: CE LINK VIETNAM LIMITED Address of factory Lo FJ-25, Song Khe-Noi…

Text truncated - open the document above for the full version.

Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission View (Below 30MHz) Reference No.: WTX20X08060455W-1 Waltek Testing Group (Shenzhen) Co., Ltd. http://www.semtest.com.cn Radiation Emission View (30MHz to 1GHz)
