A4X-WPC02Wireless charger pad

User’s Manual Content 1 INTRODUCTION....................................................1 2 SPECIFICATION.....................................................1 3 PACKAGE CONTENT.............................................2 4 PANEL DESCRIPTION............................................2 5 CONNECTION DIAGRAM.........................................2 6 FCC NOTICE..........................................................2 Wireless charging pad 5w Wireless Charging Pad DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read the following instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1. INTRODUCTION 1.1 Product Description This is a high performance 5w Wireless Charging Pad, which allows you to charge your phone without plugging the cable, just need to put the phone on the charging Pad. Suitable for all the Qi wireless charging capable phone, such as S4, S3(9300/9308), NOTE2(7100/7102), NOKIA Lumia 920/820/720, Nexus4, HTC 8X, IPHONE5/4S/4,etc. 1.2 Features This product has many features that enable it to perform in a superior manner. Among those features you will find:  Qi wireless charging Standard compatible.  Rounded design suitable for various mobile phones with different shape.  Can charge for two phones at the same time, only one of them can use the wireless way.  Thanks to the antiskid design of surface and bottom, the charging pad compatible well with the phone with different surface material.  Intelligent inductive charging.  Can be directly connected to the desktop or laptop and mobile phone adapter to get power supply.  Bevel design, can instead of the phone stand holder, support charging while playing the phone. 2. SPECIFICATION Input DC 5V,1A~3A Output voltage 4.75-5.0V Output current 0.1~1A max Size 100(DIA)*30.8mm(Height) Input port Micro USB Output port USB A Type Operating Temperature Range 0~45°C Storage Temperature Range 20 ~ 85°C High Humidity Operation +40 C and 90 ~ 95% Color White+Grey Weight 145 g Overload protection Yes Short circuit protection Yes 1 Wireless charging pad Efficiency: >65% Life span 50000 Hours Limited Warranty 1 Year User Manual English Version Note: Specifications are subject to change without notice. 3. PACKAGE CONTENT Before using this unit, please check the packaging and make sure the following items are contained in the shipping carton:  1×Main unit  1×User's Manual 4. PANEL DESCRIPTION A ○ 1EAPower in, DC 5V A ○ 2EAUSB A Type port: charging for your phone use one USB cable; A ○ 3EAIndicator: When the product powered on, the indicator will glow blue and red lights and flash three times; When your phone charging, the indicator will glow red light. After the product finish charging, the indicator will glow blue light. When an accident appeared, the indicator will glow alternating red and blue light. A ○ 4EAThe surface is for wireless charging. 5. CONNECTION DIAGRAM 2 Wireless charging pad 6. FCC NOTICE The product may cause potential interference to your home electronic product. During operation the user must keep a minimum separation distance of 10cm with the RF devices Please do not put any metal substance like coin when charging. It can cause product damage and serious burns Unplug the device USB and when unused for extended periods of time Troubleshooting: Adopt following measures by the user itself once the product is interfered. 1. Turning the equipment OFF and ON 2. Reorient or relocate the receiving antenna. 3. Increase the separation between the equipment and receiver Note： Changes or modifications to this unit not expressly approved by CE-LINK may cause interference and void the user authority to operate the equipment. FCC ID: A4X-WPC02 P/N7006 3

CE LINK LIMITED Cover Letter-Wireless Charger Approval FCC ID: A4X-WPC02 Data:2014.08.15 Gentlemen: There’s an Wireless charger pad that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Wireless charger pad, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: CE LINK LIMITED Product Name : Wireless charger pad Model Number: TX:WPC02, RX: WPC-S3,WPC-S4,WPC-NOTE2,WPC-NOTE3 FCC ID : A4X-WPC02 KDB 680106 D01 Section 5.2 Requirements: Product Technical Specification： Result: a) Power transfer frequency is less that 1 MHz 110~205KHz Complied b) Output power from each primary coil is less than 5 Watts Primary coil (TX) Power = 4.5W Complied c) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils The wireless charger pad includes only a single primary coil which two induction coils in parallel connected. Please refer to internal photo for detail. Complied d) Client device is inserted in or placed directly in contact with the transmitter Client device is placed directly on the top of the wireless charger pad for the charging. Please refer to user manual for detail Complied e) The maximum coupling surface area of the transmit (charging) device is between 60 cm2 and 400 cm2. The maximum coupling surface is the whole surface of the top of the wireless charger pad. The total area = 78.5cm2. Please refer to external photo Complied f) Aggregate leakage fields at 10 cm surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30% of the MPE limit. The worst measured aggregate leakage field at 10 cm is 0.0089 A/m and less than 30% of General public limit. Please refer to RF exposure report.pdf Complied Sincerely, CE LINK LIMITED By: Sunny Sun________________ (Print name) Title: __________Engineer________________ On behalf of: ______ CE LINK LIMITED ____________________ (Company Name) Telephone: ___________0755-27247356_______________

CE LINK LIMITED Authority to Act as Agent Date: 2014-05-19 To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Hellen Wang in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By: Sunny Sun (Signature 1 ) (Print name) Title: Engineer On behalf of: CE LINK LIMITED (Company Name) Telephone:0755-27247356 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

CE LINK LIMITED Request for Confidentiality Date: 2014-5-19 Subject: Confidentiality Request for: ____ FCC ID: A4X-WPC02 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _ CE LINK LIMITED _____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: Sunny Sun (Signature/Title 3 ) (Print name)

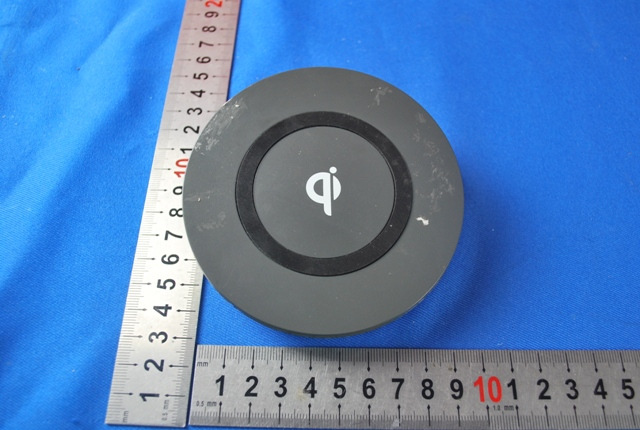

1.1 EUT Constructional Details This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only

Label is on the bottom of the device

1.1 EUT Constructional Details This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 W orkshop, M-10, Middle Section, Science & Technology Park, District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140500242903 Page: 1 of 15 Authorized Signature: Starry Li EMC Laboratory Project Engineer This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 1 Human Exposure Report Application No.: SZEM1405002429IT Applicant/Manufacturer: CE LINK LIMITED Address of Applicant/ Manufacturer: Building G, LiCheng Technology Industrial Zone, GongHe Village, ShaJing Town, ShenZhen City, China Factory: CE LINK LIMITED Address of Factory: Building G, LiCheng Technology Industrial Zone, GongHe Village, ShaJing Town, ShenZhen City, China Equipment Under Test (EUT): EUT Name: Wireless charger pad Model No.: WPC02 Standards: 47 CFR PART 1, Subpart I, Section 1.1310 Date of Receipt: 2014-05-22 Date of Test: 2014-05-30 to 2014-06-26 Date of Issue: 2014-08-15 Test Result : Pass* * This report is just a test result base on the test method and limit requirement shown in the form on the second page. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government.. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM130900523003 Page: 2 of 15 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 CONTENTS ......................................................................................................................................... 2 3 GENERAL INFORMATION .................................................................................................................. 3 3.1 DETAILS OF E.U.T. ............................................................................................................................. 3 3.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 3 3.3 TEST LOCATION ................................................................................................................................. 3 3.4 TEST FACILITY.................................................................................................................................... 4 3.5 DEVIATION FROM STANDARDS .............................................................................................................. 4 3.6 ABNORMALITIES FROM STANDARD CONDITIONS...................................................................................... 4 4 EQUIPMENTS USED DURING TEST .................................................................................................. 4 5 TEST RESULTS .................................................................................................................................. 5 5.1 RF EXPOSURE TEST ........................................................................................................................... 5 5.1.1 E.U.T. Operation ...................................................................................................................... 5 Operating Environment: ........................................................................................................................ 5 EUT Operation: .................................................................................................................................... 5 5.1.2 Measurement Data .…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Nanshan District Shenzhen, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM140500242902 Page: 1 of 15 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC Test Report Application No.: SZEM1405002429RF Applicant: CE LINK LIMITED Manufacturer/Factory: CE LINK LIMITED Equipment Under Test (EUT): EUT Name: Wireless charger pad Model No.: WPC02 FCC ID: A4X-WPC02 Standards: 47 CFR PART 18: 2013 Date of Receipt: 2014-5-22 Date of Test: 2014-05-30 to 2014-06-26 Date of Issue: 2014-07-04 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM140500242902 Page: 2 of 15 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary Test Test Requirement Test Method Class / Severity Result Conducted Emission (150 kHz to 30 MHz) 47 CFR PART 18: 2013 FCC OST/ MP-5:1986 18.307(a) Pass Radiated Emission (9 kHz to 1GHz) 47 CFR PART 18: 2013 FCC OST/ MP-5:1986 18.305(b) Pass SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM140500242902 Page: 3 of 15 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY .............................................................................…

Text truncated - open the document above for the full version.

1 Photographs Test Model No.: WPC02 1.1 Conducted Emission Test Setup 1.2 Radiated Emission Test Setup
