A4X-WPC10-1CCNAMagnetic Wireless charging

Magnetic Wireless Charger User Manual CONETNES 1.0 INTRODUCTION ---------------------------------------------------- 1 2.0 FEATURES ---------------------------------------------------------- 1 3.0 SPECIFICATIONS -------------------------------------------------- 1 4.0 PACKAGE CONTENTS ---------------------------------------------- 2 5.0 OPERATION --------------------------------------------------------- 2 6.0 CONNECTION DIAGRAM ------------------------------------------- 3 Wireless Charger 1 Magnetic Wireless Charger DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1.0 INTRODUCTION This product is a high-performance wireless charger. This product is suitable for mobile phones, and other productions based on wireless charging 5W /7.5W /10W/. Connect the wireless to a power charger, and then you can charge your device supported wireless charging (mobile phones, etc) by put it on the charger directly .It is helpful in long time journey and convenient for business! 2.0 FEATURES  Transmitting terminal input: 5V3A 9V2A  Transmitting terminal output: 5W/7.5W/10W  Compliant with CE, FCC, standards  It is light, smart and convenient to use 3.0 SPECIFICATIONS Input 5V3A 9V2A Wireless charging output 5W 7.5W 10W Switch Frequency 110kHz-205kHz Operating Temperature Range 0~40°C Storage Temperature Range -20 ~ 70°C Operation Humidity 10% ~ 80% RH Storage Humidity 5% ~ 95% RH Size 100(L)* 100(W)*17.9mm±0.2 Weight 155g±10 Wireless Charger 2 4.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:  Main unit×1  User Manual×1 5.0 OPERATION Operation Procedures 1. Connect the wireless charger with a powered adapter, Operation Notes 1. For optimum performance, please use the wireless charger according to this user manual. 2. Please connect the wireless charger to a power adapter which output should be 5V3A or 9V2A 3. Please unplug the wireless charger after using. 4. Do not use the wireless charger with an electronic product which is not in conformity with the specifications, so as to avoid any problem caused by specification mismatching. 5. It’s normal that wireless charger will be a little overheated in the use process. 6. When the wireless charger stops working under some accidents occurs, you need to check whether the device is compatible with this charger. 7. Do not let the wireless charger close to fire, such as stove, candles and etc. 8. Do not let the wireless charger soak into liquid, such as swimming pool, bathtub, etc. 9. Do not wash the wireless charger with corrosive cleaner. 10. If the wireless charger cannot work properly, please contact the store or distributor in your area. 11. This device complies with Part 15 of the FCC Rules 12. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received 13. Including interference that may cause undesired operation 14. FCC ID : A4X-WPC10-1CCNA Wireless Charger 3 6.0 CONNECTION DIAGRAM The Angle operation Mobile phone put the picture Wireless Charger 4 Wireless Charger 5 RF exposure statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. FCC Warning This device complies with Part 18 and part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. P/N

CE LINK LIMITED Building M, Li Cheng Technology Industrial Zone, Gong He Village, Sha Jing Town, Shen Zhen, China 518104 --------------------------------------------------------------------------------------------------------------------- Date: 2021-08-07 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A4X-WPC10-1CCNA Confidentiality Request To whom it may concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of the information accompanying this application as outlined below: ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, CE LINK LIMITED ------------------------------- (Changhong Chen) (Engineer)

CE LINK LIMITED Building M, Li Cheng Technology Industrial Zone, Gong He Village, Sha Jing Town,Shen Zhen, China 518104 -------------------------------------------------------------------------------- (FCC ID：A4X-WPC10-1CCNA) POWER OF ATTORNEY DATE: 2021-08-07 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, CE LINK LIMITED are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, CE LINK LIMITED ------------------------------- (Changhong Chen) (Engineer)

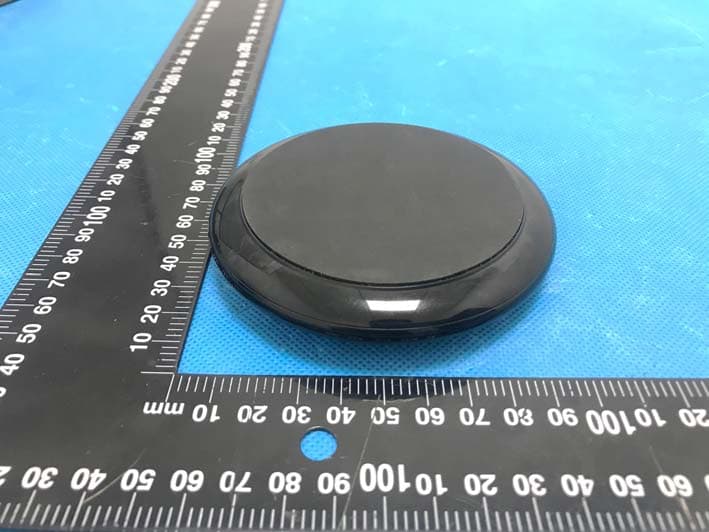

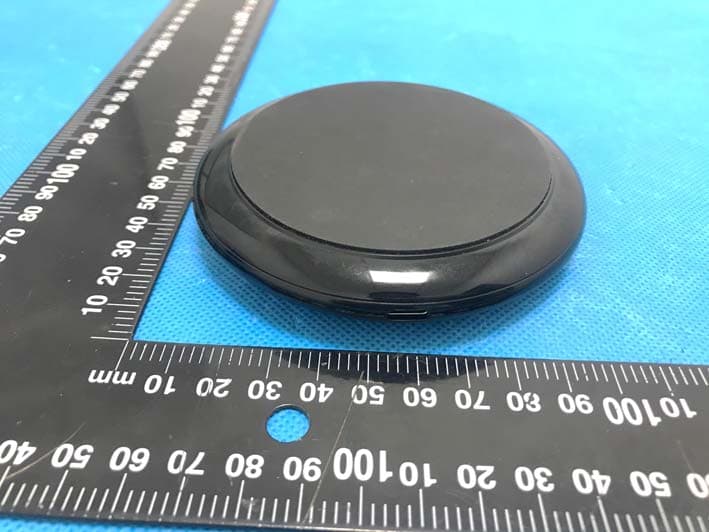

Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 11 TEST REPORT Reference No. ....................: WTX21X06064566W-2 FCC ID ............................... .: A4X-WPC10-1CCNA Applicant .......................... .: CE LINK LIMITED Address ............................ .: Building M,LiCheng Technology Industrial Zone,GongHe Village,ShaJing Town,ShenZhen City,China. Product Name .................. .: Magnetic Wireless charging Test Model. ....................... .: WPC10-1CCNA Standards ......................... .: KDB 680106 D01 V03 Date of Receipt sample ... .: Jun. 30, 2021 Date of Test....................... .: Jun. 30, 2021 to Jul. 15, 2021 Date of Issue .................... .: Jul. 15, 2021 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jason Su / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X06064566W-2 Page 2 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 11 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 5 2. RF EXPOSURE TEST REPORT ............................................................................................................................ 6 2.1 STANDARD APPLICABLE ......................................................................................................................................... 6 2.2 TEST CONDITIONS .................................................................................................................................................. 6 2.3 TEST PROCEDURE ................................................................................................................................................... 7 2.4 TEST RESULT.......................................................................................................................................................... 7 2.5 TEST PHOTOS ....................................................................................................................................................... 10 APPENDIX PHOTOGRAPHS ................................................................................................................................... 11 Reference No.: WTX21X06064566W-2 Page 3 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 3 of 11 Report version Version No. Date of issue Description Rev.00 Jul. 15, 2021 Original / / / Reference No.: WTX21X06064566W-2 Page 4 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 4 of 11 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: CE LINK LIMITED Address of applicant: Building M,LiCheng Technology Industrial Zone,GongHe Village,ShaJing Town,ShenZhen City,China. Manufacturer: Dongguan CE LINK LIMITED Address of manufacturer: 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China. Factory1: SuiChuan CE LINK LIMITED Address of factory1: SuiChuan county industrial park east zone, Ji’an city, Jiangxi province, China. Factory2: CE LINK VIET NAM COMPANY LIMITED. Address of factory2: Lot CNSG04&CNSG06 Van Trung Industrial Zone, Viet Yen district, Bac Giang Province, Vietnam General Description of EUT Product Name: Magnetic Wireless charging Trade Name: CE-LINK Model No.: WPC10-1CCNA Adding Model(s): / Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Frequency Range: 110~205kHz Power adapter / Antenna Type: Coil Antenna Antenna Gain: 0dBi Rated Voltage/Current: Input:5V ⎓2A, 9V⎓2A Output:5V ⎓ 1A, 7.5V⎓1A, 9V⎓1.1A 10W(Max) Rated Power: Output: 5W, 7.5W,10W Reference No.: WTX21X06064566W-2 Page 5 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 5 of 11 Auxiliary Equipment List and Details Description Manufacturer Model Serial Number DC Cable 0.8 Unshielded Without Ferrite wireless charging load YBZ YBZ wireless charging tester / 1.2 Test Equipment List and Details Description Manufacturer Model Serial No. Cal Date Due Date ELECTRIC AND MAGNETIC FIELD ANALYZER Narda EHP-200AC 180ZX10226 2021-05-20 2024-05-19 Reference No.: WTX21X06064566W-2 Page 6 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 6 of 11 2. RF Exposure Test Report 2.1 Standard Applicable According to §1.1310 system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. 2.2 Test Conditions Test Mode Description Remark TM1 Wireless Charging Input DC5V/2A; Output:DC5V/1A TM2 Wireless Charging Input DC9V/2A; Output:DC9V/1.1A Measurement Distance: 15 cm Reference No.: WTX21X06064566W-2 Page 7 of 11 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 7 of 11 2.3 Test Procedure a. The measurement probe was placed at test distance(15 cm for A,B,C,D,F and 20 cm for E) which is between the edge of the charger…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 24 TEST REPORT Reference No. ....................: WTX21X06064566W-1 FCC ID ............................... .: A4X-WPC10-1CCNA Applicant .......................... .: CE LINK LIMITED Address ............................ .: Building M,LiCheng Technology Industrial Zone,GongHe Village,ShaJing Town,ShenZhen City,China. Product Name .................. .: Magnetic Wireless charging Test Model. ....................... .: WPC10-1CCNA Standards ......................... .: FCC Part 18 Date of Receipt sample ... .: Jun. 30, 2021 Date of Test....................... .: Jun. 30, 2021 to Jul. 15, 2021 Date of Issue .................... .: Jul. 15, 2021 Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Tested by: Reviewed By: Approved & Authorized By: Jason Su / Project Engineer Lion Cai / RF Manager Silin Chen / Manager Reference No.: WTX21X06064566W-1 Page 2 of 24 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND OPERATION MODE ...................................................................................................................... 6 1.6 MEASUREMENT UNCERTAINTY .............................................................................................................................. 6 1.7 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 7 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 8 3. CONDUCTED EMISSIONS .................................................................................................................................... 9 3.1 STANDARD APPLICABLE ......................................................................................................................................... 9 3.2 TEST PROCEDURE ................................................................................................................................................... 9 3.3 BASIC TEST SETUP BLOCK DIAGRAM ..................................................................................................................... 9 3.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 3.5 TEST RECEIVER SETUP ......................................................................................................................................... 10 3.6 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 4. RADIATED EMISSIONS ....................................................................................................................................... 15 4.1 TEST PROCEDURE ................................................................................................................................................. 15 4.2 TEST RECEIVER SETUP ......................................................................................................................................... 17 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 17 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 17 APPENDIX PHOTOGRAPHS ................................................................................................................................... 24 Reference No.: WTX21X06064566W-1 Page 3 of 24 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Report version Version No. Date of issue Description Rev.00 Jul. 15, 2021 Original / / / Reference No.: WTX21X06064566W-1 Page 4 of 24 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: CE LINK LIMITED Address of applicant: Building M,LiCheng Technology Industrial Zone,GongHe Village,ShaJing Town,ShenZhen City,China. Manufacturer: Dongguan CE LINK LIMITED Address of manufacturer: 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China. Factory1: SuiChuan CE LINK LIMITED Address of factory1: SuiChuan county industrial park east zone, Ji…

Text truncated - open the document above for the full version.

Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission View (Below 30MHz) Reference No.: WTX21X06064566W Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission View (30MHz to 1GHz)
