A4X-WPC15-1LCNAWireless Charger

Wireless Charger WPC15-1LCNA User Manual CONETNES 1.0 INTRODUCTION ---------------------------------------------------- 1 2.0 FEATURES ---------------------------------------------------------- 1 3.0 SPECIFICATIONS -------------------------------------------------- 1 4.0 PACKAGE CONTENTS ---------------------------------------------- 1 5.0 OPERATION --------------------------------------------------------- 2 6.0 CONNECTION DIAGRAM ------------------------------------------- 3 Wireless Charger 1 Magnetic Wireless Charger DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. 1.0 INTRODUCTION This product is a high-performance wireless charger. This product is suitable for mobile phones, and other productions based on wireless charging 5W /7.5W /10W/15W. Connect the wireless to a power charger, and then you can charge your device supported wireless charging (mobile phones, etc) by put it on the charger directly .It is helpful in long time journey and convenient for business! 2.0 FEATURES  Transmitting terminal input: 5V3A 9V2A 12V1.5A  Transmitting terminal output: 5W/7.5W/10W/15W  Compliant with CE, FCC, standards  It is light, smart and convenient to use 3.0 SPECIFICATIONS Input 5V3A 9V2A 12V1.5A Wireless charging output 5W 7.5W 10W 15W Switch Frequency 110K-205K Operating Temperature Range 0~35°C Storage Temperature Range -20 ~ 60°C Operation Humidity 10% ~ 80% RH Storage Humidity 5% ~ 95% RH Size 59.70±0.15M 7.5MM±0.2MM Weight 78±10 g 4.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and Wireless Charger 2 make sure the following items are contained in the shipping carton:  Main unit×1  User Manual×1 5.0 OPERATION Operation Procedures 1. Connect the wireless charger with a powered adapter, Operation Notes 1. For optimum performance, please use the wireless charger according to this user manual. 2. Please connect the wireless charger to a power adapter which output should be 5V3A or 9V2A or 12V/1.5A 3. Please unplug the wireless charger after using. 4. Do not use the wireless charger with an electronic product which is not in conformity with the specifications, so as to avoid any problem caused by specification mismatching. 5. It’s normal that wireless charger will be a little overheated in the use process. 6. When the wireless charger stops working under some accidents occurs, you need to check whether the device is compatible with this charger. 7. Do not let the wireless charger close to fire, such as stove, candles and etc. 8. Do not let the wireless charger soak into liquid, such as swimming pool, bathtub, etc. 9. Do not wash the wireless charger with corrosive cleaner. 10. If the wireless charger cannot work properly, please contact the store or distributor in your area. 11. This device complies with Part 15 of the FCC Rules 12. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received 13. Including interference that may cause undesired operation FCC Warning This device complies with Part 18 of the FCC Rules. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Wireless Charger 3 Refer to FCC Part 18.213(c) and KDB 784748 Anner A section A.5: (a) Max. Electric Field Emissions: 6.01V/m Max. Magnetic Field Emissions: 0.51A/m (b) The maintenance of the system is the responsibility of the manufacturer. (c) To prevent interference, the product should be as far away from devices operating at the same frequency as possible. RF exposure considerations This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. 6.0 CONNECTION DIAGRAM

Date: 2023-08-29 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A4X-WPC15-1LCNA Applicant FRN: 0021335963 US Agent – Attestation Statement / Part 2.911(d)(7) CE LINK LIMITED certifies that, as of 2023-08-29, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: A4X-WPC15-1LCNA. CE LINK LIMITED, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of CE LINK LIMITED for FCC ID: A4X-WPC15-1LCNA. Designated Agent Information: Company Name: FCC US Agent, LLC U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: CE LINK LIMITED Designated Agent: FCC US Agent, LLC Company Representative: Changhong Chen Designated Agent Representative: Tim Payne Signature: Signature: CE LINK LIMITED 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China

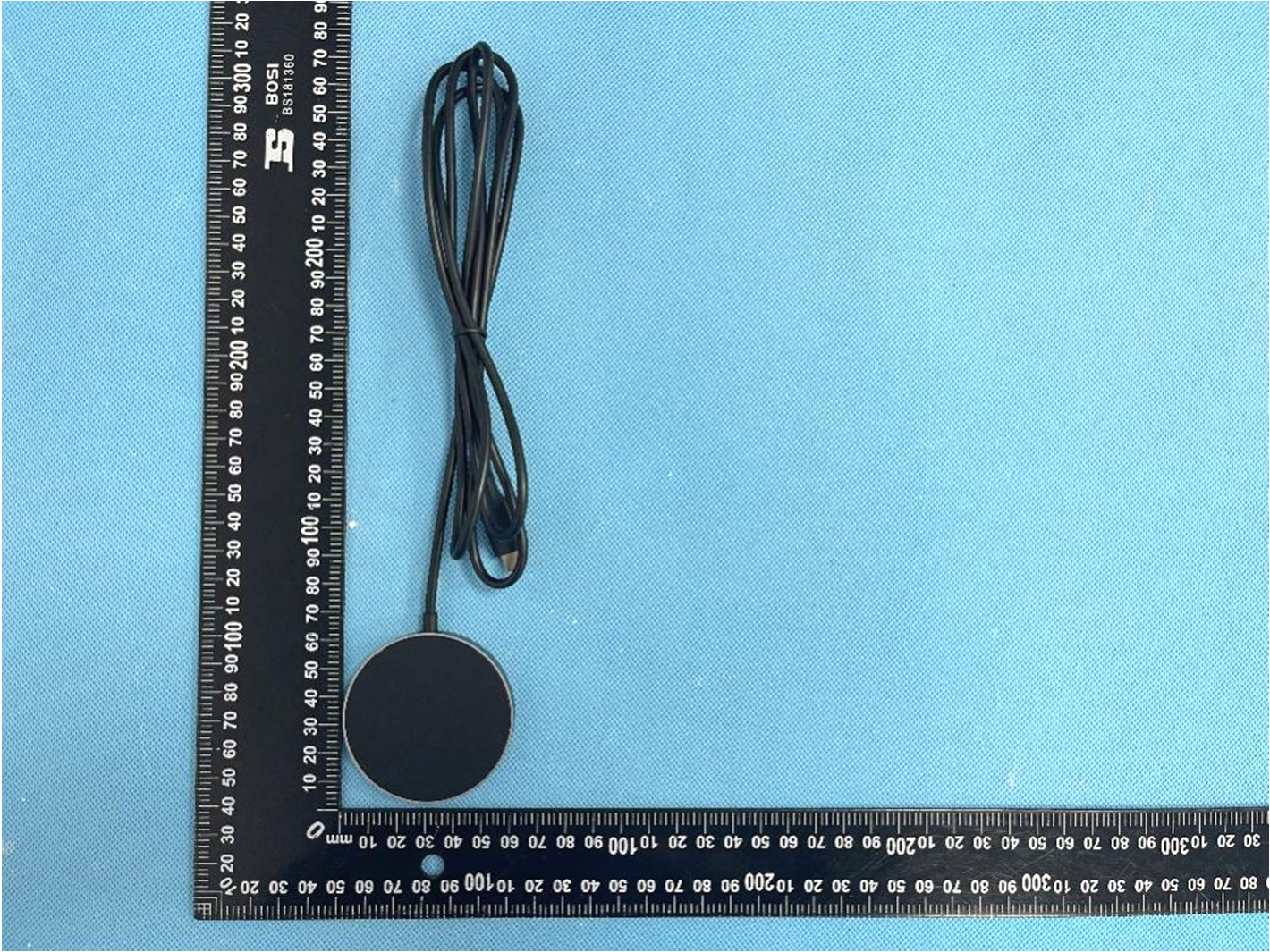

Reference No.: WTX23X07167538W Page 2 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X07167538W Page 3 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X07167538W Page 4 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTX23X07167538W Page 1 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X07167538W Page 5 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX23X07167538W Page 6 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX23X07167538W Page 7 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Antenna View Coil Antenna

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 13 TEST REPORT Reference No. .................... : WTX23X07167538W002 FCC ID ................................ : A4X-WPC15-1LCNA Applicant ........................... : CE LINK LIMITED Address.............................. : 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China. Manufacturer ..................... : DONGGUAN CE LINK LIMITED Address.............................. : 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China. Product Name ................... : Wireless Charger Model No. ........................... : WPC15-1LCNA Standards .......................... : KDB 680106 D01 V03 Date of Receipt sample .... : 2023-07-31 Date of Test........................ : 2023-07-31 to 2023-08-16 Date of Issue ..................... : 2023-08-16 Test Report Form No. ....... : WTX_KDB 680106 D01 V03W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Gala Wang Silin Chen Reference No.: WTX23X07167538W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 13 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................ 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................. 4 1.2 AUXILIARY EQUIPMENT LIST AND DETAILS ................................................................................................ 5 1.3 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................ 6 2. RF EXPOSURE TEST REPORT ................................................................................................................ 7 2.1 STANDARD APPLICABLE ........................................................................................................................... 7 2.2 TEST CONDITIONS ................................................................................................................................... 7 2.3 TEST PROCEDURE .................................................................................................................................. 8 2.4 TEST RESULT.......................................................................................................................................... 9 2.5 MEASUREMENT UNCERTAINTY ............................................................................................................... 11 2.6 TEST PHOTOS ....................................................................................................................................... 12 APPENDIX PHOTOGRAPHS ...................................................................................................................... 13 Reference No.: WTX23X07167538W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 3 of 13 Report version Version No. Date of issue Description Rev.00 2023-08-16 Original / / / Reference No.: WTX23X07167538W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 4 of 13 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Factory 1#: SuiChuan CE LINK LIMITED Address of factory: SuiChuan county industrial park east zone, Ji’an city, Jiangxi province, China. Factory 2#: CE LINK VIET NAM COMPANY LIMITED Address of factory: Lot CNSG04&CNSG06 Van Trung Industrial Zone, Viet Yen district, Bac Giang Province, Vietnam General Description of EUT Product Name: Wireless Charger Trade Name: CE-LINK Model No.: WPC15-1LCNA Adding Model(s): / Note: The test data is gathered from a production sample, provided by the manufacturer. Technical Characteristics of EUT Frequency Range: 110~205kHz Modulation Type: ASK Antenna Type: Coil Antenna Rated Voltage: Input: DC 5V/9V/12V Rated Current: Input:3A/2A/1.5A Rate Power: Output:5W/7.5W/10W/15W Reference No.: WTX23X07167538W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 5 of 13 1.2 Auxiliary Equipment List and Details Auxiliary Equipment List and Details Description Manufacturer Model Serial Number Adapter iottie CHCRIO160 / EUT Cable List and Details Cable Description Length (M) Shielded/Unshielded With Core/Without Core Type-C Cable 1.5 Shielded Without Core Reference No.: WTX23X07167538W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 6 of 13 1.3 Test Equipment List and Details Description Manufacturer Model Serial No. Cal Date Due Date ELECTRIC AND MAGNETIC FIELD ANALYZER Narda EHP-200AC 180ZX10226 2023-02-28 2024-02-27 Reference No.: WTX23X07167538W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 7 of 13 2. RF Exposure Test Report 2.1 Standard Applicable According to §1.1310 system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. 2.2 Test Conditions Test Mode Description Remark TM1 Wireless Charging Connect to the Adapter; AC120V 60Hz for adapter, Wireless Charging (MAX OUTPUT) Note: The EUT was tested with empty load, half load, and full load, and recorded the worst mode (full load) data in the report. Measurement Distance: 15 cm and 20 cm Reference No.: WTX23X07167538W0…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 19 TEST REPORT Reference No. .................... : WTX23X07167538W001 FCC ID ................................ : A4X-WPC15-1LCNA Applicant ........................... : CE LINK LIMITED Address.............................. : 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China. Manufacturer ..................... : DONGGUAN CE LINK LIMITED Address.............................. : 22 Dongkang Road, Dalingshan Town, Dongguan City, Guangdong Province, China. Product Name ................... : Wireless Charger Model No... ......................... : WPC15-1LCNA Standards .......................... : FCC Part 18 Date of Receipt sample .... : 2023-07-31 Date of Test........................ : 2023-07-31 to 2023-08-16 Date of Issue ..................... : 2023-08-16 Test Report Form No. ....... : WTX_Part 18W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Gala Wang Silin Chen Reference No.: WTX23X07167538W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 19 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ...............................................................................4 1.2 TEST STANDARDS ...................................................................................................................................................5 1.3 TEST METHODOLOGY .............................................................................................................................................5 1.4 TEST FACILITY .......................................................................................................................................................5 1.5 EUT SETUP AND OPERATION MODE ......................................................................................................................6 1.6 MEASUREMENT UNCERTAINTY ..............................................................................................................................7 1.7 TEST EQUIPMENT LIST AND DETAILS .....................................................................................................................8 2. SUMMARY OF TEST RESULTS ...........................................................................................................................9 3. CONDUCTED EMISSIONS .................................................................................................................................. 10 3.1 STANDARD APPLICABLE ....................................................................................................................................... 10 3.2 TEST PROCEDURE ................................................................................................................................................. 10 3.3 BASIC TEST SETUP BLOCK DIAGRAM ................................................................................................................... 10 3.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 10 3.5 TEST RECEIVER SETUP ......................................................................................................................................... 11 3.6 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 4. RADIATED EMISSIONS ....................................................................................................................................... 14 4.1 TEST PROCEDURE ................................................................................................................................................. 14 4.2 TEST RECEIVER SETUP ......................................................................................................................................... 15 4.3 CORRECTED AMPLITUDE & MARGIN CALCULATION ............................................................................................ 15 4.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 16 4.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 16 APPENDIX PHOTOGRAPHS ................................................................................................................................... 19 Reference No.: WTX23X07167538W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 3 of 19 Report version Version No. Date of issue Description Rev.00 2023-08-16 Original / / / Reference No.: WTX23X07167538W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 4 of 19 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Factory 1#: SuiChuan CE LINK LIMITED Address of factory: SuiChuan county industrial park east zone, Ji’an city, Jiangxi province, China. Factory 2#: CE LINK VIET NAM COMPANY LIMITED Address of factory: Lot CNSG04&CNSG06 Van Trung Industrial Zone, Viet Yen district, Bac Giang Pr…

Text truncated - open the document above for the full version.

Reference No.: WTX23X07167538W Page 8 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission View (Below 30MHz) Reference No.: WTX23X07167538W Page 9 of 9 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission View (30MHz to 1GHz) ***** END OF REPORT *****
