A4X01Smartball Slim

Smartball Slim User Manual . INTRODUCTION Smartball Slim 1 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or using this product. Please keep this manual for future reference. Smart ball Slim This product is compact and easy to take. With the latest Bluetooth 4.0 technology, it is stable performance and low power consumption, and its standby quiescent current consumption is only 3uA. It could be paired with the app and bind your iphone or other smartphones which revision should be Android4.3 or above. It can be used for wireless self-timer, also used for anti-lost and looking for valuables (such as children, purses, pets, briefcases, luggage, etc). It can also look for your phone. Advantages z Ultra-low power consumption: Shutdown consumes 3uA, normal operating current is 20 ~ 45uA, a CR2016 battery can be used for 3 months. z Joy of Self-timer: With the app, the wireless camera remote makes it easy to take "hands-free" photos from your smartphone. Just set up your phone, start the camera app, and then click the product to capture the shot z Bidirectional search: Do not worry about your valuables (including phone) were missing, as long as the connection is under the range, both will automatically trigger alert. z Alarm Reminder: Once entering an alarm status, your phone will play alert ringing repeatedly. FEATURES Smartball Slim 2 Features z Wide application z Small and beautiful, easy to take z Bi-directional Anti-lost Function z Ultra-low power dissipation; green and environment protect. z Wireless Autodyne Shutter z The power supply is CR2016, and the standby time is long. z Suitable for IOS 5.1 and Android 4.3 above (Include IOS 6.0 and Android 4.3) Application: iphone5/iphone5s/iphone4s/Samsung NOTE 3/ Huawei B199/ZTE Red Bull V5/HTC One max 8088/ Coolpad K1（7620L）/ Samsung S7272C /Sony M2... Package Includes 1) Main unit X1 ( The battery is placed separately) 2) User Manual X1 3) Lanyard X1 Sp Mod Fea Dim We Col Ope Com Bat Com Shu Ope Bat con Bat ope Indi Dev Pro ecificatio del atures mensions ight or erating Sys mpatible D ttery Capac mmunicatio utdown Cu erating Cu ttery Life ndition ttery Life erating con icate Meth vice Specif oduct Sh ons stem Devices city on Method rrent rrent e under e under ndition od: fications how & QR SPE Over Har d shutdow continuo R Code ECIFIC rview/ Bas 01 Anti-lo 32mm 10g White IOS 5 iphon B199 / Sams rdware Sp 85mA Blueto 3uA 20-45 wn 3 ye a ous 3 mon Red/ None CATIO 3 sic parame ost Functio m*32mm*7 e 5.1 or later; e 5/ iphon / ZTE V5/ sung S7272 ecification AH (remova ooth 4.0 B 5uA ars nths Green LED e ONS eters on; Finding mm ; android 4 e 5s/ ipho HTC One 2C / SONY ns able button LE mode o D indicator Android C g Function; 4.3 or later ne 4s/ Sam max 8088/ Y M2 ... n battery) only r； Buzzer Client i ; self-shot msung NO / Coolpad r iOS Client Smartball OTE 3/ Hua K1（7620 Slim awei L）/ CONNECTION Smartball Slim 4 Connection and Operation Usage method 1. Battery Installation Open the back cover, and put the CR2016 battery into the battery case, the back of battery is upwards, close the back cover. 2. Remove the battery Open the battery cover and remove the CR2016 battery. 3. Connection status A) If the product is turned off, long press the product two seconds, enter the power-on status, the green light flashes three times. B) Click APP "switch" icon. Connect with the device at the first time, need to choose the product you used and after that, it will be connected to the device automatically when you click the icon. C) Once the connection is successful, the light of product glows green once, and the buzzer sounds once. D) In connected status, press the product each time, the green light will flash once. 4. Disconnect status In connection status, click on the APP "switch" icon, enter the disconnected state, the red light flashes three times, and as long as the light flashes each time, the buzzer will alarm once. 5. Shutdown status In boot mode, long press the product two seconds, enter the shutdown status, the red light flashes twice quickly. 6. Alarm status In alarm status, double-click on the product, or click "Stop Alarm" button on APP Wireless Self-timer Enter the APP camera interface, in connected status, click the product, can be photographed. 7. Bi-directional seeking Seek for your phone: in connected status, double-click on the product, your phone gets into bright screen and enters an alarm status, the alarm sound plays in a loop. 8. 9. Ma t 1. 2. 3. 4. 5. CO Seek for distance b product fla Rename t In the set and can o Alarm ring In the setu tters need Please us Please do Do not ex Do not let Do not wa ONNECT this produ between y ashes onc the produc tup interfac only enter l gtone up interfac d attention se the prod o not let the xpose the p t the produ ash the pro TION DIA CO uct: Go to your phone e and buzz ct ce, you ca etters, num ce, you can n duct accord e product n product to e uct soaked oduct by us AGRAM ONNE "find the b e and prod zer sounds an change mbers, and n adjust the ding to the near the fir extreme te into liquid, sing corros ECTIO 5 ball" interfa uct; mean s one seco the name d the unde e volume, a user man re, such as emperature , keep it aw sive cleane ON ace, phone while, eve ond. of the pro rscore. and select ual. s stove, ca e environm way from th er. e signal st ery five sec oduct, up t one type o ndles, etc ment he swimmi P / trength ca conds, gre to 14 chara of ringtone ing pool, b /N9001 Smartball n reaction een light of acters at m e. bathtub, etc Slim the f the most c CONNECTION Smartball Slim 5 FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes …

Text truncated - open the document above for the full version.

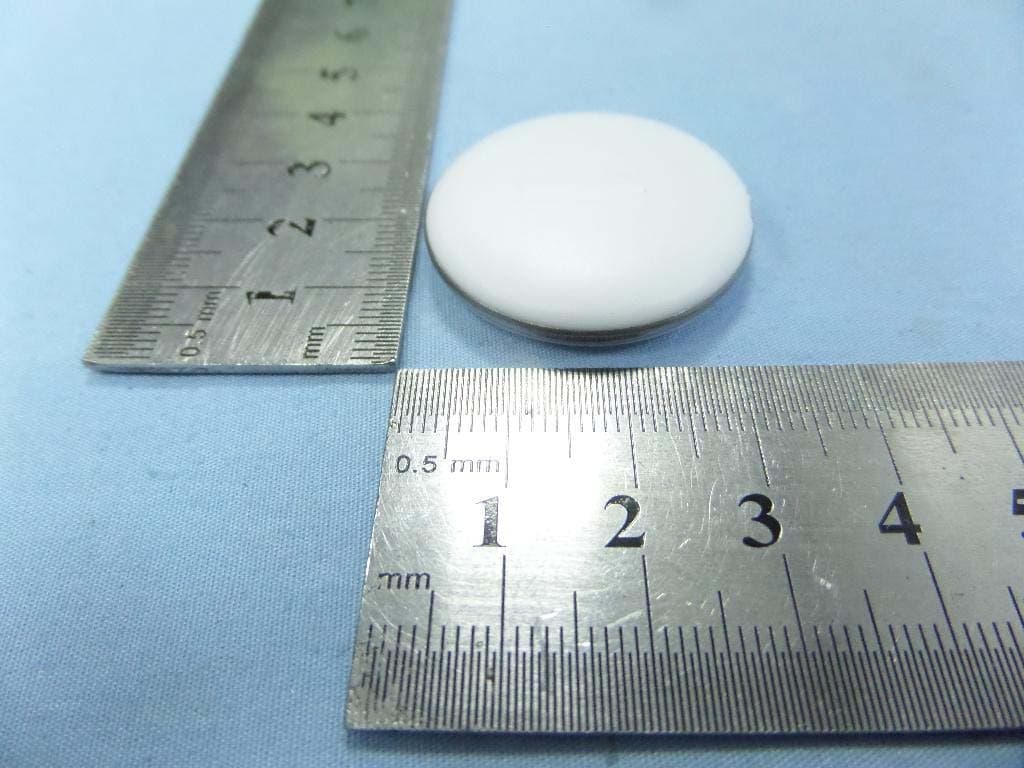

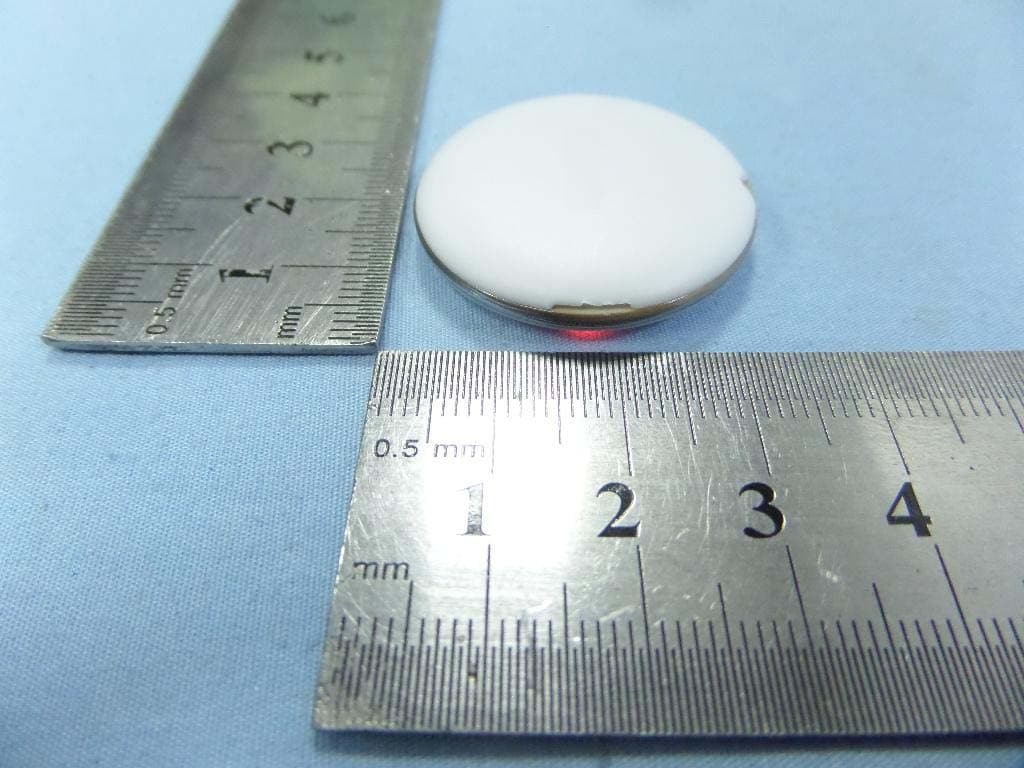

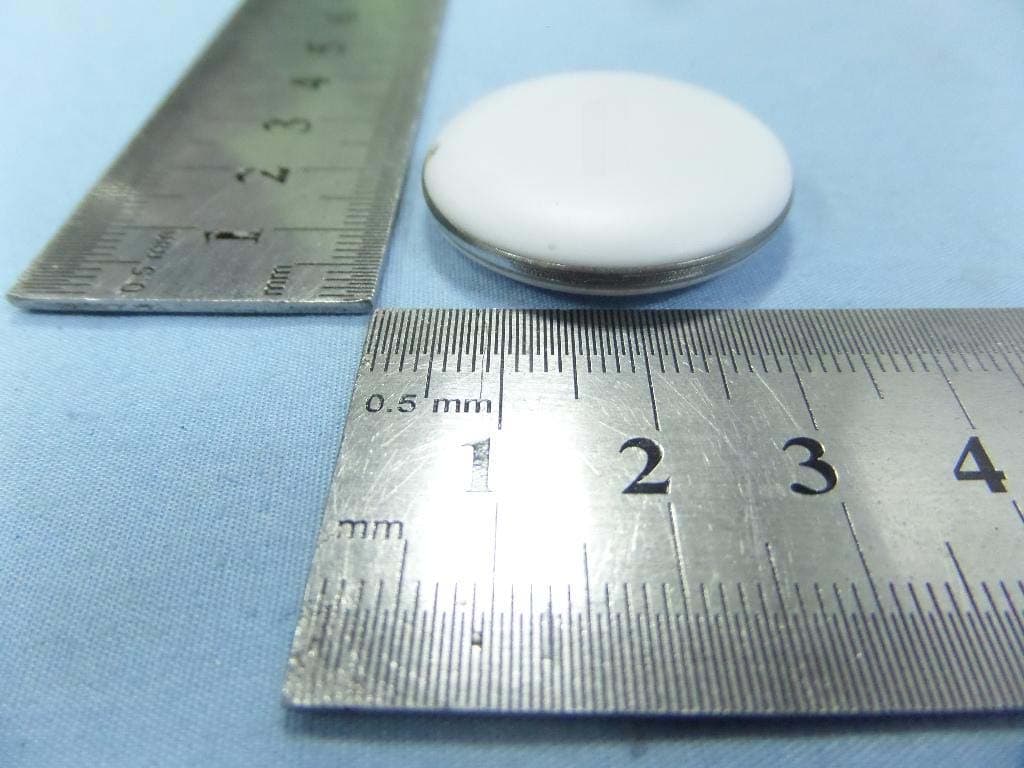

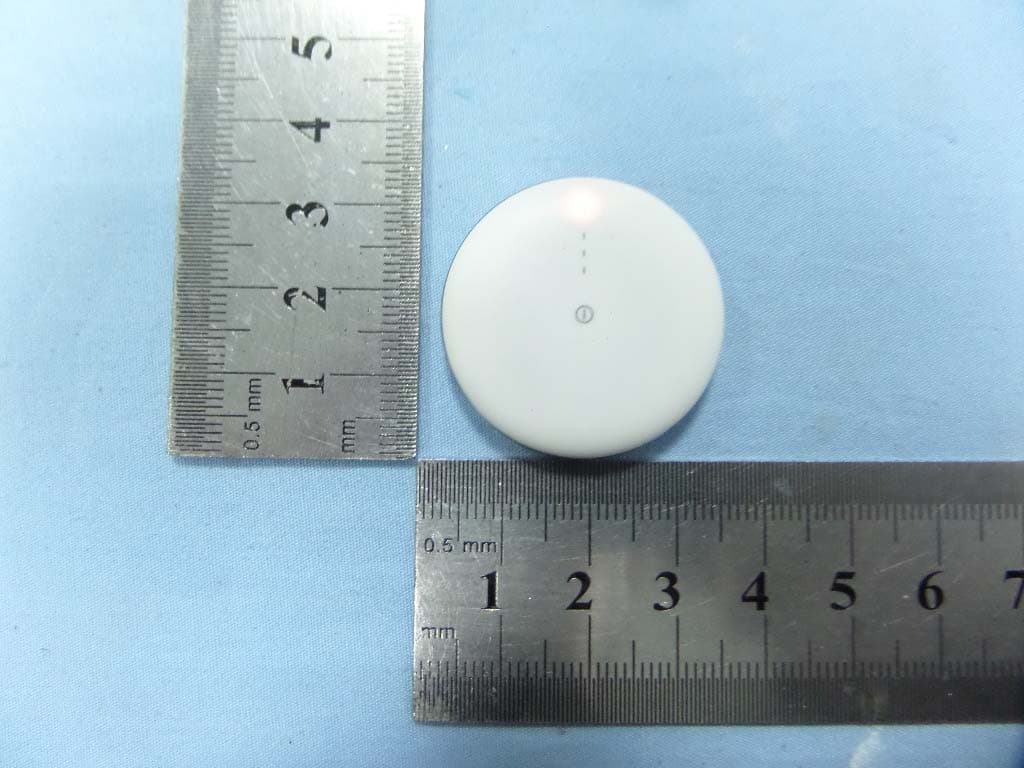

CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EUT View 3 EUT View 4 CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EUT View 5 EUT View 6

CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: A4X01 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: A4X01 Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 Solder Board-Component View 1 Solder Board-Component View 2 BT Antenna

RF Exposure Requirements Product Description: Smartball Slim Model No.: 01 FCC ID: A4X01 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 0.501dBm Maximum Output Power: 1.122mW Limit: 10mW Source-based time-averaged output power is 1.122mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I PAGE 1 OF 32 FCC PART 15.247 FCC Part 15C Measurement and Test Report For CE LINK LIMITED Building G, LiCheng Technology Industrial Zone, GongHe Village, ShaJing Town, ShenZhen City, China FCC ID: A4X01 FCC Rule(s): FCC Part 15.247 Product Description: Smartball Slim Tested Model: 01 Report No.: STR14088058I Tested Date: 2014-08-05 to 2014-08-12 Issued Date: 2014-08-12 Tested By: Vigoss Liang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I PAGE 2 OF 32 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. FIELD STRENGTH OF SPURIOUS EMISSIONS ....................................................................…

Text truncated - open the document above for the full version.

CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) CE LINK LIMITED Model: 01 REPORT NO.: STR14088058I FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
