A5E-XPIRIS2MID

www.antennainternational.com Amsterdam. Bangkok. Barcelona. Berlin. Chicago. Connecticut. Edinburgh. London. Madrid. New York. Paris. Rome. San Francisco. Singapore. Taipei. Warsaw. XP Iris 2 User Manual XP Iris 2 – User Manual Page 2 of 29 Copyright © 2014 Antenna International Ltd. All rights reserved No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of Antenna International Ltd. Antenna International Ltd. endeavors to ensure that the information in this document is correct and does not accept any liability for error or omission. XP Iris 2 is a registered trade mark of Antenna International Ltd. Antenna International Ltd. 85 Great Eastern Street London EC2A 3HY United Kingdom T: +44 (0)20 3365 8600 F: +44 (0)20 3365 8601 Email: [email protected] XP Iris 2 – User Manual Page 3 of 29 Contents XP Iris 2 Overview.........................................................................................................................................5 Features ........................................................................................................................................................6 XP Iris 2 Controls:..........................................................................................................................................8 Chargers......................................................................................................................................................10 Connecting and Testing the Charging Unit .................................................................................................10 Charging the XP Iris 2:.................................................................................................................................10 Preparation for Use.....................................................................................................................................11 Using the Player ..........................................................................................................................................11 Iris Connect 2 TM :..........................................................................................................................................12 Setting up Iris Connect 2 TM : ........................................................................................................................12 Installing New Applications:........................................................................................................................14 Removing Content from Devices: ...............................................................................................................15 Locking XP Ir is 2 TM Device:..........................................................................................................................16 Unlocking XP Iris 2 Device:..........................................................................................................................16 Battery Operation Optimization .................................................................................................................17 Lithium‐Polymer Battery Caution ...............................................................................................................17 Cleaning and Hygiene .................................................................................................................................18 Precaution...................................................................................................................................................19 Troubleshooting..........................................................................................................................................20 Service and Repair Procedure.....................................................................................................................21 Warranty.....................................................................................................................................................22 Certification.................................................................................................................................................23 FCC COMPLIANCE STATEMENT...................................................................................................................23 IC STATEMENT.............................................................................................................................................24 Environmental Considerations....................................................................................................................25 Worldwide Contacts ...................................................................................................................................26 Specifications ..............................................................................................................................................27 XP Iris 2 Player ............................................................................................................................................27 CH150‐2 TM Charging Rack ...........................................................................................................................28 XP Iris 2 – User Manual Page 4 of 29 Headphones............................................................................................................................................29 Speaker ...................................................................................................................................................29 XP Iris 2 – User Manual Page 5 of 29 XP Iris 2 Overview The XP Iris 2 is a portable, handheld, multimedia player which provides rich audio and video content, enhancing visitor experiences at cultural site…

Text truncated - open the document above for the full version.

1 [January 28, 2014] To whom it may concern, Letter of Agency I, an officer of ANTENNA INTERNATIONAL do hereby authorize Intertek Testing Services (Mr. Shawn Xing) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2007) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Carl Fazio CFO

1 [January 28, 2014] To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: A5E-XPIRIS2 Request is hereby submitted by ANTENNA INTERNATIONAL to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and ANTENNA INTERNATIONAL reserves the right to discern which parties can obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of ANTENNA INTERNATIONAL and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Carl Fazio CFO

Label Artwork FCC ID: A5E-XPIRIS2 IC: 10062A-XPIRIS2 Label Size: 50mm (wide) x 20mm (high) Label Location Antenna International www.antennainternational.com FCC ID: A5E-XPIRIS2 IC: 10062A-XPIRIS2 M/N : XP IRIS2 Made in China

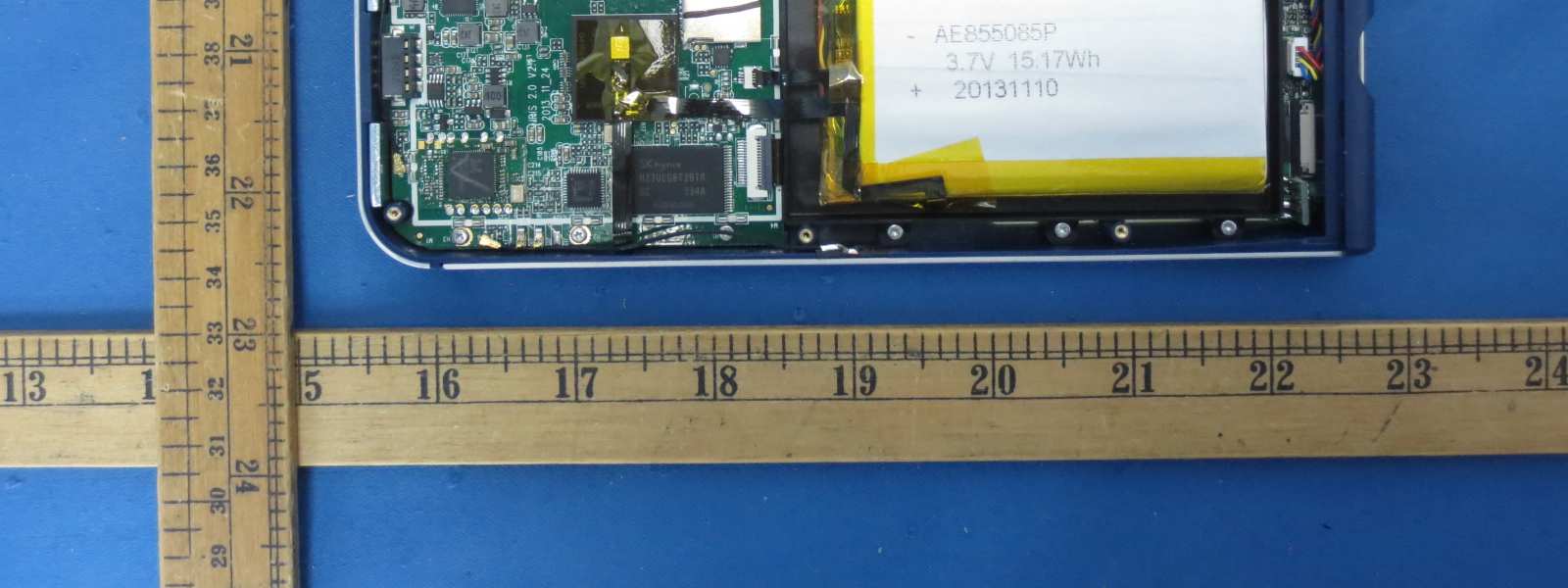

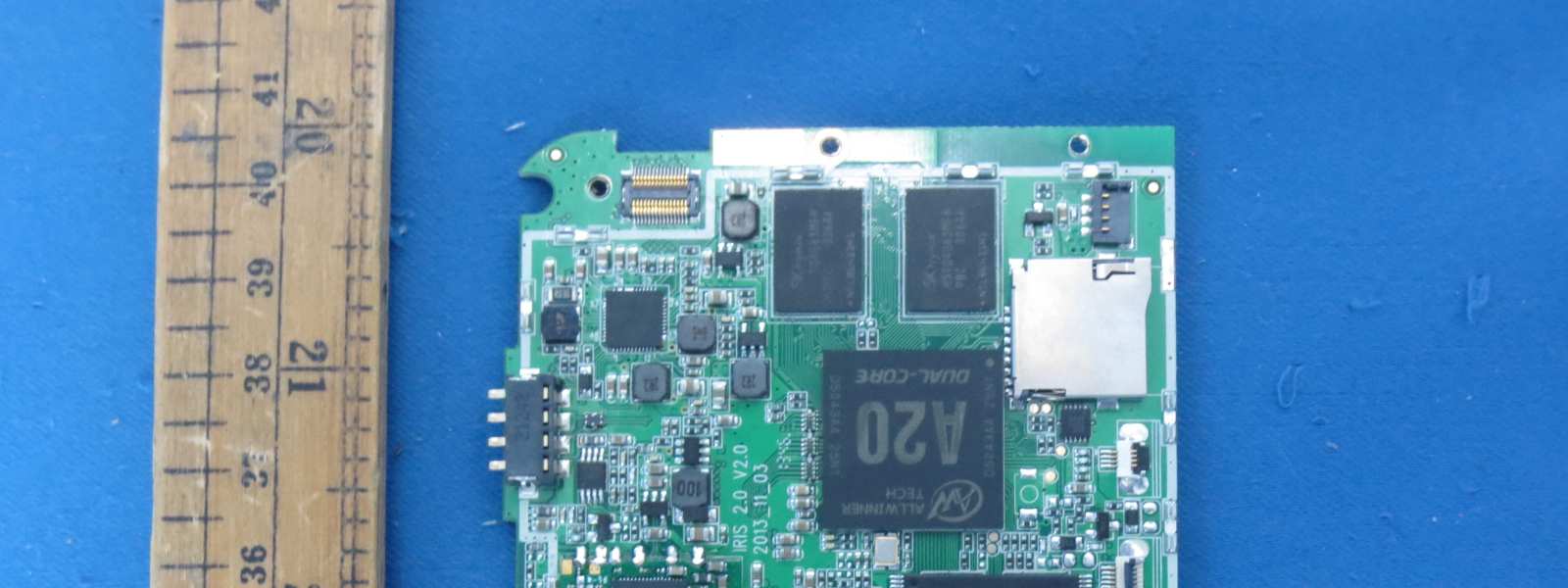

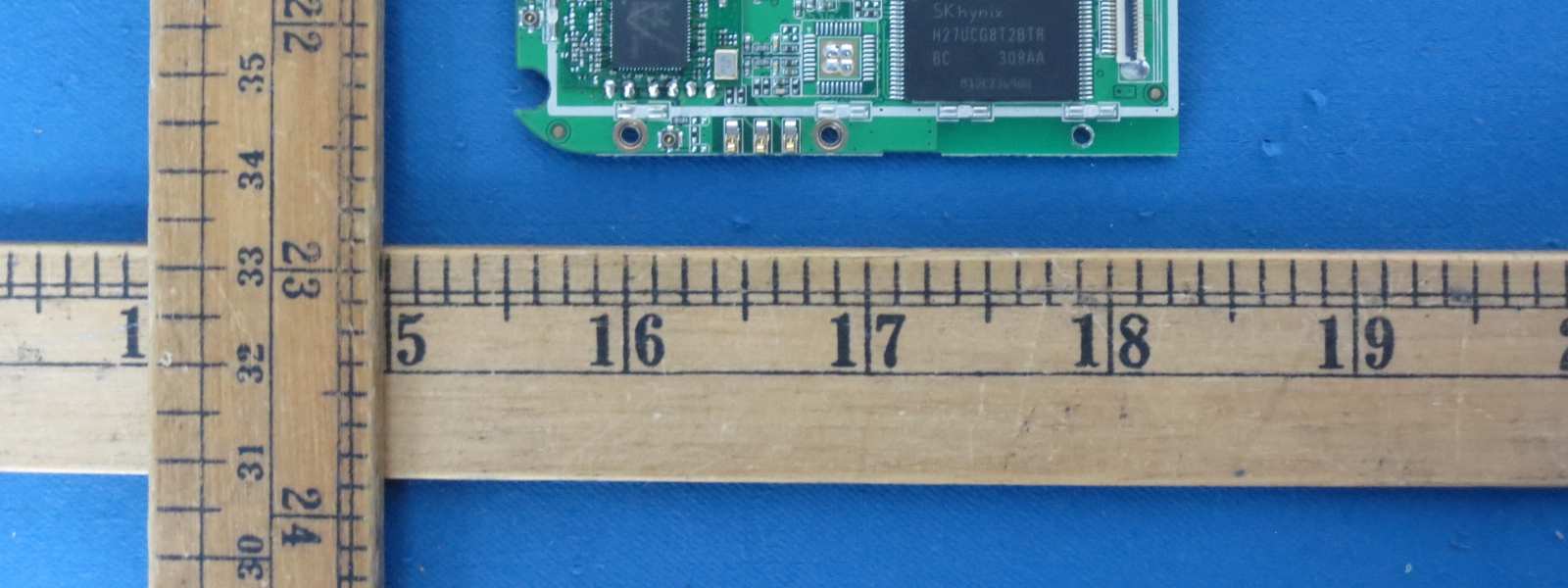

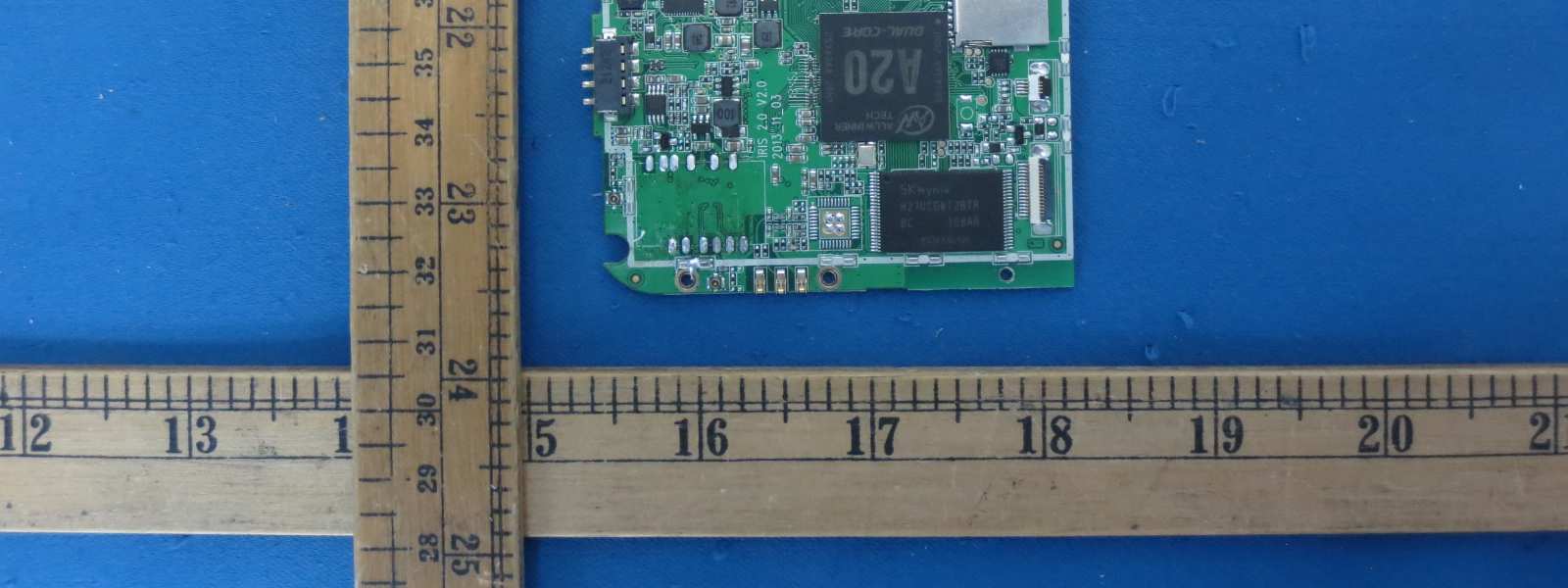

Internal Photos (MID) WIFI Antenna connector BT Antenna connector WIFI Antenna BT Antenna

FCC ID: A5E-XPIRIS2 1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a MID. The EUT was powered by a 3.7 VDC Li-ion rechargeable battery which can be charged by a charging dock with DC 5V output and the charging dock is intended to be powered by an AC/DC adapter with AC 120V, 60Hz input during the test. For more detail information pls. refer to the user manual. For Wifi function and operating frequency is 2412-2462MHz: Modulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK. Antenna Type: Integral antenna Antenna Gain: 1dBi The nominal conducted output power is 6.0dBm (Tolerance: +/- 2dB) According to the KDB 447498: The maximum peak conducted output power for the EUT is 7.43dBm in the frequency 2412MHz (802.11g) which is within the product variation. The minimum peak conducted output power for the EUT is 5.13dBm in the frequency 2412MHz (802.11b) which is within the production variation. The maximun conducted output power specified is 8dBm = 6.31mW The source- based time-averaging conducted output power = 6.31 * Duty cycle mW= 6.31 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.462) mW = 9.6 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 100%. This requirement is according to KDB 865664 D02 FCC ID: A5E-XPIRIS2 2 For BT 4.0 function and operating frequency is 2402-2480MHz Modulation Type: GFSK Antenna Type: Integral antenna Antenna Gain: 2.5dBi The Peak nominal radiated emission power (e.i.r.p) specified: 2.5dBm (Tolerance: +/- 2dB) The Peak nominal conducted output power specified: 0dBm (Tolerance: +/- 2dB) According to the KDB 447498: The maximun radiated emission for the EUT is 99.3dBμV/m at 3m in the frequency 2402MHz = [(FS*D) ^2 / 30] mW = 4.07dBm which is within the production variation. The minimum radiated emission for the EUT is 97.7dBμV/m at 3m in the frequency 2440Hz = [(FS*D) ^2 / 30] mW = 2.47dBm which is within the production variation. The maximun conducted output power specified is 2dBm = 1.58mW The source- based time-averaging conducted output power = 1.58 * Duty cycle mW= 1.58 mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.5 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 100%. This requirement is according to KDB 865664 D02 FCC ID: A5E-XPIRIS2 3 For both WIFI and BT 4.0 are simultaneous transmissions estimated According to the KDB 447498: When both WIFI and BT 4.0 are simultaneous transmissions, the maximum peak conducted output power for WIFI is 8.0dBm. In the simultaneous transmissions, WIFI’s estimated SAR values: = (max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm) * [sqrt(freq. in GHz)/7.5] W/kg = 6.31 / 5*[sqrt (2.462) / 7.5] W/kg = 0.264 W/kg When both WIFI and BT 4.0 are simultaneous transmissions, the maximun conducted output power for BT 2.0 is 2dBm. In the simultaneous transmissions, BT 4.0’s estimated SAR values: = (max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm) * [sqrt(freq. in GHz)/7.5] W/kg = 1.58 / 5*[sqrt (2.480) / 7.5] = 0.066 W/kg Sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode: WIFI’s estimated SAR values + RFID’s estimated SAR values = 0.264 + 0.066 W/kg = 0.330 W/kg The simultaneous transmissions SAR Evaluation: ≤ 0.4 W/kg This requirement is according to KDB 865664 D02

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample m ay be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_b I ntertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com A ntenna International Application For Certification FCC ID: A5E-XPIRIS2 MID Model: XP IRIS2 Brand Name: Antenna International TM W iFi Transceiver Report No.: 140102026SZN-009 W e hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-13] P repared and Checked by: Approved by: Si gn on file Sen Lv Project Engineer Billy Li Supervisor Date: March 11, 2014 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_b FCC ID: A5E-XPIRIS2 Report No.: 140102026SZN-009 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request EXHIBIT 10: Miscellaneous Information EXHIBIT 11: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: A5E-XPIRIS2 Report No.: 140102026SZN-009 ii MEASUREMENT/TECHNICAL REPORT Antenna International MODEL: XP IRIS2 FCC ID: A5E-XPIRIS2 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-13 Edition] provision. Report prepared by: Sen Lv Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0653 Fax: (86 755) 8614 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_b FCC ID: A5E-XPIRIS2 Report No.: 140102026SZN-009 iii Table of Contents 1.0 Summary of test results ............................................................................... 2 2.0 General Description ................................................................................................ 4 2.1 Product Description ....................................................................................... 5 2.2 Related Submittal(s) Grants .......................................................................... 5 2.3 Test Methodology .......................................................................................... 5 2.4 Test Facility ................................................................................................... 5 3.0 System Test Configuration ................................................................................. 7 3.1 Justification ................................................................................................... 7 3.2 EUT Exercising Software ............................................................................... 7 3.3 Details of EUT and Description of Peripherals ............................................... 8 3.4 Measurement Uncertainty.............................................................................. 8 3.5 Equipment Modification ................................................................................. 8 3.6 Support Equipment List and Description ....................................................... 8 4.0 Measurement Results .......................................................................................... 10 4.1 Maximum Conducted Output Power at Antenna Terminals .......................... 10 4.2 Minimum 6dB RF Bandwidth ....................................................................... 12 4.3 Maximum Power Density ................................................................................ 22 4.4 Out of Band Conducted Emissions ............................................................... 31 4.5 Out of Band Radiated Emissions ................................................................. 56 4.6 Transmitter Radiated Emissions in Restricted Bands ................................... 57 4.7 Field Strength Calculation ............................................................................ 58 4.8 Radiated Spurious Emission ........................................................................... 59 4.9 Conducted Emission .......................................................…
