Page 1 of 1 RP-7126L 12 East Devonwood SOLVING A WAVE OF EMI COMPLIANCE PROBLEMS Romeoville, IL 60446 May 2, 2012 Tel: (815) 293-0772 Page 1 of 1 Fax: (815) 293-0820 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Industry Canada Certification and Engineering Bureau Ottawa, Ontario K2H 8S2 Canada Reference FCC ID: A5Y6803 Reference IC ID: 10163A-AFF6803E Organization: Dynaco Long Term Confidentiality Dynaco requests that the following materials be withheld from public inspection permanently under 47 C.F.R. 0.457 & 0.459: (1) Detailed Circuit Schematics of the EUT (2) Internal EUT Photographs (3) Block Diagrams (4) EUT Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. They are considered confidential trade secrets. The internal photos are held confidential since the product is normally potted which prevents the end user from seeing the circuit board. Authorized Signature Joseph Strzelecki Senior EMC Engineer Radiometrics Midwest Corporation Authorized Agent for Dynaco USA, Inc.

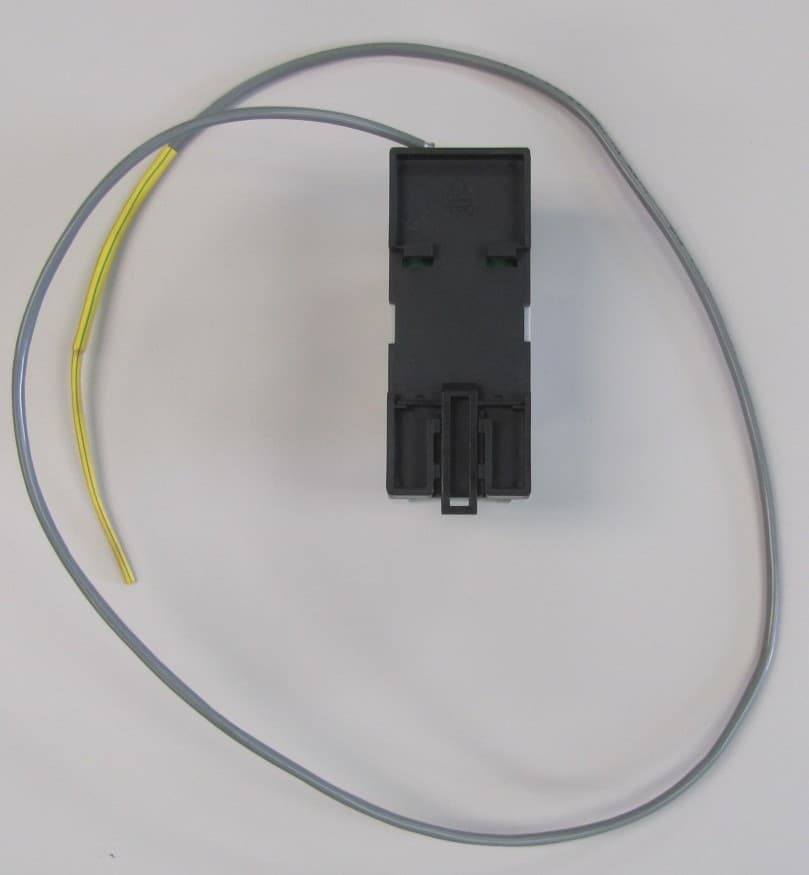

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 External EUT Photographs Front of Transmitter Rear of Transmitter Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Front of Receiver Rear of Receiver Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Bottom of Receiver Top of Receiver

DYNACO. THE SAFEST CHOICE DYNACO USA, Inc. Tel. (800) 459-1930 Fax (800) 459-1960 935 Campus DriveWeb : www.dynacodoor.us Mundelein, IL 60060E-mail: [email protected] FCC label placement position January, 2012 * DYNACO reserves the right to modify the characteristics of its products and parts without preceding notice. FCC Label placement position. ARF-6803 Emitter unit. Material to be Vinyl Text to be Black Letters printed on White background Adhesive to be permanent Size to be 1.75 x 0.5 inches Drawing of label

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Internal EUT Photographs Photograph of Transmitter Board: Component side Photograph of Transmitter Board: Foil Side Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photograph of Receiver: Cover removed Receiver Board: Component Side Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Receiver Board: Foil Side

Radiometrics Midwest Corporation - www.Radiomet.com Page 1 of 17 Electromagnetic Compatibility Test Report Tests Performed on a DYNACO USA Wireless Bottom Detector, Models ARF6838 (Receiver) and ARF6803 (Transmitter) Radiometrics Document RP-7126 Product Detail: FCC ID: A5Y6803 IC: 10163A-ARF6803E Equipment type: Momentarily Operated Transmitter and Receiver Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2012 Industry Canada RSS-210, Issue 8: 2010 as required for Category I Equipment This report concerns: Original Grant for Certification FCC Part 15.231 Tests Performed For: Test Facility: DYNACO USA 935 Campus Drive Mundlein, IL 60060 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 (815) 293-0772 Test Date(s): (Month-Day-Year) September 30, 2011 Document RP-7126A Revisions: Rev. Issue Date Affected Sections Revised By 0 May 17, 2012 1 June 5, 2012 All Joseph Strzelecki 2 June 8, 2012 10.2.1 Joseph Strzelecki Radiometrics Midwest Corporation www.radiomet.com Testing of the DYNACO USA, Model ARF6803 and ARF6838, Wireless Bottom Detector RP-7126A Rev. 2 Page 2 of 17 Table of Contents 1 ADMINISTRATIVE DATA.....................................................................................................................3 2 TEST SUMMARY AND RESULTS....................................................................................................... 3 2.1 RF Exposure Compliance Requirements ......................................................................................3 3 EQUIPMENT UNDER TEST (EUT) DETAILS......................................................................................4 3.1 EUT Description.............................................................................................................................4 3.1.1 FCC Section 15.203 & RSS-GEN Antenna Requirements .....................................................4 3.2 Related Submittals.........................................................................................................................4 4 TESTED SYSTEM DETAILS ...............................................................................................................4 4.1 Tested System Configuration ........................................................................................................4 4.2 Special Accessories.......................................................................................................................4 4.3 Equipment Modifications................................................................................................................5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS ...................................................................5 6 RADIOMETRICS’ TEST FACILITIES................................................................................................... 5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS ..........................................6 8 CERTIFICATION ..................................................................................................................................6 9 TEST EQUIPMENT TABLE .................................................................................................................6 10 TEST SECTIONS ...............................................................................................................................6 10.1 AC Conducted Emissions ............................................................................................................6 10.2 Time of Occupancy (Dwell Time)............................................................................................... 10 10.2.1 Deactivation Time................................................................................................................11 10.3 Occupied Bandwidth ..................................................................................................................11 10.4 Radiated RF Emissions .............................................................................................................12 10.4.1 Field Strength Calculation ...................................................................................................13 10.4.2 Transmitter Radiated Emissions Test Results ....................................................................13 10.5 Unintentional Emissions (Receiver) ........................................................................................... 17 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. Radiometrics Midwest Corporation www.radiomet.com Testing of the DYNACO USA, Model ARF6803 and ARF6838, Wireless Bottom Detector RP-7126A Rev. 2 Page 3 of 17 1 ADMINISTRATIVE DATA Equipment Under Test: A DYNACO USA, Wireless Bottom Detector Model: ARF6803 and ARF6838 Serial Number: Sample A This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) 9-27-2011 September 30, 2011 Test Report Written By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer The tests were not witnessed by DYNACO USA Radiometrics’ Personnel Responsible for Test: Test Report Approved By Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a Wireless Bottom Detector, Models ARF6838 (Receiver) and ARF6803 (Transmitter), manufactured by DYNACO USA. The detailed test results are presented in a separate section. The following is a summary of the test results. Emissions Tests Results Environmental Phenomena Frequency Range Basic Standard Test Result RF Radiated Emissions 30-9000 MHz RSS-210 & FCC Part 15 Pass Conducted Emissions, AC Mains 0.15 - 30 MHz RSS-210 & FCC Part 15 Pass Occupied Bandwidth Test Fundamental Freq. RSS-210 & FCC Part 15 Pass Note: The RSS-210…

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Test Setup Photographs Photographs of Radiated Emissions Test Setup Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 Photographs of Conducted Emissions Test Setup
