A6N-341RX5-Day Weather Forecasting Station

Thermor Ltd.

Click to zoom

Application Details

Equipment Class: CYY - Communications Receiver used w/Pt 15 Transmitter
Date of Grant: Dec 11, 2012
Application Purpose: Original Equipment
Date of Application: Dec 11, 2012
Equipment Note: 5-Day Weather Forecasting Station
Frequency Range: 433.92000000 - 433.92000000
Company: Thermor Ltd.
Country: Canada

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Instructions 1. Features： z 6 function button：MODE, AL ON/OFF, UP, DOWN, SNZ/LIGHT, REGISTER. z Self-setting clock automatically sets to internet calendar clock (12/24 format) z Perpetual calendar z Weekday display in 7 languages: German, English, Italian, French, Danish, Dutch, Spanish z Monitors indoor/outdoor temperature and 5-day weather forecasts z Weather forecast lcons: sunny, partly cloudy, cloudy, rainy, storm rainy, snow, storm snow z Daily UV intensity indicator (range: 0 ~ 12 UVI) z Dual crescendo alarm with snooze z Hi or low temperature( or )°C°F z LCD display information from USB transmitter through internet. z Wall mount and desktop option z Blue LED backlight 2. Button Functions： 2.1 Normal display： z Press“MODE”to check ALARM time z When display Normal time，hold “MODE”button for 3 seconds to setting time. z When display ALARM mode，Press“MODE”button to set alarm. z Press“DOWN” button to change the C/F temperature display format z Hold “Register”for 3 seconds to re-register. z Press“UP”button have no functions z Press“AL ON/OFF” button，to turn on or turn off ALARM functions，display will be： AL1ON AL2ON AL1+AL2ON=》AL1+AL2OFF z When ALARM functions works, press“SNZ”button for snooze function，5 minutes alarm function will repeat, press other button to stop alarm function 2.2 Time setting z Press“MODE”button to normal time display z Hold “MODE”button for 3 second to time setting format. z The setting parts will be flash by 1HZ frequency z Setting procedure is：Year-month-date-language-12/24 format-hour-minute-exit z Press“MODE”button to finish time setting. z Unit will exit automatic if no setting in 20 seconds. z If“ E-time”signal on the screen, that’s means the time was automatic settled, no need set the time ，if setting the time by hands,“E-time” signal will be disappear. 2.3 Alarm time setting z Press“MODE”button to alarm display mode，procedure is：TIME AL1 AL2 TIME z When display AL time press “MODE” button for 2 seconds for alarm setting format. z The setting item will flash by 1HZ frequency z Setting procedure is Hour->minute->exit z Press“MODE”button to finish time setting and the set value will be saved. z In the setting process, without any operation for more than 20 seconds, the article will automatically exit the setting status, the set value will be saved. z Press“AL ON/OFF”button to turn on or turn off alarm function ，procedure is：AL1_ON AL2_ON AL1+AL2_ON OFF 2.4 Start & Reset z Start the unit or Reset，LCD full graphic picture will display 3 seconds，backlight also will turn on for 3 seconds，after BI voice，then enter standard mode, after check temperature and humidity，then refresh data. z Calendar default time is: Jan.1, 2007 0:00 z Alarm1 and Alarm2 default in 0:00 z Alarm default in OFF status z Weather station graphic picture have no default picture，unit will not display the weather station graphic picture and relative temperature if can’t receive signal. z Temperature display format is °C，time format is 24HR z Language default is English 2.5 Alarm Format： z Buzzer will alarm for 2 minute，Alarm Voice format： a. 0-10 seconds: one BI voice every second. b. 10-20 seconds: Two BI voice every second. c. 20-30 seconds: Four BI voice every second. d. After 30 seconds: continuous BI voice. z When alarm，press “SNZ” button to repeat alarm in 5 minutes，press other button to exit. z When alarm, the backlight will be lighted for 5 seconds. 2.6 Temperature function： z Indoor temperature range：0°C----50°C（32°F---- +122°F） z Temperature data update every 30 seconds 3. Other Operation 3.1 USB Device z Please make sure USB Device connect your computer correctly. If you didn’t connect USB Device， the weather software on your computer can't be actived. z USB transmitter transmit every 55 seconds. z USB Device under transmit status，the indicated LED will flash. 3.2 Receiver(main unit) z Register ID：hold "Register" key for 3 seconds, the existing weather data will be deleted and the article will re-detect the weather signal from USB transmitter,the "e" icon flicking as well. z After register,if the weather signal received in successful within 3 minutes, the article will auto-exist the receiving process. z After register, if the weather signal can't be received within 3 minutes,the article will auto-exist the receiving process, the weather data will display "--" z The weather data from the internet weather base will update every 3hours.If the receiver doesn't receive the update weather data, the UV value and the outdoor temperature value will display “--” z Receiver can display next 4days' weather data. 3.3 Software z Before install the software，please make sure USB Device have been connect your computer correctly. z Insert USB Device software into CD-ROM(DVD-ROM), then follow the procedure to setup the software. z After the software installed successful, there will appear a “weather” icon on the desktop.Pls follow below steps to 1)Put the batteries into the main unit 2)Keep the USB transmitter well connect to your computer 3)Double-click the “weather” icon to lauch the software.And it will display on the tool bar at right down corner. 4)Right click the "weather"icon,then choose your city in the "city selection" 5)Software will auto-deteching your local weather data and send it to the receiver via USB sensor( LED flicking) 6)The main unit will display your local weather data Note: after battery-on, the USB transmitter will transfer the signal in 10second. If you miss the 1 st transfer,the transmitter will transfer the signal every 55 seconds. z Software interface Data Refresh: click to refresh the weather data. City Select: Select the country，then choose the city. Software Update: click to check if there any updated infomation. Device : Click for launching the transmit of weather data from the USB transmitter . Exit : exit software. P.S.: working frequency: 433.92MHZ FCC and IC statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two con…

Text truncated - open the document above for the full version.

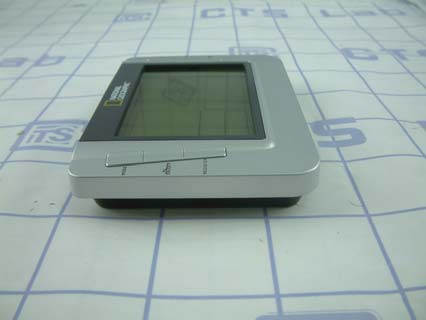

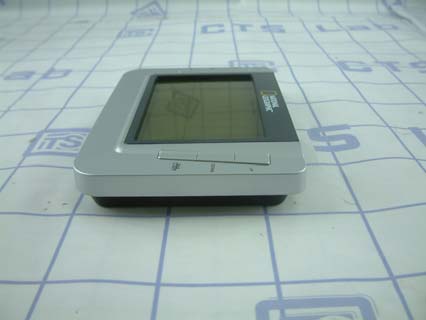

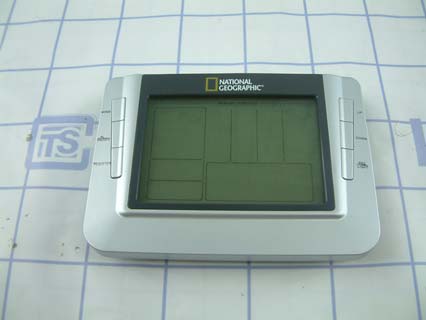

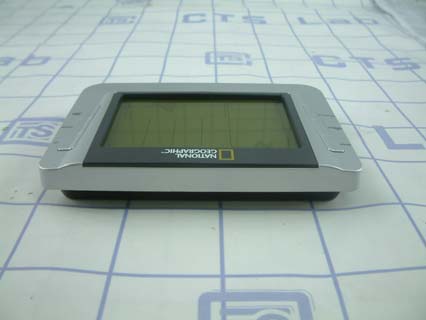

External Photos

ID Label/Location Info

Internal Photos

FCC ID: A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 1 of 4 1 Internal Photos of the EUT Internal view Panel FCC ID: A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 2 of 4 Oscillator PCB side1 FCC ID: A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 3 of 4 PCB side2 RX module side 1 FCC ID: A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 4 of 4 RX module side 2

Test Report

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC ID/IC TEST REPORT TEST REPORT NUMBER : CGZ3121113-00911-EFI CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. FCC ID:A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 1 of 17 TEST REPORT For FCC ID/IC 47 CFR PART 15 OCT, 2011 RSS-Gen Issue 3 Report Reference No. .................... CGZ3121113-00911-EFI Date of issue..................................... 29 November 2012 Testing Laboratory Name .............. CENTRE OF TESTING SERVICE CO., LTD. Address............................................. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. Testing location/ procedure .............. Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ............................Thermor Ltd. Address.............................................16975 Leslie Street , Newmarket, ON L3Y 9A1 Test specification ........................... Standard ...........................................47 CFR PART 15 OCT, 2011, ANSI C63.4-2009, RSS-Gen Issue 3 Test Report Form No. ....................CTSEMC-1.0 TRF Originator.................................. CENTRE OF TESTING SERVICE CO., LTD. Master TRF....................................... Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ....................5 DAY WEATHER FORECASTING STATION Trade Mark ......................................./ Manufacturer.....................................FUZHOU EVERTOP ELECTRONIC CO.,LTD. Model/Type reference....................... 341NC Ratings.............................................. Battery 1.5V*2 Operating Frequency........................ 433.92 MHz (RX) Result ............................................... PASSED Compiled by: Supervised by: Approved by: Kate zhang / Fileadministrators Duke yang / Technique principal Vincent yao / Manager FCC ID:A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 2 of 17 FCC ID -- T E S T R E P O R T Test Report No. : CGZ3121113-00911-EFI 29 November 2012 Date of issue Type / Model............................ 341NC, 341NU,341BC, 341BU EUT.......................................... 5 DAY WEATHER FORECASTING STATION Applicant........................... Thermor Ltd. Address.................................... 16975 Leslie Street , Newmarket, ON L3Y 9A1 Telephone................................ +800-3878520 Fax........................................... +886-9471034 Contact..................................... Joanna Biniek Manufacturer...................... FUZHOU EVERTOP ELECTRONIC CO.,LTD. Address.................................... No.46,Bai Hua Zhou Rd, Pushang Industrial Area, Fuzhou, Fujian, China Telephone................................ + 86-591-83742688 Fax........................................... + 86-591-83766488 Contact..................................... Nancy Factory ............................ FUZHOU EVERTOP ELECTRONIC CO.,LTD. Address.................................... No.46,Bai Hua Zhou Rd, Pushang Industrial Area, Fuzhou, Fujian, China Telephone................................ + 86-591-83742688 Fax........................................... + 86-591-83766488 Contact..................................... Nancy The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID:A6N-341RX opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CGZ3121113-00911-EFI Page 3 of 17 TABLE OF CONTENTS Description Page 1. TEST STANDARDS.......................................................................................................................................4 2. SUMMARY ....................................................................................................................................................4 2.1 GENERAL REMARKS .......................................................................................................................................4 2.2 FINAL ASSESSMENT .......................................................................................................................................4 3. EQUI…

Text truncated - open the document above for the full version.

Test Setup Photos
