A7N-SWM9001WiFi USB dongle

Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 1 页 共 27 页 Wireless-B/G USB Adapter SWM9001 User Manual Copyright SCI is a registered trademark of SCI Incorporated. Copyright © 2012 SCI Incorporated. All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written permission of the publisher. SCI Incorporated reserves the right to make changes in technical and product specifications without provisional notification. Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 2 页 共 27 页 This module is limited to OEM installation only and must not be sold to end-users. OEM integrators must be instructed to ensure that the end-user has no manual instructions to remove or install the device. The end-user can not remove or install this module to any other devices. Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 3 页 共 27 页 Contents 1. About This Manual .......................................................................................4 1.1 Software Installation ............................................................................4 1.2 Hardware Installation ...........................................................................8 1.3 Uninstallation .......................................................................................8 2. Network Connections and Wireless Security ...............................................8 2.1 Viewing Wireless Networks in Your Area.............................................8 2.2 Joining a Network ................................................................................9 2.3 Profile Manager.................................................................................10 3.About Your Smart Wizard............................................................................20 3.1 Diagnosis ...........................................................................................20 3.2 Adapter Information ...........................................................................21 3.3 Advanced Statistics Page ..................................................................21 3.4 card log..............................................................................................22 3.5 Operation of the task bar...................................................................23 4. Standards and Regulatory Compliance......................................................24 4.1 Standards and certification ................................................................24 4.2 FCC certification requirements..........................................................24 4.3 FCC RF exposure requirements ........................................................27 Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 4 页 共 27 页 1. About This Manual This Manual describes how to install, configure the Wireless-B/G USB Adapter SWM9001. 1.1 Software Installation Install the Device 1. Make sure the Computer is turned off. Remove the expansion slot cover from the computer. 2. Carefully slide the 802.11 b/g dongle into the slot. Push evenly and slowly and ensure it is properly seated. 3. After device has been connected to you computer, turn on your computer. Windows will detect the new hardware and then automatically copy all the files needed for networking. 2.2 Install the Driver & Utility 1. Insert the SCI CD. If the Welcome page does not open, double click Autorun.exe on the CD. 2. The welcome screen appears, then click “Next” to continue. Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 5 页 共 27 页 3. Select installation folder. If the folder is in the default path, click “Next”. Otherwise click “Browse” to choose the path of folder that you need. Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 6 页 共 27 页 4. When you are prompted the following message, please click the “Next” to start the installation. 5. The installing SCI Driver & Utility window will open. Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 7 页 共 27 页 6. When the following screen appears, click “Close” to complete the software installation. Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 8 页 共 27 页 1.2 Hardware Installation To verify if the device exists in you computer and is enabled, go to Start->Control Panel->System (Hardware)->Device Manager. Expand the network Adapters category. If the SWM9001 USB dongle listed here, it means that your device is properly installed and enabled. 1.3 Uninstallation You can remove the wireless adapter software in these two ways: • Navigate the Windows Start menu to the SWM9001 USB 2.0 Adapter program group, select the uninstall option, and follow the screen prompts. • Navigate the Windows Start menu to the Control Panel Add or Remove Program item, select the SWM9001 USB 2.0 Adapter option, and follow the screen prompts. 2. Network Connections and Wireless Security This chapter explains how to use the Smart Wizard to connect to wireless networks and how to set up wireless security on your adapter if you are joining a secured wireless network. 2.1 Viewing Wireless Networks in Your Area You can use the profile manager tab to view all available wireless networks in your area. Click the Scan tab to display the following screen. The screen shows the following information for each network scanned: Network Name （SSID），MAC Address，Mode，Security，Signal and Channel . Wireless-B/G USB Adapter SWM9001 User Manual www.sci-inc.com.cn 第 9 页 共 27 页 The access point supports WPS. The access point supports WaPi. Identifies whether the wireless network uses security settings such as WPA2-PSK,WPA-PSK, or WEP. 2.2 Joining a Network After installation you can use the Scan button on the profile manager tab to view available networks and select the one that you want and then click Active tab to join the network. How you join the network…

Text truncated - open the document above for the full version.

COVER LETTER: Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd FCC ID: A7N-SWM9001 Transmitter Module Characteristics Per KDB 996369: Section III Modular Licensed Service Modules: As stated in KDB 99639, the applicant can use Section 15.212 provisions for additional guidelines for good engineering practice. In this case, the modular approval cover letter must also include an itemized list documenting compliance with analogous conditions From KDB 99639; The Single-modular transmitter submitted for Grant in this application is a self-contained, physically delineated, component for which compliance can be demonstrated independent of the host operating conditions, and which complies with all eight requirements of Section 15.212(a)(1) as summarized below. 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Response: The radio elements of this module have been shielded. 2) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Response: The module has buffered data input; It is integrated in chip S1032. 3) The module must contain power supply regulation on the module; Response: The module has power supply; the part number of regulator is AP2506L. 4) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Response: The module contains a permanently attached antenna. During the test, EUT is connected with the notebook by the USB port of EUT. Please refer to the test photo. 5) The module must demonstrate compliance in a stand-alone configuration; Response: The module was tested in a stand-alone configuration via a USB connector. 6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements); Response: Please see label sample for the FCC ID of this module. 7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Response: The module is compliant with all applicable FCC rules. Detail instructions for maintaining. 8) The module must comply with RF exposure requirements (see discussions below). Response: The module complies with all RF exposure requirements. The EUT is a mobile device; maintain at least a 20 cm separation between the EUT and the user’s body So it is not supply SAR report. Signature of Authorized Applicant:

FCC confidentiality letter Feb. 13, 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we, (Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd), hereby request confidential treatment of information accompanying this Application (FCC ID: A7N-SWM9001) as outlined below: Exhibit Type Block Diagram, Schematics Operational Description Parts List Tune Up Info The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to us, (Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd), and provide unjustified benefits to its competitors. We, (Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd), understand that pursuant to Rule 0.457, disclosure of this Application (FCC ID: A7N-SWM9001) and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd Feb. 13, 2012

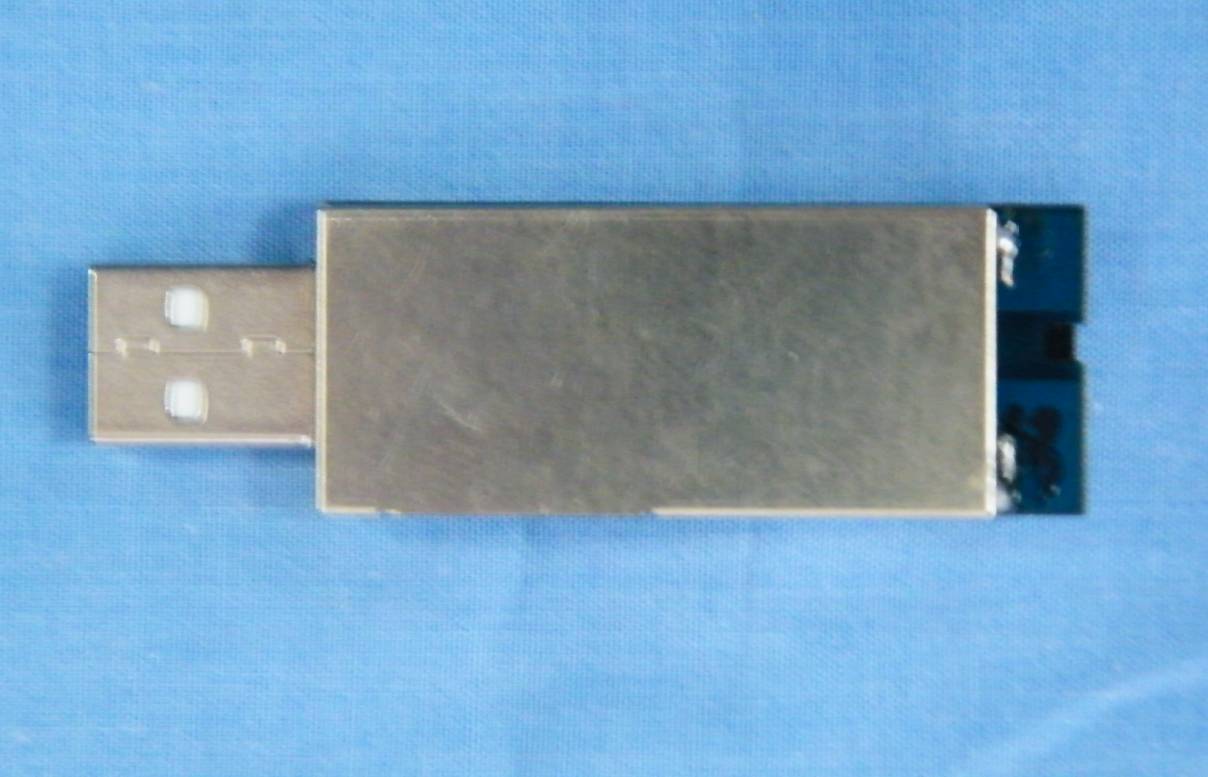

External Photo Front side: Back side:

Lable Sample Size:40mm*20mm content: USB dongle SWM9001 FCC ID:A7N-SWM9001 Mac:xx-xx-xx-xx 20 ± 0.2mm 40 ±0.2 mm

Internal photos Front side: Back side:

Report No.: RZA1112-2067EMC01R2 Page 1 of 21 TESTING No. L2264 Part 15B TEST REPORT Product Name WiFi USB dongle Model Name SWM9001 FCC ID A7N-SWM9001 Client Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1112-2067EMC01R2 Page 2 of 21 GENERAL SUMMARY Product Name WiFi USB dongle Model Name SWM9001 FCC ID A7N-SWM9001 Report No. RZA1112-2067EMC01R1 Client Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd Manufacturer Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd Reference Standard(s) FCC Code CFR47 Part15B (2010-12) Radio frequency device. ANSI C63.4 (2009) Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 KHz to 40GHz. Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 2 of this test report are below limits specified in the relevant standards. General Judgment : Pass (Stamp) Date of issue: February 14 th ,2012 Comment The test result only responds to the measured sample. Approved by Director Revised by EMC Manager Performed by EMC Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1112-2067EMC01R2 Page 3 of 21 TABLE OF CONTENT 1. General Information ..................................................................................................................... 4 1.1. Notes of the test report.........................................................................................................4 1.2. Testing laboratory .................................................................................................................4 1.3. Applicant Information ............................................................................................................5 1.4. Manufacturer Information ......................................................................................................5 1.5. Information of EUT................................................................................................................6 1.6. Test Date ..............................................................................................................................7 2. Test Information ........................................................................................................................... 8 2.1. Summary of test results ........................................................................................................8 2.2. Radiated Emission ................................................................................................................9 2.3. Conducted Emission...........................................................................................................14 3. Main Test Instruments ................................................................................................................ 18 ANNEX A： The EUT Appearance and Test Setup .......................................................................... 19 A.1 EUT Appearance .....................................................................................................................19 A.2 Test Setup ...............................................................................................................................20 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1112-2067EMC01R2 Page 4 of 21 1. General Information 1.1. Notes of the test report TA Technology (Shanghai) Co., Ltd. guarantees the reliability of the data presented in this test report, which is the results of measurements and tests performed for the items under test on the date and under the conditions stated in this test report and is based on the knowledge and technical facilities available at TA Technology (Shanghai) Co., Ltd. at the time of execution of the test. TA Technology (Shanghai) Co., Ltd. is liable to the client for the maintenance by its personnel of the confidentiality of all information related to the items under test and the results of the test. This report only refers to the item that has undergone the test. This report standalone dose not constitute or imply by its own an approval of the product by the certification Bodies or competent Authorities. This report can not be used partially or in full for publicity and/or promotional purposes without previous written approval of TA Technology (Shanghai) Co., Ltd. and the Accreditation Bodies, if it applies. If the electrical report is inconsistent with the printed one, it should be subject to the latter. 1.2. Testing laboratory Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong City: Shanghai Post code: 201201 Country: P. R. China Contact: Yang Weizhong Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1112-2067EMC01R2 Page 5 of 21 1.3. Applicant Information Company: Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd Address: 9B, Science Plaza, 1355 JinJiHu Avenue, Suzhou Industrial Park City: Suzhou Postal Code: 215021 Country: P.R.China Contact: Gu Ming Telephone: +86-512-62621949 Fax: +86-512-62620027 1.4. Manufacturer Information Company: Suzhou-CAS Semiconductor Integrated Technology Co.,Ltd Address: 9B, Science Plaza, 1355 JinJiHu Avenue, Suzhou Industrial Park City: Suzhou Postal Code: 215021 Country: P.R.China Telephone: +86-512-62621949 Fax: +86-512-62620027 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1112-2067EMC01R2 Page 6 of 21 1.5. Information of EUT General information Name of EUT: WiFi USB dongle IMEI: / Hardware Version: / Software Version: / Antenna Type: Internal Antenna TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1112-2067EMC01R2 Page 7 of 21 Auxiliary Equipment Details A…

Text truncated - open the document above for the full version.

Picture 1 Ancillary Equipment (DELL D1310) and EUT a: Below 1GHz TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1104-0662RF01 Page 2of 2 b: Above 1GHz Picture 2 Radiated Emission Test Setup Picture 3 Conducted Emission Test Setup
