A8IAURABULBBluetooth speaker

User Manual Welcome: Thank you for purchasing this Divoom® product. AuraBulb is a smart music lamp for the 21st century. It is a Bluetooth speaker, a lamp, a speakerphone and an alarm, all ‐in‐ one. It is perfect for your office, nursery, bedroom and home foyer. 1. What’s in the box? 1 pc of AuraBulb 1 pc of silicon cover 1 pc of USB recharging cable 1 pc of 3.5mm audio cable 1 pc of user Manual 2. Buttons 1. ON/OFF button 2. Short press: lower volume Long press: previous song 3. Short press: raise volume Long press: Next song 4. Play/Pause/Hands free/Stop alarm 5. Lighting effect changing button 6. Aux in 7. Micro USB charging port 3. How to use it? ÆBluetooth devices · Flip on/off button to turn on the unit, Indicator flashing with blue and enter pairing mode. ·Open the Bluetooth function in your device and search AuraBulb. ·Connect your device to AuraBulb successfully ·Start enjoy your music freely ·Long press on/off button to turn off your speaker. ※ Did you know? You can switch your current connected device to another Bluetooth device by following steps Action： Long press hands free button Indicator: LED blinking blue rapidly Status: Ready to pair ÆHands‐free Press the Hands free button to pick up an incoming call. OR Press and hold the Hands free button for 2 seconds and release to reject an incoming call ÆNon‐Bluetooth devices 4. How to charge it up? Standard USB rechargeable jack compatible to all PC USB ports and AC adaptors 5. LED indicators Power on‐‐‐ Blinking blue Pairing mode‐‐‐Blinking blue Bluetooth connected‐‐‐Solid blue Charging‐‐‐Solid Red Fully charged ‐‐‐ red light disappear 6. Lighting Press the lighting button to select different Light effect. ※ Download and install “Divoom AuraBulb” App onto your mobile device to enjoy a better user experience. 7. Features ·Inspired audio performance from a palm size speaker ·Simple, Emotional Lamp with millions of color ·Smart App control to enjoy all the exciting features of advanced control ·Create Timer to let your favorite music and color wake you up and put you to sleep. 8. Specifications: Dimensions: 120L*120W*147H mm Weight: 350g Driver size: 2'' full range + 2” passive Output power: 5W Frequency Response: 60‐20000Hz Signal‐to‐Noise Ratio: ≥75 dB Playback Time: up to 6 hours Battery Capacity: 1200mAh Charge time: 2‐3hours Battery Voltage: 3.7V Charging: Via USB cable, 5V ‐1A FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help.

Shenzhen DIVOOM Technology Co., Ltd. A3, 2nd Floor, Block A, Zhengxing Building,No. 33 Taizi Road, Shekou, Nanshan District,Shenzhen,Guangdong,China Confidentiality Request Letter Page 1 of 1 Rev 2.0 May 19, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: A8IAURABULB We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Jeffery Yao / Sales Manager Contact information / address: A3, 2nd Floor, Block A, Zhengxing Building,No. 33 Taizi Road, Shekou, Nanshan District,Shenzhen,Guangdong,China TEL: (86)0755-86290792 FAX: (86)0755-86290790 E-mail: [email protected]

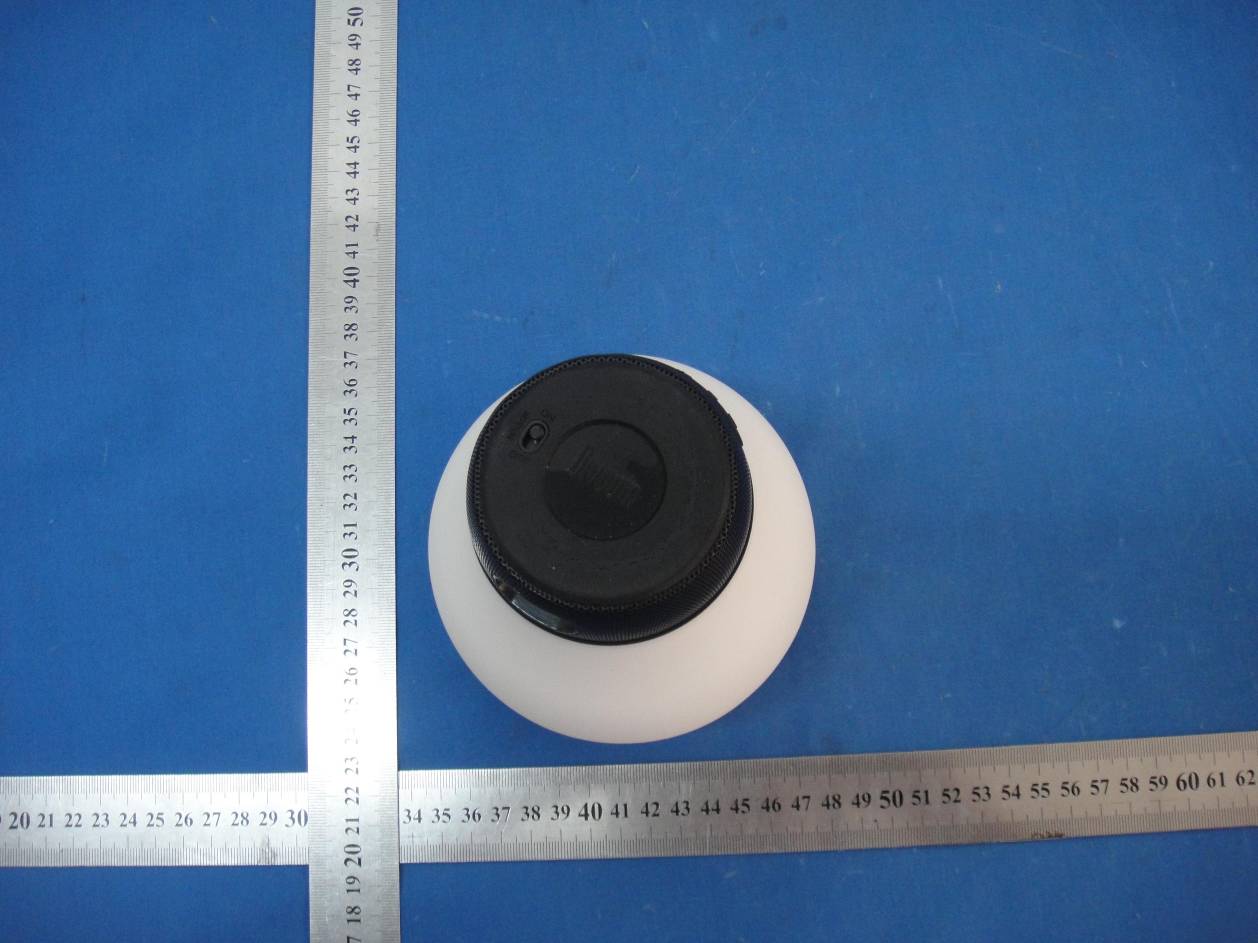

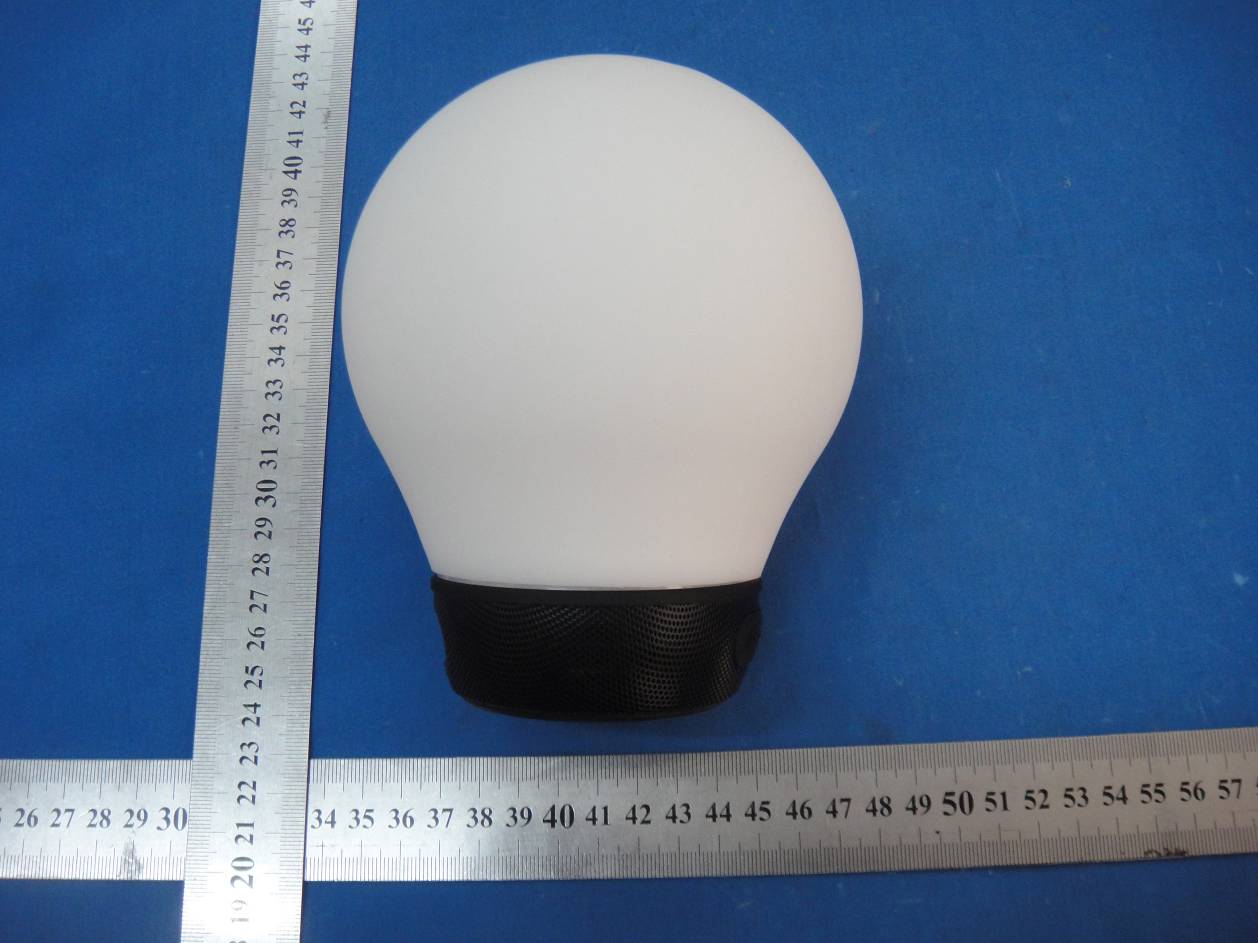

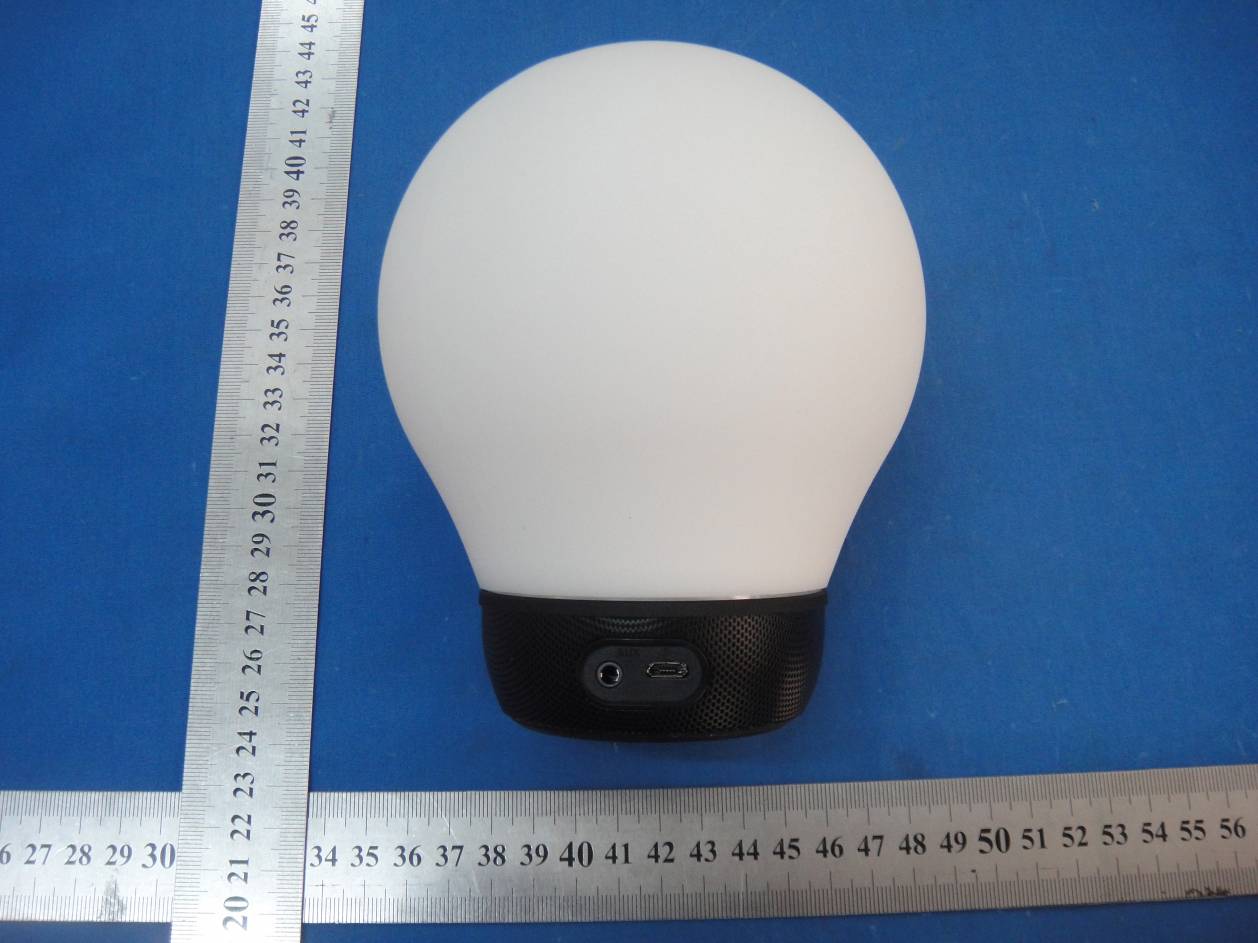

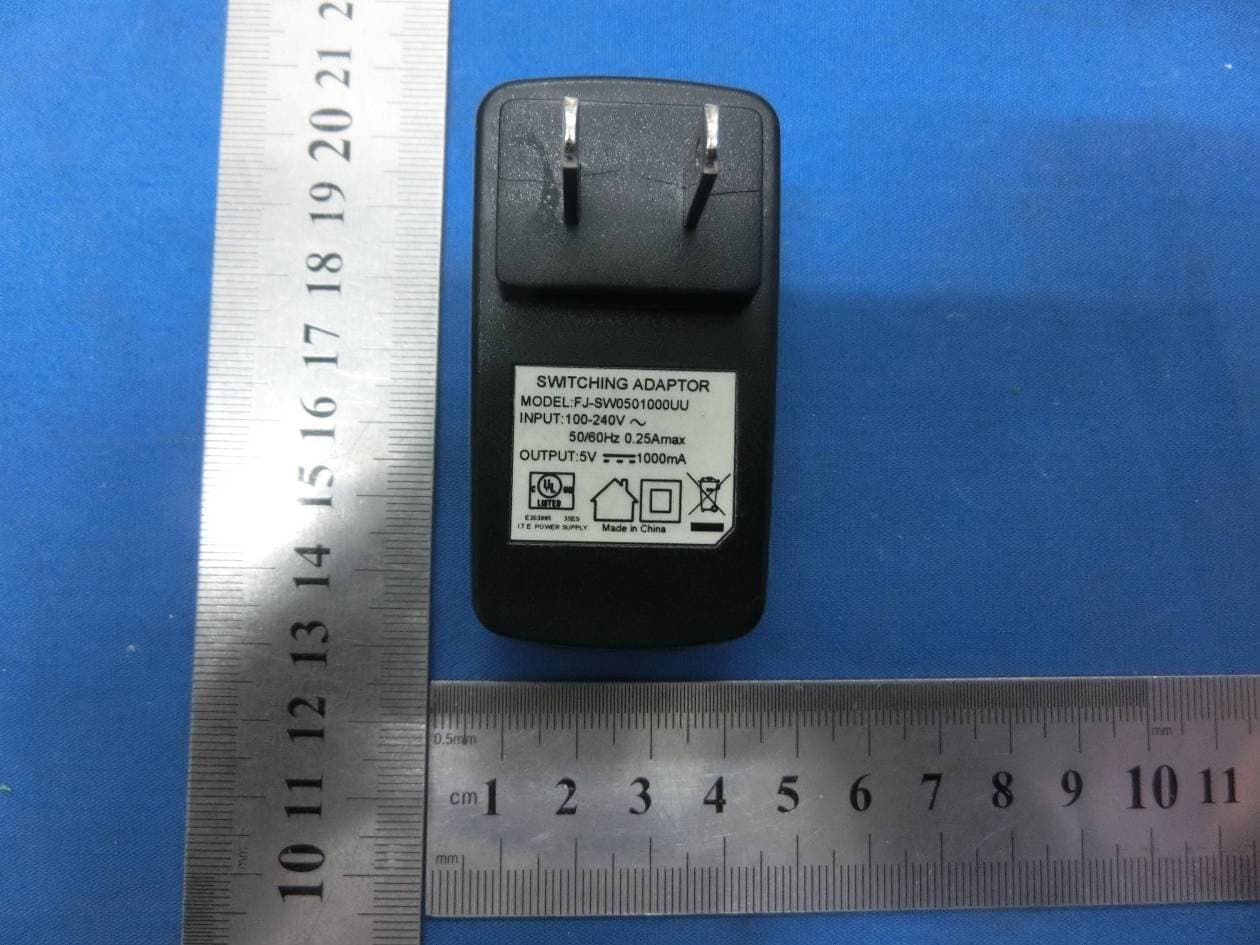

External Photo

FCC Certification Label FCC ID:A8IAURABULB Label Location on EUT label size:high 0.5cm, Wide:2cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen DIVOOM Technology Co., Ltd. A3, 2nd Floor, Block A, Zhengxing Building,No. 33 Taizi Road, Shekou, Nanshan District,Shenzhen,Guangdong,China FCC ID:A8IAURABULB Trade:divoom This Report Concerns: Original Report Equipment Type: Bluetooth speaker Test Engineer: Lisa Chen Report No.: BSL20150519-1 Receive EUT Date/Test Date: April 20, 2015/ April 20 – May 19, 2015 Reviewed By: Mike moo Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 FCC ID:A8IAURABULB Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID:A8IAURABULB Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. The results are not used to indicate or imply that they are application to the similar items. In addition, such results must not be used to indicate or imply that BSL approves recommends or endorses the manufacture, supplier or use of such product/equipment, or that BSL in any way guarantees the later performance of t…

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
