A8IVOOMBOX-PARTYBluetooth speaker

User Manual Bluetooth speaker Model: Voombox-party CE Marking & NB Number: CE 0700 Hereby, Shenzhen DIVOOM Technology Co., Ltd. Declares that this Bluetooth speaker is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. The declaration of conformity may be consult at: Manufacturer: SHENZHEN DIVOOM TECHNOLOGY CO., LTD. A3, 2nd Floor, Block A, Zhengxing Building, No. 33 Taizi Road, Shekou, Nanshan District, Shenzhen, Guangdong, China Page 1 of 6 Warning： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Page 2 of 6 Page 3 of 6 Page 4 of 6 How to use it? ÆBluetooth connection 1. Flip to turn on the speaker then the blue LED Indicator starts blinking quickly, enter pairing mode 2. Open the Bluetooth function in your device and search Voombox‐Party 3. Connect your device to Voombox‐Party successfully 4. Flip ” to pause your music. 5. Flip +/ ‐‐ for prev and next song 6. Long press to turn off your speaker. Did you know? You can switch your current connected device to another Bluetooth device by following steps Action： Flip “Bluetooth pairing button” Indicator: LED blinking blue rapidly Status: Ready to pair ÆHands‐free Press to pick up the call Press to hang up the call Page 5 of 6 Æ Connect with Non‐Bluetooth devices How to charge it? Standard USB rechargeable jack compatible to all PC USB ports and AC adaptors Features 1 .Rugged, weatherized design withstands the harshest conditions; enjoy your music at the beach, at the game or in the backyard 2. Mind‐blowing 5 drivers features dual high‐performance 2”full‐range drivers, one 3”Subwoofer and dual passive radiators, delivers a 20 Watts of Room‐filling, thrilling audio experience 3. Integrated microphone offers hands‐free speakerphone functionality 4.Rechargeable battery lasts 8 hours of playback time Specification Dimensions: 233L*54W*103H mm Weight: 1150 g Driver size: 3'' + 2''*2 Output power: 20W Frequency Response: 60-20000Hz Signal-to-Noise Ratio: 75 dB Playback Time: up to 8 hours Battery Capacity: 4200mAh Charge time: 3-4 hours Bluetooth compliant: Bluetooth V4.0 Wireless range: Up to 10 meters CAUTION: 1. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. 2. EUT Temperature: -10°C ~ +40°C Page 6 of 6

RF_743, Issue 02 Declaration of Authorization (to use documentation) We Name: SHENZHEN DIVOOM TECHNOLOGY CO., LTD. Address: A3, 2nd Floor, Block A, Zhengxing Building, No. 33 Taizi Road, Shekou, Nanshan District, City: Shenzhen Country: China Declare that: Name Representative of agent: WST Agent Company name: Shenzhen WST Testing Technology Co., Ltd. Address: 1F,No.9 Building, TGK Science & Technology ParkYangtian Rd., NO.72 Bao'an Dist. City: Shenzhen Country China may use our test reports and documentation of the following (already certified) product: Product description: Bluetooth speaker Type designation: VOOMBOX-PARTY Trademark: Original FCC ID: A8IVOOMBOX-PARTY Original Canada ID: ................. Original Japan certificate number: ................. for his own approval/certificate. Date: 2015.4.10 City: Shenzhen Name: Jeffery Yao Function: Manager Signature: COMPANY LETTER HEAD

RF_160, Issue 03 Declaration of Authorization We Name: SHENZHEN DIVOOM TECHNOLOGY CO., LTD. Address: A3, 2nd Floor, Block A, Zhengxing Building, No. 33 Taizi Road, Shekou, Nanshan District, City: Shenzhen Country: China Declare that: Name Representative of agent: WST Agent Company name: Shenzhen WST Testing Technology Co., Ltd. Address: 1F,No.9 Building,TGK Science & Technology ParkYangtian Rd., NO.72 Bao'an Dist. City: Shenzhen Country China is authorized to apply for Certification of the following product(s): Product description: Bluetooth speaker Type designation: Voombox-party Trademark: on our behalf. Date: 2015.4.10 City: Shenzhen Name: Jeffery Yao Function: Manager Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: SHENZHEN DIVOOM TECHNOLOGY CO., LTD. Address : A3, 2nd Floor, Block A, Zhengxing Building, No. 33 Taizi Road, Shekou, Nanshan District, City: Shenzhen Country: China To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: A8IVOOMBOX-PARTY Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-04-10 Name and signature of applicant: Jeffery Yao Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

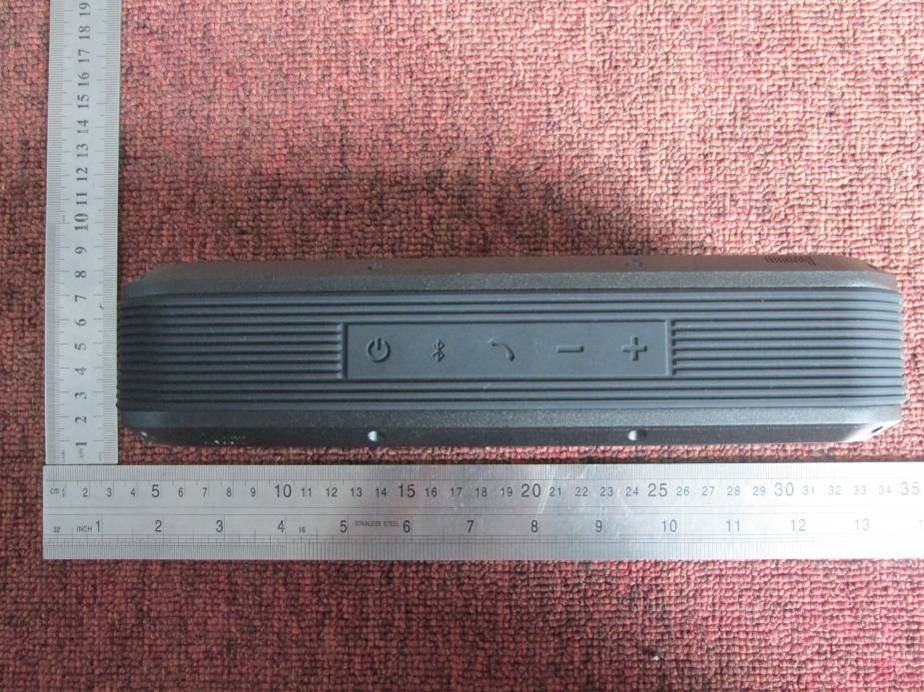

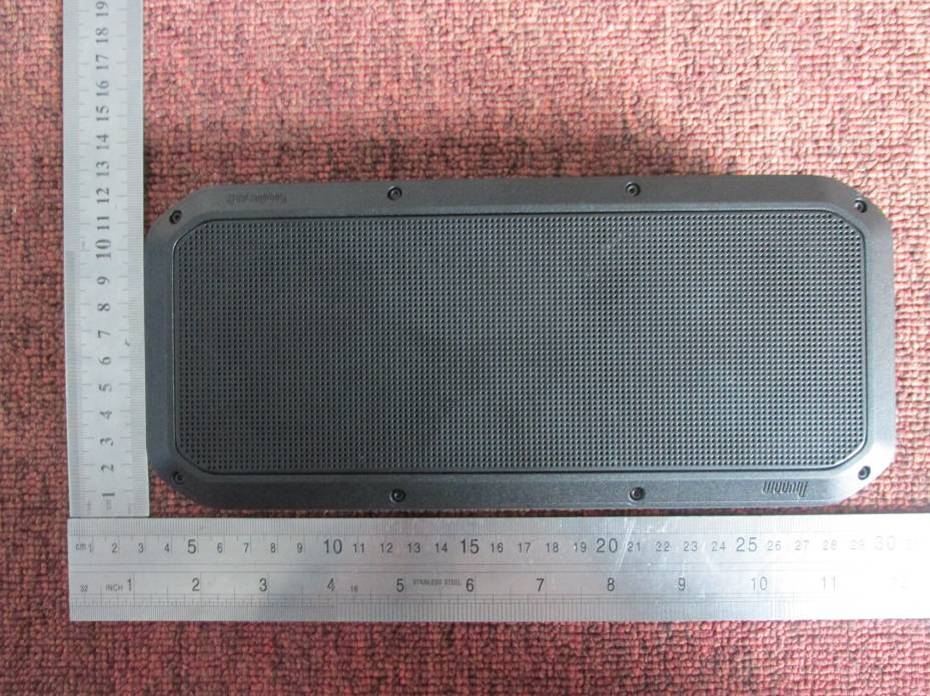

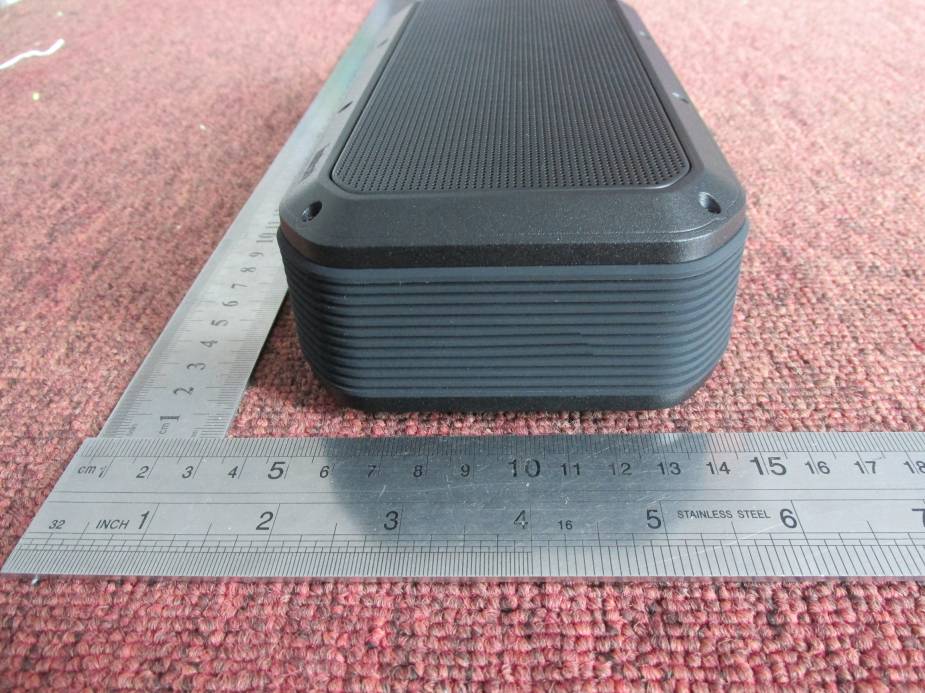

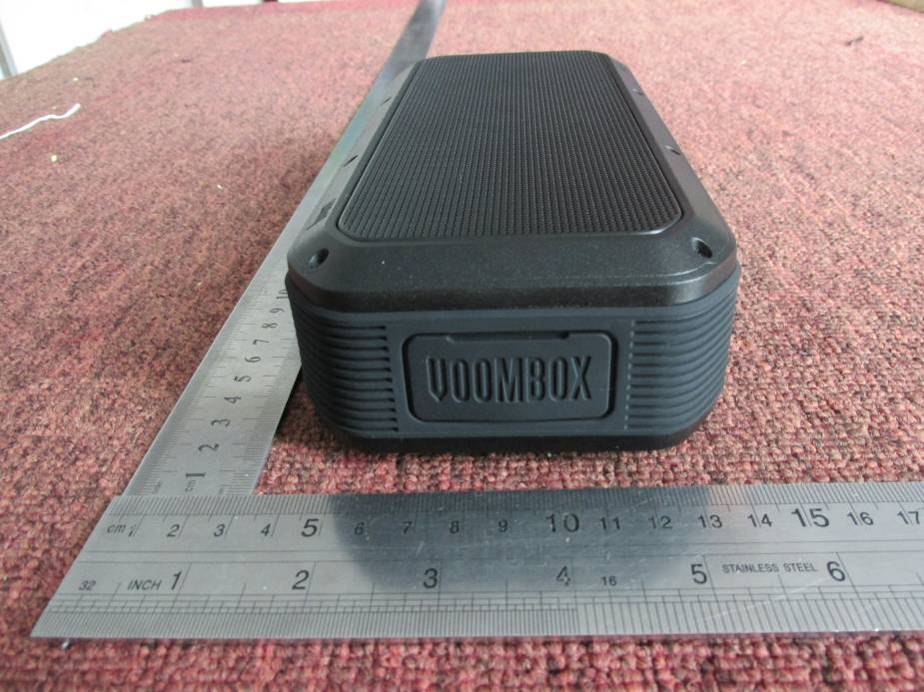

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

FCCID: A8IVOOMBOX-PARTY Label Location: Size: 90mm*20mm Model: Voombox-party FCC ID: A8IVOOMBOX-PARTY Designed in Singapore Made in China Input: 5V – 1A

Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT PCB photograph of EUT

FCC Report Application Purpose : Original grant Applicant Name: : SHENZHEN DIVOOM TECHNOLOGY CO., LTD. FCC ID : A8IVOOMBOX-PARTY Equipment Type : Bluetooth speaker Model Name : Voombox-party Report Number : FCC15019859-1 Standard(S) : FCC Part 15 Subpart C Date Of Receipt : March 01, 2015 Date Of Issue : March 09, 2015 Test By : ( Neil Wong) Reviewed By : ( Robie Chen) Authorized by : ( Michal Ling) Prepared by : Shenzhen WST Testing Technology Co., Ltd. 1F,No.9 Building,TGK Science & Technology ParkYangtian Rd., NO.72 Bao'an Dist.,GuangDong,China Registration Number: 939433 Page 2 of 65 Report No.: FCC15019859-1 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / March 09, 2015 Valid Original Report Page 3 of 65 Report No.: FCC15019859-1 Table of Contents Page 1. GENERAL INFORMATION 5 2. TEST DESCRIPTION 7 2.1 MEASUREMENT UNCERTAINTY 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 CONFIGURATION OF SYSTEM UNDER TEST 9 2.5 PERIPHERALS EQUIPMENT LIST 9 2.6 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE) 10 3. SUMMARY OF TEST RESULTS 11 4. MEASUREMENT INSTRUMENTS 12 5. EMC EMISSION TEST 13 5.1 CONDUCTED EMISSION MEASUREMENT 13 5.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 5.1.2 TEST PROCEDURE 14 5.1.3 DEVIATION FROM TEST STANDARD 14 5.1.4 TEST SETUP 14 5.1.5 EUT OPERATING CONDITIONS 14 5.1.6 TEST RESULTS 15 5.2 RADIATED EMISSION MEASUREMENT 15 5.2.1 RADIATED EMISSION LIMITS 17 5.2.2 TEST PROCEDURE 18 5.2.3 DEVIATION FROM TEST STANDARD 18 5.2.4 TEST SETUP 19 5.2.5 EUT OPERATING CONDITIONS 20 5.2.5.1 RESULTS (BELOW 30 MHZ) 21 5.2.5.2 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 5.2.5.3 TEST RESULTS(1GHZ TO 25GHZ) 24 6. NUMBER OF HOPPING CHANNEL 6.1 APPLIED PROCEDURES / LIMIT 32 6.2 TEST PROCEDURE 32 6.3 DEVIATION FROM STANDARD 32 6.4 TEST SETUP 32 6.5 EUT OPERATION CONDITIONS 32 6.6 TEST RESULTS 33 7. AVERAGE TIME OF OCCUPANCY Page 4 of 65 Report No.: FCC15019859-1 Table of Contents Page 7.1 APPLIED PROCEDURES / LIMIT 34 7.2 TEST PROCEDURE 34 7.3 DEVIATION FROM STANDARD 34 7.4 TEST SETUP 35 7.5 EUT OPERATION CONDITIONS 35 7.6 TEST RESULTS 36 8. HOPPING CHANNEL SEPARATION MEASUREMENT 8.1 APPLIED PROCEDURES / LIMIT 38 8.2 TEST PROCEDURE 38 8.3 DEVIATION FROM STANDARD 38 8.4 TEST SETUP 38 8.5 EUT OPERATION CONDITIONS 38 8.6 TEST RESULTS 39 9. BANDWIDTH TEST 9.1 APPLIED PROCEDURES / LIMIT 45 9.2 TEST PROCEDURE 45 9.3 DEVIATION FROM STANDARD 45 9.4 TEST SETUP 45 9.5 EUT OPERATION CONDITIONS 45 9.6 TEST RESULTS 46 10. PEAK OUTPUT POWER TEST 10.1 APPLIED PROCEDURES / LIMIT 52 10.2 TEST PROCEDURE 52 10.3 DEVIATION FROM STANDARD 52 10.4 TEST SETUP 52 10.5 EUT OPERATION CONDITIONS 52 10.6 TEST RESULTS 53 11. ANTENNA APPLICATION 54 12. EUT TEST PHOTO 55 13. PHOTOGRAPHS OF EUT 57 Page 5 of 65 Report No.: FCC15019859-1 1. GENERAL INFORMATION GENERAL DESCRIPTION OF EUT Test Model Voombox-party Derivative Model Name N/A Model difference N/A Applicant SHENZHEN DIVOOM TECHNOLOGY CO., LTD. Address A3, 2nd Floor, Block A, Zhengxing Building, No. 33 Taizi Road, Shekou, Nanshan District, Shenzhen, Guangdong, China Manufacturer SHENZHEN DIVOOM TECHNOLOGY CO., LTD. Address A3, 2nd Floor, Block A, Zhengxing Building, No. 33 Taizi Road, Shekou, Nanshan District, Shenzhen, Guangdong, China Equipment Type Bluetooth speaker Brand Name DIVOOM Hardware version: F4 1.6T Software version: V1.0 Extreme Temp. Tolerance -10 to +50°C°C Operating Voltage DC 3.7V by lithium battery Battery Capacity: 4200mA Battery Voltage: 3.7V Battery Charge Time: 3-4 hours Charge: Via usb cable, 5V-1A Operating Frequency 2402-2480MHz Channels 79 Channel Spacing 1MHz Modulation Type GFSK,π/4-DQPSK, 8-DPSK Version 3.0 Antenna Type: Integral Antenna Antenna gain: 1.0dBi Data of receipt March 01, 2015 Date of test March 01, 2015 to March 09, 2015 Deviation None Condition of Te s t S a m p l e Normal Page 6 of 65 Report No.: FCC15019859-1 We hereby certify that: The above equipment was tested by Building A, Baoshi Science & Technology Park, Baoshi Road, Bao’an District, Shenzhen, Guangdong, China The data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C 63.4:2009. The sample tested as described in this report is in compliance with the FCC Rules Part15 Subpart C. The test results of this report relate only to the tested sample identified in this report. Page 7 of 65 Report No.: FCC15019859-1 2. TEST DESCRIPTION 2.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±3.2dB 2 RF power, conducted ±0.16dB 3 Spurious emissions, conducted ±0.21dB 4 All emissions, radiated(<1G) ±4.7dB 5 All emissions, radiated(>1G) ±4.7dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 8 of 65 Report No.: FCC15019859-1 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 CH00 Mode 2 CH39 Mode 3 CH78 Mode 4 Normal Hopping For Conducted Emission Final Test Mode Description Mode 4 Normal Hopping For Radiated Emission Final Test Mode Description Mode 1 CH00 Mode 2 CH39 Mode 3 CH78 Note: (1) The measurements are performed at the highest, middle, lowest available channels. (2)The data rate was set in 1Mbps, 2 Mbps, 3 Mbps for radiated emission due to the highest RF output power. (3) Record the worst case of each test item in this report. Page 9 of 65 Report No.: FCC15019859-1 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING During testing channel …
