A8S-JLBM4BlueTooth Module

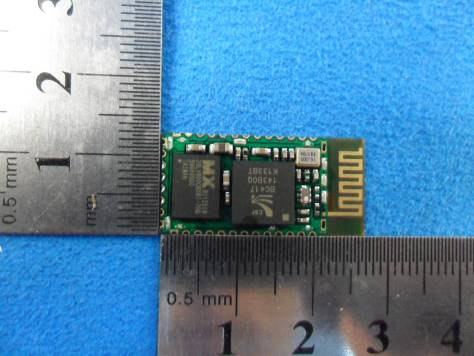

19 Spec for approval 2134C ZYM-BT42 Module Rev.1.0 May 2011 Device Features • Bluetooth Spec v2.0+EDR Compliant • Class 2, up to 10-meter range • Complete 2.4GHz Bluetooth® System • Power management: low power 1.8V operation for Bluetooth® core • Compact size: 26.9mm (L) x 13 (W) mm x 2.2mm (H) • Bluetooth® Profile Supported: SPP,HSP, HFP, OPP,PBAP • Internal antenna • On-board flash memory (8Mbits) • Support multiple connections • Surface mount module for embedded applications • Several firmware options • Rewritable flash memory for easy upgrade route • Custom firmware production available General Description The BT42 V1 module from GLEAD is a complete Bluetooth® solution.It is built on CSR BC04-External Core and 8Mbit Flash memory.It’s a short range,compact and cost effective module. Be able to be embedded into your any electronics devices which need Bluetooth® connection,such as industry handle devices,PND, HID applications... The BT42 V1 module is a power class2 Bluetooth® device, and is in compliance with version 2.0+EDR of the Bluetooth® specification. It includes CSR BC04-External Core and 8Mbit Flash memory, internal attenna, supporting circuitry, together with some higher-level software protocols and applications such as L2CAP, SDP, GAP, HSP, HFP, OPP and PBAP resided in the flash memory. Applications • Industry handle device • Printer • Personal Navigation Device • PDAs and other portable terminals • MP3 headset CSR BC417143B 29 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Please notice that if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: " Contains FCC ID:A8S-JLBM4" any similar wording that expresses the same meaning may be used. The User Guidelines about FCC Rules 3 9 Content System Architecture.........................................................................................................................5 Specifications....................................................................................................................................5 Electrical Characteristics.................................................................................................................5 Application Schematic.....................................................................................................................7 Mechanical Dimension....................................................................................................................8 Pin Descriptions..................................................................................................................................9 49 System Architecture Specifications Operating Frequency Band 2.4GHz -2.48GHz unlicensed ISM band Bluetooth Specification V2.0+EDR Output Power Class Class 2 Operating Voltage 3.3V Host Interface USB 1.1/2.0 or UART Audio Interface PCM Flash Memory Size 8Mbit Dimension 26.9mm (L) x 13 (W) mm x 2.2mm (H) NOTES:Specifications are subject to change without prior notice Electrical Characteristics Absolute Maximum Ratings Rating Min Max Storage temperature -40°C +150°C Supply voltage -0.4V 5.6V Other terminal voltages VSS-0.4V VDD+0.4V 59 Crystal 16MHz Recommended Operating Conditions Operating Condition Min Max Operating temperature range -40°C +85°C Guaranteed RF performance range (a) -40°C +85°C Supply voltage 2.2V 4.2V * Typical figures are given for RF performance between -40°C and +105 .°C Power Consumption * Low power mode on the linear regulator is entered and exited antomatically when the chip enters/leaves Deep Sleep mode. Operation Mode Connection Ty p e UART Rate (kbps) Av e r a g e Unit Page scan - 115.2 0.42 mA ACL No traffic Master 115.2 4.60 mA ACL With file transfer Master 115.2 10.3 mA ACL 1.28s sniff Master 38.4 0.37 mA ACL 1.28s sniff Slave 38.4 0.42 mA SCO HV3 30ms sniff Master 38.4 19.8 mA SCO HV3 30ms sniff Slave 38.4 19.0 mA Standby Host connection (a) - 38.4 40 μA 69 Application Schematic 79 Mechanical Dimension BOTTOM VIEW 89 Pin Descriptions PIN NO. NAME TYPE FUNCTION RE-MARK 1 UART-TX CMOS Output UART Data Output 2 UART-RX CMOS Input UART Data Input 3 UART-CTS CMOS Input UART Clear To Send Ac tive Low 4 UART-RTS CMOS Output UART Request To Send Ac tive Low 5 PCM-CLK Bi-d irec tional Synchronous Data Clock 6 PCM-OUT CMOS Output Synchronous Data Output 7 PCM-IN CMOS Input Synchronous Data In…

Text truncated - open the document above for the full version.

Cover Letter-Modular Approval FCC ID: A8S-JLBM4 Data: Dec. 23, 2011 Gentlemen: There’s an Bluetooth Module that would like to have your authorization as a modular approval. The specific product as below, Bluetooth Module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 Released: June 26, 2000 by cross-reference list below. Company JIAXING GLEAD ELECTRONICS CO., LTD Model Name Bluetooth Module Model Number ZYM-BT42 FCC ID A8S-JLBM4 Requirement of Public Notice DA00 1407 ‐ Reference to ZYM-BT42 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Ple ase see Photographs.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip BC417143B Please see schematic 2.17. pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from on-chip linear regulator, 1.8V output from a 2.2-4.2V input. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The ZYM-BT42 meets the FCC antenna requirements. It has a unique connector. Please see Photographs.pdf 5. The modular transmitter must be tested in a stand al‐ one configuration, i.e., the module must not be inside another device during testing. The ZYM-BT42 was tested in a stand alone‐ Configuration via a PCMCIA extender. Please see Setup photos.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the encl osed module. The label position of ZYM-BT42 is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions al ong with the module to The ZYM-BT42 is compliant with all applic able FCC rules. Detail instructions are give n in the Users Manual. Please see user manual 2.17.pdf explain any such requirements. A copy of these instructio ns must be included in the application for equipment aut horization. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The ZYM-BT42 comply with applicable RF expos ure requirements. Please see SAR Not Required. pdf

JIAXING GLEAD ELECTRONICS CO.,LTD. Request for Confidentiality Date: ___Dec 23 rd , 2011_____ Subject: Confidentiality Request for: ______ A8S-JLBM4 ________ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ JIAXING GLEAD ELECTRONICS CO.,LTD. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. JIAXING GLEAD ELECTRONICS CO.,LTD. By: ______ _____President________ ____ You Yuan_________ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

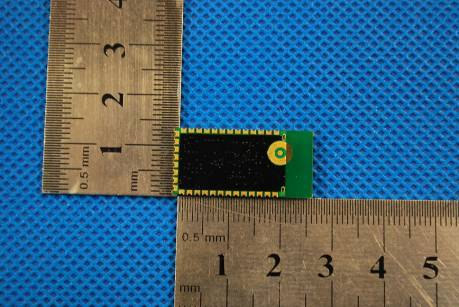

1 Photographs - EUT Constructional Details Test Model No.: ZYM-BT42
