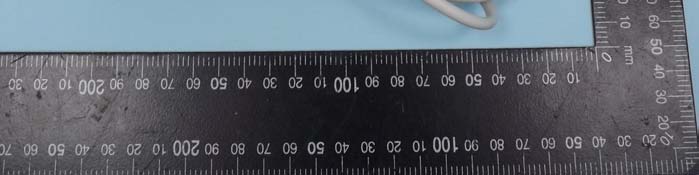

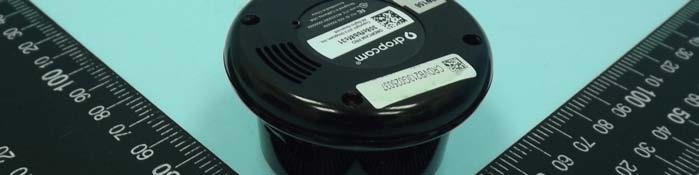

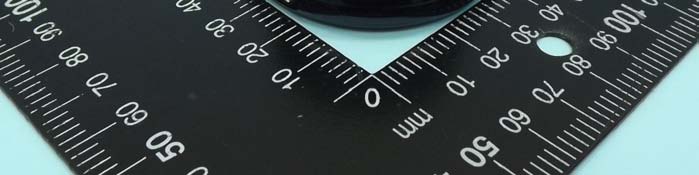

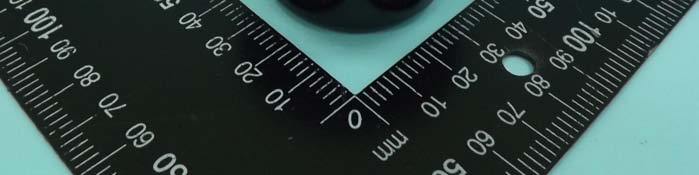

FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B1 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B2 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B3 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B4 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B5 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973

Wei 2013.09/30 DC-D610 2530AD610L-B01 PLUCK LABEL W/ 2D BARCODE (PRO)(FCC & UL & IC) DC-C648(DROPCAM HD) 1/1 B Add IC No.+ Cool Gray 7C

FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B5 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B6 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B7 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B8 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B9 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B10 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B11 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B12 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B14 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362136 SPORTON International Inc. PAGE NUMBER : B15 OF B15 TEL : 886-3-327-3456 ISSUED DATE : Sep. 24, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FA 362136 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC Test Report Report No. : FA 362136 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30uu Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30 u uu FCC Test Report Report No. : FA 362136 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure - (2400 MHz~2483.5 MHz) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location b 1 1 N/A 14.76 N/A g 1 1 N/A 9.72 N/A n (HT20) 1 1 Uncorrelated 8.27 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 14.76 2.08 16.84 0.00961 11G-20M 1 9.72 2.08 11.80 0.00301 11N-(HT20) 1 8.27 2.08 10.35 0.00216 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC Test Report Report No. : FA 362136 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure - (5725 MHz~5850 MHz) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 10.37 N/A n (HT20) 1 1 Uncorrelated 6.55 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A-20M 1 10.37 4.81 15.18 0.00656 11N-(HT20) 1 6.55 4.81 11.36 0.00272 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC Test Report Report No. : FA 362136 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.5 Result of Maximum Permissible Exposure - (5150 MHz~5250 MHz) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location a 1 1 Correlated 11.88 N/A n (HT20) 1 1 Uncorrelated 7.44 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Gain (dBi) EIRP Power PD (S) (mW/cm²) 11A-20M 1 11.88 5.05 16.93 0.00981 11N-(HT20) 1 7.44…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : 1 of 40 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : IP wireless camera Brand Name : Dropcam Model No. : Dropcam PRO FCC ID : ADQ-HD4001 Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DSS Applicant : Dropcam, Inc. 301 Howard Street, 4th Floor San Francisco, CA 94105 Manufacturer : Chicony Electronics ( Mainland China II ) Co., Ltd. San Zhong Gong Li Qu, Qingxi, Dongguan, China The product sample received on Jul. 26, 2013 and completely tested on Aug. 20, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : 2 of 40 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories and Support Equipment ................................................................................................. 7 1.3 Testing Applied Standards ................................................................................................................ 7 1.4 Testing Location Information ............................................................................................................. 7 1.5 Measurement Uncertainty ................................................................................................................. 8 2 TEST CONFIGURATION OF EUT .................................................................................................... 9 2.1 The Worst Case Modulation Configuration ........................................................................................ 9 2.2 Test Channel Frequencies Configuration ........................................................................................... 9 2.3 The Worst Case Power Setting Parameter ........................................................................................ 9 2.4 The Worst Case Measurement Configuration .................................................................................. 10 2.5 Test Setup Diagram ........................................................................................................................ 11 3 TRANSMITTER TEST RESULT ..................................................................................................... 13 3.1 AC Power-line Conducted Emissions .............................................................................................. 13 3.2 20dB Bandwidth and Carrier Frequency Separation ........................................................................ 16 3.3 Number of Hopping Frequencies ..................................................................................................... 18 3.4 Time of Occupancy (Dwell Time) ..................................................................................................... 20 3.5 RF Output Power ............................................................................................................................ 22 3.6 Transmitter Radiated Bandedge Emissions ..................................................................................... 25 3.7 Transmitter Radiated Unwanted Emissions ..................................................................................... 28 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 39 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : 3 of 40 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1924150MHz 42.25 (Margin 11.68dB) - AV 50.40 (Margin 13.53dB) - QP FCC 15.207 Complied 3.2 15.247(a) 20dB Bandwidth EDR: 1.34MHz N/A Complied 3.2 15.247(a) Carrier Frequency Separation (ChS) EDR: 1.0029MHz ChS • BW 20dB x2/3. Complied 3.3 15.247(a) Number of Hopping Frequencies (N) Max: 79 Min: 15 N • 15 Complied 3.4 15.247(a) Time of Occupancy (Dwell Time) EDR:0.314sec 0.4 s within 0.4 x N Complied 3.5 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] BR: 4.36 EDR: 7.11 Power [dBm] BR:21 EDR:21 Complied 3.6 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2524.94MHz: 42.79dB Restricted Bands [dBuV/m at 3m]: 2483.50MHz 60.50 (Margin 13.50dB) - PK 50.73 (Margin 3.27dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.7 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 238.550MHz 42.73 (Margin 3.27dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : 4 of 40 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR362136AD Rev. 01 Initial issue of report Sep. 24, 2013 2500-2690 FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : 5 of 40 TEL : 886-3-3273456 Report Version : Rev. 01 FAX…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 2 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR362136AD SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW
