AFYET-UN677USB WIRELESS LAN CARD

1 USB Wireless LAN Card User Manual SMOOTH YIELD CORPORATION LIMITED ROOM1602, 16/F, KOWLOONBUIDING, 555NATHANROAD, MONGKOK, KOWLOON, HONGKONG 2 Product Feature Rated Voltage: DC 5V RF Output Power Max. 12.85dBm (Conducted) Antenna Gain: Max. 0.9 dBi for chain A, 3.0 dBi for chain B Frequency range: 2412-2462MHz for 11b/g/n(HT20) 2422-2452MHz for 11n(HT40) Number of channels: 11 for 11b/g/n(HT20), 8 for 11n(HT40) Channel Separation: 5MHz Type of Antenna: Integral Antenna System Requirements ● One available USB 1.1/2.0 port ● Operating System: Windows ME/2000/XP/Vista/win7 ● Minimum Disk Space: 2MB Software Installation You must have the following information available before installing your Products . 1. Wireless Network Name (SSID) and, 2. Encryption/Network Key (if applicable) 3 Note: Screen-shot images provided below is based on Windows Vista. You may see different screen on other operating systems but procedures are the same. CAUTION: Products should NOT be inserted at this time. You will be asked to insert after the software is completely installed. A. Power on your computer and allow Windows 2000/ME/XP/Vista/Win7 to load fully. B. Install and run “Setup.exe” program. – InstallShield Wizard” will appear on your screen, select “I accept the terms of the license agreement” then click “Next.”. 4 C. Click “Install” to begin the installation and it will copy all necessary files to your hard disk automatically. D. Click “Finish” when you see “InstallShield Wizard Complete” to finish the installation. 5 You will see “Configuration & Monitor Utility” icon appears on your system tray when the installation is completed successfully. If you don’t see the icon, we highly recommended you to restart the computer. However, if you still don’t see the icon appears, please uninstall and reinstall the software again. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

55 44 33 22 11 D D C C B B A A USB Interface 3.3V 5V Interface Signals RTL8192CU DC TO DC 2.4G TX0/RX0 AntennaAntenna 2.4G TX1/RX1 SerialEEPROMSPIFLASH 40MHzXTAL

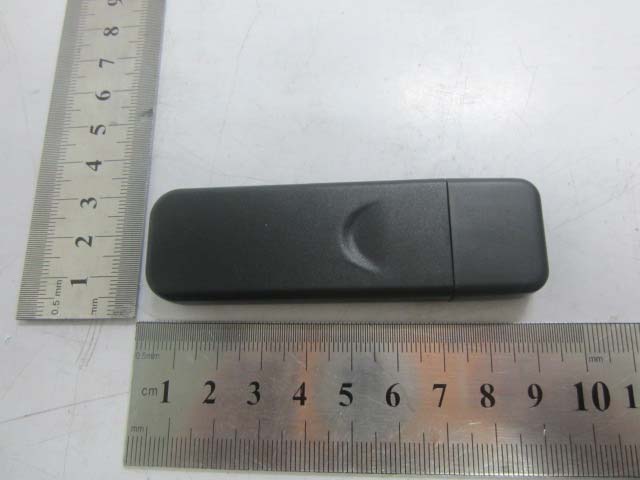

SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AFYET-UN677 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AFYET-UN677 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-1 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-1 FCC PART 15.247 Solder Board-Component View 2

Circuit Description XTAL1 the 40 MHz crystal oscillator provides the base clock source of U3 Wireless LAN network interface controller’s operating. U3 drives reference differential clock for modulator and demodulator of embedded RF transceiver. U3 combines a MAC and 2T2R capable baseband and includes a USB interface for host connection. Embedded MIMO RF transceiver consists of two receivers and two transmitters used to form a complete 2.412-2462GHz ISM band Wireless LAN application. Antenna, Ground, and Power Source There are two external 2.4GHz band on-board antenna. Besides Print circuit board provides copper plane ground, host provides a reference grounding connecting by USB interface. Whole system power source is fed with DC 5Volt by USB interface.

RF Exposure Requirements Product Description: USB wireless lan card Model No.: ET-UN677 FCC ID: AFY ET-UN677 Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Tx frequency range: 2412~2462MHz Antenna-to-tissue separation: <20 cm For Chain A Maximum Conducted Output Power: 12.85dBm (at the 2437MHz channel of 802.11b mode with 11M rate at chain A) Antenna Gain: 0.9dBi for chain A Maximum Output Power: 23.71mW Maximum Duty Factor: 100% 60/f(GHz) mW = 24.62 mW Source-based time-averaged conducted output power is 23.71 mW =< 60/f For Chain B Maximum Conducted Output Power: 9.96dBm (at the 2437MHz channel of 802.11b mode with 11M rate at chain B) Antenna Gain: 3.0 dBi for chain B Maximum Output Power: 23.71mW Maximum Duty Factor: 100% 60/f(GHz) mW = 24.62 mW Source-based time-averaged conducted output power is 23.71 mW =< 60/f For Chain A and Chain B (Antenna gain: 0.9 dBi for chain A, 3.0 dBi for chain B) Test mode Frequency MHz Reading chain A (dBm) Reading chain B (dBm) EIRP chain A (mW) EIRP chain B (mW) Total EIRP (mW) 2412 9.52 7.21 11.02 10.50 21.52 2437 9.34 7.44 10.57 11.07 21.64 802.11n HT20 (MCS15) 2462 9.05 7.76 9.89 11.91 21.80 2422 8.26 7.16 8.24 10.38 18.62 2437 9.12 7.56 10.05 11.38 21.43 802.11 HT40 (MCS15) 2452 8.33 7.36 8.38 10.86 19.24 Maximum Output Power: 21.80mW Maximum Duty Factor: 100% 60/f(GHz) mW = 24.37 mW Source-based time-averaged conducted output power is 21.80 mW =< 60/f Therefore, the transmitter comply with the RF exposure requirements and the SAR is not required.

54321 DD CC BB AA WPS CONFIGURE 90ohm T X 2 G _ P A O P _ 1 T X 2 G _ P A O N _ 1 VD15A VD15R_1 VD12D_LDO 5V GPIO2 5V LED_1 LED_0 5V RX2G_IP_1 HSDP RX2G_IN_0 X I RX2G_IP_0 VD15D T X 2 G _ P A O P _ 0 RX2G_IN_1 HSDM T X 2 G _ P A O N _ 0 X O G P I O 2 VDD33 V D D 3 3 VD15R_0 VDD33 VDD33 HSDP HSDM LED_0 V D D 3 3 LED_1 VDD33 VDD33 C9 2.7pF C25 np C35 1.2pF CON2 marata connector 12 3456 INOUT G N D G N D G N D G N D C40 1uF R11 100K C41 1uF L8 8.2nH L36 bead C37 10pF R46 560 L1 6.8uH C19 0.1uF L10 8.2nH L33 4.7uH R17 24K L2 6.8nH L7 2.7nH C42 10pF LPF1 1 2 3 4 1 2 C8 10pF C14 2.7pF C24 0.1uF C28 1.8nH C39 0.1uF C49 4.7uF L5 np C51 4.7uF L37 bead ANT2 1 2 A N T _ I N NC C66 4.7uF C44 18pF R31 560 C27 0.1uF L12 2.7nH C13 1.2pF R40 NP L16 6.8nH C65 22uF CON1 marata connector 12 3456 INOUT G N D G N D G N D G N D C23 0.1uF C10 1uF C17 1.8nH R43 NP C36 2.7pF C67 5.6nF SW1 21 R41 0 C3 10pF C45 4.7uF CON3A 4 3 2 1 4 3 2 1 R44 0 C52 10nF L6 0.8nH LPF2 1 2 3 4 RTL8192CU U3 17 31 30 29 23 22 20 21 19 18 26 32 3 3 3 4 3 6 3 5 3 7 3 8 3 9 4 0 4 1 4 2 4 3 4 4 57 1 4 7 4 8 54 49 50 51 53 56 55 52 63 61 58 59 60 62 64 4 5 4 6 24567381 6 91 0 1 1 1 2 1 3 1 4 1 5 65 27 28 24 25 PAPE[0] TX2G_PAON[1] TX2G_PAOP[1] RX2G_IP[1] RX2G_IP[0] VD15R[0] TX2G_PAON[0] TX2G_PAOP[0] VD33PA[0] TRSWP[0] VD15R[1] VD33PA[1] T R S W P [ 1 ] T R S W N [ 1 ] L E D 1 / A N T _ S E L _ N L E D 0 / A N T _ S W L _ P V D 3 3 A R E T X V D 1 5 A V D 1 2 A _ L D O X I X O C K _ B T _ 4 0 M N C REFCLK_N V 3 3 P C I e B T _ S T A T E B T _ P R I VD15D PDn WAKEn CLKREQn VD12D_LDO HSOP HSON PERSTn HSDP GNDS REFCLK_P HSIN HSIP VD12S_LDO HSDM W L _ A C T W L _ R X / B 1 5 V _ V L D A N T _ S E L _ P / L E D 2 T R S W N [ 0 ] / L E D 2 V D 3 3 I O V D S P S 3 3 L X _ S P S 0 A N T _ S E L _ N G N D _ S P S 0 T S S I _ 0 V D 1 2 D _ L D O B T _ S u s p e n d G P I O [ 5 ] E E D O E E D I E E S K E E C S GND VD33R RX2G_IN[1] RX2G_IN[0] PAPE[1] C6 1uF C18 1uF L35 bead R23 0R C20 1.8nH R45 NP R42 np C4 1uF C29 10pF R36 680K L31 0 C31 1.2pF L13 np L34 bead R16 bead C12 np R35 150K ant_1 1 2 A N T _ I N NC U4 CAT7103 1 2 34 5 EN GND SWVIN FB C32 2.7pF C16 np C22 0.1uF L4 2.7nH C11 10pF L9 0.8nH C5 0.1uF R33 100K C54 10nF C1 4.7uF C7 1.2pF C26 1.8nH R34 10K XTAL1 40MHz 1 43 2 XTALP GNDXTALP GND C21 np C2 22uF L3 6.8nH L15 2.7nH L17 6.8nH 1 2 C43 20pF C68 5.6nF C69 1nF R22 0R C53 NP 5V_IN 54321 AA

SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-2 PAGE 1 OF 13 FCC PART 15B FCC PART 15B MEASUREMENT AND TEST REPORT FOR SMOOTH YIELD CORPORATION LIMITED ROOM1602, 16/F, KOWLOONBUIDING, 555NATHANROAD, MONGKOK, KOWLOON, HONGKON FCC ID: AFYET-UN677 Report Concerns: Original Report Equipment Type: USB wireless lan card Model: ET-UN677 Report No.: STR11128411I-2 Test Date: 2011-12-29 to 2012-01-08 Issue Date: 2012-01-14 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-2 PAGE 2 OF 13 FCC PART 15B TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A)- CONDUCTED EMISSION .................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RECEIVER SETUP.........................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-2 PAGE 3 OF 13 FCC PART 15B 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: SMOOTH YIELD CORPORATION LIMITED Address of applicant: ROOM1602, 16/F, KOWLOONBUIDING, 555NATHANROAD, MONGKOK, KOWLOON, HONGKONG Manufacturer: Shenzhen Bilian Electronic Limited Address of manufacturer: No 268, Fuqian Rd, Jutang Community, Guanlan Town, Baoan District, Shenzhen, 518110, Prc General Description of E.U.T Items Description EUT Description: USB wireless lan card Trade Name: / Model No.: ET-UN677 Add Model: BL-LW06-1R1 Rated Voltage: DC 5V Rated Current: / For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a production sample, provided by the manufacturer. The others models listed in th…

Text truncated - open the document above for the full version.

SMOOTH YIELD CORPORATION LIMITED Model: ET-UN677 REPORT NO.: STR11128411I-2 FCC PART 15B EXHIBIT 3 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup
