STAR-ELT Radio Fire Alarm Transmitter Operation and Installation Manual DRAFT R 0.6 2/1/2021 Kingfisher Company, inc. STAR-ELT Manual KCi #99420-MAN Rev 0.6 Page 2 of 29 Kingfisher Company, inc. STAR-ELT Manual KCi #99420-MAN Rev 0.6 Page 3 of 29 1. FCC Device Statements FCC ID: AGJKCISTARELT0001 WARNING: Changes or modifications not expressly approved by Kingfisher Company, inc could void the user's authority to operate this equipment and void the product warranty. FCC Notice (for U.S. Customers): This device complies with Part 15 of the FCC Rules: Operation is subject to the following conditions: 1. This device many not cause harmful interference, and 2. This device must accept any interference received, Including interference that may cause undesired operation Changes and Modifications not expressly approved by Kingfisher Company, inc can void your authority to operate this equipment under Federal Communications Commissions rules. 2. Caution ➢ Risk of Electrical Shock ➢ Read this manual completely before installing or servicing panels. ➢ Chassis must be connected to earth ground. ➢ Observe hot and neutral polarity when connecting AC power. ➢ It is recommended to install conduit into the sides of the enclosure only 3. Site Selection ➢ Locate and install the panel where least vibration or jarring will occur. ➢ Mount panel on structurally sound wall. ➢ Mount on a wall area where there is sufficient access to run the conduit for loop inputs, antenna, AC Power, and Earth Ground. ➢ Avoid installation in direct sunlight and in rain runoff paths. ➢ Locate panel providing clear view of the indicators, door clearance, and ease of access. ➢ Factory Mutual (FM Pending) approved for operation temperature range 0°C through 49°C (32°F - 120°F). ➢ Factory Mutual (FM Pending) approved for operation humidity < 95% non-condensing. ➢ Antenna gain shall not exceed zero dBd (referred to a half-wave dipole) in any horizontal direction. ➢ Only vertical polarization of antennas shall be permitted. ➢ The antenna and its supporting structure must not exceed 6.1 m (20 feet) in height above the ground Kingfisher Company, inc. STAR-ELT Manual KCi #99420-MAN Rev 0.6 Page 4 of 29 4. Introduction The STAR-ELT Radio Fire Alarm (KCi Model 99320) is a self-contained Auxiliary Signaling Device that responds to contact closures from fire panels (FACP), emergency switch devices, supervisory switch devices and auxiliary switch devices to generate alarm messages in standard Kingfisher receiver format, and transmits those messages via radio to a compatible Kingfisher receiver. The STAR-ELT is a microprocessor-based device that utilizes state of the art software defined radio techniques to generate an appropriate alarm message and transmit the message on a software-generated VHF frequency. The STAR-ELT is housed in a NEMA-1 cabinet and derives power from either an FM approved FACP 24VDC auxiliary power output or from an optional 120-240VAC power supply. When the optional AC supply is used the STAR-ELT also requires a backup battery. It has the capability to monitor the status of the optional battery and supply charging voltage to keep the battery fully charged. Depending on the type of battery installed, the STAR-ELT can operate from its battery in standby mode for 96 hours following a power failure. The STAR-ELT will generate a trouble message if it detects loss of AC power, disconnection of the battery, a battery that does not hold a charge, a charger that cannot properly charge the battery, or a break in any of the input field wiring connections. To prevent spurious trouble messages, a programmable confirmation wait time of up to 99 sec can be utilized to prevent excessive trouble message signals during normal maintenance, such as changing a battery or short duration power failures. There are two basic units that make up the STAR-ELT panel. The main board can be powered from a 24VDC FACP aux power output, and regulates this down to its required operating voltage. When powered from a FACP, a standby battery is not required as the FACP aux power source is battery backed up. The main board monitors four Class B inputs. It applies debounce logic to signals on these inputs to prevent responding to external noise. When an alarm transmission is warranted the radio circuitry builds an alarm message based on the input activation which is transmitted on a preselected VHF radio frequency channel. Several alarm message formats that conform to an existing Kingfisher messaging standard can be selected. Message format specifics are selected by the alarm technician using a laptop computer. An optional AC power supply provides power and standby battery maintenance when the STAR- ELT is not powered from a FACP auxiliary 24VDC output or other FM approved 24VDC source. The Kingfisher STAR-ELT alarm transmitter is compatible with the following Kingfisher receiving equipment: Kingfisher Model MCR 2 Kingfisher Company, inc. STAR-ELT Manual KCi #99420-MAN Rev 0.6 Page 5 of 29 Figure 1 : STAR-ELT with Optional AC Power Supply STAR-ELT Main Board STAR-ELT Optional Power Supply 12V 7AH Backup Battery (required with optional power supply) Kingfisher Company, inc. STAR-ELT Manual KCi #99420-MAN Rev 0.6 Page 6 of 29 5. Specifications Alarm Interface Monitored Dry Contact Inputs 4 (each input monitors ONE dry contact) Ground Fault Detection Resistance < 100 Ω Input Debounce Time Programmable 1-99 sec Input Termination Resistance 10 kΩ Dry Contact Trouble Output 1 (Energized Contact, Normally Closed) 30VDC 1A Resistive Power Sources DC Power Input Source 24V Aux power from FM Approved FACP Voltage Range 24V Nominal (20.4V to 26.5V) Input Power Isolation Optional Power Isolation Module Power Source Fuse 2ASB (KCi #30040) DC Current Draw – Standby 100mA average / 115mA peak DC Current Draw – Transmission 300 mA average / 370mA peak AC Power Input (Input) Optional power supply AC Voltage Range 120 / 240 VAC Nominal, Single Phase Optional Power Supply AC Freq…

Text truncated - open the document above for the full version.

Kingfisher Company, inc. 81 Old Ferry Road - Lowell, MA 01854 Phone: 978-596-0214 Fax: 978-596-0217 www.kfci.com Kingfisher Company, inc. 12/10/2020 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 AUTHORITY TO ACT AS AGENT - FCC On our behalf, I appoint Larry Stillings, Compliance Worldwide, Inc., to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC regulations will have affixed to it a label identical to that submitted for approval with this application. In signing this letter, Applicant certifies that neither the applicant nor any party to the application is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko North America Inc., still resides still resides with us. Sincerely, Andrew Nolin VP Engineering Kingfisher Co. Inc

Kingfisher Company, inc. 81 Old Ferry Road - Lowell, MA 01854 Phone: 978-596-0214 Fax: 978-596-0217 www.kfci.com Kingfisher Company, inc. 1/18/2021 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: AGJKCISTARELT0001 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request confidential treatment of information accompanying this application as outlined below: PERMANENT LONG-TERM CONFIDENTIALITY: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation SHORT TERM CONFIDENTIALITY FOR A PERIOD OF 180 DAYS: Internal Photos External Photos User Manual Test Set-up Photographs Kingfisher Company, inc. 81 Old Ferry Road - Lowell, MA 01854 Phone: 978-596-0214 Fax: 978-596-0217 www.kfci.com Kingfisher Company, inc. When the device is marketed before the requested number of days listed above, the grantee will inform the TCB to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, Andrew Nolin VP Engineering Kingfisher Company, inc.

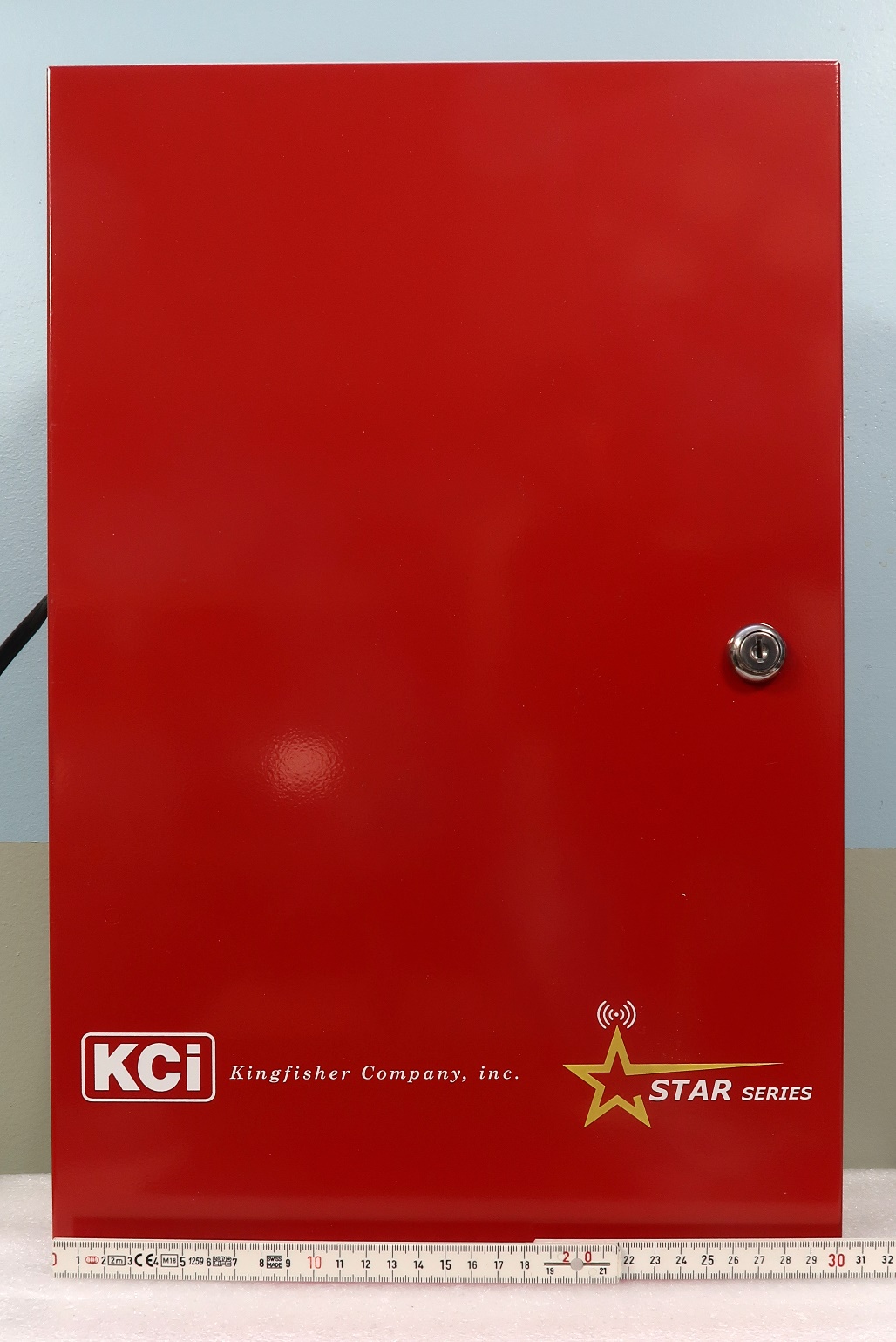

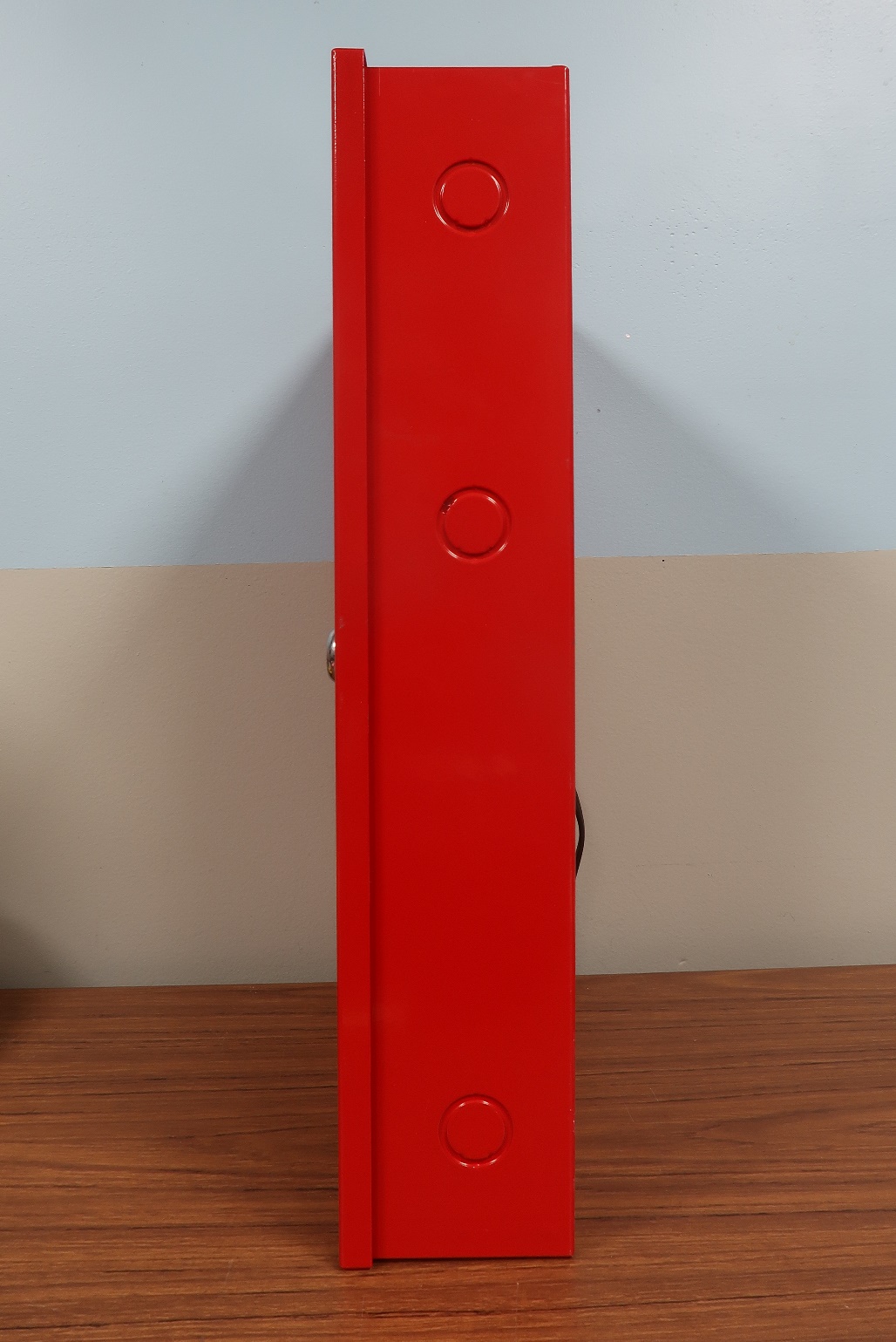

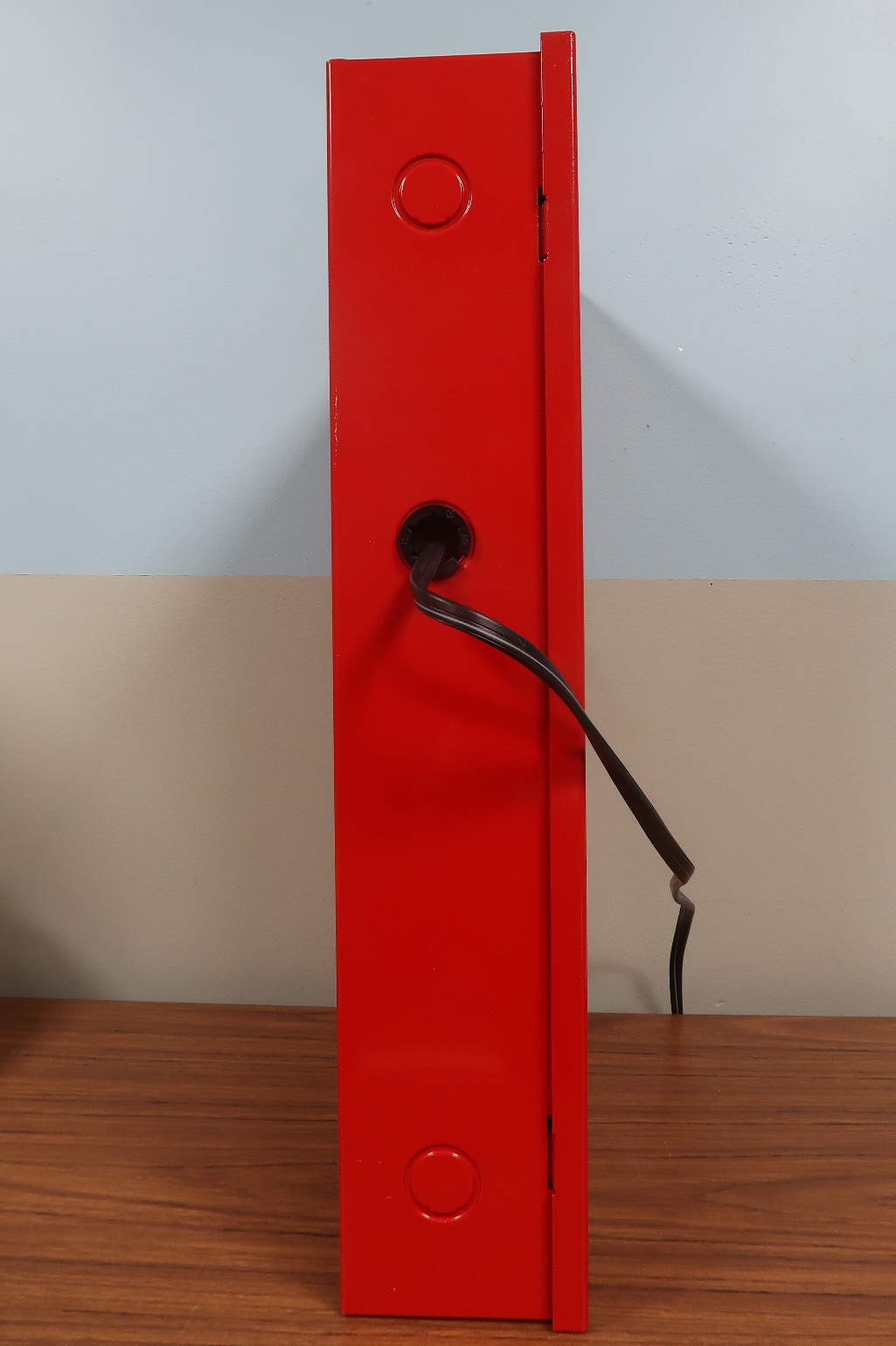

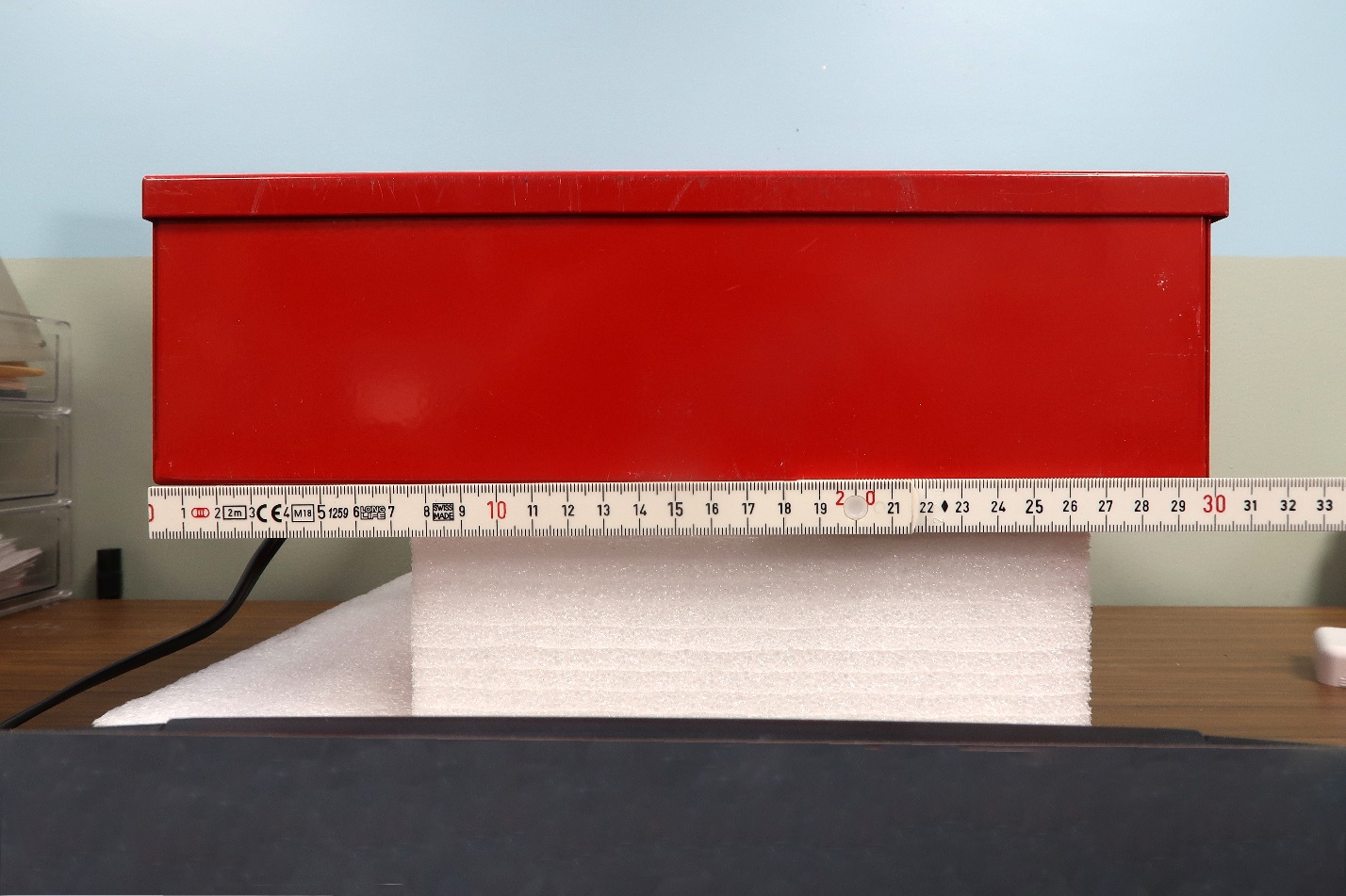

External photos – STAR ELT Cabinet Bottom Cabinet Front measured Cabinet Left Side Cabinet rear Cabinet Right Side Cabinet Top

REVISIONS DESCRIPTION DATE DFT APPECOREV UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES Kingfisher Company, Inc. 81 Old Ferry Road, Lowell, MA. 01854 TITLE: DWG. NO. SHT 1 OF 1 SCALE DATE APP CHK DFT TOLERANCE ON: FRACT, DECIM, ANGL, ±1/64 ±.01 ±1° ±.005 MATERIAL: CAD FILE: 21210-DWG P.SPANOS A.NOLIN 12/10/2020 NONE 21210-DWG REV 0.DWG 20-0028 RELEASE TO PRODUCTION 12/10/2020 P.SP A.NO LABEL, FCC, STAR-ELT USED FOR MANUFACTURE OF THE PART DISCLOSED HEREIN, WITHOUT THE PRIOR WRITTEN PERMISSION OF KINGFISHER COMPANY, INC. GRANTED BY CONTRACTS TO THE UNITED STATES GOVERNMENT, THIS DRAWING MAY NOT, IN WHOLE OR IN PART, BE DUPLICATED OR THIS DRAWING CONTAINS DESIGNS AND OTHER INFORMATION WHICH ARE THE PROPERTY OF KINGFISHER CO., EXCEPT FOR RIGHTS EXPRESSLY 1.00" 2.00" FCC ID: AGJKCISTARELT0001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 0 A.NOLIN REV 0 PHONE: 978-596-0214 FAX: 978 596-0217 3M P/N: 7037 OR EQUIVALENT

43130 (ENCLOSURE, STAR SERIES/UBIC) REVISION 6 OR GREATER 43130 (ENCLOSURE, STAR SERIES/UBIC) REVISION 6 OR GREATER 29006 (LOCK, 211, 5/8" SNGL BITTED AND NUT) 66320 (PCB ASSY, MAIN, STAR-ELT 66321 (PCB ASSY POWER SUPPLY, STAR-ELT) RESALE ITEM: 17200 (BATTERY, 12V 7AH) SHOWN FOR REFERENCE 22194 (GROUND LUG) 23104 (NUT, 10-32 KEPS, ZINC PLATED) 23132 (SCREW, 6-32 X 5/16 SEMS PH MS) 10 PLACES PCB ASSY, MAIN AND PCB ASSY, POWER SUPPLY MOUNTING 57953 (GROUND WIRE, DOOR (STAR/UBIC)) 23102 (NUT, 8-32 KEPS, ZINC PLATED) 23294 (WASHER, #8 LOCK, EXT TOOTH) 23294 (WASHER, #8 LOCK, EXT TOOTH) 23102 (NUT, 8-32 KEPS, ZINC PLATED) PO 57293 (GROUND WIRE, DOOR (STAR/UBIC) 21968 (LABEL, DOOR, STAR-ELT) AFFIX LABEL TO INSIDE OF DOOR APPROX. AS SHOWN 23538 (WASHER, LOCK, #10, EXTERNAL TOOTH) REF:57232 SEE NOTE 1 J1 NOTE: 1. 57232 CABLE ASSY, BATTERY 12INCH, STAR-ELT.NOT SHOWN ON DRAWING. CONNECTS FROM 66321 POWER SUPPLY J1 BATTERY CONNECTOR TO (+) AND (-) BATTERY TERMINALS. 21210 (LABEL, FCC, STAR-ELT) AFFIX LABEL TO SIDE OF ENCLOSURE APPROX. AS SHOWN. THIS DRAWING CONTAINS DESIGNS AND OTHER INFORMATION WHICH ARE THE PROPERTY OF KINGFISHER COMPANY, INC. EXCEPT FOR RIGHTS EXPRESSLY GRANTED BY CONTRACTS TO THE UNITED STATES GOVERNMENT, THIS DRAWING MAY NOT, IN WHOLE OR IN PART, BE DUPLICATED OR USED FOR MANUFACTURE OF THE PART DISCLOSED HEREIN, WITHOUT THE PRIOR WRITTEN PERMISSION OF KINGFISHER COMPANY, INC. DFT CHK APP DATE SCALE MATERIAL: DWG. NO. TITLE: P.SPANOS P.SPANOS A.NOLIN 07/10/2020 1/2 STAR-ELT W/ POWER SUPPLY Kingfisher Company, inc. 99420-ASM SEE BOM CAD FILE:99420-ASM REV 0.DRW 81 OLD FERRY ROAD, LOWELL, MA. 01854 PHONE: 978-596-0214 FAX: 978-596-0217 SIZE SHEET D 1 OF 1 UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES TOLERANCE ON: FRACTIONAL ± 1/64 ANGULAR ± 1° 2 PLACE DECIMAL ± .01 3 PLACE DECIMAL ± .005 REV 0 PRODUCTION RELEASE 19-00070 P.SPA.NO08/27/2020 DATEAPRVDBY DESCRIPTIONECOREV

Internal Photos – STAR ELT Cabinet door open Module Front Markup Module rear Power supply Front Power Supply Rear

Test Number: 295-20R1 Issue Date: 2/1/2021 Page 29 of 36 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.compliancewworldwide.com 6. Measurement Data (continued) 6.8. Public Exposure to Radio Frequency Energy Levels 1.1307 (b)(1) Center Frequency (MHz) MPE Distance (cm) DUT Output Power (dBm) DUT Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Result (mW/cm 2 ) (W/m 2 ) (1) (2) (3) (4) (5) 72.02 20.0 29.23 0.00 0.1666212 1.6662116 0.2 Compliant 75.98 20.0 28.60 0.00 0.1441220 1.4412195 0.2 Compliant 1. Reference CFR 2.1091(b): For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. In this context, the term ‘‘fixed location’’ means that the device is physically secured at one location and is not able to be easily moved to another location. 2. Section 6.1 of this test report. 3. Data supplied by the client for combination of cable loss and antenna gain. 4. Power density is calculated from field strength measurement and antenna gain. 5. Reference CFR 1.1310, Table 1: Limits for Maximum Permissible Exposure (MPE), Section (B): Limits for General Population / Uncontrolled Exposure. 30 to 300 MHz is 0.2 mW/cm 2 . PD = OP + AG (4 x π x d²)

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 295-20R1 In Accordance with the Requirements of FCC PART 90:2015 Subpart J, Section 90.241 Operation in the 72 to 76 MHz Bands Issued to Kingfisher Company, Inc. 81 Old Ferry Road Lowell, Massachusetts 01854 (978) 596-0214 for STAR-ELT Radio Alarm Transmitter FCC ID: AGJKCISTARELT0001 Original Report Issued on November 6, 2020 Revision R1 Issued on February 1, 2021 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 295-20R1 Issue Date: 2/1/2021 Page 2 of 36 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.compliancewworldwide.com Table of Contents 1. Scope ......................................................................................................................................... 3 2. Product Details ........................................................................................................................... 3 2.1. Manufacturer ........................................................................................................................ 3 2.2. Model Number ...................................................................................................................... 3 2.3. Serial Number ...................................................................................................................... 3 2.4. Description ........................................................................................................................... 3 2.5. Power Source ....................................................................................................................... 3 2.6. Hardware Version ................................................................................................................ 3 2.7. Modifications ........................................................................................................................ 3 3. Product Configuration ................................................................................................................. 3 3.1. Support Equipment .............................................................................................................. 3 3.2. Cables .................................................................................................................................. 3 3.3. Operational Characteristics & Software ............................................................................... 4 3.4. Block Diagram ...................................................................................................................... 4 4. Measurement Parameters .......................................................................................................... 5 4.1. Measurement Equipment Used to Perform Test ................................................................. 5 4.2. Measurement & Equipment Setup ....................................................................................... 5 4.3. Test Procedure..................................................................................................................... 5 5. Measurement Summary ............................................................................................................. 6 6. Measurement Data ..................................................................................................................... 7 6.1. Maximum Transmitting Power 90.241, 2.1046 ................................................................... 7 6.2. Occupied Bandwidth 90.241, 2.1049 .................................................................................. 9 6.3. Frequency Tolerance 90.241 (a) (6) ................................................................................. 11 6.4. Transmission Length, Interval and Cycle 90.241 (a) (7) ................................................... 12 6.5. Spurious Emissions at the Antenna Terminals 90.241, 2.1051. ....................................... 15 6.6. Field Strength of Spurious Emissions 90.241, 2.1053 ...................................................... 17 6.7. Emission Mask 90.210 (c) ................................................................................................. 26 6.8. Public Exposure to Radio Frequency Energy Levels 1.1307 (b)(1) .................................. 29 7. Test Site Description ................................................................................................................ 30 8. Test Setup Photographs.........................................................................................31 Appendix A ................................................................................................................................... 36 Test Number: 295-20R1 Issue Date: 2/1/2021 Page 3 of 36 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.compliancewworldwide.com 1. Scope This test report certifies that the Kingfisher Company, Inc. STAR-ELT, as tested, meets the FCC Part 90 Subpart J requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated, and a retest may be required. Revision R1 updates the RF Exposure to General Population / Uncontrolled Exposure limits. 2. Product Details 2.1. Manufacturer: Kingfisher Company, Inc. 2.2. Model Numbers: STAR-ELT 2.3. Serial Number: 20086301 2.4. Description: Entry level radio alarm transmitter handling up to 4 zones. 2.5. Power Source: 120 VAC, 60 Hz 2.6. Hardware Version: 4 2.7. Modifications: None 3. Product Configuration 3.1. Support Equipment Device Manufacturer Model Serial No.…
