AJBB6241MULTIFUNCTIONAL NAVIGATION AND ENTERTAINMENT SYSTEM

Without written consent, any part of this user manual should not be used or re-published in any way. All the products and companies mentioned in the use's manual belong to their own proprietor. Specifications are subject to change without further notice! The user manual is for reference only; please refer to the product for actual operations. COPY RIGHTS 2010 ALL RIGHTS ARE RESERVED. NAV.DVD.RADIO. MP3/MP4.TV(Optional) BLUETOOTH.IPOD.AUDIO. Rev. 2.11 Revision date: 25 Feb,2010 Car Navigator & Entertainment System Owner's Manual User's manual This is a multi-function unit and it consists of Satellite Navigation, DVD player, In-Car Office and Entertainment Center. In order to operate it correctly, please read through the user manual thoroughly before using The Navigation System in this unit adopts advanced navigation technologies, it provides elaborated navigating data to calculate the most suitable routes to your destinations. You can discard your traditionalmaps and the old CD player now, as this unit brings you more functions and conveniences Thank you for choosing car Navigator & Entertainment System! SUMMARY beyond your imagination. it. SUMMARY PRODUCT INTRODUCTION .......................................................................1 SAFETY PRECAUTIONS ............................................................................2 FRONT PANEL FEATURES........................................................................3 APPLICATIONS ............................................................................................4 Navigator.................................................................................................4 DVD..........................................................................................................5 Digital TV / Camera..............................................................................8 Radio.............................................................................................9 Audio Player..........................................................................................11 iPod Player............................................................................................12 Bluetooth................................................................................................13 File Brower.............................................................................................15 Games....................................................................................................17 Notebook................................................................................................17 OPTIONS.............................................................................................18 INSTALLING GPS......................................................................................19 STANDARD ACCESSORIES&BACK PANEL........................................21 MECHANICAL SPECIFICATION..............................................................22 SOLUTIONS OF COMMON PROBLEMS...............................................23 TROUBLE SHOOTING...............................................................................24 . CONTENT 1. You must fill in the warranty card (for corporate user, please stick a business under these terms and conditions will be available. You must take out the warranty 2. The company warrants that its products are free defects in material and workmanship for one year. Subject to the conditions and limitations set forth below. The company will at its option, either repair or replace any part of its products that prove defective by the company on an exchange basis, and will be either new or refurbished to be 3. This warranty only applies to the product with the model number and serial number 4. During the Warranty Period and provided that the Product was used under normal replacement of parts arising from defects in the materials and workmanship of the artificial reasons (including computer virus, operation fault, enter fluid, scratch, (2) The damage is caused by your negligence and misuse of the Product or incurred 8. This warranty shall not extend to anyone other than original purchaser of this Product. 9. The warranty expressly provided herein is the sole warranty provided in connection registration copy) after purchasing the product, then the warranty will take effect conditions. You will be entitled to free repair service of the Product and free Product(fair wear and tear excepted),excluding (without limitation)repair and/or (3) The damage cause by use pirate discs or other no authorization software; (4) The malfunction or the damage caused by natural calamity or other force (5) The malfunction or the damage caused by some accidental factors or some carry, clash, not correctly insert or pull out, something fall into machine, rat 10. This warranty Card is your sole responsibility and our company will not replace majeure (for example: earthquakes, fire, stroke of lightning, other factors 5. This warranty shall be automatically cancelled if the Product or any part(s) are modified, tampered with, altered, converted or repaired in anyway by anybody 11. Our company reserves the right to terminate the warranty in the event of any 6. Our company is not obliged to maintain or repair any part(s) of the Product if: with the Product, and no other warranty, expressed or implied, is provided. (1) Optional units and accessories such as power cable or audio cable (3) The Product is not supplied by our company or our authorized deals. uncertainty or doubt as to the applicability of these terms and conditions. TERMS AND CONDITIONS OF WARRANTY 7. The shipping fee will be beard by each other for 50%. other than our staff or authorized service providers. written on the warranty card (the "Product"). replacement and/or cleaning of the following: this Warranty Card if it is lost or destroyed. damage, pest damage and so on); during transportation of the Product. create traffic accident and so on); (2…

Text truncated - open the document above for the full version.

Shenzhen Roadrover Technology Co., Ltd 8F, Dawning Building, Hi-tech Industrial Park, Nanshan District, Shenzhen February 22, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC Application for FCC ID: AJBB6241 To Whom it may Concern: This letter is to ascertain that Shenzhen Roadrover Technology Co., Ltd Product has been the units used for conducting FCC compliance testing,the DoC part will be tested by FCC recognized test lab. Best regards Sincerely, Shenzhen Roadrover Technology Co., Ltd Andy Zhang (Global After-Sales Engineer)

Block Diagram Figure 1 Process CSR Prima GPS_GRF3i+ 16.367MCrystal LCD_BAKLIGHT TW8816 Module 128M DDR1 RAM SD card & USB 2Gbit SLC Flash SDIN5C2_4G iNAND KEY Connector WM8758B_a udio Module BC5MM-EXT BT Module BU94502 ipod Module 26M Crystal 27M Crystal JATG 12M Crystal RTC-32. 768k MCU and POWER (see figure 2) 16.9344M Crystal Antenna 1 TPA6112A Antenna 2 MCU Control & Peripherals

⌡ౣጲࡾᴷ⩥ႀ丨ឰ᰹䮀ڜन Bontek Compliance Testing Laboratory Ltd DATE: February 22, 2012 Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit FCC application of Shenzhen Roadrover Technology Co., Ltd . FCC ID: AJBB6241 by your TCB Approval today. Best Regards, Bontek Compliance Testing Laboratory Ltd. Tony Wu/General Manager

Shenzhen Roadrover Technology Co., Ltd FCC ID: AJBB6241 POWER OF ATTORNEY February 22, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We, Shenzhen Roadrover Technology Co., Ltd are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuantto that section. Sincerely, Shenzhen Roadrover Technology Co., Ltd Andy Zhang (Global After-Sales Engineer)

Shenzhen Roadrover Technology Co., Ltd 8F, Dawning Building, Hi-tech Industrial Park, Nanshan District, Shenzhen March 5, 2012 FCC Application for FCC ID: AJBB6241 To Whom it may Concern: This letter is to ascertain that Shenzhen Roadrover Technology Co., Ltd Product has been the units used for conducting FCC compliance testing, the measurement data being submitted under this rule part meet the criteria of the Public Notice DA 00-705 which is “Filing and Measurements Guidelines for Frequency Hopping Spread Spectrum Systems. Best regards Sincerely, Shenzhen Roadrover Technology Co., Ltd

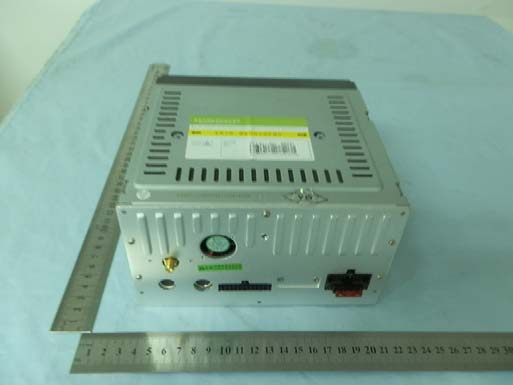

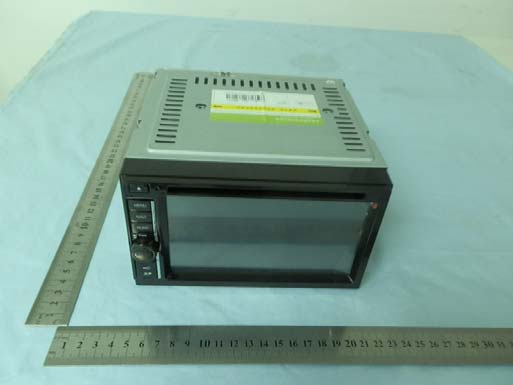

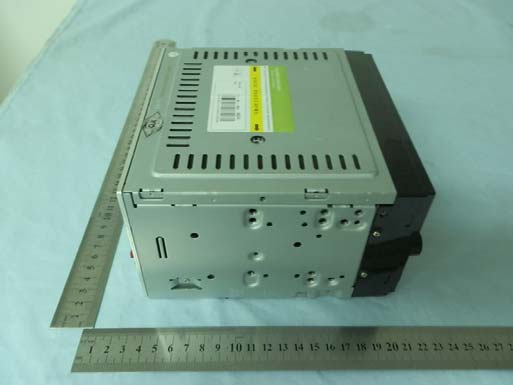

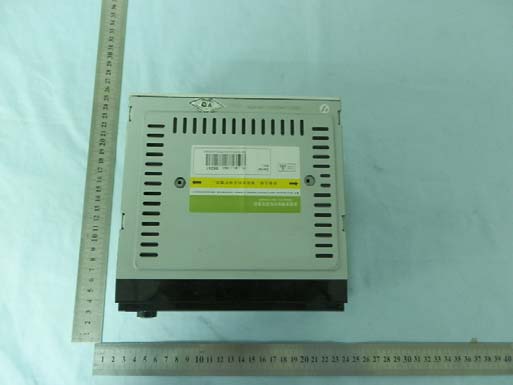

External Photographs EUT - General view EUT - Front View EUT – Rear View EUT - Top View EUT - Bottom View EUT - Side View

FCC ID Label Sample for FCC ID: AJBB6241 FCC ID: AJBB6241 Model: B6241 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment.

FCC ID Location FCC ID Location

Internal Photographs EUT –Open View EUT –PCB View EUT - PCB View   EUT - PCB View EUT - PCB View EUT - PCB View EUT - Screen View EUT - Screen View EUT – DVD Driver View

Circuit Description Processor Prima is Central Processing Unit, communicating with the following modules: 1. Prima Communicates with MCU through serial port. . 2. Prima encodes panel Keys though A/D signal checking and completes unit operations and system functions 3. Though SPI protocol operates GPS front end .Prima processes GPS baseband and reads MAP data .realizes unit navigation functions. 4. Though serial port communicates with Bluetooth module. 5. Processing flash memory and DDR ,complete the whole system operation. 6. Operates USB and SD Card ,reads or writes MAP,audio/video date and encodes them, outputs the signals to AMP and TFT driver. MCU is the slave component ,completes the following control 1. MCU encodes steering control keys through A/D signal checking. 2. Though I2C protocol operates audio/video source switching . 3. MCU checks vehicle ACC , power ,brake ,reverse signals, completing power management . CPU is connect DDR DRAM and NandFlash via external date bus and external address bus Audio Output: CPU connects audio D/A chip. The output simulate audio signal is magnified and then drive speaker or stereo earphone. Bluetooth: the aviator can be recognized as a Bluetooth after the navigator starts Bluetooth func tion and is matched with Bluetooth mobile phone and then the user can make a call through nav igator. CPU communicates with Bluetooth mode through UART. CPU will turn off the sound fro m navigator itself to avoid phone calling interference when the mobile phone makes a call throu gh navigator. SD card: SD card connector includes card power (3.3V), plug test, protection test, card data (4 digitals), clock and oder. Antenna is printed in the PCB

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Shenzhen Roadrover Technology Co., Ltd FCC ID: AJBB6241 Product Description: Multifunctional Navigation and Entertainment System Model No.: B6241 Supplementary Model No.: Please see General Information of this report Prepared for: Shenzhen Roadrover Technology Co., Ltd 8F, Dawning Building, Hi-tech Industrial Park, Nanshan District, Shenzhen Prepared by: Bontek Compliance Testing Laboratory Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT11JR-1734E Issue Date: February 20, 2012 Test Date: December 2, 2011~February 20, 2012 Test by: Reviewed By: Kendy Wang Tony Wu Report No.: BCT11JR-1734E Page 2 of 50 FCC ID: AJBB6241 TABLE OF CONTENTS 1. GENERAL INFORMATION................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................... 4 1.2 RELATED SUBMITTAL(S) / GRANT (S).................................................................................................................. 5 1.3 TEST METHODOLOGY.......................................................................................................................................... 5 1.4 TEST FACILITY...................................................................................................................................................... 5 2. SYSTEM TEST CONFIGURATION...................................................................................................................... 6 2.1 EUT CONFIGURATION.......................................................................................................................................... 6 2.2 EUT EXERCISE.................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES............................................................................................................................. 6 2.4 LIST OF MEASURING EQUIPMENTS USED............................................................................................................ 7 3. SUMMARY OF TEST RESULTS.......................................................................................................................... 9 4 – DISTURBANCE VOLTAGE AT THE MAINS TERMINALS......................................................................... 10 4.1 MEASUREMENT UNCERTAINTY.......................................................................................................................... 10 4.2 APPLICABLE STANDARD..................................................................................................................................... 10 4.4 INSTRUMENT SETUP........................................................................................................................................... 10 4.5 TEST PROCEDURE............................................................................................................................................. 11 4.6 TEST RESULT..................................................................................................................................................... 11 5. TEST OF HOPPING CHANNEL BANDWIDTH................................................................................................ 22 5.1 APPLICABLE STANDARD..................................................................................................................................... 22 5.2 EUT SETUP........................................................................................................................................................ 22 5.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 22 5.4 TEST PROCEDURE............................................................................................................................................. 22 5.5 TEST RESULT..................................................................................................................................................... 22 6. TEST OF HOPPING CHANNEL SEPARATION.............................................................................................. 25 6.1 APPLICABLE STANDARD..................................................................................................................................... 25 6.2 EUT SETUP........................................................................................................................................................ 25 6.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 25 6.4 TEST PROCEDURE............................................................................................................................................. 25 6.5 TEST RESULT..................................................................................................................................................... 25 7. TEST OF NUMBER OF HOPPING FREQUENCY........................................................................................... 28 7.1 APPLICABLE STANDARD..................................................................................................................................... 28 7.2 EUT SETUP........................................................................................................................................................ 28 7.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 28 7.4 TEST PROCEDURE...................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conducted Emission Radiated Emission Radiated Emission
