AJXUC737Spread Spectrum Cordless Phone

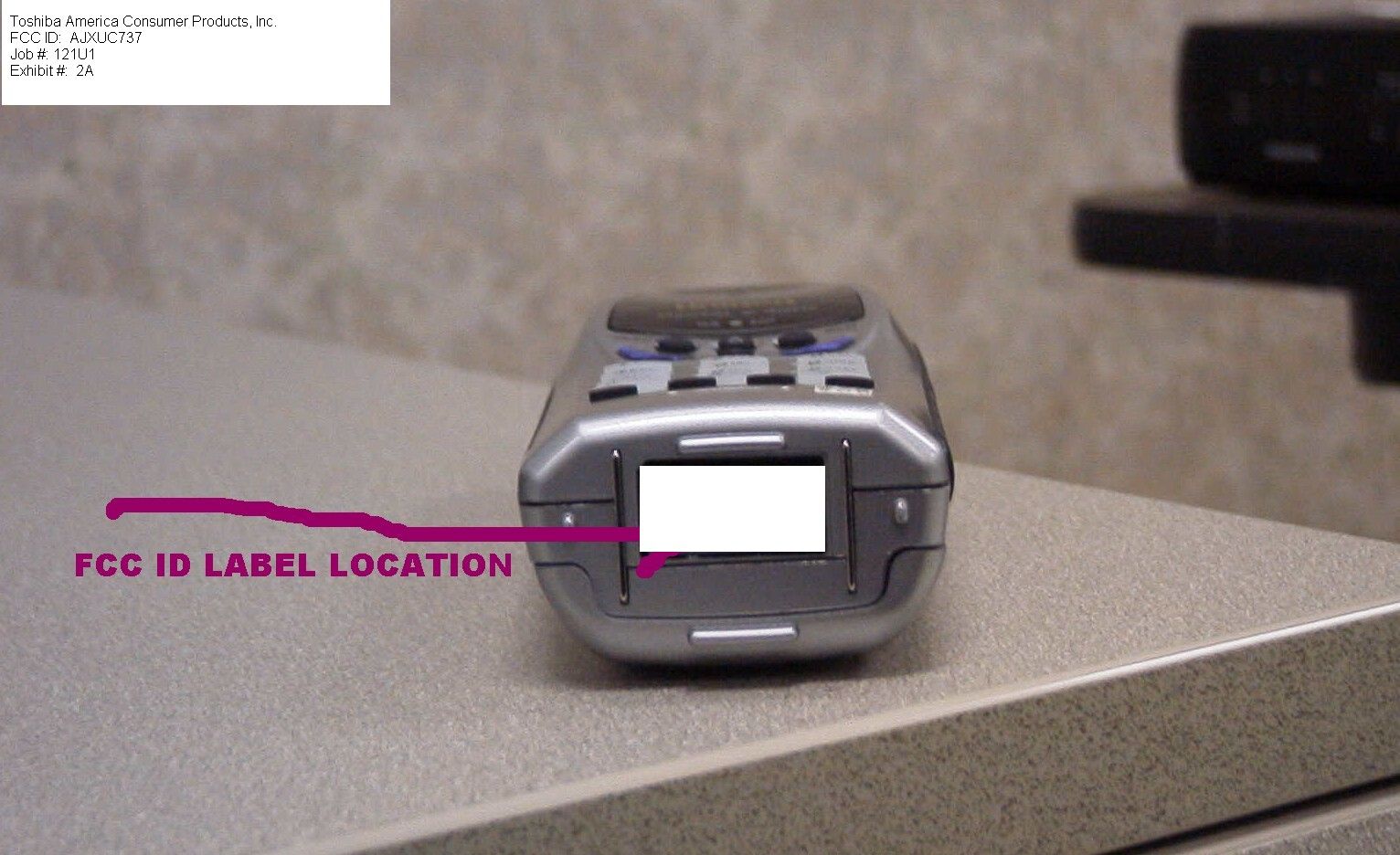

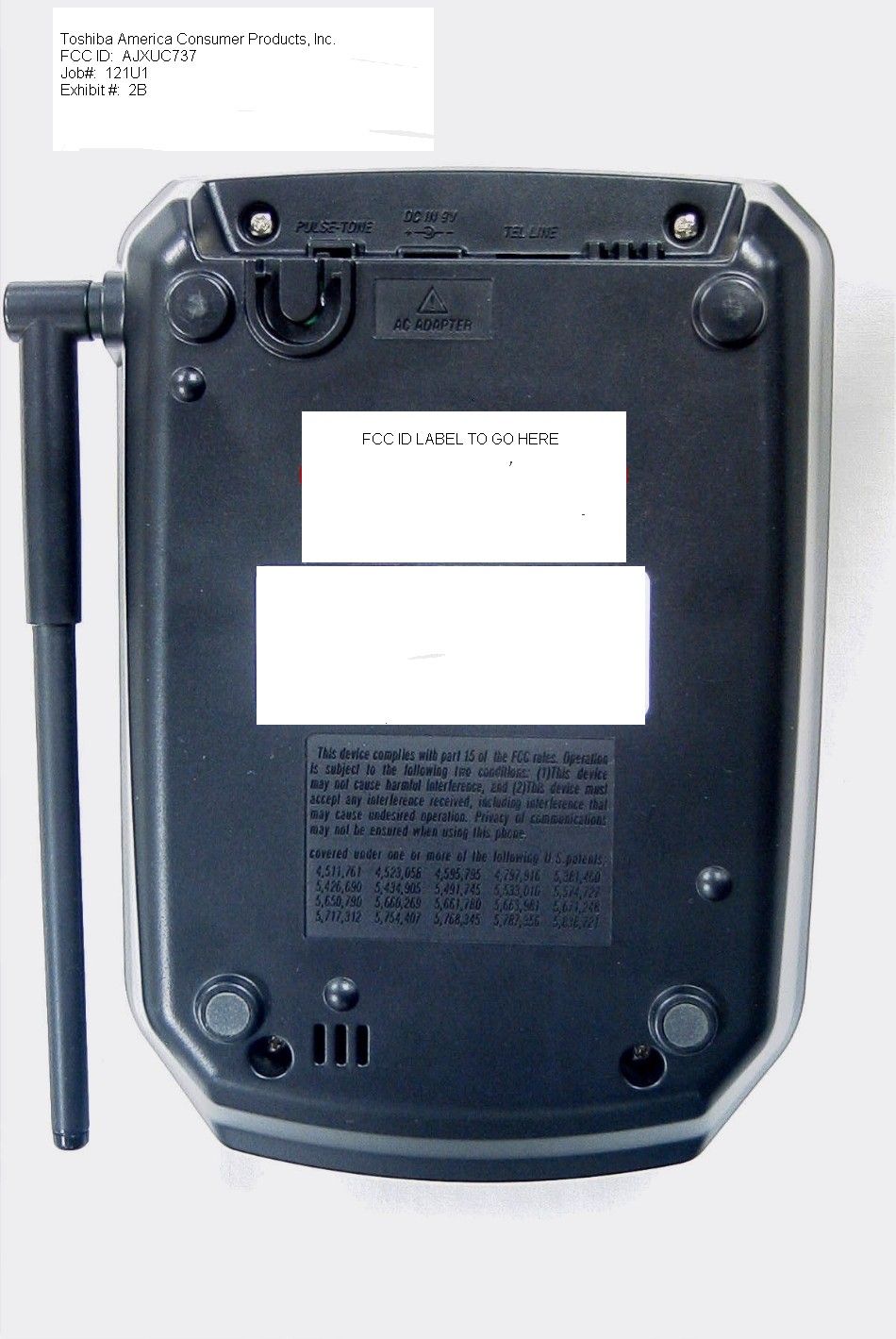

APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID: AJXUC737 DATE: APRIL 4, 2001 REPORT #: T:\cus\T\TOSHAMER\121U1\121U1RPT.doc PAGE #: TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID: AJXUC737 TEST REPORT: PAGE 1..........SECURITY CODING INFORMATION PAGE 2-3........TEST PROCEDURE AND TEST EQUIPMENT LIST PAGE 4..........POWER LINE CONDUCTED INTERFERENCE PAGE 5A-5B......POWER LINE CONDUCTED PLOTS PAGE 6..........OCCUPIED BANDWIDTH AND PEAK POWER OUTPUT PAGE 7A-7F......6 dB BANDWIDTH PLOTS PAGE 8..........ANTENNA CONDUCTED EMISSIONS PAGE 9..........RADIATED SPURIOUS EMISSIONS HANDSET PAGE 10..........RADIATED SPURIOUS EMISSIONS BASE PAGE 11..........RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BAND PAGE 12A-12B.....BANDEDGE PLOTS PAGE 13..........SPECTRAL POWER DENSITY PAGE 14A-14F.....SPECTRAL POWER DENSITY PLOTS PAGE 15A-15F.....PROCESSING GAIN EXHIBITS: EXHIBIT 1........FCC ID LABEL SAMPLES EXHIBIT 2A.......SKETCH OF LABEL LOCATION - HANDSET EXHIBIT 2B.......SKETCH OF LABEL LOCATION - BASE EXHIBIT 3........BLOCK DIAGRAM - BASE EXHIBIT 4........BLOCK DIAGRAM – HANDSET EXHIBIT 5........SCHEMATIC – RF - HANDSET EXHIBIT 6........SCHEMATIC – MAIN - HANDSET EXHIBIT 7........SCHEMATIC – RF – BASE EXHIBIT 8........SCHEMATIC – MAIN – BASE EXHIBIT 9A-9C....CIRCUIT DESCRIPTION EXHIBIT 10A-10P..INSTRUCTION MANUAL EXHIBIT 11A......RADIATED TEST SET UP PHOTO - HANDSET EXHIBIT 11B......RADIATED TEST SET UP PHOTO - BASE EXHIBIT 11C......POWERLINE CONDUCTED TEST SET UP PHOTO – BASE EXHIBIT 12A......EXTERNAL PHOTO – FRONT VIEW – BASE EXHIBIT 12B......EXTERNAL PHOTO – BOTTOM VIEW – BASE EXHIBIT 12C......EXTERNAL PHOTO – FRONT VIEW – HANDSET EXHIBIT 12D......EXTERNAL PHOTO – REAR VIEW – HANDSET EXHIBIT 12E......INTERNAL COMPONENT SIDE PHOTO - BASE EXHIBIT 12F......INTERNAL SOLDER SIDE PHOTO - BASE EXHIBIT 12G......INTERNAL COMPONENT SIDE PHOTO – HANDSET EXHIBIT 12H......INTERNAL SOLDER SIDE PHOTO - HANDSET APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID: AJXUC737 DATE: APRIL 4, 2001 REPORT #: T:\cus\T\TOSHAMER\121U1\121U1RPT.doc PAGE #: Page 1 of 11 APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID: AJXUC737 15.214(d) - THIS DEVICE COMPLIES WITH THE SECURITY CODE REQUIREMENTS OF 15.214(d)(1)(2) AND (3) BY MEANS OF THE FOLLOWING: This cordless telephone system provides random digital security codes. It has 65000 Digital Security Codes. APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID: AJXUC737 DATE: APRIL 4, 2001 REPORT #: T:\cus\T\TOSHAMER\121U1\121U1RPT.doc PAGE #: Page 2 of 11 APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCCID : AJXUC737 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17._X_Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. Shielded interface cables were used in all cases except for cables connecting to the telephone line and the power cords. A test program was run which simulated a normal data transmission on a network. POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 74°F with a humidity of 44%. BANDWIDTH 6.0dB: The measurements were made with the spectrum analyz- er's resolution bandwidth(RBW)=100KHz and the video bandwidth(VBW) =300KHz and the span set as shown on plot. APPLICANT: TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID: AJXUC737 DATE: APRIL 4, 2001 REPORT #: T:\cus\T\TOSHAMER\121U1\121U1RPT.doc PAGE #: Page 3 of 11 APPLICANT : TOSHIBA AMERICA CONSUMER PRODUCTS, INC. FCC ID : AJXUC737 TEST PROCEDURES CONTINUED POWER OUTPUT: The RF power output was measured at the antenna feed point by removing the permanent antenna and connecting the UUT to a peak power meter, HP Model No. 8900C. ANTENNA CONDUCTED EMISSIONS: The RBW=100KHz, VBW > or = RBW and the spectrum was scanned from 30MHz to the 10th Harmonic of the fundamental. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth(RBW) of the spectrum analyzer was 100kHz up to 1GHz and 1.0MHz above 1GHz with an appropriate sweep speed. The VBW above 1.0GHz was = 1.0MHz. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The ambient temperature of the UUT was 74°F with…

Text truncated - open the document above for the full version.
