AJZDWO-2BLUETOOTH HELMET HEADSET

- 0 - - 1 - Index Package Contents........................................................................2 Product Description.....................................................................2 Specification..................................................................... .........3 Main Features..............................................................................3 Installation .................................................................................5 Operation....................................................................................6 Mobile phone operation....................................................................6 Intercom operation........................................................................ 7 Music operation.............................................................................. 8 GPS navigator operation.....................................................................8 FM Radio operation..................................................................... ... 9 Trouble shooting........................................................................ 10 Headset embedded battery charging............................................. 10 LED light Indicator..........................................................................10 - 2 - Package Content Product Description Thank you for having chosen the DWO-2, the Bluetooth ® Headset for Motorcycle Riders. This Manual will help you operate the headset, but you should first familiarize yourself with the Bluetooth ® functions of your cellular phone or GPS device before using. DWO-2 stereo is a Bluetooth ® system for helmets, enabling you to talk with passenger or other rider, and entertainment while riding your motorcycle. DWO-2 stereo works and communicates with cellular phones, GPS navigators, and musical readers equipped with Bluetooth ® technology. - 3 - 1. MFB (Multi-function Button) 2. Volume + ( Volume up / Track forward / Voice dial ) 3. CTRL- - Control Button ( Power / Pairing / Intercom ) 4. Antenna 5. LED light indicator 6. Volume – ( Volume down / Track back / Last number redial ) 7. Headset jack & Charging jack - 4 - Specification DWO-2 Bluetooth ® Version Bluetooth ® V2.0 Bluetooth ® RF Spec Class 1 Talking Time 8 hours Standby Time 400 hours Charging Voltage 5V Charging Time 3 hours RF Frequency 2.4 ~ 2.4835 GHz (ISM Band) FM Function Optional Battery Type 500mAh rechargeable Lithium-Polymer Battery Supports HSP, HFP, A2DP, AVRCP, FM and Full Duplex Inter-communication Main Features Mobile phone functions ¾ Bluetooth ® Hands-free ¾ Voice dial ¾ Last phone number redial ¾ Automatically answer call ¾ Reject call - 5 - ¾ Mobile phone volume control ¾ Mobile phone has the highest priority Intercom functions ¾ Rider to rider (Maximum communication range up to 1640ft/500meters) ¾ Rider to Passenger ¾ Intercom volume control (Typical effective range in urban area is about 1640ft/500m for DWO-2 (328ft/100m for HM528). Note: actual range will depend on weather conditions, terrain and presence of obstacles.) Stereo functions ¾ Bluetooth ® A2DP music play ¾ Enjoy music from Mobile phone or other music sources ¾ Remote control music play with AVRCP ¾ music volume control GPS functions ¾ Audio guide information from Bluetooth ® GPS navigator by A2DP function. - 6 - ¾ Independent A2DP volume control FM Radio functions (Optional) ¾ Frequency covers 76~108MHz ¾ FM volume control ◆ .DSP technique, wind noise suppression and echo cancellation to ensure the crystal voice quality when speeding high (Up to 150km/h). Installation 1. Mouthing Clipping plate The headset sliding plate must be mounted onto the helmet first. Once mounted, the headset unit can be attached or detached from the sliding plate at any time you want. Note: it is better to remove it from clipping plate when not in use. 2. Mounting the Microphone and Speakers 2.1 The Microphone must be positioned in front of the center of the mouth. - 7 - 2.2Putting the Velcro into the slot which has the same shape inside the helmet 2.3 Attach the speakers to the Velcro Pads inside your helmet opposite your ears (short speaker cord for left ear & long speaker cord for right ear)。 Note: Always prioritize your riding, not Mobile phone calls. During a Mobile phone conversation, or whilst using the interphone, deceleration and concentrate on your riding. In bad weather and/or heavy traffic, we recommend pulling over and stopping, before answering. Operation (Please read the manual carefully before using the system) Power On and Off 1. In power off state, press CTRL and hold it for 3 seconds, until hear a “di” tone, release the button, Blue indicator will flash to indicate power on successfully. 2. In power on state, press CTRL and hold it for 5 seconds, until hear a long “di” tone, all LED indicators will be shut off to indicate the headset is powered off. Enter Pairing Mode Operating from Power off state, pressing and holding CTRL until Red/Blue lights flashes alternately. It is under Pairing Mode. Note: If the pairing process is not completed within one minute, the headset will turn to Standby mode. - 8 - Mobile phone operation When the light is flashing Red/Blue alternately, your DWO-2 is under pairing mode, and then using your mobile to search for devices(please refer to your mobile phone manual). The Mobile phone can detect DWO-2. Simply select it, and enter the pin code “0000”. If paired successful, there will have “DI” notice tone, and LED Indicator will change to flash in blue color Now you can use the headset to answer you phone call, or enjoy the music from your Mobile phone. 1. Automatically answer incoming call The Bluetooth ® Helmet headset has the automatically answer function. If there is no any operations on the headset after 12 seconds, the Bluetooth ® Helmet headset will answer the phone call automatically. 2. Answering phone call When you need to answer the phone call, just short press the MFB key. 3. Reject a call …

Text truncated - open the document above for the full version.

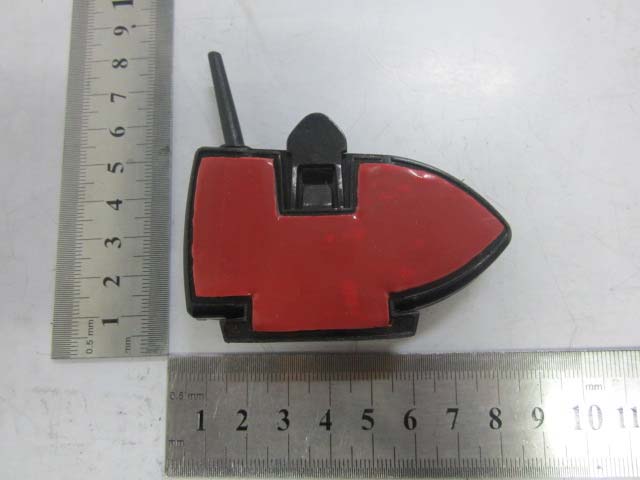

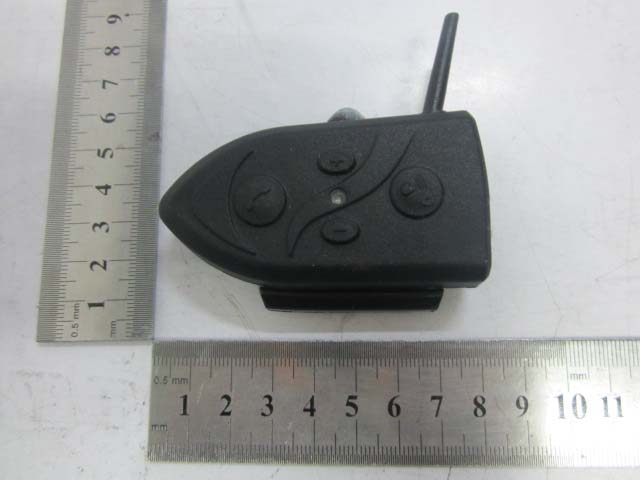

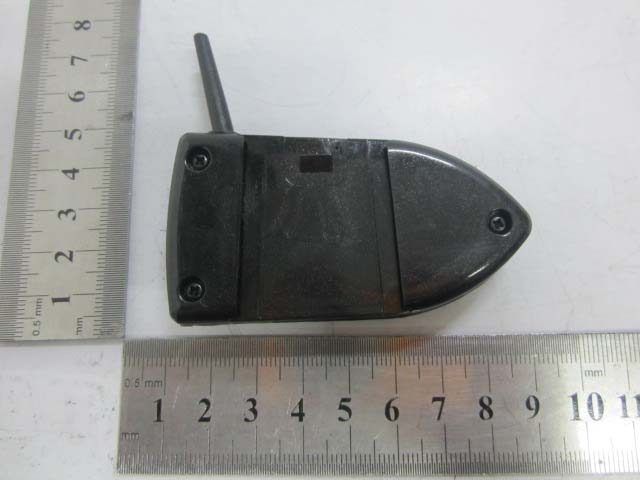

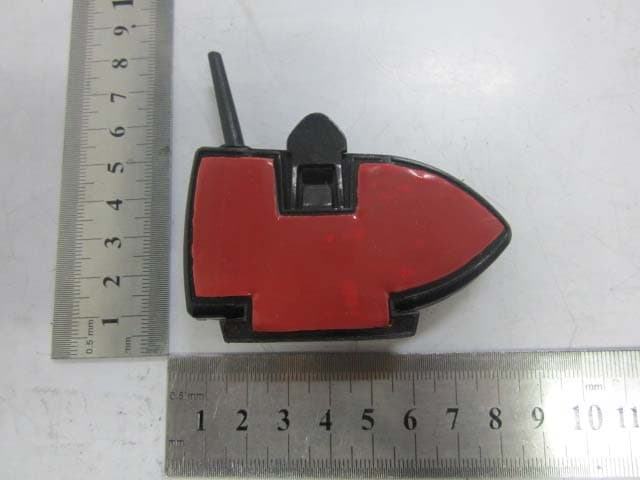

Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 EUT View 3 EUT View 3

Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AJZDWO-2 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: AJZDWO-2 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 Solder Board-Component View 2

Operational description 1.The DWO-2 product uses the HFP, HSP, A2DP and AVRCP profiles of Bluetooth version 2.0 to connect to the mobile phone. The HFP and HSP profiles enable the DWO-2 to handle the phone call events, the A2DP and AVRCP profiles enable DWO-2 to accept the music source from mobile phone, and control its play, pause, forward, backward, and corresponding volume control . 2.Bluetooth chip The BlueCore device in the design is currently chosen to be BlueCore5-Multimedia External as this model, together with the companied RF filter and flash memory, is believed to be the most cost effective. There are several power supply chains inside the Bluetooth chip for different partitions. The supplied voltage scheme is described at appendix A in a form of listed, signal, IO and supply rail. Fully Bluetooth system (RF,BB, protocol stack, and profiles) to support Handsfree profile acting as an slave device. Programmable I/O pins for proper user interface interactions. 3.Flash Memory In current circuit design an 16MBits 3V3 flash memory is used, this is different compared to the published reference design from CSR which uses a 1.8V 16Mbits flash memory. The reason for this configuration is to address the risk we observed during the component survey that the price and availability for the 1.8V part is still not competitive to the 3V3 equivalents. 3.Radio front end A balanced antenna filter DBF81F101 from Cyntec. An L/C network providing DC bias from the 1.8 rail. The unbalanced signal leads to the antenna. The IFA Antenna and it is a kind of the printed antenna. The antenna matching network. 4. The DWO-2 Bluetooth frequency range is from 2402MHz to 2480MHz,The number of channels is79, the modulation type is GFSK. 3.While not in mobile phone call state, quick double press the MFB button can enter the FM receive state, DWO-2 can be tuned to receive the FM signals from FM76MHz~108MHz. 5. Power Amplifier This is a high efficiency class-AB audio power amplifier to drive the loudspeaker. And it is capable of 2.2W output on a 4-ohm load with under 1% THD+N @1kHz in a stereo BTL configuration. The gain setting for the power amplifier (adjustable) is determined by feedback resistor ratio. 6. This 3.3V LDO is a low noise, highly accurate voltage regulator and provide the 3.3V for the Bluetooth module. The 3.3V LDO can be enabled in one of three conditions as below.-User pressed the power switch. -From 1V8 output of Bluetooth chip. 7. Lion polymer battery rated 3.7V, 550mAh is employed to supply electronic power. And a 5V DC power adapter is used to charge the product. 8. The flashing and configuration interface The slave SPI port of the Bluetooth chip is routed to the test points for access during the production for flashing and production test.

55 44 33 22 11 D D C C B B A A 德青科技有限公司(DellKing Technology) Tel:0755-81812002 Fax:0755-61221316Email:[email protected] Web:www.dellking.com SPI_MOSI MIC- Mic_N_LMic_P_L MIC+ BLUE LED0 KY1KY2 PIO4 AUD_P_L AUD_N_L AUD_N_R AUD_P_R Mic_N_L Mic_P_L PIO3 PIO2 LED0 LED1 SPI_CLK SPI_MISO SPI_MOSISPI_CSBSPI_CLKSPI_MISO SPI_CSB VCC_EN PIO13 PIO12 PIO13 PIO12 MFB PIO7 PIO6 Power_En CHG# VCC_EN Power_En ON PIO6 PIO7 AUD_N_LAUD_P_L FM_R FM_RFM_L FM_L VCC_EN Power_En PIO11 REDRED LED1CHG#PIO2PIO4PIO3 AUD_N_RAUD_P_R AIO1 PIO15 PIO14 OUT_N_ROUT_N_L 5V_Changer OUT_N_LNC FM_ANT MIC+OUT_P_L OUT_P_L OUT_P_R5V_ChangerOUT_N_R FM_ANT OUT_P_R PIO11 VBATT VCC_PA_3V3 3V3 3V3 5V_Charge VBATT 5V_Charge VBATT 3V3 VCC_PA_3V3 VBATT VDD_FM VDD_FM VBATT 3V3 VBATT VDD_AUDIO VDD_AUDIO 3V3VCC_1V8 VCC_1V8 TitleSize Document Number Rev Date: Sheet of <DellKing Bluetooth InterHs Circuit Diagram Page 1> < 曾慧文 > A3 11 Wednesday, April 21, 2010 TitleSize Document Number Rev Date: Sheet of <DellKing Bluetooth InterHs Circuit Diagram Page 1> < 曾慧文 > A3 11 Wednesday, April 21, 2010 TitleSize Document Number Rev Date: Sheet of <DellKing Bluetooth InterHs Circuit Diagram Page 1> < 曾慧文 > A3 11 Wednesday, April 21, 2010 C12100nFC12100nF R29 150KR29 150K R40R40 C547uFC547uF C24 0.1uF C24 0.1uF R1 10KR1 10K J12DC_JACKJ12DC_JACK 12 D9 LED_RED D9 LED_RED Q23904Q23904 1 23 D8 LED_Blue D8 LED_Blue C11C11 FB12 600R/100MHzFB12 600R/100MHz C20C20 FB13FB13 BT2 Li Polymer Battery BT2 Li Polymer Battery 12 R38R38 U8 BH5/TSOP-5 U8 BH5/TSOP-5 GND 5 K 3 VCC 1 D 4 GND 2 U1LM4863U1LM4863 IN_L_N 6 IN_L_P 8 BYPASS 14 IN_R_N 15 IN_R_P 13 SHUTDOWN 1 GND 7 GND 9 GDN 12 GND 2 GND 10 GND 11 GND 19 OUT_L_N 5 OUT_L_P 3 OUT_R_N 16 OUT_R_P 18 VDD 4 VDD 17 HI-IN 20 R4220KR4220K E1 ANT E1 ANT R3 0R R3 0R C35C35 C43 220uF C43 220uF R7R7 R26R26 FB15 600R/100MHz FB15 600R/100MHz J1 PIN8 J1 PIN8 12345678 C4110uFC4110uF U3 TP4054-4.2 U3 TP4054-4.2 CHARG# 1 GND 2 PROG 5 BAT 3 VCC 4 Q43904Q43904 1 23 R4320KR4320K FB9FB9 R35R35 C36 0.1uF C36 0.1uF R51R51 R20 10K R20 10K C110uFC110uF SW3 MFB SW3 MFB R44R44 R17 10K R17 10K C7 100nF C7 100nF C21C21 SW2VOL-SW2VOL- C2 10uF/10V C2 10uF/10V R2R2 R252KR252K R4R4 R27 150K R27 150K U7XC6219A332MRNU7XC6219A332MRN VOUT 5 CE 3 VIN 1 BYP 4 GND 2 R21R21 R8R8 C46C46 C17C17 R18R18 J14 Mini8PinUSB J14 Mini8PinUSB 12345678 C810uFC810uF Q1Q1 1 23 C42 2U2 C42 2U2 U16-1 DK_208M U16-1 DK_208M RST 1 PIO4 2 PIO7 3 PIO13 4 PIO12 5 PIO9 6 PIO10 7 AIO1 8 AIO2 9 USB_DN 10 USB_DP 11 UART_RX 12 UART_TX 13 PIO15 14 PIO11 15 PIO8 16 PIO14 17 PIO5 18 PIO6 19 PCM_SYNC 20 PCM_IN 21 PCM_CLK 22 PCM_OUT 23 GND 24 VCC 25 BAT 26 CHG 27 1V8 28 GND 29 SPI_CSB 30 SPK_B_N 45 SPI_CLK 31 SPI_MISO 32 LED1 33 SPI_MOSI 34 LED0 35 VCC_EN 36 PIO2 37 PIO3 38 AGND 39 MIC_BAIS 40 MIC_B_P 41 MIC_B_N 42 MIC_A_P 43 MIC_A_N 44 SPK_B_P 46 SPK_A_N 47 SPK_A_P 48 GND 49 VDD_PA 50 GND 51 GND 52 ANT 53 GND 54 C610nFC610nF C26C26 SW1VOL+SW1VOL+ C44C44 R12R12 C53 220uF/6.3V C53 220uF/6.3V R24470KR24470K FB7600R/100MHzFB7600R/100MHz D65817D65817 R33R33 C40C40 R5R5 R28 10K R28 10K D5 IN4739 /9.1V /0.5W D5 IN4739 /9.1V /0.5W C22C22 R23 10K R23 10K R22R22 R13R13 SW4ON_OFF/INTSW4ON_OFF/INT R34 10K R34 10K U6XC6219A332MRNU6XC6219A332MRN VOUT 5 CE 3 VIN 1 BYP 4 GND 2 U18 SCT-300 U18 SCT-300 ANT 1 NC 2 FM_R 3 FM_L 4 GND 5 BUSEN 7 BUSMODE 8 CLOCK 9 VCC 6 DATA 10 C18C18 C52100nFC52100nF R14 10K R14 10K C5422pFC5422pF J11J11 123456 C23 0.1uF C23 0.1uF R32R32 FB11FB11 R3120KR3120K R39 0R R39 0R R16 150KR16 150K R36R36 R45R45R37R37 C16C16 C47 1nF C47 1nF R41R41 C58 10nF C58 10nF

Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I PAGE 1 OF 37 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Jiangmen Pengcheng Helmets Ltd. Dong Sheng Road No.1-7, Gonghe Town, Heshan City, Guangdong 529728, P.R.China FCC ID: AJZDWO-2 Report Concerns: Original Report Equipment Type: Bluetooth Helmet Headset Model: DWO-2 Report No.: STR12018177I Test Date: 2012-02-04 to 2012-02-08 Issue Date: 2012-02-09 Tested By: Seven Song / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I PAGE 2 OF 37 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................4 1.3 TEST METHODOLOGY.............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................5 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................5 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................5 2. SUMMARY OF TEST RESULTS ...........................................................................................................................6 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................7 3.1 STANDARD APPLICABLE.........................................................................................................................................7 3.2 TEST RESULT..........................................................................................................................................................7 4. NUMBER OF HOPPING CHANNELS AND CHANNEL SPACING .................................................................8 4.1 STANDARD APPLICABLE.........................................................................................................................................8 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.3 TEST PROCEDURE...................................................................................................................................................8 4.4 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.5 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. DWELL TIME OF A HOPPING CHANNEL ......................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. 20-DB BANDWIDTH ..............................................................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................14 7. POWER OUTPUT...................................................................................................................................................17 7.1 STANDARD APPLICABLE............................................................…

Text truncated - open the document above for the full version.

Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 Radiation Emission Test Setup (Above 1GHz) Radiation Emission Test Setup (30MHz to 1GHz Charging Mode) Jiangmen Pengcheng Helmets Ltd. Model: DWO-2 REPORT NO.: STR12018177I FCC Part 15.247 Conducted Emission Test Setup (Charging Mode)
