AK814798211XWireless Network Audio System Module

©2006 Sony Corporation 2-687-754-11(1) Wireless Network Audio System Operating Instructions Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. ______________ Serial No. ______________ CPF-IX001 2 GB To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. This product to be used indoor only. To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. The nameplate is located on the bottom exterior. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Notice for the customers in the U.S.A. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. This graphic symbol is located on the bottom of the unit. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs). Important Safety Instructions 1)Read these instructions. 2)Keep these instructions. 3)Heed all warnings. 4)Follow all instructions. 5)Do not use this apparatus near water. 6)Clean only with dry cloth. 7)Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11)Only use attachments/accessories specified by the manufacturer. 12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13)Unplug this apparatus during lightning storms or when unused for long periods of time. 14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. WARNING Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. 3 GB WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. If you have any questions about this product, you may call; Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/ The Number below is for the FCC related matters only. Regulatory Information FCC RECOMMEND The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Notice for the customers in Canada This device complies with RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This equipment complies with IC radiation exposure limits set forth for uncontrolled equipment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20cm and more between the radiator and p…

Text truncated - open the document above for the full version.

1 William Graff From: [email protected] Sent: Tuesday, August 08, 2006 2:55 PM To: William Graff Subject: Re: www.AmericanTCB.com ATCB003842 | AK814798211X | 409B - 14798211 | | AK814798211X_ATCB003842 Attachments: Revised LMA Letter.pdf; A1 Photo of LMA Letter.pdf; Revised Operational Description(Confidential)Installation.pdf Revised LMA Letter.pdf (91 KB)... A1 Photo of LMA Letter.pdf (42... Revised Operational Descriptio... Dear Bill-san, Thank you very much for comments. Please find reply to your comments below; 1.) This appears to be an application for a Module Approval. As such, a letter detailing the requirements of DA 00-1407 must be included in this filing. If this is to be a Limited Modular Approval (LMA) then you must explicitly document how this device shall be configured and installed. Simply saying that this device will be used in SONY products is insufficient. This letter also cannot be covered under the terms of Short Term Confidentiality agreements, but photographic documentation can be submitted under the Test Setup exhibits. Test Setup photos can be held as STC. ANSWER: This is Limited module for Sony's mobile equipment only. For mobile equipment(FCC2.1091), manufactuer can install this module on any equipment. Hoever, this module does not have regulator itself, so Sony is responsible to install the module to their own (mobile configuration) end-products which has 3.3V stabilized power source. This method is accepted by ATCB before. We separated the LMA latter and photo in the LMA letter. Please keep the "A1 Photo of LMA Letter.pdf" as STC and also replace the LMA letter with "Revised LMA Letter.pdf". 2.) Because this is a Modular Approval, a Manual addressed to any OEM integrator shall also be provided showing instructions as to how this device should be installed and operated. There is a document entitled “Operational Description (Installation)” which appears to try and satisfy these requirements. Should this document be considered the equivalent of the OEM integrator manual? ANSWER: Yes. This is installation manaul. There were some mistake on model names, so please replace with "Revised Operational Description[Confidential]_Installation_.pdf"attached. We are looking forward to receive FCC/IC certificates. 2 Best Regards, Keijiro UL Apex "William Graff" <[email protected]> 2006/08/08 14:27 To <[email protected]> cc <[email protected]>, <[email protected]>, <[email protected]> Subject www.AmericanTCB.com ATCB003842 | AK814798211X | 409B - 14798211 | | AK814798211X_ATCB003842 Regarding www.AmericanTCB.com application: ATCB ID: ATCB003842 FCC ID: AK814798211X IC ID: 409B - 14798211 NB ID: Account name: ulapexkeijiro Please see attached comments. Best regards, Bill ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ William H. Graff, NARTE Certified ~ President and Director of Engineering ~ AmericanTCB, Inc. ~ 6731 Whittier Ave, ~ McLean, VA 22101 ~ mailto:[email protected] ~ Corporate Phone: (703) 847-4700 ~ Corporate FAX: (703) 847-6888 ~ Taiwan Office: (703) 310-6868 ~ Taiwan Mobile: +886 920399260 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ [attachment "ATCB Comments 08082006.pdf" deleted by Keijiro Kumagai/ISE/ULI] - For more information about UL, its Marks, and its services for EMC, quality registrations and product certifications for global markets, please access our web sites at http://www.ul.com and http://www.ul-asia.com or contact your local sales representative. -- ********* Internet E-mail Confidentiality Disclaimer ********** This e-mail message may contain privileged or confidential information. If you are not the intended recipient, you may not 3 disclose, use, disseminate, distribute, copy or rely upon this message or attachment in any way. If you received this e-mail message in error, please return by forwarding the message and its attachments to the sender. UL and its affiliates do not accept liability for any errors, omissions, corruption or virus in the contents of this message or any attachments. *****************************************************************

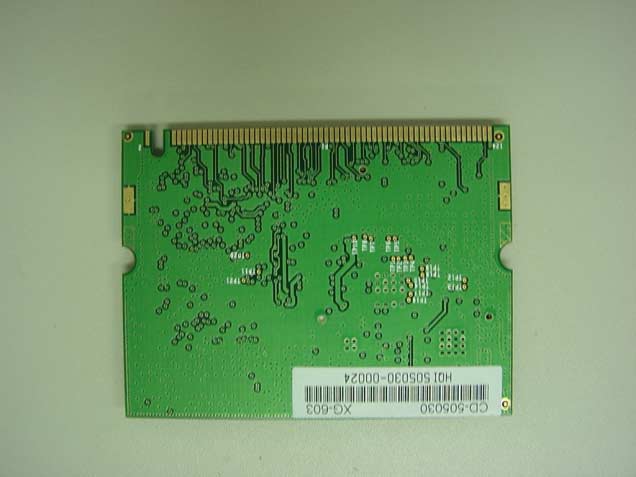

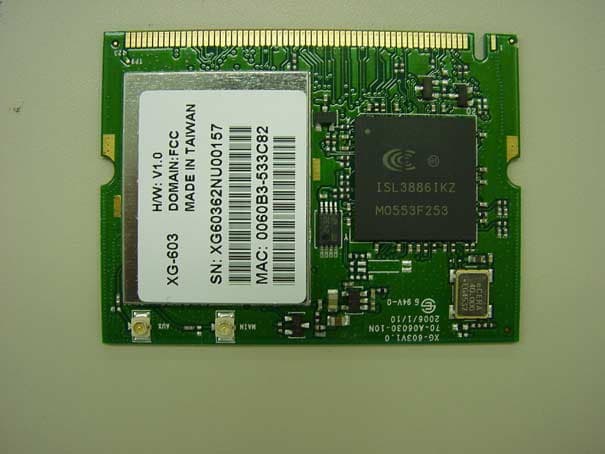

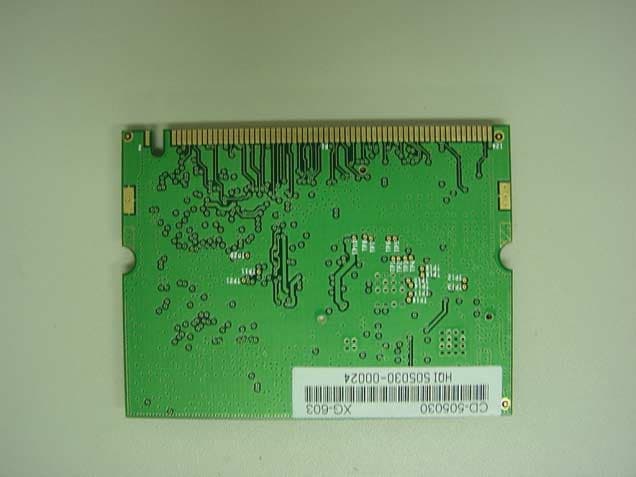

Photo of LAWM-001

Shield Case BBMAC 23mm 29mm Xtal(40MHz) Label Label position of LAWN-001

Shield Case BBMAC 23mm 29mm Xtal(40MHz) Label Label position of LAWM-001

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Corporation Type of Equipment : Wireless LAN Module Model No. : LAWM-001 FCC ID: AK814798211X Sony Corporation declares that Model : LAWM-001 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “LAWM-001“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 175.79 mW (Maximum peak output power) G = 1.09 Numerical Antenna gain; equal 0.37 dBi r =20.0 cm For: LAWM-001S = 0.03808 mW/cm 2 No. : 26IE0106-HO-A RF Exposure / SAR Statement

Test report No. : 26IE0106-HO-A Page : 1 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) RADIO TEST REPORT Test Report No. : 26IE0106-HO-A Applicant : Sony Corporation Type of Equipment : Wireless LAN Module Model No. : LAWM-001 FCC ID : AK814798211X Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247: 2006 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: _____________________________ _____________________________ Yutaka Yoshida EMC Services Makoto Kosaka EMC Services Approved by : _____________________________ Naoki Sakamoto Group Leader of EMC Services May 29 to 31, 2006 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://ulapex.jp/emc/nvlap.htm Test report No. : 26IE0106-HO-A Page : 2 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................8 SECTION 5: Conducted Emission......................................................................................................... 9 SECTION 6: Spurious Emission.......................................................................................................... 10 SECTION 7: Bandwidth ....................................................................................................................... 11 SECTION 8: Maximum Peak Output Power ..................................................................................... 11 SECTION 9: Peak Power Density........................................................................................................ 11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Conducted Emission ............................................................................................................................12 Spurious Emission (Radiated) ............................................................................................................13 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis)..............................................................14 APPENDIX 2:Test instruments ............................................................................................................ 15 APPENDIX 3: Data of EMI test............................................................................................................ 16 Conducted Emission ............................................................................................................................16 6dB Bandwidth ....................................................................................................................................24 Maximum Peak Output Power ...........................................................................................................27 Radiated Spurious Emission ...............................................................................................................28 Conducted Spurious Emission............................................................................................................43 Conducted emission Band Edge compliance .....................................................................................50 Power Density ......................................................................................................................................51 99%Occupied Bandwidth ...................................................................................................................54 Test report No. : 26IE0106-HO-A Page : 3 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : Sony Corporation Address : 6-7-35 Kita-Shinagawa Shinagawa-Ku, Tokyo 141-0001, JAPAN Telephone Number : +81-3-5795-5506 Facsimile Number : +81-3-5795-7955 Contact Person : Hitoshi Tanabe SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : LAWM-001 Serial No. : XG60365NU00005 Rating : DC3.3V / 0.45A Country of Manufacture : China Receipt Date of Sample : April 5, 2006 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: LAWM-001 (referred to as the EUT in this report) is the Wireless LAN Module. The EUT is equipped on product of Son…

Text truncated - open the document above for the full version.

Test report No. : 26IE0106-HO-A Page : 15 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2:Test instruments EMI test equipment Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MAEC-02 Anechoic Chamber TDK Semi Anechoic Chamber 3m 1 to 2 2006/04/10 * 12 MOS-02 Digital Humidity Indicator N.T NT-1800 1 to 2 2004/11/25 * 24 MHA-06 Horn Antenna Schwarzbeck BBHA9120D 2 2006/01/09 * 12 MCC-47 Microwave Cable 1G- 26.5GHz Suhner SUCOFLEX104 2 2005/08/30 * 12 MCC-16 Microwave Cable 1G- 26.5GHz Suhner SUCOFLEX 104 2, 3 to 7 2006/02/02 * 12 MCC-26 Microwave Cable 1G- 26.5GHz Suhner SUCOFLEX104 2 2005/08/30 * 12 MPA-10 Pre Amplifier Agilent 8449B 2 2005/09/07 * 12 MRENT-31 Spectrum Analyzer Advantest R3273 1 to 2 2006/04/24 * 12 MHF-05 High Pass Filter Tokimec TF323DCA 2 2006/01/24 * 12 MHA-02 Horn Antenna EMCO 3160-09 2 2006/01/09 * 12 MSTW-14 EMI measurement program TSJ TEPTO-DV 1 to 2 - MBA-02 Biconical Antenna Schwarzbeck BBA9106 2 2005/10/10 * 12 MLA-02 Logperiodic Antenna Schwarzbeck USLP9143 2 2005/10/14 * 12 MCC-12 Coaxial Cable Fujikura/Agilent - 2 2006/02/23 * 12 MPA-09 Pre Amplifier Agilent 8447D 2 2005/09/07 * 12 MAT-07 Attenuator(6dB) Weinschel Corp 2 2 2005/12/16 * 12 MSA-04 Spectrum Analyzer Agilent E4448A 3 to 7 2006/02/11 * 12 MAT-23 Attenuator(10dB)(abov e1GHz) Orient Microwave BX10-0476-00 3 to 7 2006/03/18 * 12 MRENT-36 Power Meter Anritsu ML2496A 3 to 7 2006/04/25 * 12 MRENT-33 Power sensor Anritsu MA2411B 3 to 7 2006/04/25 * 12 MCC-35 Microwave Cable Hirose Electric U.FL-2LP-066-A-(200) 3 to 7 2005/09/06 * 12 MOS-16 Thermo-Hygrometer Custom CTH-180 3 to 7 2006/01/19 * 24 MLS-07 LISN(AMN) Schwarzbeck NSLK8127 1 2006/02/06 * 12 MTR-02 Test Receiver Rohde & Schwarz ESCS30 1 2006/02/02 * 12 All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item: 1: AC Main Conducted Emission 2: Radiated Spurious Emission 3: Antenna Terminal Conducted Spurious Emission 4: Maximum Peak Output Power 5: 6dB Bandwidth [DSSS] 6: Peak Output Power Density [DSSS] 7: 99% OBW Test report No. : 26IE0106-HO-A Page : 16 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 3: Data of EMI test Conducted Emission 11b Tx Ch Low DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2006/05/30 20:28:46 Company: Sony CorporationReport No.:26IE0106-HO Kind of EUT : Wireless LAN ModulePower:AC120V/60Hz Model No.: LAWM-001 Temp°C/Humi%:27deg.C / 47% Serial No.: XG60365NU00005 Operator:Yutaka Yoshida Mode / Remarks : 11b Tx:1ch 2412MHz / 11Mbps LIMIT : FCC15C §15.207 (QP)/ RSS-Gen 7.2.2 FCC15C §15.207 (AV)/ RSS-Gen 7.2.2 CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M 30M .2M.3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M 30M .2M.3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 Test report No. : 26IE0106-HO-A Page : 17 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission (11b) 11b Tx Ch Mid DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2006/05/30 20:40:32 Company : Sony Corporation Report No.:26IE0106-HO Kind of EUT: Wireless LAN ModulePower:AC120V/60Hz Model No.: LAWM-001 Temp°C/Humi%:27deg.C / 47% Serial No.: XG60365NU00005 Operator:Yutaka Yoshida Mode / Remarks : 11b Tx:6ch 2437MHz / 11Mbps LIMIT : FCC15C §15.207 (QP)/ RSS-Gen 7.2.2 FCC15C §15.207 (AV)/ RSS-Gen 7.2.2 CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 Test report No. : 26IE0106-HO-A Page : 18 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission 11b Tx Ch High DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2006/05/30 20:44:40 Company : Sony Corporation Report No.:26IE0106-HO Kind of EUT: Wireless LAN ModulePower:AC120V/60Hz Model No.: LAWM-001 Temp°C/Humi%:27deg.C / 47% Serial No.: XG60365NU00005 Operator:Yutaka Yoshida Mode / Remarks : 11b Tx:11ch 2462MHz / 11Mbps LIMIT : FCC15C §15.207 (QP)/ RSS-Gen 7.2.2 FCC15C §15.207 (AV)/ RSS-Gen 7.2.2 CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Fre quency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 Test report No. : 26IE0106-HO-A Page : 19 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596…

Text truncated - open the document above for the full version.

A1 Photo (Modular transmitter) of Limited Modular Approval Letter Shielding

Test report No. : 26IE0106-HO-A Page : 12 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 26IE0106-HO-A Page : 13 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Front Rear Test report No. : 26IE0106-HO-A Page : 14 of 55 Issued date : July 19, 2006 FCC ID : AK814798211X UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis
