American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 17, 2007 RE: FCC ID: AK814798212X_ATCB004808 Attention: Keijiro Kumagai I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that as the device does not meet all of the 8 requirements for modular approval and is thus a Limited Modular approval, radiated spurious emissions must be done inside the representative host product. Please note that item 5 of the LMA request letter states that the device was tested in stand alone configuration and then verified for compliance. This statement however, is not defined and is confusing. If this statement is meant to state that the device radiated emissions compliance was verified in the host, please provide the radiated emissions test results with the device inside the host. If the radiated test results include radiated emissions inside the host, please clearly identify which test data series provides this information. 2. Please provide the test setup photos showing the radiated emissions testing with the module inside the host. 3. Please specify the type host for which this LMA applies. 4. FYI – please note that while the bandwidth measurement procedure in the DTS test procedure from the FCC states a resolution band width of 100kHz can be used, please also note that the FCC has the position that for bandwidth and other measurements the resolution bandwidth should never be less than 1% of the emissions bandwidth. Consequently, while 100KHz may be appropriate for an 802.11 device in its normal mode, when in turbo of high data rate modes where the emissions bandwidth exceed 12MHz a 100kHz res bandwidth would exceed the other requirement of res bandwidths greater than or equal to 1% of the emissions bandwidth. Please consider this in your measurements for bandwidths greater than 1MHz. 5. Please provide the analyzer setting information for the PPSD measurements. 6. Please note that the manual appears to be for the host of the LMA. Please also note that the request for modular approval letter states that the transmitter is to be professionally installed. Please provide the installation manual instructions showing professional installation. If this is to be installed by the OEM, then please correct the request letter concerning the incorrect professional installation statement. 7. Please complete that rf exposure letter for IC and provide the MPE values as required. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

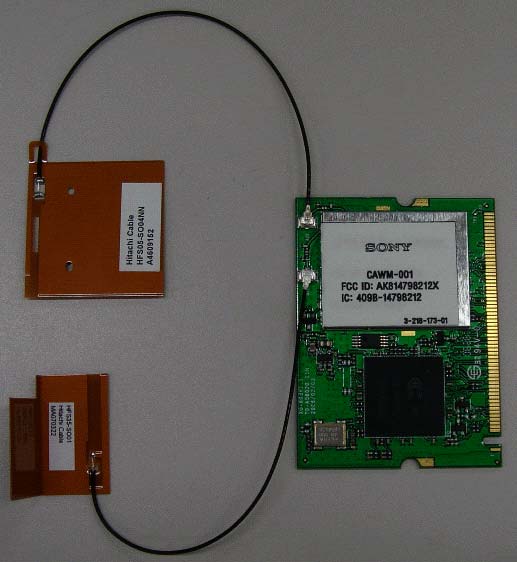

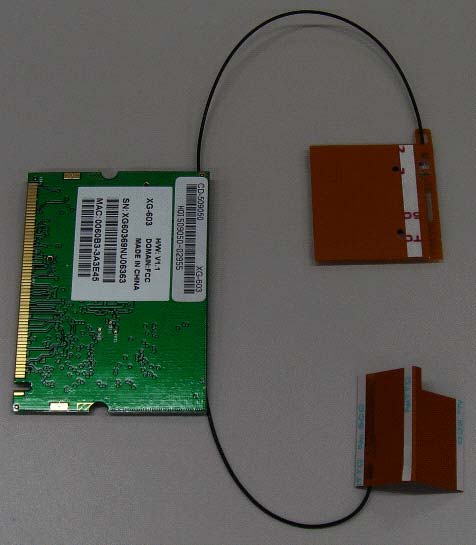

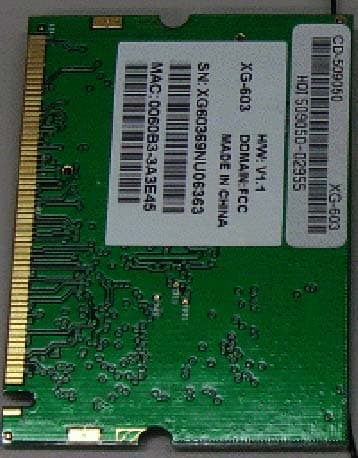

External Photo Sony Corporation Wireless LAN Module(Model: CAWM-001) FCC ID: AK814798212X Front Back External Photo Sony Corporation Wireless LAN Module(Model: CAWM-001) FCC ID: AK814798212X Front view with Antenna Back View with Antenna

Label Location FCC/IC Label here.

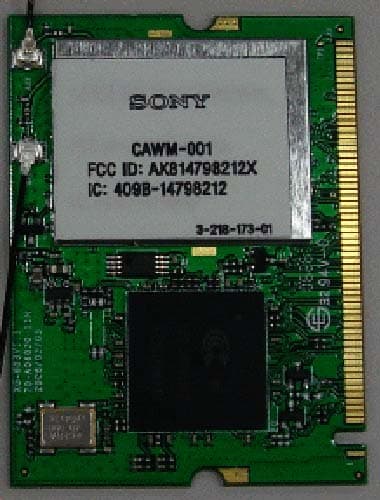

Internal Photo Sony Corporation Wireless LAN Module(Model: CAWM-001) FCC ID: AK814798212X

Applicant: Son y Corporation Type of Equipment : Wireless LAN Module Model No. : CAWM-001 FCC ID: AK814798212X Sony Corporation declares that Model : Wireless LAN Module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “CAWM-001“ has 134.59 mW of conducted Peak Output power and 146.55 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gai n antenna provided with the “CAWM-001“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 134.59 mW (Maximum peak output power) G = 1.09 Numerical Antenna gain; equal 0.37 dBi r =20.0 cm For: CAWM-001S = 0.02916 mW/cm 2 RF Exposure Statement No. : AF07023-A

FCC ID : AK814798212X Test report No. : AF07023-A Page : 1 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) RADIO TEST REPORT Test Report No. : AF07023-A Applicant : Sony Corporation Type of Equipment : Wireless LAN Module Model No. : CAWM-001 FCC ID : AK814798212X Test Standard : FCC Part15 Subpart C: 2006 FCC Part15 Subpart B: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. 4. The test results in this test report are traceable to the national or international standards. Date of test: March 12, 17 and 19-22, 2007 Tested by: Tatsuya Arai & Fumiaki Matsuo Approved by: Osamu Watatani Manager of Yamakita EMC Lab. FCC ID : AK814798212X Test report No. : AF07023-A Page : 2 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test Specification, Procedures and Results 4 4 System Test Configuration 6 5 Conducted emission 8 6 6dB Bandwidth & Occupied Bandwidth (99%) 8 7 Maximum Peak Output Power 8 8 Out of Band Emissions (Antenna Port Conducted) 8 9 Out of Band Emissions (Radiated) 9 10 Peak Power Density 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test Data 16 APPENDIX 3: Test instruments 114 FCC ID : AK814798212X Test report No. : AF07023-A Page : 3 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 1 Applicant Information Company Name : Sony Corporation Address : 8-4, Shiomi, Kisarazu-shi, Chiba-ken,292-0834 JAPAN Telephone Number : +81-438-37-3982 Facsimile Number : +81-438-37-4705 Contact Person : Kazuhiko.Nagano 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : CAWM-001 Serial No. : XG60369NU6258 Rating : DC3.3V Country of Manufacture : Malaysia Receipt Date of Sample : March 16, 2007 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model: CAWM-001 (referred to as the EUT in this report) is a Wireless LAN Module. Equipment type : Transceiver Frequency of operation : 2412-2462MHz Clock frequency : Ether ASIC: 24.576MHz, 22.5792MHz PHY: 25MHz OSD: 18MHz, 17.73448MHz, 14.31818MHz Micro computer: 5MHz Bandwidth & channel spacing : 22MHz & 1MHz Type of modulation : DSSS, OFDM Antenna type : Monopole Antenna connector type : U-FL-LP(V)-040 Antenna gain (with cable loss) : Main: 0.37dBi max, Sub: 0.04dBi max ITU code : G1D, D 1D Operation temperature range : 0 ~ +55 deg.C. (Transmitter), 0 ~ +35 deg.C. (Receiver) FCC 15.31 (e) The EUT is equipped on the product of Sony Corporation. The Sony product provides stable voltage (DC3.3V) constantly to the EUT (RF Module) regardless of input voltage. Therefore, the EUT complies with the requirement. FCC Part 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the end product of Sony Corporation. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : AK814798212X Test report No. : AF07023-A Page : 4 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz Test Specification : FCC Part 15 Subpart B: 2006 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 - N/A 7.4dB (0.15MHz, Tx 2412MHz, QP, Main antenna) Complied 6dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.247 (a)(2) & 15.209 ConductedN/A Complied Maximum Peak Output Power ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.247 (b)(3) & 15.209 ConductedN/A - Complied Out of Band Emission & Restricted Band Edges ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.247 (d) & 15.209 Conducted / Radiated N/A Tx: 4.6dB (9648.00MHz, Vertical, Tx 2412MHz, IEEE802.11b (11Mbps), Main antenna) Rx: 6.6dB (360.00MHz, Horizontal, Rx 2437MHz, IEEE802.11g (54Mbps), Main antenna) Complied Power Density ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.247 (e) & 15.209 ConductedN/A - Complied Note: UL Apex’s EMI Work Procedures No.QPM05. These tests were also referred to "Guidance on Measurement for Digital Transmission Systems Section15.247". * Other than mentioned in 3.3, no addition, exclusion nor deviation has been made from the standard. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators RSS-Gen 4.4.1 RSS-Gen 4.4.1 Conducted- Complied FCC ID : A…

Text truncated - open the document above for the full version.

DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: AF07023 Applicant: Kind of Equipment : Wireless LAN Module Model No. : CAWM-001 Serial No. : XG60369NU6258 Power : DC3.3V Mode : Transmitting_2412MHz Remarks : IEEE802.11b 11Mbps Antenna:Main Date : 3/19/2007 Test Distance : 3 m Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 32 ％ Regulation : FCC Part15C §15.209 No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 40.00 BB 25.6 34.2 14.0 28.5 1.2 6.0 18.3 26.9 40.0 21.7 13.1 2. 99.85 BB 40.6 32.3 10.4 28.5 2.0 6.1 30.6 22.3 43.5 12.9 21.2 3. 164.36 BB 41.3 36.0 15.5 28.1 2.7 6.0 37.4 32.1 43.5 6.1 11.4 4. 280.00 BB 35.2 31.7 19.2 27.6 3.6 6.0 36.4 32.9 46.0 9.6 13.1 5. 320.00 BB 41.0 39.2 14.8 27.8 3.9 6.0 37.9 36.1 46.0 8.1 9.9 6. 360.00 BB 40.5 39.7 15.9 28.1 4.3 6.0 38.6 37.8 46.0 7.4 8.2 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KBA-03(BBA9106)30-299.99MHz/KLA-03(USLP9143)300-1000MHz ■AMP:KAF-05(8447D) ■RECEIVER:KTR-04(ESVS10) ■KCC-30_31_32_34(RE) Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: AF07023 Applicant: Kind of Equipment : Wireless LAN Module Model No. : CAWM-001 Serial No. : XG60369NU6258 Power : DC3.3V Mode : Transmitting_2412MHz Remarks : IEEE802.11b 11Mbps Antenna:Main, PK(RBW:1MHz VBW:1MHz) Date : 3/20/2007 Test Distance : 3 m Temperature : 22 °C Engineer : Fumiaki Matsuo Humidity : 30 ％ Regulation : FCC Part15C §15.209(PK Detection) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 2390.00 BB 51.0 49.0 29.8 36.8 4.0 9.9 57.9 55.9 74.0 16.1 18.1 2. 4824.00 BB 44.5 45.0 33.8 37.1 5.8 0.5 47.5 48.0 74.0 26.5 26.0 3. 7236.00 BB 42.0 42.5 37.5 36.9 6.6 0.5 49.7 50.2 74.0 24.3 23.8 4. 9648.00 BB 46.4 47.8 38.9 37.0 7.6 1.0 56.9 58.3 74.0 17.1 15.7 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KHA-01(SAS-200 571)1-18GHz/KHA-03(3160-09)18-26GHz ■CABLE:KCC-D3/D7■PREAMP:KAF-02(8449B)■SPECTRUMANALYZER: R3271A(KSA-04) Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: AF07023 Applicant: Kind of Equipment : Wireless LAN Module Model No. : CAWM-001 Serial No. : XG60369NU6258 Power : DC3.3V Mode : Transmitting_2412MHz Remarks : IEEE802.11b 11Mbps Antenna:Main, AV(RBW:1MHz VBW:10Hz) Date : 3/20/2007 Test Distance : 3 m Temperature : 22 °C Engineer : Fumiaki Matsuo Humidity : 30 ％ Regulation : FCC Part15C §15.209(AV Detection) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 2390.00 BB 42.1 40.1 29.8 36.8 4.0 9.9 49.0 47.0 54.0 5.0 7.0 2. 4824.00 BB 35.9 37.2 33.8 37.1 5.8 0.5 38.9 40.2 54.0 15.1 13.8 3. 7236.00 BB 32.3 32.1 37.5 36.9 6.6 0.5 40.0 39.8 54.0 14.0 14.2 4. 9648.00 BB 37.0 38.9 38.9 37.0 7.6 1.0 47.5 49.4 54.0 6.5 4.6 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KHA-01(SAS-200 571)1-18GHz/KHA-03(3160-09)18-26GHz ■CABLE:KCC-D3/D7■PREAMP:KAF-02(8449B)■SPECTRUMANALYZER: R3271A(KSA-04) Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: AF07023 Applicant: Kind of Equipment : Wireless LAN Module Model No. : CAWM-001 Serial No. : XG60369NU6258 Power : DC3.3V Mode : Transmitting_2437MHz Remarks : IEEE802.11b 11Mbps Antenna:Main Date : 3/19/2007 Test Distance : 3 m Temperature : 23 °C Engineer : Fumiaki Matsuo Humidity : 32 ％ Regulation : FCC Part15C §15.209 No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 40.00 BB 25.8 34.0 14.0 28.5 1.2 6.0 18.5 26.7 40.0 21.5 13.3 2. 99.85 BB 41.2 33.0 10.4 28.5 2.0 6.1 31.2 23.0 43.5 12.3 20.5 3. 164.36 BB 40.9 35.7 15.5 28.1 2.7 6.0 37.0 31.8 43.5 6.5 11.7 4. 280.00 BB 33.0 32.0 19.2 27.6 3.6 6.0 34.2 33.2 46.0 11.8 12.8 5. 320.00 BB 40.8 39.0 14.8 27.8 3.9 6.0 37.7 35.9 46.0 8.3 10.1 6. 360.00 BB 40.3 39.0 15.9 28.1 4.3 6.0 38.4 37.1 46.0 7.6 8.9 ---------------------------------------------------------------------------------------------- CALCULATION: READING + ANT.FACTOR + CABLE LOSS - AMP.GAIN + ATTEN. ■ANTENNA:KBA-03(BBA9106)30-299.99MHz/KLA-03(USLP9143)300-1000MHz ■AMP:KAF-05(8447D) ■RECEIVER:KTR-04(ESVS10) ■KCC-30_31_32_34(RE) Page: DATA OF RADIATION TEST UL Apex Co.,Ltd. YAMAKITA No.1 ANECHOIC CHAMBER Report No.: AF07023 Applicant: Kind of Equipment : Wireless LAN Module Model No. : CAWM-001 Serial No. : XG60369NU6258 Power : DC3.3V Mode : Transmitting_2437MHz Remarks : IEEE802.11b 11Mbps Antenna:Main, PK(RBW:1MHz VBW:1MHz) Date : 3/20/2007 Test Distance : 3 m Temperature : 22 °C Engineer : Fumiaki Matsuo Humidity : 30 ％ Regulation : FCC Part15C §15.209(PK Detection) No. FREQ. ANT READING ANT AMP CABLE ATTEN. RESULT LIMITS MARGIN TYPE HOR VER FACTOR GAIN LOSS HOR VER HOR VER [MHz] [dBμV] [dB/m] [dB] [dB] [dB] [dBμV/m] [dBμV/m] [dB] ---------------------------------------------------------------------------------------------- 1. 4874.00 BB 46.6 46.7 34.0 37.2 5…

Text truncated - open the document above for the full version.

FCC ID : AK814798212X Test report No. : AF07023-A Page : 12 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Conducted emission FCC ID : AK814798212X Test report No. : AF07023-A Page : 13 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Radiated emission FCC ID : AK814798212X Test report No. : AF07023-A Page : 14 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Pre-check of the worst position (Module) X-axis Y-axis Z-axis FCC ID : AK814798212X Test report No. : AF07023-A Page : 15 of 114 Issued date : April 11, 2007 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b (14.06.06) Pre-check of the worst position (Antenna) Main Sub-antenna: Y-axis Sub-antenna: Z-axis Main-antenna: Z-axis Sub-antenna: X-axis Main-antenna: X-axis Main-antenna: Y-axis
