AK8A1368100ADigital Wireless Audio Transceiver

filename[G:\F\FM\Sony\E\1225\845757S\3286052121\3286052121WAHTSA1U2\Co vers\01cov-cel.fm] model name [WAHT-SA1] [3-286-052-12(1)] ©2008 Sony Corporation 3-286-052-12(1) Wireless Surround Kit WAHT-SA1 Operating Instructions Mode d’emploi Manual de instrucciones GB US FR ES gb02reg.book Page 1 Tuesday, December 25, 2007 6:39 PM filename[G:\F\FM\Sony\E\1225\845757S\3286052121\3286052121WAHTSA1U2\gb 01.fm] 2 US model name [WAHT-SA1] [3-286-052-12(1)] 3 To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. In door use only. For the customers in the U.S.A For wireless transceiver (EZW- RT10) and wireless transmitter (EZW-T100) This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles). This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Owner’s Record The model and serial numbers are located on the side exterior of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. WAHT-SA1 Serial No.______________ Date of Manufacture Marking, Shock Hazard Marking and Associated Graphical Symbols are located on the bottom exterior. The following FCC statement applies only to the version of this model manufactured for sale in the USA. Other versions may not comply with FCC technical regulations. WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television Table of Contents About This Operating Instructions ..... 4 Overview ............................................ 4 Unpacking .......................................... 5 Hooking Up ........................................ 6 Connecting the AC Power Cords (Mains Leads) .................................... 8 Setting up the Wireless System .......... 8 Troubleshooting ............................... 12 Specifications ................................... 13 Index to Parts ................................... 15 WARNING gb02reg.book Page 2 Tuesday, December 25, 2007 6:39 PM filename[G:\F\FM\Sony\E\1225\845757S\3286052121\3286052121WAHTSA1U2\gb 01.fm] 3 US model name [WAHT-SA1] [3-286-052-12(1)] GB US reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/ TV technician for help. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer ’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For the customers in Canada This Class B digital apparatus complies with Canadian IC…

Text truncated - open the document above for the full version.

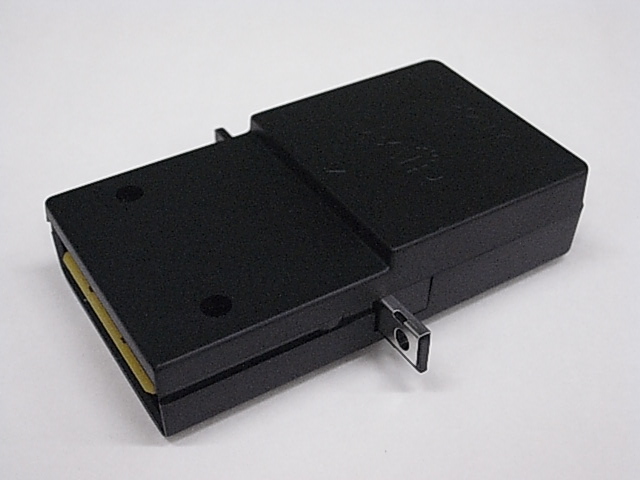

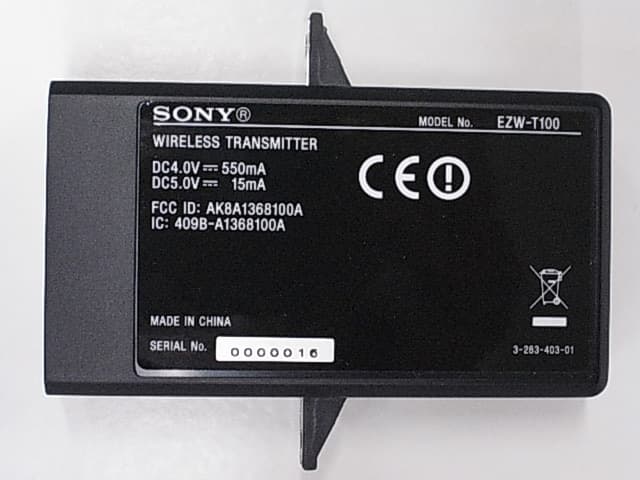

[A pp erance]

[Installation]

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Corporation Type of Equipment : Wireless transmitter Model No. : EZW-T100 FCC ID: AK8A1368100A IC Number:409B-A1368100A Sony Corporation declares that Model : EZW-T100 ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). The “EZW-T100“ has 29.11 mW of conducted Peak Output power and 47.21 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “EZW-T100“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 29.11 mW (Maximum peak output power) G = 1.62 Numerical Antenna gain; equal 2.10 dBi r =20.0 cm For: EZW-T100S = 0.00939mW/cm 2 No. : 28CE0018-HO-01 RF Exposure / MPE Calculation

Test report No. : 28CE0018-HO-01-B Page : 1 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 28CE0018-HO-01-B Applicant : Sony Corporation Type of Equipment : Wireless transmitter Model No. : EZW-T100 FCC ID : AK8A1368100A Test standard : FCC Part 15 Subpart C 2007 Section 15.207, Section 15.247 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: _____________________________ ______________________________ Takahiro Hatakeda EMC Services Takumi Shimada EMC Services _____________________________ __________________________ Kazufumi Nakai EMC Services Shinya Watanabe EMC Services Approved by : _____________________________ Mitsuru Fujimura Assistant Manager of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://uljapan.co.jp/emc/nvlap.htm MF060b (09.01.08) December 17 to 26, 2007 Test report No. : 28CE0018-HO-01-B Page : 2 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ........................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..........................................................................3 SECTION 3: Test specification, procedures & results ...........................................................4 SECTION 4: Operation of E.U.T. during testing....................................................................8 SECTION 5: Conducted Emission .........................................................................................10 SECTION 6: Spurious Emission.............................................................................................11 SECTION 7: Bandwidth..........................................................................................................12 SECTION 8: Maximum Peak Output Power ........................................................................12 SECTION 9: Peak Power Density ..........................................................................................12 APPENDIX 1: Photographs of test setup...............................................................................13 Conducted Emission ........................................................................................................13 Spurious Emission (Radiated) ........................................................................................14 Worst Case Position.........................................................................................................15 APPENDIX 2: Data of EMI test ..............................................................................................16 Conducted Emission ........................................................................................................16 6dB Bandwidth.................................................................................................................24 Maximum Peak Output Power.......................................................................................26 Radiated Spurious Emission (below 1GHz) ..................................................................27 Radiated Spurious Emission (above 1GHz) ..................................................................35 Conducted Spurious Emission........................................................................................44 Conducted emission Band Edge compliance .................................................................48 Power Density...................................................................................................................49 99%Occupied Bandwidth ...............................................................................................51 APPENDIX 3:Test instruments ...............................................................................................52 Test report No. : 28CE0018-HO-01-B Page : 3 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sony Corporation Address : 8-4 Shiomi Kisarazu-shi, Chiba 292-0834 Japan Telephone Number : +81-438-37-3982 Facsimile Number : +81-438-37-4705 Contact Person : Kazuhiko Nagano SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless transmitter Model No. : EZW-T100 Serial No. : 1 (Used for Conducted emission and Spurious emission tests) 4 (Used for Antenna terminal conducted test) Rating : DC 4.0V/5.0V Country of Manufacture : China Receipt Date of Sample : November 12, 2007 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: EZW-T100 (referred to as the EUT in this report) is the Wireless transmitter. Feature of EUT : Digital Wireless Audio Transmitter adapter The EUT has three channels, 2411.85MHz, 2437.85MHz and 2463.85MHz. EUT Clock AD converter:12.288MHz RF IC: 22MHz Equipment Type Trans…

Text truncated - open the document above for the full version.

Test report No. : 28CE0018-HO-01-B Page : 16 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission ANT: A, Tx, Ch: Low DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT: Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks : Transmitting 2411.85MHz, ANT:A LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L:QP :AV N:QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading Level Reading Level Corr . ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QP AV Factor QPAVQPAVQPAVPhaseComment [ MHz ] [dBuV ] [ dBuV ] [ dB ] [dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0 . 1725841 . 0 33 . 7 0 . 2 41.233.964.854.823.620.9N 0 . 2411146 . 0 34 . 7 0 . 2 46.234.962.152.115.917.2N 0 . 3839232 . 5 32 . 4 0 . 3 32.832.758.248.225.415.5N 1 . 1514330 . 1 29 . 6 0 . 5 30.630.156.046.025.415.9N 6 . 1444531 . 4 28 . 5 1 . 1 32.529.660.050.027.520.4N 25 . 4016834 . 1 33 . 8 2 . 7 36.836.560.050.023.213.5N 28 . 2228231 . 1 30 . 2 2 . 7 33.832.960.050.026.217.1N 0 . 1756442 . 6 38 . 5 0 . 2 42.838.764.754.721.916.0L 0 . 2426145 . 7 36 . 3 0 . 2 45.936.562.052.016.115.5L 0 . 3841733 . 4 33 . 3 0 . 3 33.733.658.248.224.514.6L 1 . 1525930 . 1 29 . 9 0 . 5 30.630.456.046.025.415.6L 6 . 1446831 . 5 26 . 9 1 . 1 32.628.060.050.027.422.0L 25 . 4018235 . 5 35 . 3 2 . 7 38.238.060.050.021.812.0L 28 . 2241232 . 9 31 . 9 2 . 7 35.634.660.050.024.415.4L *The test result is round off to one or two decimal places, so some differences might be observed. Test report No. : 28CE0018-HO-01-B Page : 17 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission ANT: A, Tx, Ch: Mid DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT : Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks: Transmitting 2437.85MHz, ANT:A LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28CE0018-HO-01-B Page : 18 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission ANT: A, Tx, Ch: High DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT : Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks: Transmitting 2463.85MHz, ANT:A LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28CE0018-HO-01-B Page : 19 of 53 Issued date : January 16, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission ANT: B, Tx, Ch: Low DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT : Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks: Transmitting 2411.85MHz, ANT:B LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading Level Reading Level Corr . ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QP AV Factor QPAVQPAVQPAVPhaseComment [ MHz ] [dBuV ] [ dBuV ] [ dB ] [dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0 . 17204 41 . 3 34 . 8 0 . 2 41.535.064.954.923.419.9N 0 . 24171 46 . 2 35 . 1 0 . 2 46.435.362.052.015.616.7N 0 . 38297 32 . 6 32 . 5 0 . 3 32.932.858.248.225.315.4N 1 . 15249 29 . 9 29 . 6 0 . 5 30.430.156.046.025.615.9N 6 . 14937 30 . 7 21 . 1 1 . 1 31.822.260.050.028.227.8N 25 . 40079 34 . 0 33 . 6 2 . 7 36.736.360.050.023.313.7N 28 . 22410 31 . 3 30 . 7 2 . 7 34.033.460.050.026.016.6N 0 . 17414 43 . 1 39 . 0 0 . 2 43.339.264.854.821.515.6L 0 . 24240 46 . 5 37 . 1 0 . 2 46.737.362.052.015.314.7L 0 . 38378 33 . 2 33 . 1 0 . 3 33.533.458.248.224.714.8L 1 . 15213 30 . 3 30 . 0…

Text truncated - open the document above for the full version.

Test report No. : 28CE0018-HO-01-B-R1 Page : 16 of 53 Issued date : January 16, 2008 Revised date : January 30, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission ANT: A, Tx, Ch: Low DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT: Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No.: 1 Operator:Kazufumi Nakai Mode / Remarks : Transmitting 2411.85MHz, ANT:A LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L:QP :AV N:QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading Level Reading Level Corr . ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QP AV Factor QPAVQPAVQPAVPhaseComment [ MHz ] [ dBuV ] [ dBuV ] [ dB ] [dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0 . 1725841 . 0 33 . 7 0 . 2 41.233.964.854.823.620.9N 0 . 2411146 . 0 34 . 7 0 . 2 46.234.962.152.115.917.2N 0 . 3839232 . 5 32 . 4 0 . 3 32.832.758.248.225.415.5N 1 . 1514330 . 1 29 . 6 0 . 5 30.630.156.046.025.415.9N 6 . 1444531 . 4 28 . 5 1 . 1 32.529.660.050.027.520.4N 25 . 4016834 . 1 33 . 8 2 . 7 36.836.560.050.023.213.5N 28 . 2228231 . 1 30 . 2 2 . 7 33.832.960.050.026.217.1N 0 . 1756442 . 6 38 . 5 0 . 2 42.838.764.754.721.916.0L 0 . 2426145 . 7 36 . 3 0 . 2 45.936.562.052.016.115.5L 0 . 3841733 . 4 33 . 3 0 . 3 33.733.658.248.224.514.6L 1 . 1525930 . 1 29 . 9 0 . 5 30.630.456.046.025.415.6L 6 . 1446831 . 5 26 . 9 1 . 1 32.628.060.050.027.422.0L 25 . 4018235 . 5 35 . 3 2 . 7 38.238.060.050.021.812.0L 28 . 2241232 . 9 31 . 9 2 . 7 35.634.660.050.024.415.4L *The test result is round off to one or two decimal places, so some differences might be observed. Test report No. : 28CE0018-HO-01-B-R1 Page : 17 of 53 Issued date : January 16, 2008 Revised date : January 30, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission ANT: A, Tx, Ch: Mid DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT : Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks: Transmitting 2437.85MHz, ANT:A LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28CE0018-HO-01-B-R1 Page : 18 of 53 Issued date : January 16, 2008 Revised date : January 30, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission ANT: A, Tx, Ch: High DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT : Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks: Transmitting 2463.85MHz, ANT:A LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28CE0018-HO-01-B-R1 Page : 19 of 53 Issued date : January 16, 2008 Revised date : January 30, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission ANT: B, Tx, Ch: Low DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2007/12/26 Company : Sony Corporation Report No.:28CE0018-HO-01 Kind of EUT : Wireless transmitterPower:DC 3.3V Model No. : EZW-T100 Temp./Humi.:20deg.C / 32% Serial No. : 1 Operator:Kazufumi Nakai Mode / Remarks: Transmitting 2411.85MHz, ANT:B LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading Level Reading Level Corr . ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QP AV Factor QPAVQPAVQPAVPhaseComment [ MHz ] [dBuV ] [ dBuV ] [ dB ] [dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0 . 17204 41 . 3 34 . 8 0 . 2 41.535.064.954.923.419.9N 0 . 24171 46 . 2 35 . 1 0 . 2 46.435.362.052.015.616.7N 0 . 38297 32 . 6 32 . 5 0 . 3 32.932.858.248.225.315.4N 1 . 15249 29 . 9 29 . 6 0 . 5 30.430.156.046.025.615.9N 6 . 14937 30 . 7 21 . 1 1 . 1 31.822.260.050.028.227.8N 25 . 40079 34 . 0 33 . 6 2 . 7 36.736.360.050.023.313.7N 28 . 22410 31 . 3 30 . 7 2 . 7 34.033.460.050.026.016.6N 0 . 17414 43 . 1 39 . 0 0 . 2 43.339.264.854.821.51…

Text truncated - open the document above for the full version.

Test report No. : 28CE0018-HO-01-B-R1 Page : 1 of 53 Issued date : January 16, 2008 Revised date : January 30, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 28CE0018-HO-01-B-R1 Applicant : Sony Corporation Type of Equipment : Wireless transmitter Model No. : EZW-T100 FCC ID : AK8A1368100A Test standard : FCC Part 15 Subpart C 2007 Section 15.207, Section 15.247 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. Original test report number of this report is 28CE0018-HO-01-B. Date of test: _____________________________ Tested by: _____________________________ ______________________________ Takahiro Hatakeda EMC Services Takumi Shimada EMC Services _____________________________ __________________________ Kazufumi Nakai EMC Services Shinya Watanabe EMC Services Approved by : _____________________________ Mitsuru Fujimura Assistant Manager of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://uljapan.co.jp/emc/nvlap.htm MF060b (09.01.08) December 17 to 26, 2007 Test report No. : 28CE0018-HO-01-B-R1 Page : 2 of 53 Issued date : January 16, 2008 Revised date : January 30, 2008 FCC ID : AK8A1368100A UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ........................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..........................................................................3 SECTION 3: Test specification, procedures & results ...........................................................4 SECTION 4: Operation of E.U.T. during testing....................................................................8 SECTION 5: Conducted Emission .........................................................................................10 SECTION 6: Spurious Emission.............................................................................................11 SECTION 7: Bandwidth..........................................................................................................12 SECTION 8: Maximum Peak Output Power ........................................................................12 SECTION 9: Peak Power Density ..........................................................................................12 APPENDIX 1: Photographs of test setup...............................................................................13 Conducted Emission ........................................................................................................13 Spurious Emission (Radiated) ........................................................................................14 Worst Case Position.........................................................................................................15 APPENDIX 2: Data of EMI test ..............................................................................................16 Conducted Emission ........................................................................................................16 6dB Bandwidth ................................................................................................................24 Maximum Peak Output Power.......................................................................................26 Radiated Spurious Emission (below 1GHz) ..................................................................27 Radiated Spurious Emission (above 1GHz) ..................................................................35 Conducted Spurious Emission........................................................................................44 Conducted emission Band Edge compliance.................................................................48 Power Density...........................................................................................…

Text truncated - open the document above for the full version.
