AK8BM153Bluetooth Module

Product Specification Spec-BM153-V4.6 Page 1 of 7 www.sunitec-cn.com ® Features: • Bluetooth Spec. V3.0 (V2.1+EDR)Compliant • Class 2 type Output Power • Support Firmware Upgrade • USB 1.1 and UART Host Interface • Multi-Configurable I2S, PCM or SPDIF Interface • Integrated Switched-Mode Regulator • Integrated Battery Charger • Integrated Microphone bias • Integrated LED Driver • Built in 16-bit Stereo Codec- 95dB SNR for DAC • Factory configurable to either 1.8V or 3.3V supply. • Supports up to 32Mbits of External Flash Memory (16Mbits Typical Requirement) • Enhanced Audibility and Noise Cancellation • PCB material:FR4 • PCB Surface treatment: Immersion gold • Size: 21mm x 13.5 mm x 2.35mm • Weight: 0.8g System Architecture BM153 Class 2 Multimedia Module CSR, BC57E687C Jan. 2013 Product Description: The BM153 is a Class 2 Bluetooth sub-system using BlueCore5- Multimedia External chipset from leading Bluetooth chipset supplier Cambridge Silicon Radio. BM153 interfaces to 8Mbit of external Flash memory When used with the CSR Bluetooth software stack, it provides a fully compliant Bluetooth system to V3.0 of the specification for data and voice communications The module and device firmware is fully compliant with the Bluetooth specification V3.0 Applications: • Hands-free Car Kit • Stereo Headset • AV Headphones • Echo Cancellation • High Performance Mono Headsets • Analogue and USB Multimedia Dongles •Wireless Speakers Specifications: Operating Frequency Band 2.4GHz ~ 2.48GHz unlicensed ISM band Bluetooth Specification BT V3.0 (V2.1+EDR) Output Power Class Class 2 Max. Output Power 2.5mW Date Rate 3Mbps Channel No. 79 Modulation Type GFSK π/4 DQPSK 8DPSK Operating Voltage 1.8V / 3.3V Host Interface USB 1.1 or UART Audio Interface PCM, I2S, SPDIF Flash Memory Size 8M,16M, or 32Mbits Dimension 21mm (L) x 13.5 (W) mm x 2.35mm (H) Specifications are subject to change without prior notice Qualified Product Specification Spec-BM153-V4.6 Page 2 of 7 www.sunitec-cn.com ® Electrical Characteristics Absolute Maximum Rating Min Max Storage Temperature -40°C +85°C Supply Voltage, (V_CHG) -0.30V +6.5V Recommended Operating Conditions Min Max Operating Temperature Range -20°C +70°C Supply Voltage, (V_BAT) 2.5V 4.2V Supply Voltage, (V_CHG) 4.5V 5.75V Power Consumption Units Average SCO Connection HV3 (30ms interval sniff mode) mA 21 SCO Connection HV1 mA 40 ACL Data Transfer 115.2Kbps UART no traffic (Master) mA 4.4 ACL Data Transfer 115.2Kbps UART no traffic (Slave) mA 15 CODEC Microphone inputs and ADC/channel mA TBD DAC and loudspeaker driver, no signal/channel mA TBD Digital audio processing subsystem mA TBD VBAT = 4.2V; f = 2.441GHz; T=20°C RF Characteristics Receiver Units Min Typ Max Bluetooth Spec Sensitivity at 0.1% BER dBm - -90 -86 ≤-70 Maximum Receiver Signal dBm -20 -10 - ≥ -20 C/I Co-Channel dB - 6 11 ≤11 Adjacent Channel Selectivity C/I -1MHz dB - -6 0 ≤0 2nd Adjacent Channel Selectivity C/I -2MHz dB - -38 -30 ≤-30 3rd Adjacent Channel Selectivity C/I -3MHz dB - -45 -40 ≤-40 Image Rejection C/I dB - -16 -9 ≤-9 VBAT = 4.2V; f = 2.4441GHz; T=20°C Transmitter Units Min Typ Max Bluetooth Spec RF Output Power dBm 0 3 - -6 to +4 RF Power Control Range dB 16 24 - > 16 RF Power Range Control Resolution dB - 0.5 - - 20dB Bandwidth for Modulated Carrier KHz - 940 1000 <1000 2nd Adjacent Channel Power (+/- 2MHz) dBm - -36 -20 ≤-20 3rd Adjacent Channel Power (+/- 3MHz) dBm - -45 -40 ≤-40 VBAT = 4.2V; f = 2.4441GHz; T=20°C All specifications including pinouts and electrical specifications may be changed without prior notice Product Specification Spec-BM153-V4.6 Page 3 of 7 www.sunitec-cn.com ® Pin Configurations PIN NO. NAME TYPE FUNCTION RE-MARK 1 AIO1 Bi-directional Programmable input/output line 2 AIO0 Bi-directional Programmable input/output line 3 RESET CMOS input with weak internal pull-up Reset if low. Input debounced so must be low for >5ms to cause a reset 4 GND GND Ground 5 PIO9 Bi-directional Programmable Input/Output Line 6 PIO10 Bi-directional Programmable Input/Output Line 7 PIO11 Bi-directional Programmable Input/Output Line 8 PIO12 Bi-directional Programmable Input/Output Line 9 PIO13 Bi-directional Programmable Input/Output Line 10 PIO14 Bi-directional Programmable Input/Output Line 11 PIO15 Bi-directional Programmable Input/Output Line 12 GND GND Ground 13 VDD Power +3.3V Supply For 3.3V Version VDD Power Connect to +1V8 For 1.8V Version 14 VDD_USB Power Positive supply for UART/USB ports, Connect to VDD 15 +1V8 Power +1.8V Supply 16 GND GND Ground 17 USB_DP Bi-directional USB Data Plus 18 USB_DN Bi-directional USB Data Minus 19 UART_RTS CMOS Output UART Request To Send (Active Low) 20 UART_CTS CMOS Input UART Clear To Send (Active Low) 21 UART_RX CMOS Input UART Data Input (Active High) 22 UART_TX CMOS Output UART Data Output (Active High) 23 PCM_IN CMOS Input Synchronous Data Input 24 PCM_SYNC Bi-directional Synchronous Data Sync 25 PCM_CLK Bi-directional Synchronous Data Clock 26 PCM_OUT CMOS Output Synchronous Data Output 27 SPI_CSB CMOS Input Chip Select For Synchronous Serial Interface (Active Low) 28 SPI_MISO CMOS Output Serial Peripheral Interface Data Output 29 SPI_CLK CMOS Input Serial Peripheral Interface Clock 30 SPI_MOSI CMOS Input Serial Peripheral Interface Data Input 31 VRE_IN Analogue Take high to enable switch-mode regulator 32 VDD_BAT Battery terminal +ve Lithium ion/polymer battery positive terminal. Battery charger output and input to switch-mode regulator 33 GND GND Ground 34 VDD_CHG Charger input Lithium ion/polymer battery charger input 35 LED1 Open drain output LED Driver 36 LED0 Open drain output LED Driver 37 GND GND Ground 38 SPK_L_N Analogue Speaker output negative, left 39 SPK_L_P Analogue Speaker output positive, left 40 SPK_R_N Analogue Speaker output negative, right 41 SPK_R_P Analogue Speaker output positive, right 42 GND_S GND_S Anlogue Signal Ground 43 MIC_BIAS Analogue Microphone bias 44 MIC_B_P Analogue Microphone input positive, right 45 MIC_B_…

Text truncated - open the document above for the full version.

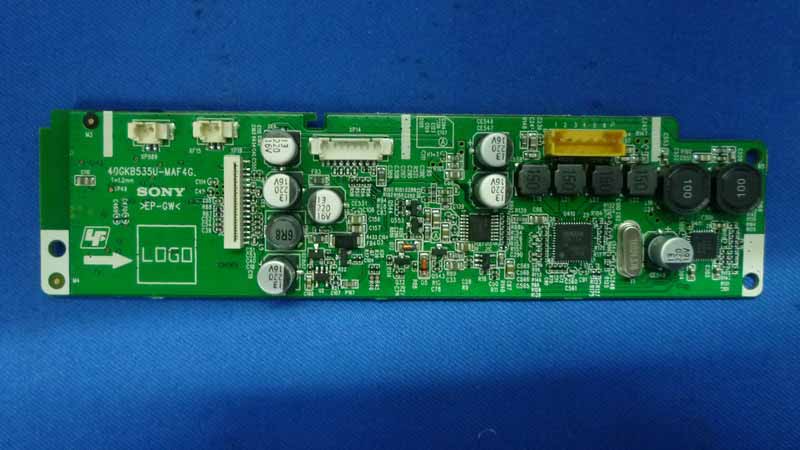

R AUDIX Technology (Shenzhen) Co., Ltd. IC: 409B-BM153 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I13088 15-4 15. PHOTOS OF THE EUT Figure 1 Component side of the PCB Figure 2 Component side of the PCB

R AUDIX Technology (Shenzhen) Co., Ltd. IC: 409B-BM153 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I13088 15-4 15. PHOTOS OF THE EUT Figure 1 Component side of the PCB Figure 2 Component side of the PCB

Product Specification Spec-BM153-N-V4.3 Page 6 of 8 www.sunitec.com.tw 嘐 BOM

Product Name： Bluetooth Module Model Number: BM153 FCCID: AK8BM153 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 D01 V05 Since maximum peak output power of the transmitter is<10mW, i.e.0.009346mW<10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01:General RF Exposure Guidance V05.
