AK8CBEH1000Playstation 3

masterpage:Left filename[G:\Sagyou\0906 PS3\838442S_PS3_1001_FR\2894628111_PS3_1001_FR\PS3_1001_Cover\01FR01COV.fm] model name1[PS3-1001_US/FR/ES] [2-894-628-11(1)] US FR ES Safety and Support Sécurité et support technique Seguridad y soporte técnico Before using this product, carefully read the supplied documentation and retain it for future reference. Avant d'utiliser ce produit, lisez attentivement la documentation fournie et conservez-la pour pouvoir la consulter ultérieurement. Antes de utilizar este producto, lea detenidamente la documentación suministrada con el mismo y consérvela para consultarla en el futuro. 2-894-628-11(1) 01FR01COV.fm Page 1 Thursday, September 7, 2006 10:19 AM masterpage:Left filename[G:\FM\SCE\0906_3\PS3-1001\01_US\01GB02WAR.fm] model name1[PS3-1001_US/FR/ES] [2-894-628-11(1)] 2 WARNING To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. This appliance is classified as a CLASS 1 LASER product under IEC60825- 1+A2:2001. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20 cm and more between the radiator and person's body (excluding extremities: hands, wrists, feet and legs). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The wireless controller complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. WARNING 01GB01COV.book Page 2 Wednesday, September 6, 2006 2:30 PM masterpage:Right filename[G:\FM\SCE\0906_3\PS3-1001\01_US\01GB02WAR.fm] model name1[PS3-1001_US/FR/ES] [2-894-628-11(1)] 3 WARNING USUS About the lithium coin memory back-up battery The lithium coin memory back-up battery inside this product contains Perchlorate. The following statement is required by the State of California, USA: Perchlorate Material - special handling may apply, See http://www.dtsc.ca.gov/hazardouswaste/perchlorate. A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your physician before playing. IMMEDIATELY DISCONTINUE use and consult your physician before resuming gameplay if you or your child experience any of the following health problems or symptoms: • dizziness, • altered vision, • eye or muscle twitches, • loss of awareness, • disorientation, • seizures, or • any involuntary movement or convulsion. RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR PHYSICIAN. Use and handling of video games to reduce the likelihood of a seizure • Use in a well-lit area and keep as far away as possible from the television screen. • Avoid large screen televisions. Use the smallest television screen available. • Avoid prolonged use of the PS3™ system. Take a 15-minute break during each hour of play. • Avoid playing when you are tired or need sleep. If you have questions about this product, call our technical support line at 1-800-345-7669, or write to: Sony Computer Entertainment America Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. Declaration of Conformity Trade Name : Model No. : Responsible Party : Address : Telephone No. : SONY CECHA01 Sony Electronics Inc. 16530 Via Esprillo San Diego, CA 92127 U.S.A. 858-942-2230 Photosensitivity/Epilepsy/Seizures 01GB01COV.book Page 3 Wed…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 11, 2006 RE: FCC ID: AK8CBEH1000_ATCB003984 Attention: Akane Yamamoto I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that while you have requested that the setup photos be held in temporary confidentiality status these setup photos exist in the test report which cannot be held confidential. The following reports have setup photos within them: IC Test Report(BT).pdf and IC Test Report(WLAN).pdf. Please remove the test setup photos from all reports and provide them only in the setup photo exhibit. Alternately, please remove the setup photos from the list of exhibits to be held in temporary confidentiality. 2. Please note that on some of the data tables in the BT report you list some frequencies as “reference data”. For example, on page 83 of the report “FCC Test Data&Instruments(BT).pdf” you list 1946.9MHz as reference data. Please note that the same is true for the WLAN data report. Please explain what this means and why this frequency is considered ‘reference data”. Please note that other pages list other frequencies in this manner. Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

13 September, 2006 RE: FCC ID: AK8CBEH1000_ATCB003984 Attention: Mr. Dennis Ward Dear Mr. Dennis Ward, Please find the following our reply to your comments; 1. This was solved. 2. According to FCC Part15 Subpart C section247 (d), the place with "*" (asterisk) in the table is not applicable for section 205: limitation band so that we applied "It is lower at least 20dB than a radio frequency electric power in 100kHz bandwidth." and considered for reference data. The emission level in the frequency of 100kHz bandwidth with "*" is stated in the same page of under table and complies the standard. Thank you very much for your prompt attention. Best regards, Akane Yamamoto (Ms.) EMC Service Division Application Group UL Apex Co., Ltd. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8095 E-mail: [email protected]

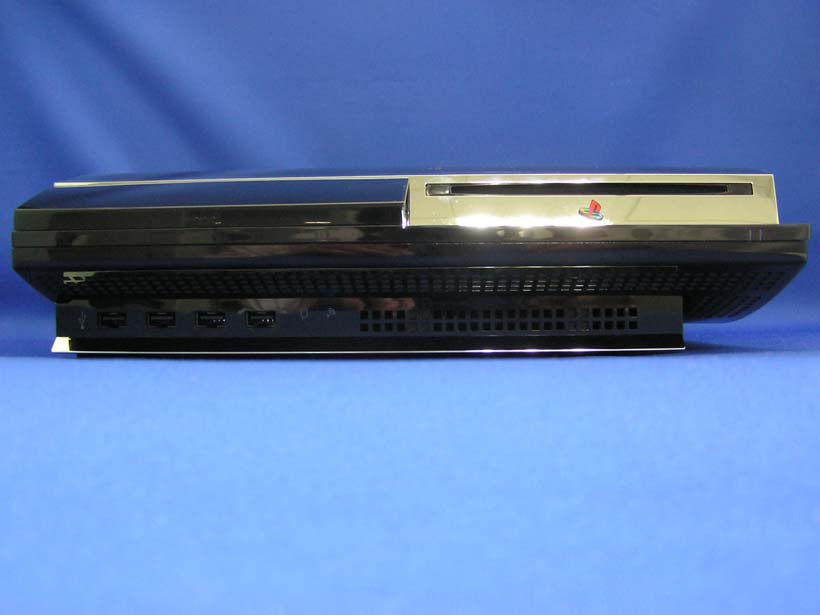

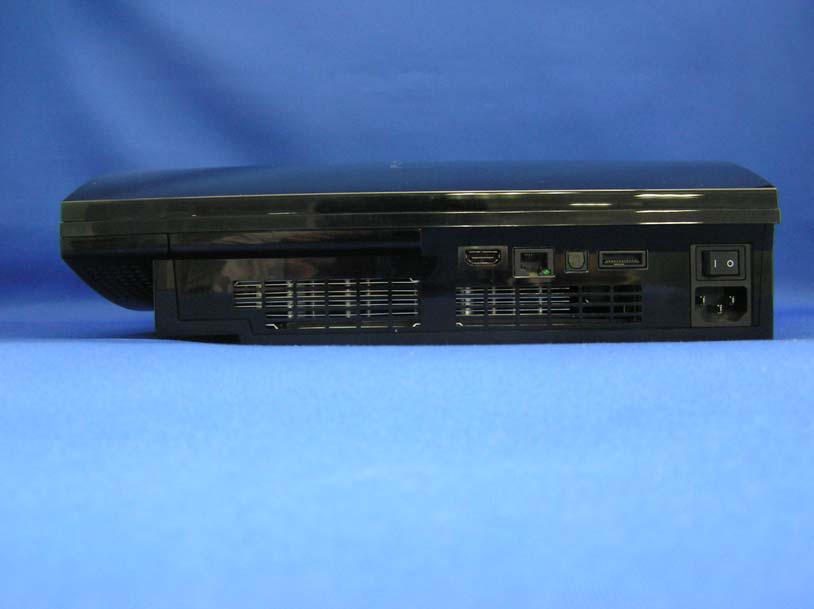

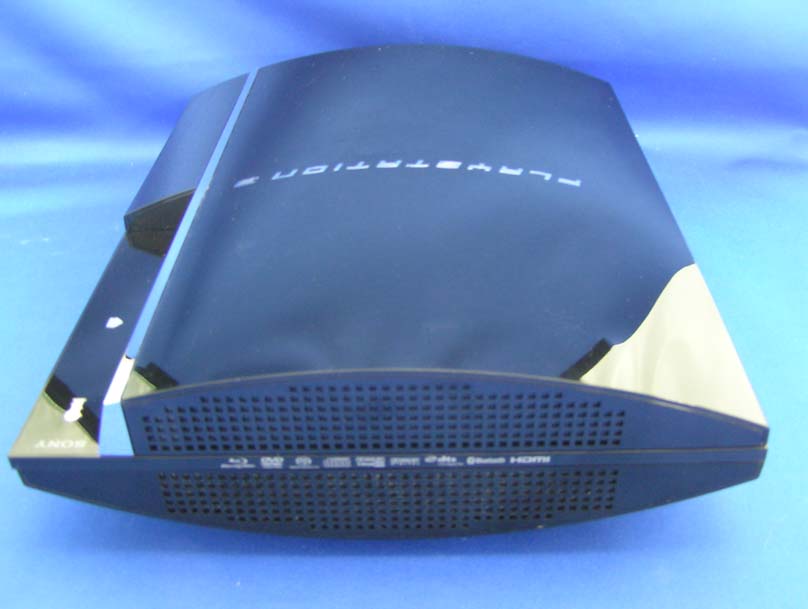

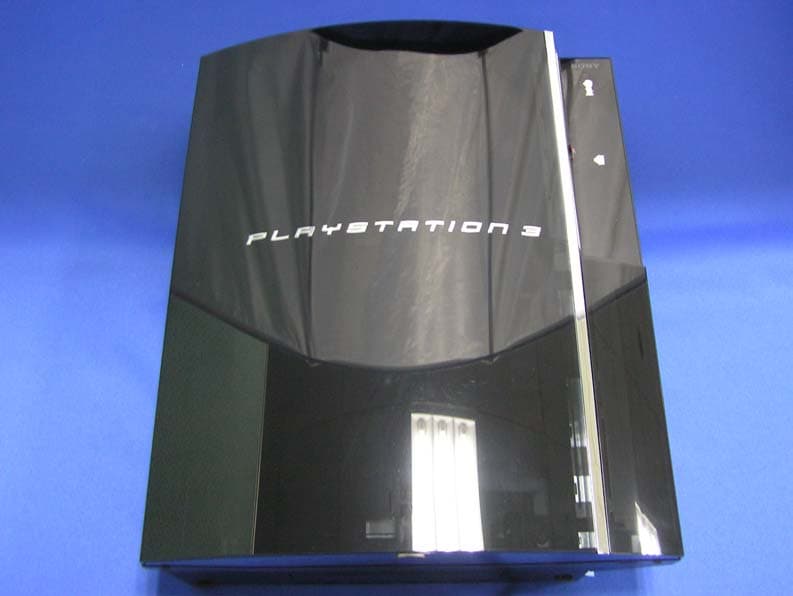

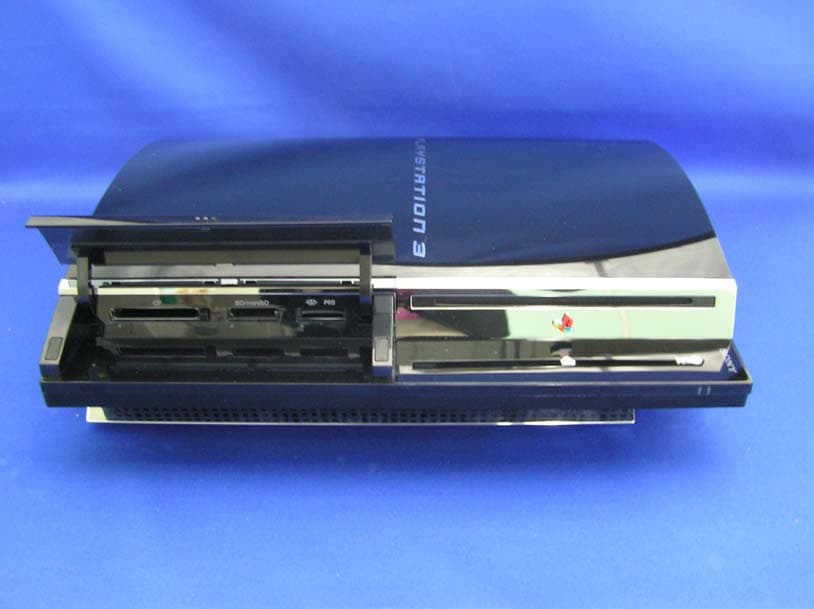

Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 External Photo Top View Bottom View Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 FrontView Front View (Cover Opened) Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Rear View Left Side View Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Right Side View

#-%$'* $%$'* #-%$'*#-%$'* #-%$'*#-%$'* $%$'* #-%$'* $%$'* #-%$'* $%$'*

Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Internal Photo Top View Close up Photo of WLAN Antenna-0 Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Top View of Board with shielding Top View of Board without shielding Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Bottom View of Board with cover Bottom View of Board without cover Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Front Side of Bluetooth Module without shielding Top View of Bluetooth Module Bottom View of Bluetooth Module Sony Corporation Product Name: PLAYSTATION®3 FCC ID: AK8CBEH1000 IC Number: 409B-CBEH1000 Top View of WLAN Module Bottom View of WLAN Module

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Computer Entertainment Inc. Type of Equipment : PLAYSTATION®3 (WLAN module part) Model No. : CECHA01 FCC ID: AK8CBEH1000 Sony Computer Entertainment Inc. declares that Model : CECHA01 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CECHA01“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 122.46 mW (Maximum peak output power) G = 1.23 Numerical Antenna gain; equal 0.91 dBi r =20.0 cm For: CECHA01S = 0.03004 mW/cm 2 No. : 27AE0069-HO-B RF Exposure Statement

Test report No. : 27AE0069-HO-B Page : 2 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................9 SECTION 5: Conducted Emission....................................................................................................... 12 SECTION 6: Bandwidth ....................................................................................................................... 13 SECTION 7: Maximum Peak Output Power ..................................................................................... 13 SECTION 8: Peak Power Density........................................................................................................ 13 SECTION 9: Spurious Emission.......................................................................................................... 14 APPENDIX 1: Photographs of test setup ............................................................................................ 15 Conducted Emission .......................................................................................................................................15 Spurious Emission (Radiated) .......................................................................................................................16 Antenna Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) .........................................................17 APPENDIX 2:Test instruments ............................................................................................................ 18 APPENDIX 3: Data of EMI test............................................................................................................ 19 Conducted Emission .......................................................................................................................................19 6dB Bandwidth ...............................................................................................................................................26 Maximum Peak Output Power(ANT1).........................................................................................................29 Maximum Peak Output Power(ANT0).........................................................................................................30 Radiated Spurious Emission (30MHz-1GHz) ..............................................................................................31 Radiated Spurious Emission (1GHz-26GHz) ...............................................................................................44 Conducted Spurious Emission.......................................................................................................................51 Conducted emission Band Edge compliance ................................................................................................58 Power Density .................................................................................................................................................59 99%Occupied Bandwidth ..............................................................................................................................62 Test report No. : 27AE0069-HO-B Page : 3 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 2-6-21 Minamiaoyama, Minato-ku, Tokyo, 107-0062, Japan Telephone Number +81-3-6438-8625 Facsimile Number +81-3-6438-8607 Contact Person Akiko Tsukada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment PLAYSTATION®3 Model No CECHA01 Serial No G1D0184 Rating AC 120V/60Hz Country of Manufacture JAPAN Receipt Date of Sample August 9, 2006 Condition of EUT Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No modification by the test lab. 2.2 Product Description Model: CECHA01, referred to as the EUT in this report, is a PLAYSTATION®3. Clock Frequencies are CPU:3.2GHz(CPU), 66MHz(ATA), 133MHz(ATA), 33MHz(PCI), and 750MHz(SATA1). It contains Bluetooth (Ver. 2.0+EDR) module and IEEE802.11b/g WLAN module. Those modules do not transmit simultaneously. Bluetooth (Ver. 2.0+EDR) Equipment Type Transceiver Frequency of Operation 2402-2480MHz Type of Modulation FHSS (GFSK, π/4DQPSK, 8DPSK) Bandwidth & Channel spacing 1MHz & 1MHz Power Supply (inner) DC3.3V Antenna Type ANT1: Reverse F Antenna (manufacturer: SMK / AMP) ANT2: Dipole Antenna Antenna Gain ANT1: 0.21dBi (max) ANT2: 4.13 dBi (max) Antenna Connector Type ANT1: N/A ANT2: N/A *For Bluetooth module test, please see UL Apex Test Report No. 27AE0069-HO-A. Test report No. : 27AE0069-HO-B Page : 4 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) IEEE802.11b/g WLAN Equipment Type Transceiver Frequency of Operation 2412-2462MHz Type of Modulation DSSS/OFDM Bandwidth & Channel spacing 20MHz & 5MHz Power Supply (inner) DC 3.3V/DC1.3V Antenna Type ANT0: Reverse F Antenna ANT1: Reverse F Antenna Anten…

Text truncated - open the document above for the full version.

Test report No. : 27AE0069-HO-B Page : 18 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2:Test instruments EMI Test Equipment Control No. Instrument Manufacturer Model No Test Item Calibration Date * Interval(month) MRENT-39 Spectrum Analyzer Advantest R3273 AT 2006/07/25 * 12 MRENT-36 Power Meter Anritsu ML2496A AT 2006/04/25 * 12 MRENT-33 Power sensor Anritsu MA2411B AT 2006/04/25 * 12 MCC-26 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 AT 2005/08/30 * 12 MAT-20 Attenuator(10dB)(ab ove1GHz) HIROSE ELECTRIC CO.,LTD. AT-110 AT 2006/01/10 * 12 MOS-16 Thermo-Hygrometer Custom CTH-180 AT 2006/01/19 * 24 MAEC-04 Anechoic Chamber TDK Semi Anechoic Chamber 3m RE 2006/03/06 * 12 MOS-15 Thermo-Hygrometer Custom CTH-180 RE 2006/01/19 * 24 MSTW-14 EMI measurement program TSJ TEPTO-DV RE - MHA-21 Horn Antenna 1- 18GHz Schwarzbeck BBHA9120D RE 2006/08/17 * 12 MCC-57 Microwave Cable 1- 26.5GHz Suhner SUCOFLEX104 RE 2006/04/15 * 12 MPA-12 MicroWave System Amplifier Agilent 83017A RE 2006/03/27 * 12 MHF-05 High Pass Filter 3.5- 24GHz Tokimec TF323DCA RE 2006/01/24 * 12 MSA-05 Spectrum Analyzer Advantest R3273 RE 2006/05/20 * 12 MHA-02 Horn Antenna EMCO 3160-09 RE 2006/01/09 * 12 MTR-02 Test Receiver Rohde & Schwarz ESCS30 RE 2006/02/02 * 12 MCC-50 Coaxial cable UL Apex - RE 2006/03/09 * 12 MAT-31 Attenuator(6dB) TME UFA-01 RE 2006/03/11 * 12 MPA-14 Pre Amplifier SONOA INSTRUMENT 310 RE 2006/03/25 * 12 MBA-05 Biconical Antenna Schwarzbeck BBA9106 RE 2006/01/29 * 12 MLA-08 Logperiodic Antenna Schwarzbeck UKLP9140-A RE 2006/01/29 * 12 MLS-06 LISN(AMN) Schwarzbeck NSLK8127 CE (EUT) 2006/02/06 * 12 MLS-07 LISN(AMN) Schwarzbeck NSLK8127 CE (EUT) 2006/02/06 * 12 MTA-06 Terminator MCL BTRM-50 CE 2006/02/06 * 12 MSA-03 Spectrum Analyzer Agilent E4448A AT 2005/09/16 * 12 MCC-26 Microwave Cable 1G-26.5GHz Suhner SUCOFLEX104 AT 2006/08/29 * 12 All equipment is calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. Test Item: CE: Conducted Emission RE: Radiated Emission, AT: Antenna Terminal Conducted Measurement Test report No. : 27AE0069-HO-B Page : 19 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 3: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Shielded room Date : 2006/08/29 22:15:23 Company : Sony Computer Entertainment Inc.Report No.:27AE0069-HO Kind of EUT: PLAYSTATION3 Power:AC 120V / 60Hz) Model No. : CECHA01 Temp./Humi.:26deg.C / 55% Serial No. : G1D0184 Operator:Takumi Shimada Mode / Remarks : WLAN IEEE802.11b Tx 2412MHz 11Mbps ANT:1 LIMIT : FCC15C §15.207 (QP)/ RSS-Gen 7.2.2 FCC15C §15.207 (AV)/ RSS-Gen 7.2.2 CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 27AE0069-HO-B Page : 20 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Shielded room Date : 2006/08/29 22:21:55 Company :Sony Computer Entertainment Inc.Report No.:27AE0069-HO Kind of EUT : PLAYSTATION3 Power:AC 120V / 60Hz) Model No. : CECHA01 Temp./Humi.:26deg.C / 55% Serial No. :G1D0184 Operator:Takumi Shimada Mode / Remarks:WLAN IEEE802.11b Tx 2437MHz 11Mbps ANT:1 LIMIT : FCC15C §15.207 (QP)/ RSS-Gen 7.2.2 FCC15C §15.207 (AV)/ RSS-Gen 7.2.2 CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 27AE0069-HO-B Page : 21 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Shielded room Date : 2006/08/29 22:28:06 Company :Sony Computer Entertainment Inc.Report No.:27AE0069-HO Kind of EUT : PLAYSTATION3 Power:AC 120V / 60Hz) Model No. :CECHA01 Temp./Humi.:26deg.C / 55% Serial No. :G1D0184 Operator:Takumi Shimada Mode / Remarks:WLAN IEEE802.11b Tx 2462MHz 11Mbps ANT:1 LIMIT : FCC15C §15.207 (QP)/ RSS-Gen 7.2.2 FCC15C §15.207 (AV)/ RSS-Gen 7.2.2 CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading Level Reading Level Corr . ResultsResultsLimitLimitMarginMargin Phase Frequency QPAV Factor QPAVQPAVQPAVPhase [ MHz ] [dBuV ] [ dBuV ] [ dB ] [dBuV][dBuV][dBuV][dBuV][dB][dB] Phase 0 . 22564 47 . 1 48 . 0 0 . 1 47.248.162.652.615.44.5N 0 . 45071 38 . 9 39 . 7 0 . 2 39.139.956.946.917.87.0N 1 . 12428 33 . 6 34 . 4 0 . 3 33.934.756.046.022.111.3N 2 . 02236 33 …

Text truncated - open the document above for the full version.

Test report No. : 27AE0069-HO-B Page : 15 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 27AE0069-HO-B Page : 16 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Front Rear Test report No. : 27AE0069-HO-B Page : 17 of 63 Issued date : September 11, 2006 FCC ID : AK8CBEH1000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Antenna Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis
