AK8CBEH1101Digital Transmission System

masterpage:Left filename[I:\FM E_data\PS3\S&S\846276S\0317_data up\4104452111\4104452111_PS3_SS_US\01_US\01GB01COV.fm] US FR ES model name1[CECHE01 MG_US/FR/ES] [4-104-452-11(1)] Safety and Support Sécurité et support technique Seguridad y soporte técnico CECHE01 MG Before using this product, carefully read all product documentation and retain it for future reference. Avant d'utiliser ce produit, lisez attentivement toute la documentation sur les produits et conservez-la pour pouvoir la consulter ultérieurement. Antes de utilizar este producto, lea detenidamente toda la documentación del producto y consérvela para consultarla en el futuro. 4-104-452-11(1) 01GB01COV.book Page 1 Monday, March 17, 2008 3:07 PM masterpage:Left filename[I:\FM E_data\PS3\S&S\846276S\0317_data up\4104452111\4104452111_PS3_SS_US\01_US\01GB02WAR.fm] model name1[CECHE01 MG_US/FR/ES] [4-104-452-11(1)] 2 WARNING To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. This appliance is classified as a CLASS 1 LASER product under IEC60825- 1+A2:2001. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20 cm (8 in) and more between the radiator and person's body (excluding extremities: hands, wrists, feet and legs). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The wireless controller complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. WARNING 01GB01COV.book Page 2 Monday, March 17, 2008 3:07 PM masterpage:Right filename[I:\FM E_data\PS3\S&S\846276S\0317_data up\4104452111\4104452111_PS3_SS_US\01_US\01GB02WAR.fm] model name1[CECHE01 MG_US/FR/ES] [4-104-452-11(1)] 3 WARNING USUS About the lithium coin memory back-up battery The lithium coin memory back-up battery inside this product contains Perchlorate. The following statement is required by the State of California, USA: Perchlorate Material - special handling may apply, See http://www.dtsc.ca.gov/hazardouswaste/perchlorate A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your physician before playing. IMMEDIATELY DISCONTINUE use and consult your physician before resuming gameplay if you or your child experience any of the following health problems or symptoms: • dizziness, • altered vision, • eye or muscle twitches, • loss of awareness, • disorientation, • seizures, or • any involuntary movement or convulsion. RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR PHYSICIAN. Use and handling of video games to reduce the likelihood of a seizure • Use in a well-lit area and keep as far away as possible from the television screen. • Avoid large screen televisions. Use the smallest television screen available. • Avoid prolonged use of the PS3™ system. Take a 15-minute break during each hour of play. • Avoid playing when you are tired or need sleep. If you have questions about this product, call our technical support line at 1-800-345-7669, or write to: Sony Computer Entertainment America Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. Declaration of Conformity Trade Name : Model No. : Responsible Party : Address : Telephone No. : SONY CECHE01 and CECHZC2U Sony Elect…

Text truncated - open the document above for the full version.

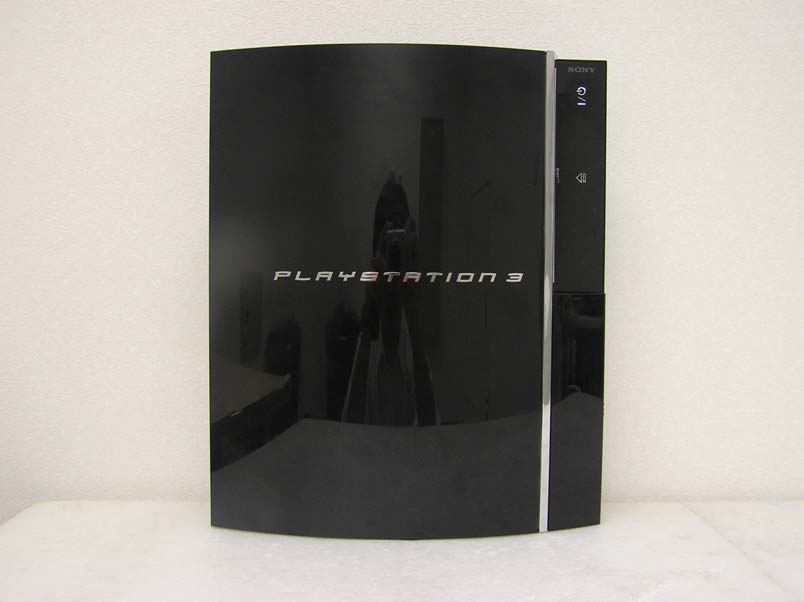

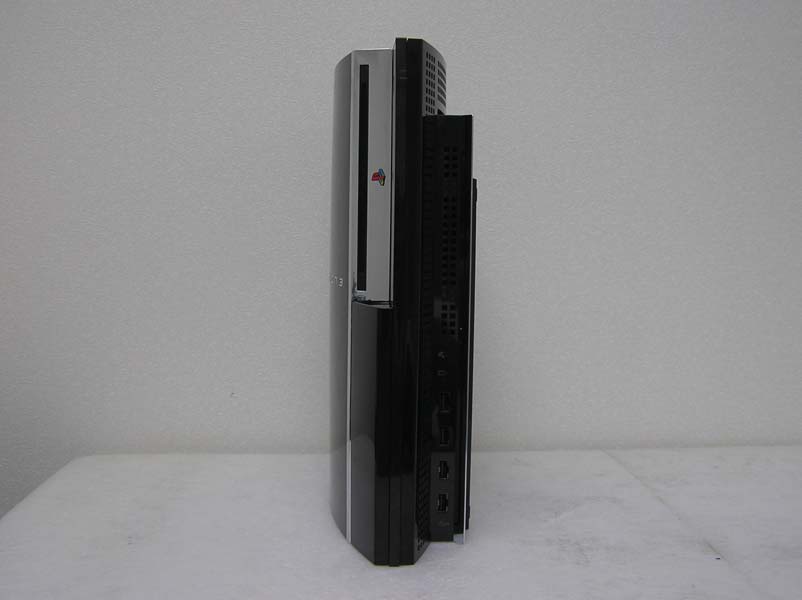

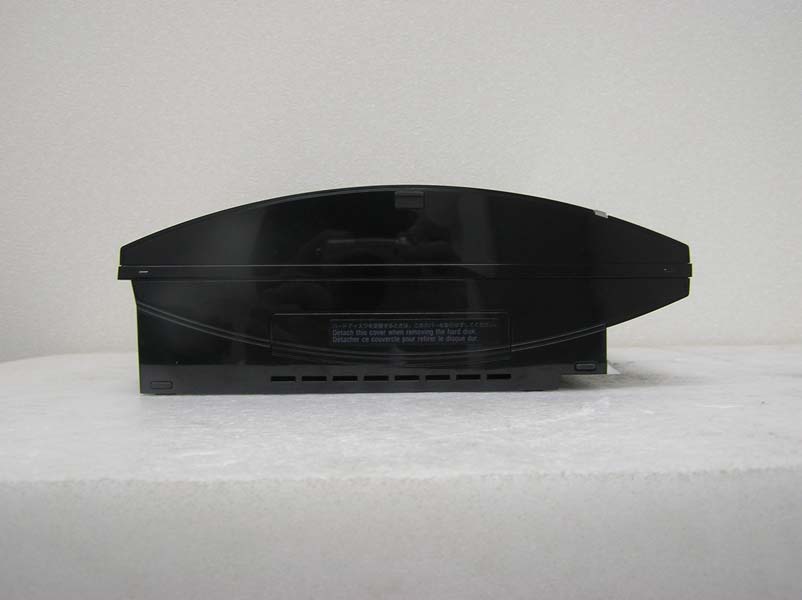

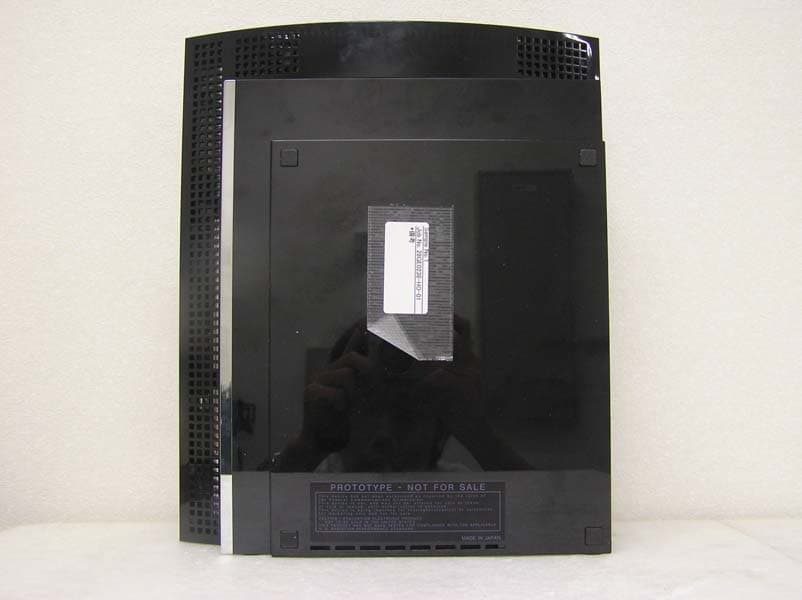

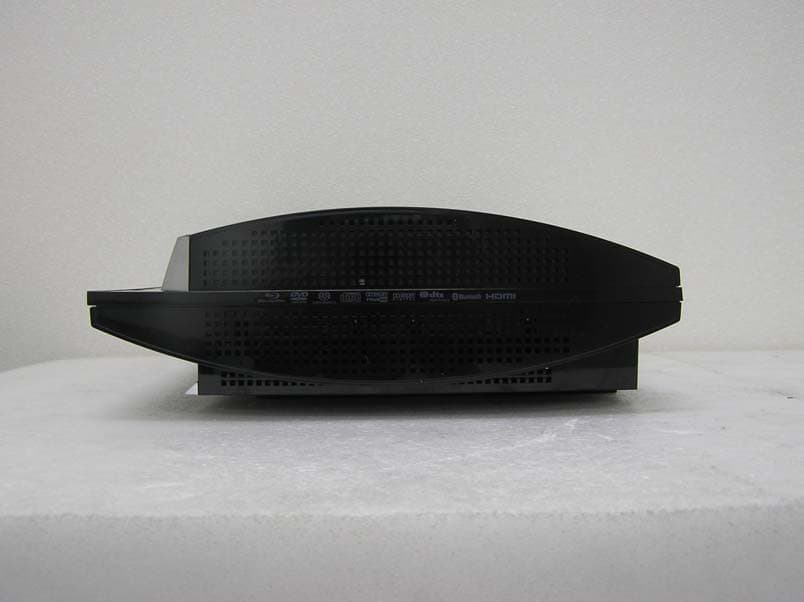

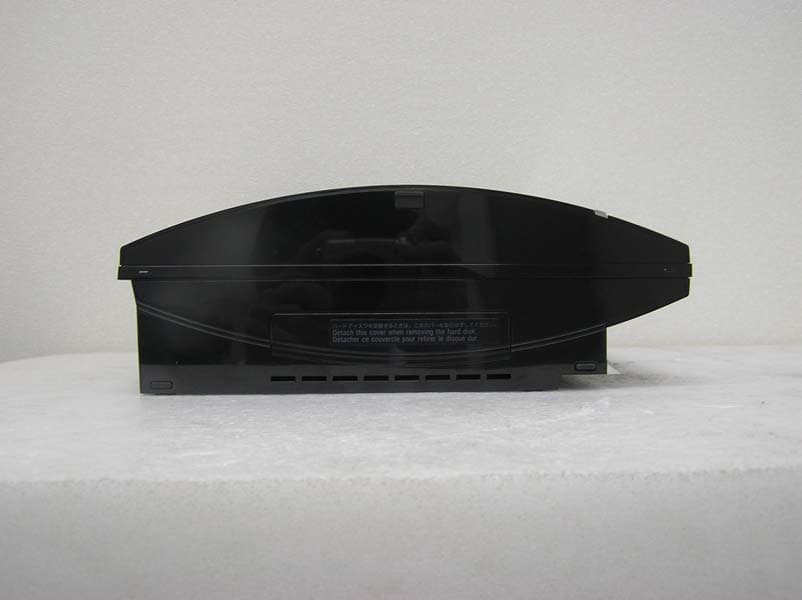

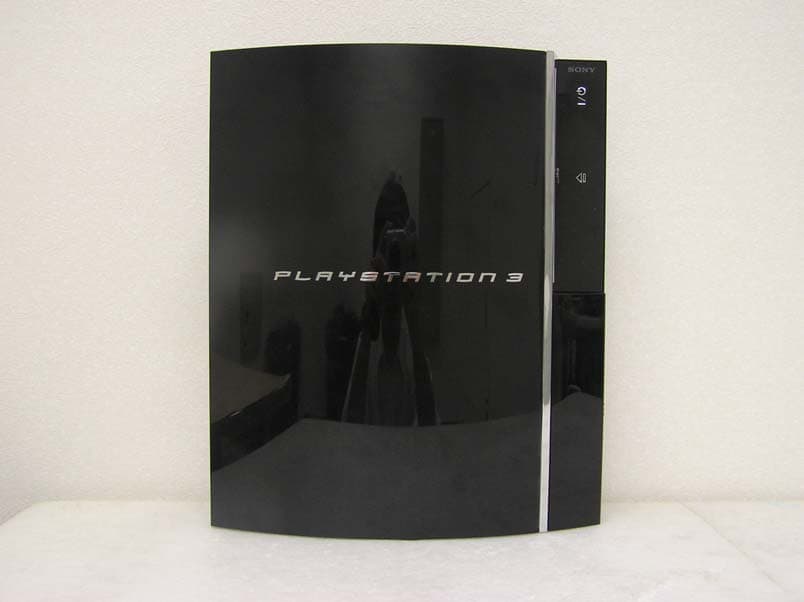

External Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Top Bottom External Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Left Right External Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Rear Front

Internal Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Inside Top of Board Internal Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Bottom of Board Top of BT Module with Shield Case Internal Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Top of BT Module without Shield Case Bottom of BT Module Internal Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Top of WLAN Module with Shield Case Top of WLAN Module without Shield Case Internal Photo Sony Corporation PLAYSTATION®3 FCC ID: AK8CBEH1101 Model: CECHE01 Bottom of WLAN Module

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Computer Entertainment Inc. T ype of Equipment: PLAYSTATION®3 (WLAN part) Model No. : CECHE01 FCC ID: AK8CBEH1101 IC Number:409B-CBEH1101 Sony Computer Entertainment Inc. declares that Model : CECHE01 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gai n antenna provided with the “CECHE01“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 108.64 mW (Maximum peak output power) G = 1.22 Numerical Antenna gain; equal to0.88 dBi r =20.0 cm For: CECHE01S = 0.02647 mW/cm 2 No. : 28GE0238-HO-01 RF Exposure / MPE Calculation

Test report No. : 28GE0238-HO-01-A Page : 1 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 28GE0238-HO-01-A Applicant : Sony Computer Entertainment Inc. Type of Equipment : PLAYSTATION®3 Model No. : CECHE01 FCC ID : AK8CBEH1101 Test regulation : FCC Part 15 Subpart C 2008 Section 15.207, Section 15.247 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. Date of test: ___________________________ Tested by: ____________________________ __________________________ __________________________ Takumi Shimada EMC Services Takayuki Shimada EMC Services Takahiro Hatakeda EMC Services Approved by : ____________________________ Mitsuru Fujimura Assistant Manager of EMC Services NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://uljapan.co.jp/emc/nvlap.htm March 10 to 13, 2008 MF060b (09.01.08) Test report No. : 28GE0238-HO-01-A Page : 2 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................9 SECTION 5: Conducted Emission....................................................................................................... 12 SECTION 6: Spurious Emission.......................................................................................................... 13 SECTION 7: Bandwidth ....................................................................................................................... 14 SECTION 8: Maximum Peak Output Power ..................................................................................... 14 SECTION 9: Peak Power Density........................................................................................................ 14 APPENDIX 1: Photographs of test setup ............................................................................................ 15 Conducted Emission .................................................................................................................... 15 Spurious Emission (Radiated)..................................................................................................... 16 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis)...................................................... 17 APPENDIX 2: Data of EMI test............................................................................................................ 20 Conducted Emission .................................................................................................................... 20 6dB Bandwidth ............................................................................................................................. 27 Maximum Peak Output Power ................................................................................................... 30 Radiated Spurious Emission (below 1GHz)............................................................................... 34 Radiated Spurious Emission (above 1GHz)............................................................................... 41 Conducted Spurious Emission ....................................................................................................48 Conducted emission Band Edge compliance ............................................................................. 55 Power Density ............................................................................................................................... 56 99%Occupied Bandwidth ...............................................................................................59 APPENDIX 3:Test instruments ............................................................................................................ 61 Test report No. : 28GE0238-HO-01-A Page : 3 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 2-6-21 Minamiaoyama, Minato-ku, Tokyo, 107-0062, Japan Telephone Number +81-3-6438-8023 Facsimile Number +81-3-6438-8642 Contact Person Akiko Tsukada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment PLAYSTATION®3 Model No CECHE01 Serial No 520100600: Used for Conducted emission and radiated spurious emission test. 520100617: Used for Antenna terminal conducted tests. Rating AC 120V, 60Hz Country of Manufacture JAPAN/CHINA Receipt Date of Sample March 10, 2008 Condition of EUT Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No modification by the test lab. Test report No. : 28GE0238-HO-01-A Page : 4 of 61 …

Text truncated - open the document above for the full version.

Test report No. : 28GE0238-HO-01-A Page : 20 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission 11b, Tx, Ch: Low, ANT1 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2008/03/13 Company : Sony Computer Entertainment Inc.Report No.:28GE0238-HO-01 Kind of EUT: PLAYSTATION®3 Power:AC 120V / 60Hz Model No. : CECHE01 Temp./Humi.:24 deg.C. / 36% Serial No. : 520100600 Operator:Takumi Shimada Mode / Remarks: WLAN, 11b, Tx 2412MHz, Ant1, 2Mbps LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table:adequate margin data below the limits. Frequency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28GE0238-HO-01-A Page : 21 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission 11b, Tx, Ch: Mid, ANT1 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2008/03/13 Company : Sony Computer Entertainment Inc.Report No.:28GE0238-HO-01 Kind of EUT : PLAYSTATION®3 Power:AC 120V / 60Hz Model No. : CECHE01 Temp./Humi.:24 deg.C. / 36% Serial No. : 520100600 Operator:Takumi Shimada Mode / Remarks: WLAN, 11b, Tx 2437MHz, Ant1, 2Mbps LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table:adequate margin data below the limits. Frequency[Hz] [dBuV] << QP/AV DATA >> L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading Level Reading Level Corr . ResultsResultsLimitLimitMarginMargin Phase Frequency QP AV Factor QPAVQPAVQPAVPhase [ MHz ] [dBuV ] [ dBuV ] [ dB ] [dBuV][dBuV][dBuV][dBuV][dB][dB] Phase 0 . 20799 47 . 2 43 . 4 0 . 3 47.543.763.353.315.89.6N 0 . 20797 46 . 4 41 . 4 0 . 3 46.741.763.353.316.611.6L 0 . 34658 44 . 2 36 . 0 0 . 3 44.536.359.049.014.512.7N 0 . 34400 42 . 7 34 . 3 0 . 3 43.034.659.149.116.114.5L 0 . 55391 38 . 3 30 . 0 0 . 3 38.630.356.046.017.415.7N 0 . 55442 36 . 9 30 . 0 0 . 3 37.230.356.046.018.915.7L 4 . 59278 36 . 5 33 . 6 0 . 7 37.234.356.046.018.811.7L 3 . 67296 34 . 4 28 . 4 0 . 6 35.029.056.046.021.017.0N 12 . 05088 38 . 8 38 . 3 1 . 2 40.039.560.050.020.010.5N 12 . 05140 38 . 5 38 . 2 1 . 2 39.739.460.050.020.310.6L 26 . 38173 33 . 9 27 . 0 1 . 9 35.828.960.050.024.221.1L 26 . 64043 31 . 1 24 . 1 1 . 9 33.026.060.050.027.024.0N *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 28GE0238-HO-01-A Page : 22 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission 11b, Tx, Ch: High, ANT1 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2008/03/13 Company :Sony Computer Entertainment Inc.Report No.:28GE0238-HO-01 Kind of EUT :PLAYSTATION®3 Power:AC 120V / 60Hz Model No. :CECHE01 Temp./Humi.:24 deg.C. / 36% Serial No. :520100600 Operator:Takumi Shimada Mode / Remarks :WLAN, 11b, Tx 2462MHz, Ant1, 2Mbps LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table: adequate margin data below the limits. Frequency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M.5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M.5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28GE0238-HO-01-A Page : 23 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission 11g, Tx, Ch: Low, ANT1 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2008/03/13 Company : Sony Computer Entertainment Inc.Report No.:28GE0238-HO-01 Kind of EUT : PLAYSTATION®3 Power:AC 120V / 60Hz Model No. : CECHE01 Temp./Humi.:24 deg.C. / 36% Serial No. : 520100600 Operator:Takumi Shimada Mode / Remarks: WLAN, 11g, Tx 2412MHz, Ant1, 6Mbps LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCURATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table: adequate margin data below the limits. Frequency[Hz] [dBuV] << PEAK DATA >> N :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency[Hz] [dBuV] << PEAK DATA >> L :PEAK .15M 30M .2M .3M .5M .7M 1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Test report No. : 28GE0238-HO-01-A Page : 24 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission 11g, Tx, Ch: Mid, ANT1 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2008/03/13 Company : Sony Computer Entertainment Inc.Report No.:28GE0238-HO-01 Kind of EUT : PLAYSTATION®3 Power:AC 120V / 60Hz Model No. : CECHE01 Temp./Humi.:24 deg.C. / 36% Serial No. : 520100600 Operator:Takumi Shimada Mode / Remarks: WLAN, 11g, Tx 2437MHz, Ant1, 6Mbps LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. …

Text truncated - open the document above for the full version.

Test report No. : 28GE0238-HO-01-A Page : 15 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 28GE0238-HO-01-A Page : 16 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Spurious Emission (Radiated) Front Rear Test report No. : 28GE0238-HO-01-A Page : 17 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) X-axis Y-axis Test report No. : 28GE0238-HO-01-A Page : 18 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Configuration and peripherals AC120V/60Hz 1 2 1 G H AC120V/60Hz A E B F C D AC120V/60Hz 3 4 5 6 7 8 9 10 11 12 I J K L *Cabling and setup were taken into consideration and test data was taken under worse case conditions. : Standard Ferrite Core Test report No. : 28GE0238-HO-01-A Page : 19 of 61 Issued date : March 27, 2008 FCC ID : AK8CBEH1101 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Description of EUT and Support equipment No. Item Model number Serial number Manufacturer Remarks A PLAYSTATION®3 CECHE01 520100600 *1) 520100617 *2) Sony Computer Entertainment Inc. EUT B PLAYSTATION®3 Controller CECHZC1E 447055101062 Sony Computer Entertainment Inc. - C PLAYSTATION®3 Controller CECHZC1U 046080300107 Sony Computer Entertainment Inc. - D PLAYSTATION®3 Controller CECHZC2J 8507114900136 Sony Computer Entertainment Inc. - E PSP PSP1000 27400000-0782619 Sony Computer Entertainment Inc. - F Display MDT201WS 5Z001932GJ MITSUBISHI - G Note PC ThinkPad X40 KV-DNK71 IBM - H AC Adaptor 02K6808 11S02K6808 Z1Z 89H52GA21 IBM - I Mouse M-UB48 LZE02601001 Logitech - J Compact Flash CFX-256M CAMH039284QS I/O DATA - K Memory Stick MSH-128 D920S4A SONY - L SD Card RP-SD128B BK6CB274150 Panasonic - *1) Used for Conducted emission and radiated emission tests. *2) Used for Antenna terminal conducted tests. List of cables used No. Name Length (m) Cable Shielding Connector Shielding Remark 1 LAN Cable 2.9 Unshielded Unshielded - 2 USB Cable 0.8 Shielded Shielded - 3 DC Cable 2.0 Unshielded Unshielded One ferrite core (standard attachment) 4 AC Cable 1.0 Unshielded Unshielded - 5 USB Cable 1.5 Shielded Shielded One ferrite core (standard attachment) 6 USB Cable 1.5 Shielded Shielded One ferrite core (standard attachment) 7 USB Cable 1.5 Shielded Shielded One ferrite core (standard attachment) 8 USB Cable 0.5 Shielded Shielded - 9 AC Cable 2.5 Unshielded Unshielded - 10 HDMI Cable 2.0 Shielded Shielded - 11 AV Multi Cable 2.5 Unshielded Unshielded One ferrite core (standard attachment) 12 AC Cable 2.0 Unshielded Unshielded -
