AK8CBEH1700Computer Entertainment System

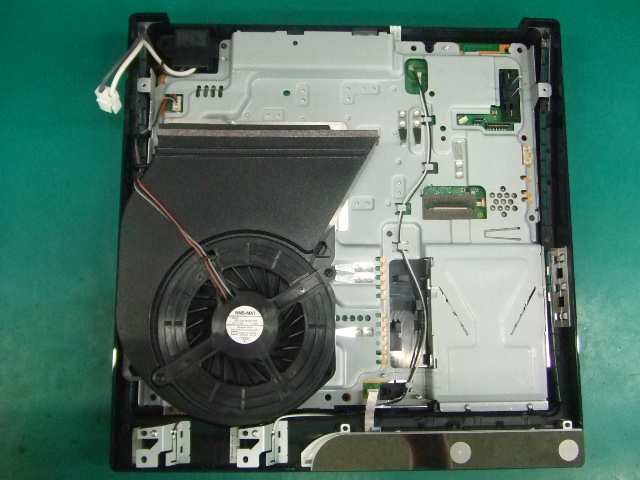

Sony Corporation FCC: AK8CBEH1700 IC: 409B-CBEH1700 External Photo Front Rear Sony Corporation FCC: AK8CBEH1700 IC: 409B-CBEH1700 External Photo Top Bottom Sony Corporation FCC: AK8CBEH1700 IC: 409B-CBEH1700 External Photo Right Left Sony Corporation FCC: AK8CBEH1700 IC: 409B-CBEH1700 External Photo Inside View Location of Module

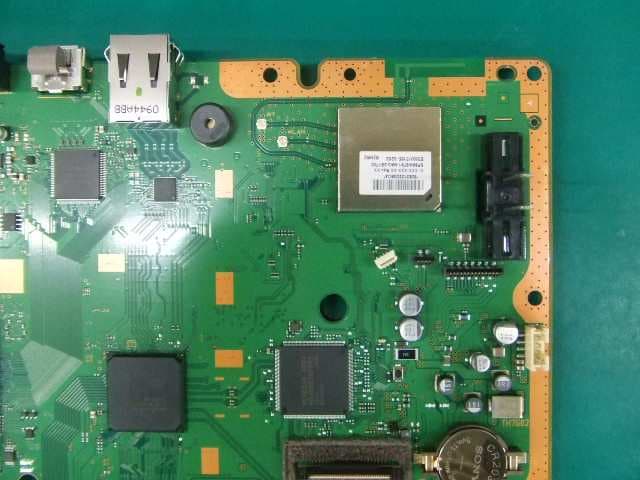

Sony Corporation FCC: AK8CBEH1700 IC: 409B-CBEH1700 Internal Photo Top View with Shield Top View without Shield Bottom View

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Comuputer Enternainment Inc. Type of Equipment : Computer Entertainment System (WLAN part) Model No. : CECH-2501A FCC ID: AK8CBEH1700 IC Number:409B-CBEH1700 Sony Comuputer Enternainment Inc. declares that Model : CECH-2501A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “CECH-2501A“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 167.49 mW (Maximum peak output power) G = 2.69 Numerical Antenna gain; equal to4.30dBi r =20.0 cm For: CECH-2501AS =0.08969 mW/cm 2 No. : 30HE0264-HO-01-A RF Exposure / MPE Calculation

Test report No. : 30HE0264-HO-01-A Page : 1 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 30HE0264-HO-01-A Applicant : Sony Computer Entertainment Inc. Type of Equipment : Computer Entertainment System Model No. : CECH-2501A FCC ID : AK8CBEH1700 Test regulation : FCC Part 15 Subpart C 2010 Section 15.207, Section 15.247 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: _____________________________ Representative test engineer: _____________________________ Takumi Shimada Engineer of EMC Service Approved by: _____________________________ Mitsuru Fujimura Manager of EMC Service MF060b (10.05.10) April 5 to 10, 2010 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 30HE0264-HO-01-A Page : 2 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information.........................................................................................................3 SECTION 2: Equipment under test (E.U.T.)...........................................................................................3 SECTION 3: Test specification, procedures & results............................................................................5 SECTION 4: Operation of E.U.T. during testing ....................................................................................8 SECTION 5: Conducted Emission..........................................................................................................11 SECTION 6: Radiated Spurious Emission ............................................................................................12 SECTION 7: Antenna Terminal Conducted Tests................................................................................13 APPENDIX 1: Photographs of test setup ...............................................................................................14 Conducted Emission .........................................................................................................................14 Radiated Spurious Emission .............................................................................................................15 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) ..............................................................16 APPENDIX 2: Data of EMI test..............................................................................................................19 Conducted Emission .........................................................................................................................19 6dB Bandwidth .................................................................................................................................39 Maximum Peak Output Power ..........................................................................................................41 Radiated Spurious Emission .............................................................................................................43 Conducted Spurious Emission ..........................................................................................................62 Conducted Emission Band Edge compliance ...................................................................................69 Power Density ...................................................................................................................................70 99%Occupied Bandwidth .................................................................................................................72 APPENDIX 3: Test instruments .............................................................................................................73 Test report No. : 30HE0264-HO-01-A Page : 3 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 2-6-21 Minamiaoyama, Minato-ku, Tokyo, 107-0062, Japan Telephone Number +81-3-6438-8023 Facsimile Number +81-3-6438-8642 Contact Person Akiko Tsukada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment Computer Entertainment System Model No CECH-2501A Serial No 1200214 (Power Supply: SONY) 1200216 (Power Supply: DELTA) 1200221 Used for Antenna Terminal Conducted tests Rating AC120V / 60Hz Country of Manufacture JAPAN/CHINA Receipt Date of Sample April 2, 2010 Condition of EUT Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No modification by the test lab. Test report No. : 30HE0264-HO-01-A Page : 4 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 812…

Text truncated - open the document above for the full version.

Test report No. : 30HE0264-HO-01-A Page : 19 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission (Power Supply: SONY) DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/10 Company : Sony Computer Entertainment Inc. Report No. : 30HE0264-HO-01 Kind of EUT : Computer Entertainment System Power : AC 120V / 60Hz Model No. : G-PRO J Temp./Humi. : 22deg.C / 41% Serial No. : 1200214 Engineer : Takumi Shimada Mode / Remarks : IEEE802.11b Transmitting mode(Tx) 2437MHz, 11Mbps, Ant0 LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500046.529.913.359.843.266.056.06.212.8N 0.3706722.822.913.336.136.258.548.522.412.3N 0.5432025.013.113.338.326.456.046.017.719.6N 0.5964522.910.713.336.224.056.046.019.822.0N 0.7403126.021.413.339.334.756.046.016.711.3N 24.9463019.610.915.034.625.960.050.025.424.1N 0.1500046.229.813.359.543.166.056.06.512.9L 0.3706122.922.713.336.236.058.548.522.312.5L 0.5441723.212.413.336.525.756.046.019.520.3L 0.6002122.210.013.335.523.356.046.020.522.7L 0.7402925.721.413.339.034.756.046.017.011.3L 24.9196619.910.915.034.925.960.050.025.124.1L Test report No. : 30HE0264-HO-01-A Page : 20 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission (Power Supply: SONY) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30HE0264-HO-01 Date 04/10/2010 Temperature/ Humidity 22 deg.C./ 41% Engineer Takumi Shimada Mode 11b Tx Ant0 2412MHz 2437MHz 2462MHz Y scale [dBuV] Chart N L Test report No. : 30HE0264-HO-01-A Page : 21 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission (Power Supply: SONY) DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/10 Company : Sony Computer Entertainment Inc. Report No. : 30HE0264-HO-01 Kind of EUT : Computer Entertainment System Power : AC 120V / 60Hz Model No. : G-PRO J Temp./Humi. : 22deg.C / 41% Serial No. : 1200214 Engineer : Takumi Shimada Mode / Remarks : IEEE802.11b Transmitting mode(Tx) 2437MHz, 11Mbps, Ant1 LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500046.429.713.359.743.066.056.06.313.0N 0.3704222.923.013.336.236.358.548.522.312.2N 0.5432224.813.013.338.126.356.046.017.919.7N 0.5974923.110.913.336.424.256.046.019.621.8N 0.7401826.221.813.339.535.156.046.016.510.9N 24.8934019.811.315.034.826.360.050.025.223.7N 0.1500047.330.113.360.643.466.056.05.412.6L 0.3700222.923.013.336.236.358.548.522.312.2L 0.5445823.412.213.336.725.556.046.019.320.5L 0.6009322.710.613.336.023.956.046.020.022.1L 0.7410924.920.813.338.234.156.046.017.811.9L 24.9193419.511.015.034.526.060.050.025.524.0L Test report No. : 30HE0264-HO-01-A Page : 22 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission (Power Supply: SONY) Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 30HE0264-HO-01 Date 04/10/2010 Temperature/ Humidity 22 deg.C./ 41% Engineer Takumi Shimada Mode 11b Tx Ant1 2412MHz 2437MHz 2462MHz Y scale [dBuV] Chart N L Test report No. : 30HE0264-HO-01-A Page : 23 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission (Power Supply: SONY) DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/04/10 Company : Sony Computer Entertainment Inc. Report No. : 30HE0264-HO-01 Kind of EUT : Computer Entertainment System Power : AC 120V / 60Hz Model No. : G-PRO J Temp./Humi. : 22deg.C / 41% Serial No. : 1200214 Engineer : Takumi Shimada Mode / Remarks : IEEE802.11g Transmitting mode(Tx) 2437MHz, 24Mbps, Ant0 LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500046.630.013.359.943.366.056.06.112.7N 0.3702223.123.013.336.436.358.548.522.112.2N 0.5430824.913.113.338.226.456.046.017.819.6N 0.6002023.110.913.336.424.256.046.019.621.8N 0.7403025.921.3…

Text truncated - open the document above for the full version.

Test report No. : 30HE0264-HO-01-A Page : 14 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 30HE0264-HO-01-A Page : 15 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 30HE0264-HO-01-A Page : 16 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) X-axis Y-axis Test report No. : 30HE0264-HO-01-A Page : 17 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Configuration and peripherals AC120V/60Hz 1 1 E F AC120V/60Hz A C G D AC120V/60Hz 2 3 4 5 6 7 8 9 : Standard Ferrite Core B * Cabling and setup were taken into consideration and test data was taken under worse case conditions. Test report No. : 30HE0264-HO-01-A Page : 18 of 74 Issued date : May 17, 2010 FCC ID : AK8CBEH1700 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Description of EUT and Support equipment No. Item Model number Serial number Manufacturer Remarks A Computer Entertainment System CECH-2501A 1200214 *1) 1200216 *2) 1200221 *3) Sony Computer Entertainment Inc. EUT B PLAYSTATION®3 Controller CECHZC2U 4248061504571 Sony Computer Entertainment Inc. - C PSP PSP-2000 - Sony Computer Entertainment Inc. - D Display VW26L HDTV20F LFMBBAI1023148 VIZIO - E Note PC 2525-5GJ LV-C108405/08 IBM - F AC Adaptor 02K6810 11S02K6810Z1Z3B J58822N IBM - G Keyboard SCPH-10240 - Sony Computer Entertainment Inc. - *1) Power Supply: SONY *2) Power Supply: DELTA *3) Used for Antenna terminal conducted tests List of cables used No. Name Length (m) Cable Shielding Connector Shielding Remark 1 LAN Cable 2.0 Unshielded Unshielded - 2 DC Cable 1.8 Shielded Shielded One ferrite core (standard attachment) 3 AC Cable 1.0 Unshielded Unshielded - 4 USB Cable 2.0 Shielded Shielded - 5 USB Cable 1.0 Shielded Shielded - 6 AC Cable 2.0 Unshielded Unshielded - 7 HDMI Cable 3.0 Shielded Shielded - 8 AV Multi Cable 1.5 Shielded Shielded One ferrite core (standard attachment) 9 AC Cable 1.7 Unshielded Unshielded -
