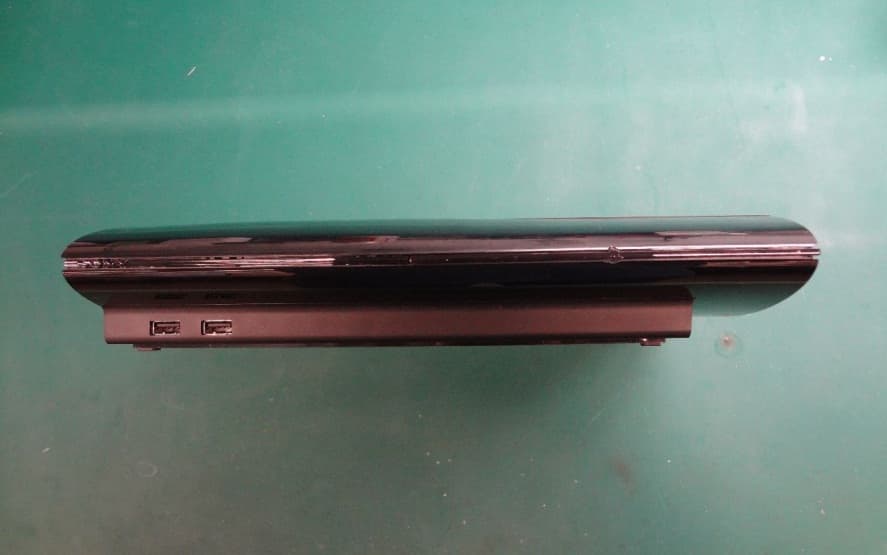

AK8CBEH19C1Computer Entertainment System

Safety and Support Sécurité et support technique EN 4-431-009-51(1) CECH-4001C FR 2 To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. This appliance is classified as a CLASS 1 LASER product under IEC60825-1:2007. FCC and IC notice This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20 cm (8 in) and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The wireless controller complies with FCC/IC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. WARNING 3 EN – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Photosensitivity/Epilepsy/Seizures A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your doctor before playing. IMMEDIATELY DISCONTINUE use and consult your doctor before resuming gameplay if you or your child experience any of the following health problems or symptoms: • dizziness, • altered vision, • eye or muscle twitches, • loss of awareness, • disorientation, • seizures, or • any involuntary movement or convulsion. RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR DOCTOR. Use and handling of video games to reduce the likelihood of a seizure • Use in a well-lit area and keep as far away as possible from the television screen. • Avoid large screen televisions. Use the smallest television screen available. If you have questions about this product, call our technical support line at 1-800-345-7669 or write to: Sony Computer Entertainment America LLC Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. Declaration of Conformity Trade Name :SONY Model No. :CECH-4001C Responsible Party :Sony Electronics Inc. Address :16530 Via Esprillo San Diego, CA 92127 U.S.A. Telephone No. :858-942-2230 This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 • Avoid prolonged use of the PS3™ system. Take a 15-minute break during each hour of play. • Avoid playing when you are tired or need sleep. 3D images Some people may experience discomfort (such as eye strain, eye fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games on 3D televisions. If you experience such discomfort you should immediately discontinue use of your television until the discomfort subsides. SCE recommends that all viewers take regular breaks while watching 3D video, or playing stereoscopic 3D games. The length and frequency of necessary breaks may vary from person to person - please take breaks that are long enough to allow any feelings of discomfort to subside. If symptoms persist, consult your doctor. The vision of young children (especially those under six years old) is still under development. SCE recommends that you consult with a doctor (such as a pediatrician or eye doctor) before allowing a young child to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above. When using any 3D enabled device with your PlayStation ®3 system you should read the instruction manual for that device and check www.us.playstation.com/support/3D for updated information. Radio waves Radio waves may affect electronic equipment or medical devices (for exampl…

Text truncated - open the document above for the full version.

Debugging Station (for PlayStation ® 3) Instruction Manual / ợ䒌娎㕲㙜 DECH-3000A / DECH-S3000A 4-299-854- 11 (1) EN WARNINGS• To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. • CAUTION – Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. – The use of optical instruments with this product will increase eye hazard. • This appliance is classifi ed as a CLASS 1 LASER product under IEC60825-1:2007. CL ASS 1L AS E R P R ODUCT L AS E R KL AS E1 LUOK AN 1L AS E R L A ITE KL ASS 1L AS E RA PP ARA T Photosensitivity/Epilepsy/SeizuresA very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or fl ashing lights. Exposure to certain patterns or backgrounds on a television screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your physician before playing.IMMEDIATELY DISCONTINUE use and consult your physician before resuming gameplay if you or your child experience any of the following health problems or symptoms:• dizziness,• altered vision,• eye or muscle twitches,• loss of awareness,• disorientation,• seizures, or• any involuntary movement or convulsion.RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR PHYSICIAN.Use and handling of video games to reduce the likelihood of a seizure• Use in a well-lit area and keep as far away as possible from the television screen.• Avoid large screen televisions. Use the smallest television screen available.• Avoid prolonged use of the system. Take a 15-minute break during each hour of play.• Avoid playing when you are tired or need sleep.Radio wavesRadio waves may affect electronic equipment or medical devices (for example, pacemakers), which may cause malfunctions and possible injuries.• If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless networking feature. • Do not use the wireless networking feature in the following locations: – Areas where wireless network use is prohibited, such as in hospitals. Abide by medical institution regulations when using the system on their premises. – Areas near fire alarms, automatic doors and other types of automated equipment. 3D imagesSome people may experience discomfort (such as eye strain, eye fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games on 3D televisions. If you experience such discomfort you should immediately discontinue use of your television until the discomfort subsides.SCE recommends that all viewers take regular breaks while watching 3D video, or playing stereoscopic 3D games. The length and frequency of necessary breaks may vary from person to person – please take breaks that are long enough to allow any feelings of discomfort to subside. If symptoms persist, consult your physician.When using any 3D enabled device with your PlayStation ® 3 system you should read the instruction manual for that device. For customers in the U.S.A. and CanadaThis equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20 cm (8 in) and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.You are cautioned that any changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If you have questions about this product, visit http://www.scedev.net, email Developer Support at [email protected] or write to:Sony Computer Entertainment America LLCDeveloper Support919 East Hillsdale BoulevardFoster City, CA 94404-2175 USA Declaration of Conformity Trade Name : SONY Model No. : DECH-3000A, DECH-S3000A Responsible Party : Sony Electronics Inc. Address : 16530 Via Esprillo San Diego, CA 92127 U.S.A. Telephone No. : 858-942-2230 This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Pour les utilisateurs aux États-Unis et au CanadaCet équipement est conforme aux limit…

Text truncated - open the document above for the full version.

Label Label Position FCC ID: AK8CBEH19C1

Bottom side Top side Top side (w/o shielding)

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Computer Entertainment Inc. Type of Equipment : Computer Entertainment System Model No. : CECH-4001x(WLAN part) FCC ID: AK8CBEH19C1 Sony Computer Entertainment Inc. declares that Model : CECH-4001x(WLAN part) complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CECH-4001x(WLAN part)“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 204.64 mW (Maximum peak output power) G = 2.00 Numerical Antenna gain; equal to3.00 dBi r =20.0 cm For: CECH-4001x(WLAN part)S =0.08123 mW/cm 2 No. : 32GE0144-HO-01 RF Exposure / MPE Calculation

Test report No. : 32GE0144-HO-01-C Page : 1 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32GE0144-HO-01-C Applicant : Sony Computer Entertainment Inc. Type of Equipment : Computer Entertainment System Model No. : CECH-4001x FCC ID : AK8CBEH19C1 Test regulation: FCC Part 15 Subpart C: 2012 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: March 12 to April 1, 2012 Representative test engineer: Takumi Shimada Engineer of WiSE Japan, UL Verification Service Approved by: Masanori Nishiyama Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 32GE0144-HO-01-C Page : 2 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 11 SECTION 6: Radiated Spurious Emission ............................................................................................ 12 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 14 Conducted Emission ......................................................................................................................... 14 6dB Bandwidth ................................................................................................................................. 30 Maximum Peak Output Power .......................................................................................................... 33 Radiated Spurious Emission ............................................................................................................. 35 Conducted Spurious Emission .......................................................................................................... 54 Conducted Emission Band Edge compliance ................................................................................... 78 Power Density ................................................................................................................................... 80 99%Occupied Bandwidth ................................................................................................................. 83 APPENDIX 2: Test instruments ............................................................................................................. 85 APPENDIX 3: Photographs of test setup ............................................................................................... 87 Conducted Emission ......................................................................................................................... 87 Radiated Spurious Emission ............................................................................................................. 88 Worst Case Position .......................................................................................................................... 89 Test report No. : 32GE0144-HO-01-C Page : 3 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Telephone Number +81-3-6748-6333 Facsimile Number +81-3-6748-6383 Contact Person Akiko Tsukada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment Computer Entertainment System Model No CECH-4001x Serial No 1530004 (Power Supply: DELTA) 1530005 (Power Supply: SONY) 1530003 (for Antenna terminal conducted tests) Rating AC120V / 60Hz Country of Manufacture JAPAN/CHINA Receipt Date of Sample March 9, 2012 Condition of EUT Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT No modification by the test lab. Test report No. : 32GE0144-HO-01-C Page : 4 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2.2 Product Description …

Text truncated - open the document above for the full version.

Test report No. : 32GE0144-HO-01-C Page : 87 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32GE0144-HO-01-C Page : 88 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32GE0144-HO-01-C Page : 89 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Antenna 0 (Horizontal: Y-axis/ Vertical: Y-axis) Antenna 1 (Horizontal: X-axis/ Vertical: Y-axis) X-axis Y-axis Test report No. : 32GE0144-HO-01-C Page : 90 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Configuration and peripherals AC120V/60Hz 1 1 E F AC120V/60Hz A C G D AC120V/60Hz 2 3 4 5 6 7 8 9 : Standard Ferrite Core B * Cabling and setup were taken into consideration and test data was taken under worse case conditions. Test report No. : 32GE0144-HO-01-C Page : 91 of 91 Issued date : April 20, 2012 FCC ID : AK8CBEH19C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Description of EUT and Support equipment No. Item Model number Serial number Manufacturer Remarks A Computer Entertainment System CECH-4001x 1530004 *1) 1530005 *2) 1530003 *3) Sony Computer Entertainment Inc. EUT B Wireless Controller CECHZC2U A No.9 Sony Computer Entertainment Inc. - C PlayStation Portable PSP-2000 03-27401801- 2221217-PSP2000 Sony Computer Entertainment Inc. - D Display VW26L HDTV20F LFMBBAI1333183 VIZIO - E Laptop PC 2371-AEJ KV-FYV57 05/02 IBM - F AC Adaptor 02K6810 11S02K6810Z1Z3B J58822N IBM - G Keyboard SCPH-10240 - Sony Computer Entertainment Inc. - *1) Used for Conducted Emission and Radiated Spurious Emission (11g, 2412MHz, Antenna 0) tests *2) Used for Conducted Emission and Radiated Spurious Emission tests *3) Used for Antenna terminal conducted tests List of cables used No. Name Length (m) Cable Shielding Connector Shielding Remarks 1 LAN Cable 2.8 Unshielded Unshielded - 2 DC Cable 1.8 Shielded Shielded One ferrite core (standard attachment) 3 AC Cable 1.0 Unshielded Unshielded - 4 USB Cable 2.0 Shielded Shielded - 5 USB Cable 1.5 Shielded Shielded - 6 AC Cable 1.5 Unshielded Unshielded - 7 HDMI Cable 1.5 Shielded Shielded - 8 AV Multi Cable 1.5 Shielded Shielded One ferrite core (standard attachment) 9 AC Cable 1.7 Unshielded Unshielded -
