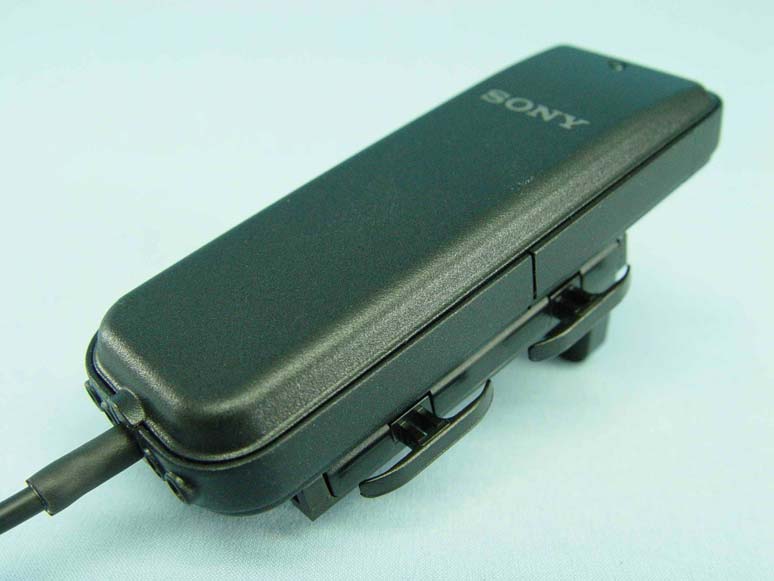

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

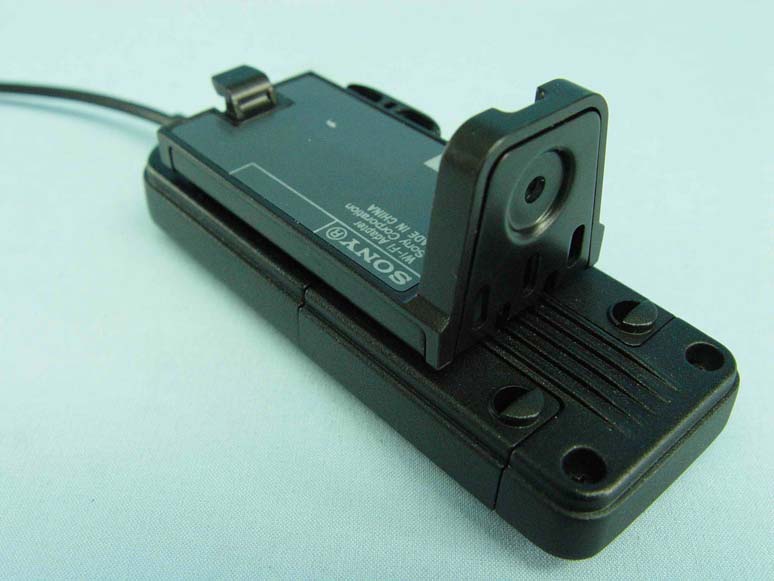

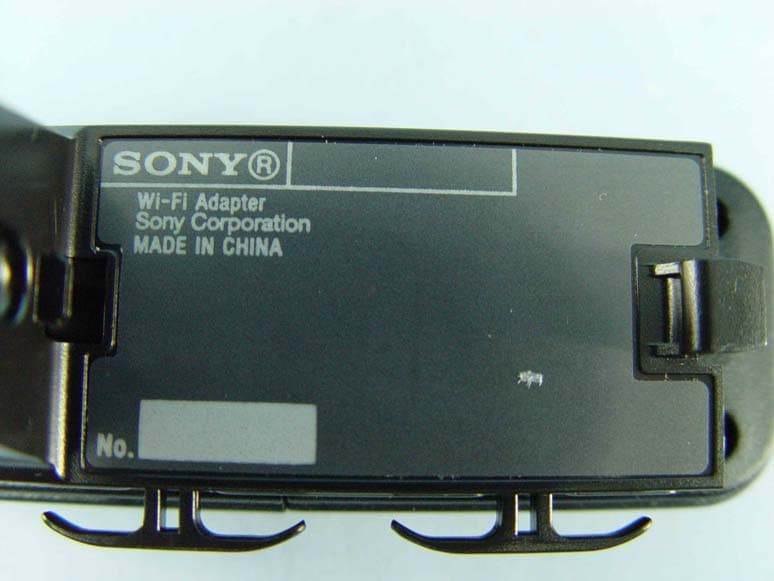

FCC ID .: AK8CBKWA01 Label Location

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: AK8CBKWA01 Report No.: RF980916L10 Operational Description This device is a WIFI ADAPTER, which operates in the 2.4GHz frequency spectrum with throughput of up to 300Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by host equipment. The antenna used in this EUT is PIFA antenna without connector. The other instruction, please have a look at the users manual.

Report No.: SA980916L10 1 Report Format Version 3.0.1 SAR TEST REPORT REPORT NO.: SA980916L10 MODEL NO.: CBK-WA01 RECEIVED: Sep. 16, 2009 TESTED: Dec. 27, 2009~Jan.19,2010 ISSUED: Jan.19,2010 APPLICANT: Sony Corporation ADDRESS: 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 39 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: SA980916L10 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION..................................................................................................................................3 2. GENERAL INFORMATION ..................................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT ....................................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .....................................................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...........................................................................6 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..........................................9 3. DESCRIPTION OF SUPPORT UNITS ..............................................................................................12 4. DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..........................................................13 4.1. DESCRIPTION OF TEST MODE ......................................................................................................13 4.2. SUMMARY OF TEST RESULTS .......................................................................................................15 4.3. CHECK FOR SCAN RESOLUTION ..................................................................................................16 5. TEST RESULTS ................................................................................................................................17 5.1 TEST PROCEDURES .......................................................................................................................17 5.2 MEASURED SAR RESULT ...............................................................................................................19 5.3 SAR LIMITS .......................................................................................................................................22 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ..............................................................................23 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ................................................................................27 6. SYSTEM VALIDATION ......................................................................................................................28 6.1 TEST EQUIPMENT ...........................................................................................................................28 6.2 TEST PROCEDURE..........................................................................................................................29 6.3 VALIDATION RESULTS.....................................................................................................................31 6.4 SYSTEM VALIDATION UNCERTAINTIES ........................................................................................32 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES.................................................................33 7.1. PROBE CALIBRATION UNCERTAINTY...........................................................................................33 7.2. ISOTROPY UNCERTAINTY..............................................................................................................34 7.3. BOUNDARY EFFECT UNCERTAINTY.............................................................................................34 7.4. PROBE LINEARITY UNCERTAINTY ................................................................................................35 7.5. READOUT ELECTRONICS UNCERTAINTY ....................................................................................35 7.6. RESPONSE TIME UNCERTAINTY...................................................................................................35 7.7. PROBE POSITIONER MECHANICAL TOLERANCE .......................................................................36 7.8. PROBE POSITIONING......................................................................................................................36 7.9. PHANTOM UNCERTAINTY ..............................................................................................................37 7.10. DASY5 UNCERTAINTY BUDGET ....................................................................................................38 8. INFORMATION ON THE TESTING LABORATORIES ......................................................................39 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA980916L10 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: WIFI ADAPTER MODEL: CBK-WA01 BRAND: SONY APPLICANT: Sony Corporation TESTED: Dec. 27, 2009 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: CBK-WA01) has been…

Text truncated - open the document above for the full version.

A - 1 APPENDIX A: TEST DATA Liquid Level Photo Tissue MSL2450MHz D=152mm A - 2 Date/Time: 2010/1/19 14:00:31 Test Laboratory: Bureau Veritas ADT M01-Front-11B Ch 6 /ANT DAC 1 DUT: WIFI ADAPTER ; Type: CBK-WA01 Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.97 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The Front side of the Holster to the Phantom) DASY5 Configuration: - Probe: EX3DV4 - SN3590 ; ConvF(7.96, 7.96, 7.96) ; Calibrated: 2009/4/28 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910 ; Calibrated: 2009/9/18 - Phantom: SAM with CRP; Type: SAM; Serial: TP-1485 - Measurement SW: DASY5, V5.0 Build 125 ; SEMCAD X Version 13.4 Build 125 Mid Channel 6/Area Scan (6x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.15 mW/g Mid Channel 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.6 V/m; Power Drift = -1.1 dB Peak SAR (extrapolated) = 2.01 W/kg SAR(1 g) = 0.815 mW/g; SAR(10 g) = 0.395 mW/g Maximum value of SAR (measured) = 1.08 mW/g A - 3 Date/Time: 2010/1/19 16:30:31 Test Laboratory: Bureau Veritas ADT M01-Front-11B Ch 6 /ANT DAC 1 DUT: WIFI ADAPTER ; Type: CBK-WA01 Communication System: 802.11b ; Frequency: 2437 MHz ; Duty Cycle: 1:1 ; Modulation type: DBPSK Medium: MSL2450 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.97 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 Phantom section: Flat Section ; Separation distance : 5 mm (The Front side of the Holster to the Phantom) DASY5 Configuration: - Probe: EX3DV4 - SN3590 ; ConvF(7.96, 7.96, 7.96) ; Calibrated: 2009/4/28 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910 ; Calibrated: 2009/9/18 - Phantom: SAM with CRP; Type: SAM; Serial: TP-1485 - Measurement SW: DASY5, V5.0 Build 125 ; SEMCAD X Version 13.4 Build 125 Mid Channel 6/Area Scan (13x22x1): Measurement grid: dx=5mm, dy=5mm Maximum value of SAR (measured) = 1.08 mW/g Mid Channel 6/Zoom Scan (7x7x7) (13x13x13)/Cube 0: Measurement grid: dx=2.5mm, dy=2.5mm, dz=2.5mm Reference Value = 15.8 V/m; Power Drift = 0.078 dB Peak SAR (extrapolated) = 2.11 W/kg SAR(1 g) = 0.827 mW/g; SAR(10 g) = 0.387 mW/g Maximum value of SAR (measured) = 1.09 mW/g A - 4 Date/Time: 2010/1/19 10:00:07 Test Laboratory: Bureau Veritas ADT System validation MSL 2450MHz -1/19 DUT: Dipole 2450 MHz ; Type: D2450V2 ; Serial: 716 ; Test Frequency: 2450 MHz Communication System: CW ; Frequency: 2450 MHz; Duty Cycle: 1:1; Modulation type: CW Medium: MSL2450;Medium parameters used: f = 2450 MHz; σ = 1.99 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 ; Liquid level : 152 mm Phantom section: Flat Section ; Separation distance : 10 mm (The feetpoint of the dipole to the Phantom)Air temp. : 23.2 degrees ; Liquid temp. : 22.6 degrees DASY5 Configuration: - Probe: EX3DV4 - SN3590 ; ConvF(7.96, 7.96, 7.96) ; Calibrated: 2009/4/28 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2009/9/18 - Phantom: SAM with CRP; Type: SAM; Serial: TP-1485 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 d=10mm, Pin=250mW/Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 17.8 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.3 V/m; Power Drift = -0.079 dB Peak SAR (extrapolated) = 27.6 W/kg SAR(1 g) = 13.4 mW/g; SAR(10 g) = 6.09 mW/g Maximum value of SAR (measured) = 17.7 mW/g

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: PHANTOM D2: DOSIMETRIC E-FIELD PROBE D3: DAE

D4: SYSTEM VALIDATION DIPOLE

Report No.: RF980916L10 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF980916L10 MODEL NO.: CBK-WA01 RECEIVED: Sep. 16, 2009 TESTED: Nov. 12 ~ Dec. 24, 2009 ISSUED: Dec. 28, 2009 APPLICANT: Sony Corporation ADDRESS: 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 69 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980916L10 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION...................................................................................................... 4 2. SUMMARY OF TEST RESULTS ............................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 5 3. GENERAL INFORMATION ...................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT........................................................................ 6 3.2 DESCRIPTION OF TEST MODES.......................................................................... 7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .......................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 10 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 10 4. TEST TYPES AND RESULTS ............................................................................... 11 4.1 RADIATED EMISSION MEASUREMENT ............................................................. 11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT........................................... 11 4.1.2 TEST INSTRUMENTS .......................................................................................... 12 4.1.3 TEST PROCEDURES ........................................................................................... 14 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 14 4.1.5 TEST SETUP ........................................................................................................ 15 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 15 4.1.7 TEST RESULTS .................................................................................................... 16 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 29 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 29 4.2.2 TEST INSTRUMENTS .......................................................................................... 29 4.2.3 TEST PROCEDURES ........................................................................................... 30 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 30 4.2.5 TEST SETUP ........................................................................................................ 31 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 31 4.2.7 TEST RESULTS .................................................................................................... 32 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 34 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 34 4.3.2 TEST INSTRUMENTS .......................................................................................... 34 4.3.3 TEST PROCEDURE ............................................................................................. 34 4.3.4 DEVIATION FROM TEST STANDARD ................................................................. 34 4.3.5 TEST SETUP ........................................................................................................ 35 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 35 4.3.7 TEST RESULTS .................................................................................................... 36 4.4 MAXIMUM OUTPUT POWER ............................................................................... 40 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT ............................... 40 4.4.2 INSTRUMENTS..................................................................................................... 40 4.4.3 TEST PROCEDURE ............................................................................................. 40 4.4.4 DEVIATION FROM TEST STANDARD ................................................................. 41 4.4.5 TEST SETUP ........................................................................................................ 41 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 41 Report No.: RF980916L10 3 Report Format Version 3.0.1 4.4.7 TEST RESULTS .................................................................................................... 42 4.5 POWER SPECTRAL DENSITY MEASUREMENT................................................ 43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ............................. 43 4.5.2 TEST INSTRUMENTS ...................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3 (SAR Test Set Up Photos) The horizontal-up of the EUT faces to the phantom with 5mm-separation distance. The vertical-front of the EUT faces to the phantom with 5mm-separation distance. The vertical-back of the EUT faces to the phantom with 5mm-separation distance. The horizontal-down of the EUT faces to the phantom with 5mm-separation distance. SETUP PHOTO 4 DESCRIPTION OF ANTENNA LOCATION: DESCRIPTION OF EUT CASE DISTANCE:
