AK8CFIZCP1Wireless Controller

CFI-ZCP1 5-047-137- 11 (1) CFI-ZCP1 Instruction Manual CFI-ZCP1 2 BEH,YBO04,/36,026, 11 (1) Health and Safety –Areas near fire alarms, automatic doors and other types of automated equipment. MAGNETS AND MEDICAL DEVICES This product has magnets which may interfere with pacemakers, defibrillators and programmable shunt valves or other medical devices. Do not place this product close to such medical devices or persons who use such medical devices. Consult your doctor before using this product if you use such medical devices. VOLUME LEVEL Permanent hearing loss may occur if the headset or headphones are used at high volume. Set the volume to a safe level. Over time, increasingly loud audio may start to sound normal but can actually be damaging your hearing. If you experience ringing or any discomfort in your ears or muffled speech, stop listening and have your hearing checked. The louder the volume, the sooner your hearing could be affected. To protect your hearing: –Limit the amount of time you use the headset or headphones at high volume. –Avoid raising the volume to block out noisy surroundings. –Lower the volume if you can't hear people speaking near you. Before using the product, carefully read this manual and any manuals f or compatible hardware. Retain instructions for future use. Parents or guardians of children should read this manual for safe use. This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential for causing fire, electrical shock or personal injury. Observe all warnings, precautions and instructions. Stop use and disconnect cables immediately if the product functions in an abnormal manner, produces unusual sounds or smells or becomes too hot to touch. WARNING RADIO WAVES Radio waves may affect electronic equipment or medical devices (for example, pacemakers), which may cause malfunctions and possible injuries. •If you use a pacemaker or other medical device, consult your doctor or the manufacturer of your medical device before using the wireless networking feature (Bluetooth® and wireless LAN). •Do not use the wireless networking feature in the following locations: –Areas where wireless network use is prohibited, such as in hospitals. Abide by medical institution regulations when using the console on their premises. CFI-ZCP1 5-047-137- 11 (1) LITHIUM-ION BATTERY The controller contains a lithium-ion rechargeable battery. Do not handle damaged or leaking lithium-ion batteries. If the built-in battery fluid leaks, stop using the product immediately and contact the appropriate PlayStation customer service helpline which can be found within the accompanying documentation. If the material gets into the eyes, do not rub. Immediately flush the eyes with clean water and seek medical attention. If the material comes into contact with the skin or clothes, immediately rinse the affected area with clean water and consult your doctor. Do not allow the battery to come into contact with fire or subject it to extreme temperatures such as in direct sunlight, in a vehicle exposed to the sun or near a heat source. Never attempt to open, crush, heat or set fire to the controller or the battery. Do not leave the battery charging for a prolonged period of time when the controller is not in use. YOUNG CHILDREN INJURIES CHOKING HAZARD – Small parts. Keep the product out of the reach of young children. Young children may swallow small parts, may wrap the cables around themselves, which may inflict injury or cause an accident or a malfunction. NEVER DISASSEMBLE OR MODIFY THE PRODUCT OR ACCESSORIES UNLESS AUTHORIZED IN THIS MANUAL There is a risk of fire, electric shock or injury. Precautions Taking Breaks • Avoid prolonged continuous use of this product. Generally we recommend that you take 15 minute breaks for every hour of play. • Avoid playing when you are tired or need sleep. • Stop using the product immediately if you begin to feel tired or if you experience discomfort or pain in your hands or arms while operating the controller. If the condition persists, consult a doctor. • If you experience any of the following health problems, discontinue use of the product immediately. If symptoms persist, consult a doctor. –Dizziness, nausea, fatigue or symptoms similar to motion sickness –Discomfort or pain in a part of the body, such as eyes, ears, hands or arms Vibration function •If the controller is sitting on a flat surface, the vibration of the controller during gameplay may cause it to fall, leading to injury or malfunction. BEH,YBO04,/36,026, 11 (1) • Do not use the vibration or trigger effect function if you have any ailment or injury to the bones, joints or muscles of your hands or arms. If you have an ailment or an injury, do not play titles with these features using the controller unless you have set those functions to “Off”. To enable or disable the features, select Settings > Accessories from the home screen of the PlayStation®5 console. Static shock When using the headset or headphones in particularly dry air conditions, you may sometimes experience a small and quick (static) shock on your ears. This is a result of static electricity accumulated in the body, and is not a malfunction of your headset or headphones. This effect could be reduced by wearing clothes made from materials that do not easily generate static shock. Motion sensor When using the motion sensor function of the controller be cautious of the following points. If the controller hits a person or object, it may cause accidental injury or damage. •Before using the motion sensor function, make sure you have enough space to move around. •Firmly grip the controller to prevent it from slipping out of your grasp and causing damage or injury. •If using a controller that is connected to the PS5 console with a USB cable, make sure there is enough space for the cable so that the cable will not hit a person or object. Light bar Do not stare at the light b…

Text truncated - open the document above for the full version.

Date: August 26, 2022 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Sony Group Corporation FCC ID: AK8CFIZCP1 To whom it may concern: We, the undersigned, hereby authorize Shuichi Ohyama of UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Miho Nakamura Sony Interactive Entertainment Inc. Signed on behalf of Kazuyuki Hori, Sony Group Corporation

Request for Confidentiality Date: August 26, 2022 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : Sony Group Corporation FCC ID : AK8CFIZCP1 To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Miho Nakamura Sony Interactive Entertainment Inc. Signed on behalf of Kazuyuki Hori, Sony Group Corporation

Request for Short-Term Confidentiality Date: August 26, 2022 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : AK8CFIZCP1 Applicant : Sony Group Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Miho Nakamura Sony Interactive Entertainment Inc. Signed on behalf of Kazuyuki Hori, Sony Group Corporation

Sony Group Corporation Special Power of Attorney I, Kazuyuki Hori of Sony Group Corporation, hereby appoint Miho Nakamura of Sony Interactive Entertainment Inc. to represent me to act on my behalf to do any and all of the following. Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall commence and be in full force from April 1, 2021 and continue to be effective unless specifically terminated by either party. Dated April 1, 2021 Kazuyuki Hori Company: Sony Group Corporation Country: Japan

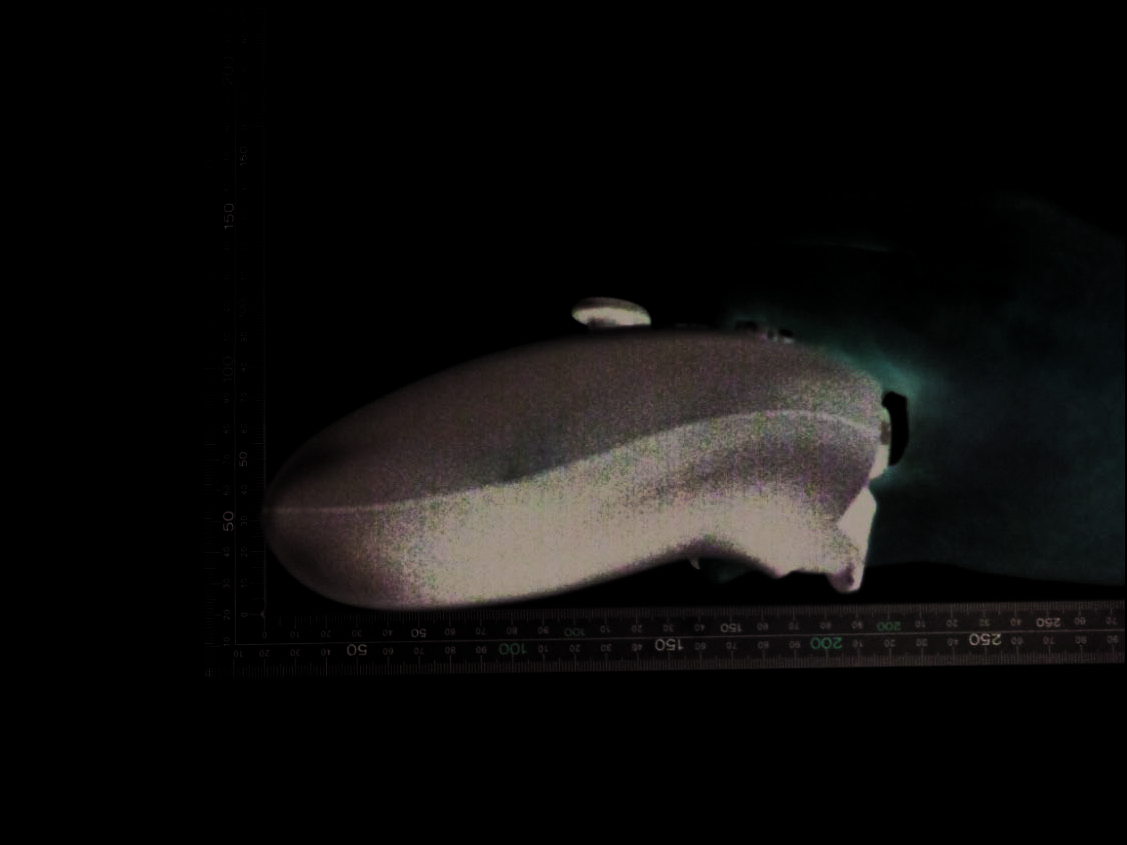

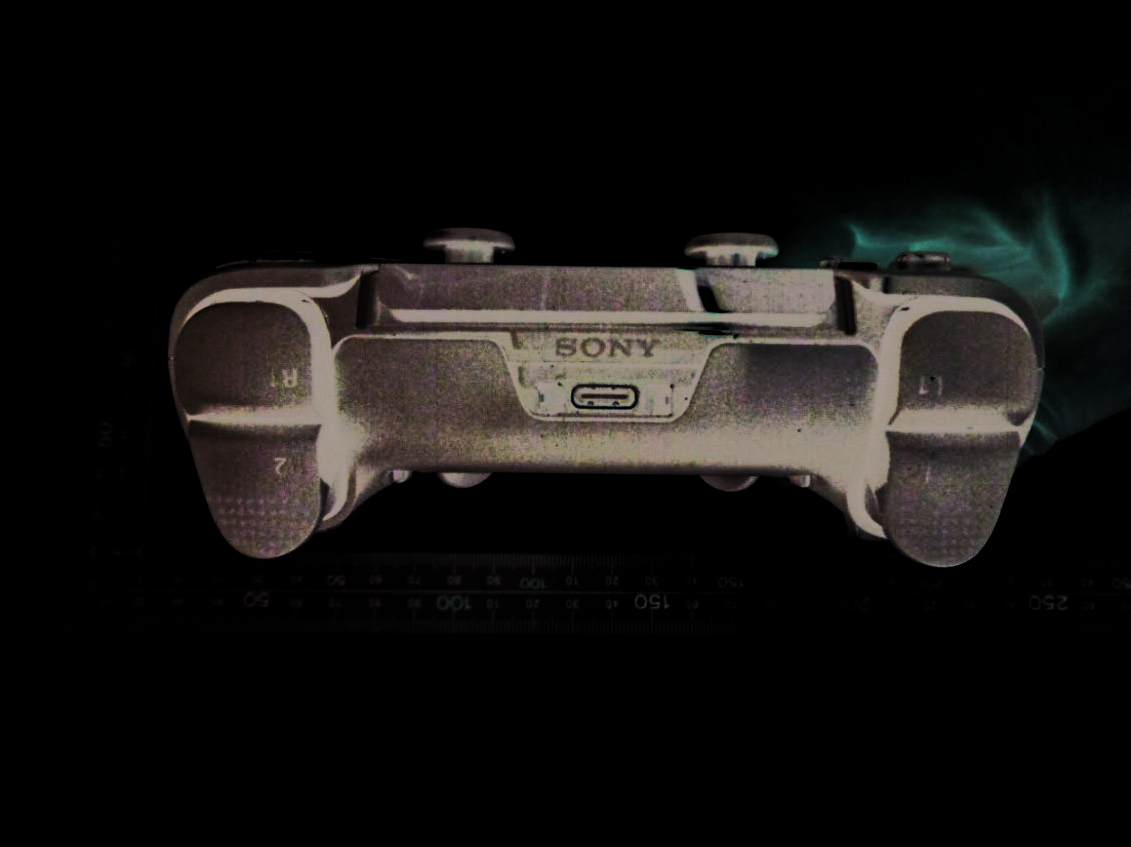

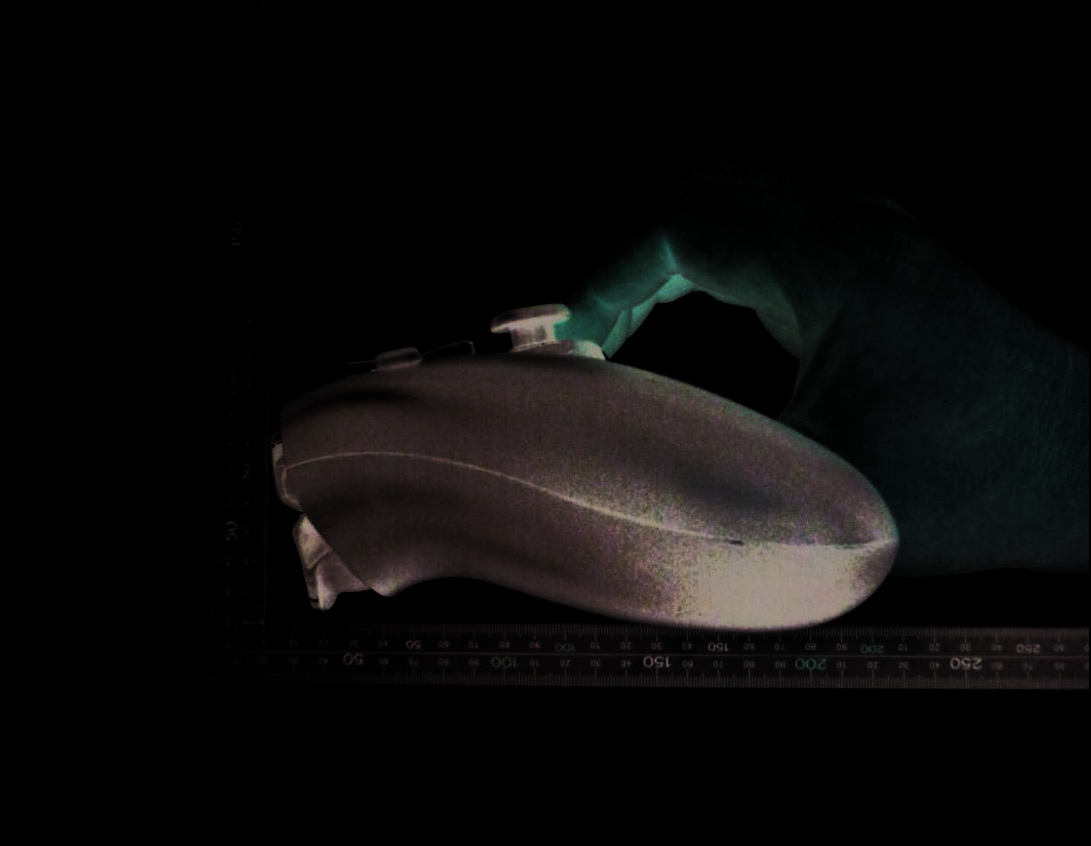

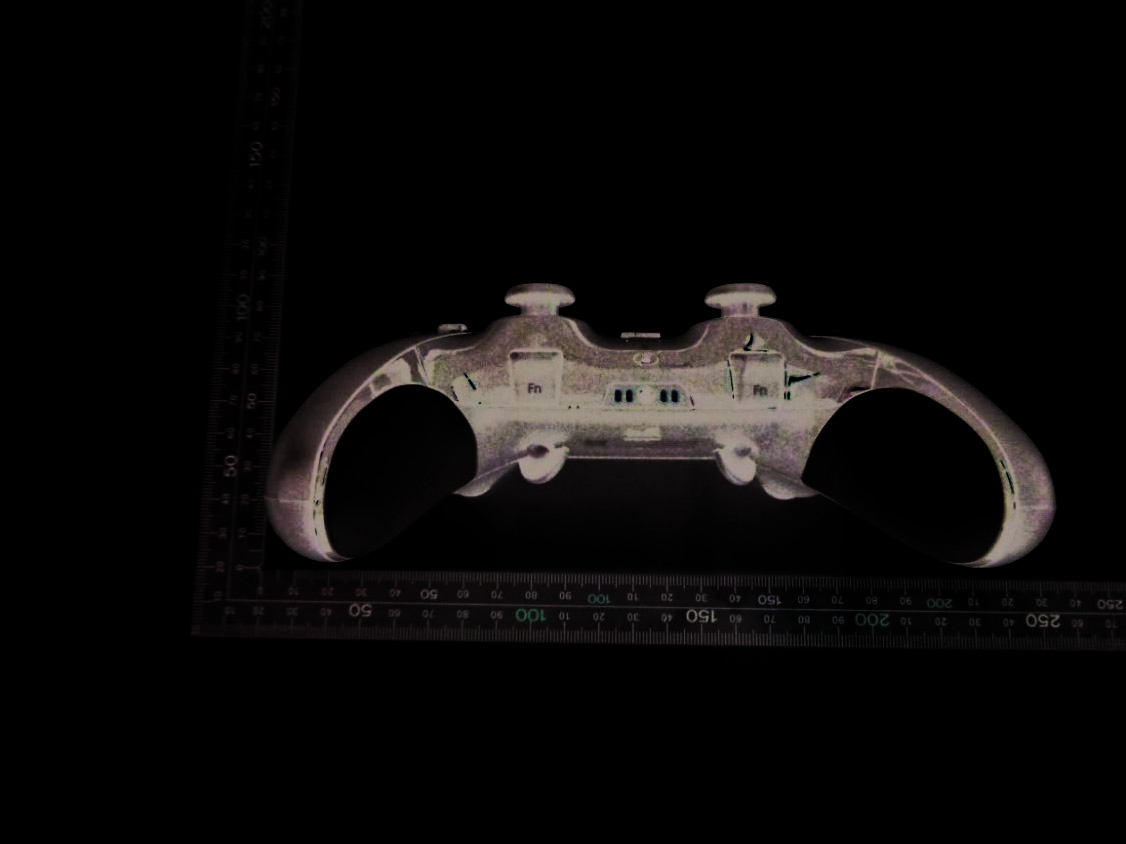

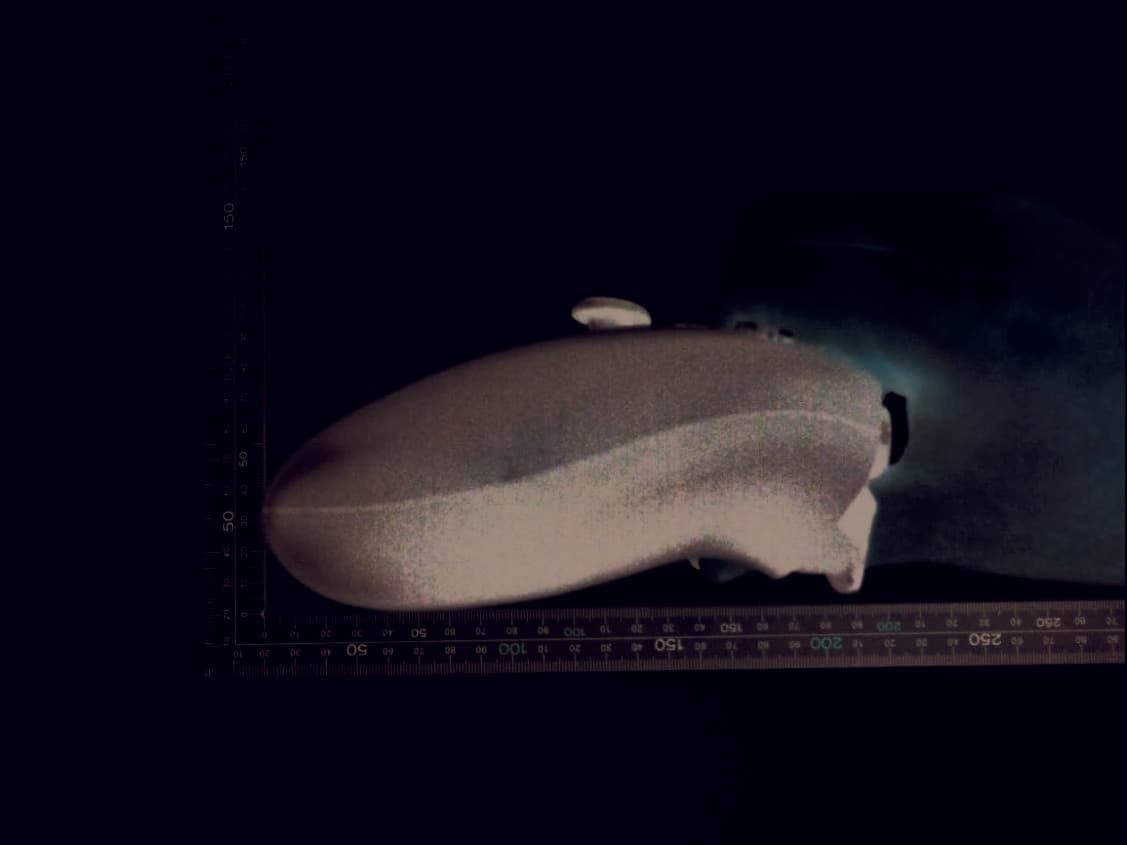

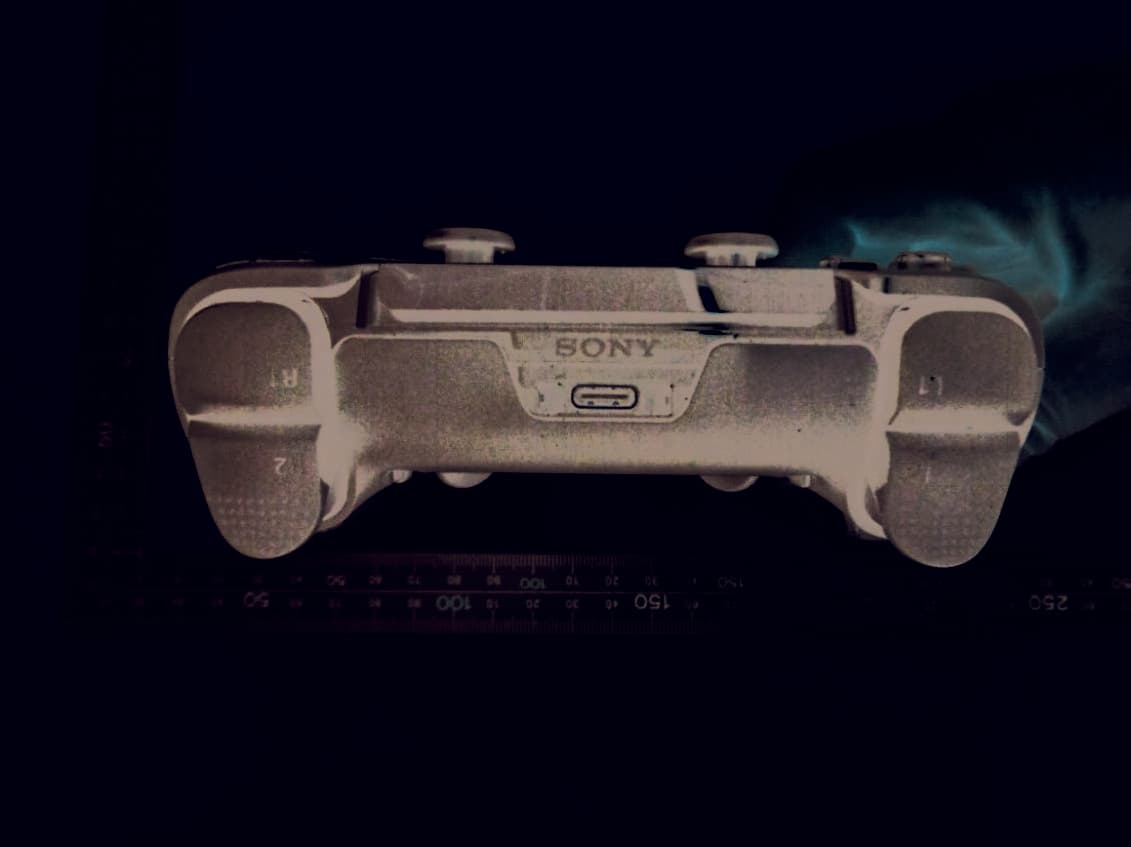

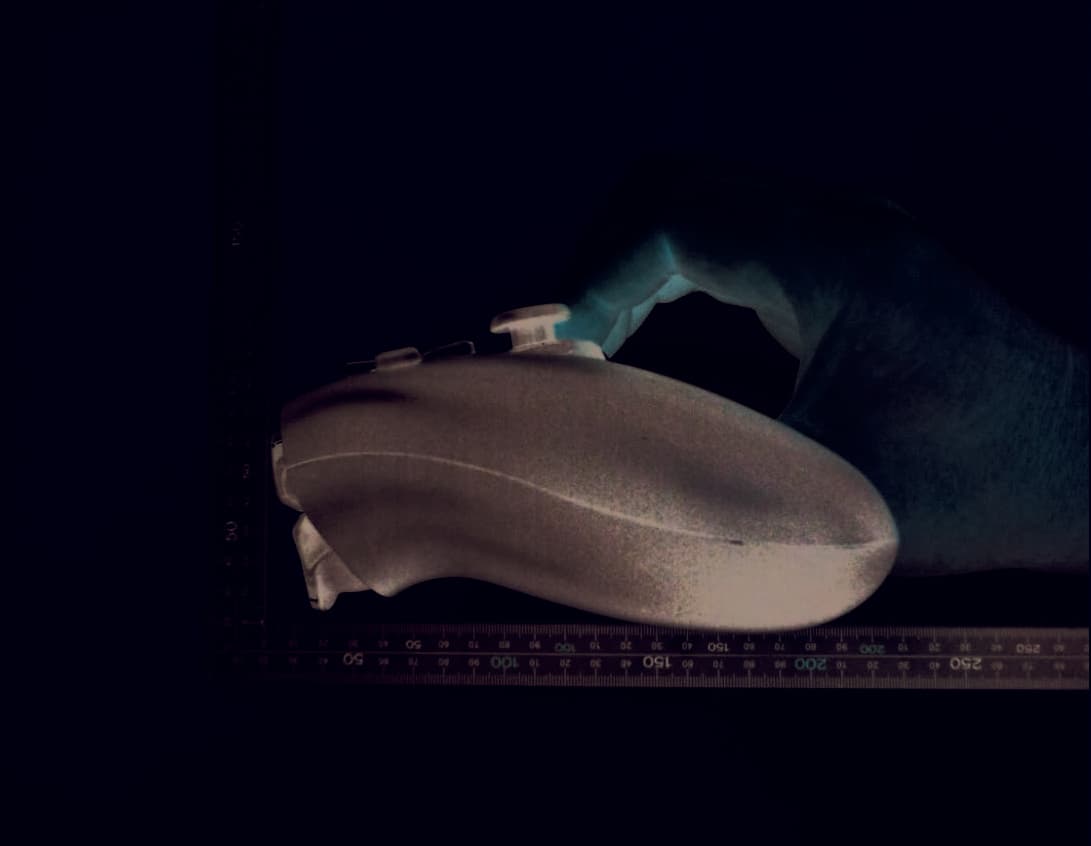

©Sony Interactive Entertainment©S© on n y y InIn tete rara ctct iiv e En n t e rt aiai nmnm enen nn tttt ©Sony Interactive Entertainment©S©S ono y InIn tetete rara ctct iviviv e eee En n tete rtrt aia nmn m enen tt ©Sony Interactive Entertainment©S SS on y y In t e r a c tiv e En t e rt a i nm e n t ©Sony Interactive Entertainment©S on y In n te e rara c t iv e e EnE t e rt aia nm enen t ©Sony Interactive Entertainment©S©S on n y InIn tete ee rara ctc iv v e e EnE nn tetetete rtrtrr aiaai ii nmnmnmnm enen t ©Sony Interactive Entertainment©S©S on y y InIn n tetetet rarara cct iv v e EnEnE tete rtrt aia nm enen t

FCC/ISEDlabellocation Marking Area To p Marking Content: Model CFI-ZCP1 FCC ID: AK8CFIZCP1 IC: 409B-CFIZCP1 The markings are laser engraved and durable enough. Bottom

©Sony Interactive Entertainment©S©S©S©S©S©S©©S©S©S©S©©©S©S©S©S©S©©©©S©S©©S ononononononononon n oonoonooon n on n oon n oon yyyyyyyyyyyyyyyyyy yyyyyyyy n InIn n InIn n IInIn n InInInInIn n In tetetete eee tettetette e t ee tetetete e te rararrarrarara aa rarara a ra a rrrrarararararr aa ctctctctct ttt ctctct t ctctc t ctctccccctctct iviiviviv v iv vv iv vv iviviviviv vv eeeeeeeeeeeeeeee ee e EnEnEnEnEnEnEnEnEnEEnEnEnEnEnEnEn n EnEE n En nn EnEn tttetettetet ee te e te eeeeee t e tetetttetet rtrtrtrtrtrtrtrtrtrtrtrtrtrtrr t rrrrrrrtrtrt aiaiaiaiaiaiai i aiaiaiaiaiaiaiaaaiaiai nmnmnmnmnmnmnnmnmnmnmnmnmnmnm m nnmnnm m nm m nm eneneneeneenenenenenene n eeneen nnnnnnn enenenen n ttttttttttttttttttt ©Sony Interactive Entertainment©S© oon y y In tet rara a ra cctc iviv v iv e e En nnn ttett rrt ai nm enen n ttt ©Sony Interactive Entertainment©S on y In te r a ct t iv v iv v eee e EnEnEnEnE tetetete rtrtrr aaiaa nmnmn enenen ttt ©Sony Interactive Entertainment©S©S©S©S©S©S©S©S© ononoononononono n yy y y yyy y InInInInInIn n tetetetetetete e t rarararararrarara ctctctctctctcct iviviviviviviv v eeeee e EnEnEnEnEnEnEnEn nn tetetetetetetete e tete rtrtrtrtrtrtrrrt aiaiaiaiaiaiaiai i a i nmnmnm m nmnmnm m n mm eneneneneneen nn ttttttttt ©Sony Interactive Entertainment©S©S©S©S©S on n ononon yyyyy IInInInInIn tetetetete e rararara ctct t ctctctct t iiviviviv v iv v iv v eeeeeee e EEEEnEnEnEnEnEn tetettetete rtrtrtrtrrrt aiaiaiaiaiai nmnmnmnmnm m enenen n tttttt ©Sony Interactive Entertainment©S©©S©S©S©S©©S©S©S©S©©S©S©S©S S ©S©S©©©©S©©S© S ©S©©S SS ©S S oononononoooononoonon n oonon n oooooo n on n onon n oooo yyyyyyyyyyyyyy yyyyyyyyyyyyyyyyyyyyy InInI nnnn In nnn In nn IInI nnnn ttettttttete e te ee tete e t e ttetetette e te e ttt e rarararararrararrrarara aaa rarrrarr a rra aa ra a ra aa r a rra ctctctcctcct tt ct tt ct t cctctcc t c tt cct tttt ct ivivii vvvvvv iiv v ii v iv vvvv iv vvvvvvv eeeeee eeee e eeeeeeeee EnEnEEnEEnEEnEn nnn EnEn n EEn n En n En n E n EEEE nn EnEEnEEEE nnnnn EEn n EnE nnn tetetetetete ee te ee te e ttet ee te e t eeeee te eee tt eeee rtrrrtrtrt ttt rt tt rrt t rt ttttttttt rt tttt rr aiaiaaaaaiaiai i aiaaiaiaaaaa i aa i nmnmnmnnmnnmnm mmmm nmnmnmnm mmmmmm nm m nn mmmmmm nm m nmnmnm mm nmnmn mm n mmm nm mm eeneneeneeenen nnnnn eenene n ene n en nnnnn enen nn eneeneee nn ttttttttttttt ©Sony Interactive Entertainment RF Block Side – A Side – B ©Sony Interactive Entertainment©S©S onon yy InInIn tet ra aa ctcc iivi v ee EnEn tete rtrt aiai nmnm en n ttt ©Sony Interactive Entertainment©S©S©S©S onon nnn yyy y InIn t e r a c t ivi e En te e rtrrt t aiai i aia nmnmnmnm m en n tt ©Sony Interactive Entertainment©S©© ono y y IIn tttet rarara tt ctcct iii v iviviviv e e ee e EnEnEnEnEn tetetetetete rt t rtrr aiaiaia nmnnmnm m enen t ©Sony Interactive Entertainment©S©S onon y y In te rara ctct iv v e e EnEn n tetete rtrt t rt aiaiaiai nnmn m nmnm enenene ttt

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com August 30, 2022 FCC ID: AK8CFIZCP1 To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless Controller, model: CFI-ZCP1 (FCC ID: AK8CFIZCP1) of Sony Interactive Entertainment Inc. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used as the most conservative value in the calculation) and the maximum average output power (Burst power average) was 3 mW So for this device: 3 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.9 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takayuki Shimada Leader

Specification of Antenna 1.Information •Antenna Type:IFA •Model Name:none (PWB Printed Antenna) •Antenna Gain:3.5dBi max •Frequency Range:2400-2480 MHz •Measurement : Sony Corporation Anechoic Chamber •Equipment :ETS-L Antenna Measurement System Keysight E5071C 2.Radiation Pattern Measurement The antenna radiation pattern is measured with “ETS-L Antenna Measurement System”. The characteristics of the horizontal and vertical polarization in all direction are automatically measured. 3.Test Method The antenna passive measurement is measured with network analyzer Keysight E5071C which is implemented in the measurement system. The port for transmitting signal of the network analyzer is connected withusing the 50 ohmco-axial cable which is connected at the point of the DUT antenna side. The other port for receiving signal of the network analyzer is connected to the dual-polarized antennas which is implemented in the measurement system. The antenna is integrated into the DUT at this measurement. The DUT is put on the turn table during the measurement. XY Plane YZ Plane ZX Plane 4.Radiation Pattern

Test Report No. : 14435165H-A Page : 1 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No.: 14435165H-A Customer Sony Interactive Entertainment Inc. Description of EUT Wireless Controller Model Number of EUT CFI-ZCP1 FCC ID AK8CFIZCP1 Test Regulation FCC Part 15 Subpart C Test Result Complied (Refer to SECTION 3) Issue Date August 30, 2022 Remarks - Representative Test Engineer Approved By Nachi Konegawa Engineer Takayuki Shimada Leader CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Re port Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 21.0 Test Report No. : 14435165H-A Page : 2 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14435165H-A Revision Test Report No. Date Page Revised Contents - (Ori ginal) 14435165H-A August 30, 2022 -  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested.  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test i tems in this test report are conducted by UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the customer for this report is identified in Section 1.  For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test Report No. : 14435165H-A Page : 3 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics Engineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technology BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Ve r t . Ve r t i c a l Hori. Horizontal WLAN Wireless LAN Test Report No. : 14435165H-A Page : 4 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information ......................................................................................................... 5 SECTION 2: Equipment Under Test (EUT)............................................................................................. 5 SECTION 3: Test Specification, Procedures & Results .......................................................................... 6 SECTION 4: Operation of EUT during testing ........................................................................................ 9 SECTION 5: Conducted Emission .......................................................................................................... 11 SECTION 6: Radiated Spurious Emission ............................................................................................. 12 SECTION 7: Antenna Terminal Conducted Tests .......…

Text truncated - open the document above for the full version.

Test Report No. : 14435165H-A Page : 49 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test Report No. : 14435165H-A Page : 50 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Spurious Emission Photo 1 Photo 2 Test Report No. : 14435165H-A Page : 51 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position (Horizontal: Y-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis Test Report No. : 14435165H-A Page : 52 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna Terminal Conducted Tests Photo 1 Photo 2 Test Report No. : 14435165H-A Page : 53 of 53 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Test Configuration and peripherals A B 1 C A C 120 V / 60 Hz 2 3 : Standard Ferrite Core 4 D * Cabling and setup(s) were taken into consideration and test data was taken under worse case conditions. Description of EUT and Support Equipment No. Item Model number Serial Number Manufacturer Remarks A Wireless Controller CFI-ZCP1 No.0299 *1) No.0301 *2) Sony Interactive Entertainment Inc. EUT B Laptop PC ThinkPad X230 R9-X86LK Lenovo - C AC Adapter - 11S92P1156Z1ZDXN88CUJM Lenovo - D IN-EAR HEAD SET - - Sony Interactive Entertainment Inc. *1) List of Cables Used No. Name Length (m) Shield Remarks Cable Connector 1 USB Cable 2.8 Shielde d Shielded - 2 DC Cable 1.8 Unshielde d Unshielded - 3 AC Cable 0.8 Unshielde d Unshielded - 4 IN-EAR HEAD SET Cable 1.2 Unshielde d Unshielded *1) *1) Used for Conducted Emission test and Radiated Emission test *2) Used for Antenna Terminal conducted test End of Report
