AK8CFIZCT1AWireless Controller

DualSense ™ Wireless Controller Manette de jeu sans fil DualSense ™ Instruction Manual / Mode d’emploi CFI-ZCT1WPart #: 3501167 ˎWhen using headsets or headphones in particularly dry air conditions, you may sometimes experience a small and quick (static) shock on your ears. This is a result of static electricity accumulated in the body, and is not a malfunction of your headsets or headphones. ˎStop using the product immediately if you begin to feel tired or if you experience discomfort or pain in your hands or arms during use. If the condition persists, consult a doctor. ˎDo not use the vibration or trigger effect features if you have any ailment or injury to the bones, joints, or muscles of your hands or arms. If you have an ailment or an injury, do not play titles with these features using the controller unless you have set those functions to “Off”. To enable or disable the features, select Settings > Accessories from the home screen of your PlayStation®5 console. ˎAvoid prolonged use of this product. Take a break at about 30 minute intervals. ˎIf the wireless controller is sitting on a flat surface, the vibration of the wireless controller during gameplay may cause it to fall, leading to injury or malfunction. ˎDo not place the product on surfaces that are unstable, tilted or subject to vibration. ˎAvoid looking into the light bar of the controller when it is flashing. Stop using the controller immediately if you experience any discomfort or pain in any body parts. ˎDo not stand on or put objects on the product. ˎDo not throw or drop the product or subject it to strong physical shock. ˎNever disassemble or modify the product. ˎDo not touch the ports or insert any foreign objects into the product. ˎDo not allow the product to come into contact with liquids. ˎIf you see dust or foreign objects on the connectors, wipe them with a dry cloth before connecting. ˎDo not touch the product with wet hands. ˎWhen using the motion sensor function, be cautious of the following points. If the controller hits a person or object, this may cause an accident, injury or damage. –Before using the motion sensor function, make sure you have enough space to move around. –Firmly grip the wireless controller to prevent it from slipping out of your grasp and causing damage or injury. –If using a controller that is connected to the PS5™ console with a USB cable, make sure that the cable will not hit a person or object. Also take care to avoid pulling out the cable from the PS5 console. Cleaning Follow the instructions below to help prevent the product exterior from deteriorating or becoming discolored. ˎWipe with a soft, dry cloth. ˎDo not apply insecticides or other volatile substances. ˎDo not place any rubber or vinyl materials on the product exterior for an extended period of time. ˎDo not use solvents or other chemicals. Do not wipe with a chemically-treated cleaning cloth. Battery life and duration ˎThe battery has a limited lifespan. Battery duration will gradually decrease with repeated usage and age. Battery life also varies depending on the storage method, conditions of use and environmental factors. ˎCharge in an environment where the temperature range is between 50 °F and 86 °F (10 °C and 30 °C). Charging may not be as effective when performed in other environments. When not in use When the wireless controller is not used for an extended period of time, it is recommended that you fully charge it at least once a year to help maintain battery functionality. FCC and ISED Canada Notice This equipment complies with FCC and ISED Canada radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED Canada radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ˎReorient or relocate the receiving antenna. ˎIncrease the separation between the equipment and receiver. ˎConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ˎConsult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For assistance with this product, visit playstation.com/help. The phone number in the supplier’s declaration of conformity is only for FCC electrical interference inquiries. Supplier’s Declaration of Conformity Trade Name : SONY Model No. : CFI-ZCT1W Responsible Party : Sony Electronics Inc. Address : 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No. : 858-942-2230 (Only for FCC electrical interference inquiries) This device complies with Part 15 of the FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interfe…

Text truncated - open the document above for the full version.

Date: February 12, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Sony Corporation FCC ID: AK8CFIZCT1A To whom it may concern: We, the undersigned, hereby authorize Shuichi Ohyama of Consumer Technology Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Miho Nakamura Sony Interactive Entertainment Inc. Signed on behalf of Kazuyuki Hori, Sony Corporation

Request for Short-Term Confidentiality Date: February 12, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : AK8CFIZCT1A Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, _________________________________ __ _ Miho Nakamura Sony Interactive Entertainment Inc. Signed on behalf of Kazuyuki Hori, Sony Corporation

Sony Corporation Special Power of Attorney I, Kazuyuki Hori of Sony Corporation, hereby appoint Miho Nakamura of Sony Interactive Entertainment Inc. to represent me to act on my behalf to do any and all of the following. Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall commence and be in full force from December 1, 2020 and continue to be effective unless specifically terminated by either party. Dated December 1, 2020 Kazuyuki Hori Company: Sony Corporation Country: Japan

Request for Confidentiality Date: February 12, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : Sony Corporation FCC ID : AK8CFIZCT1A To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Miho Nakamura Sony Interactive Entertainment Inc. Signed on behalf of Kazuyuki Hori, Sony Corporation

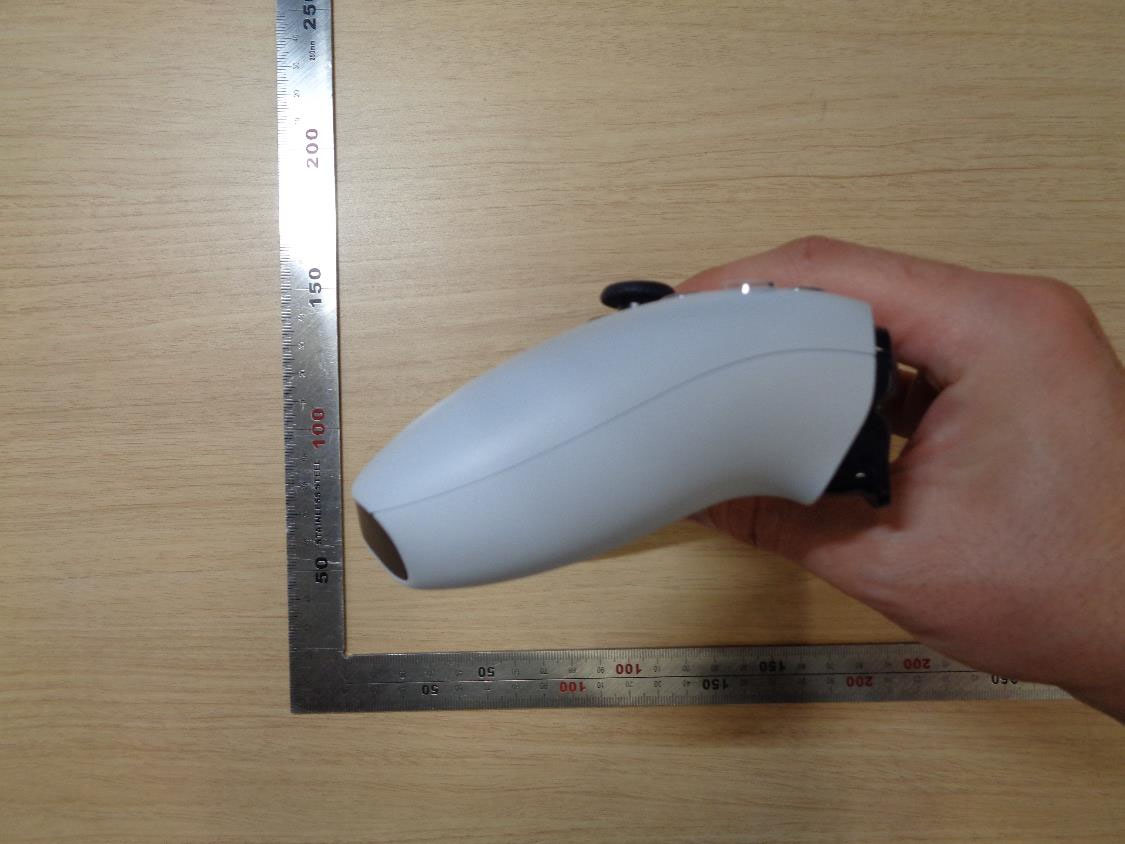

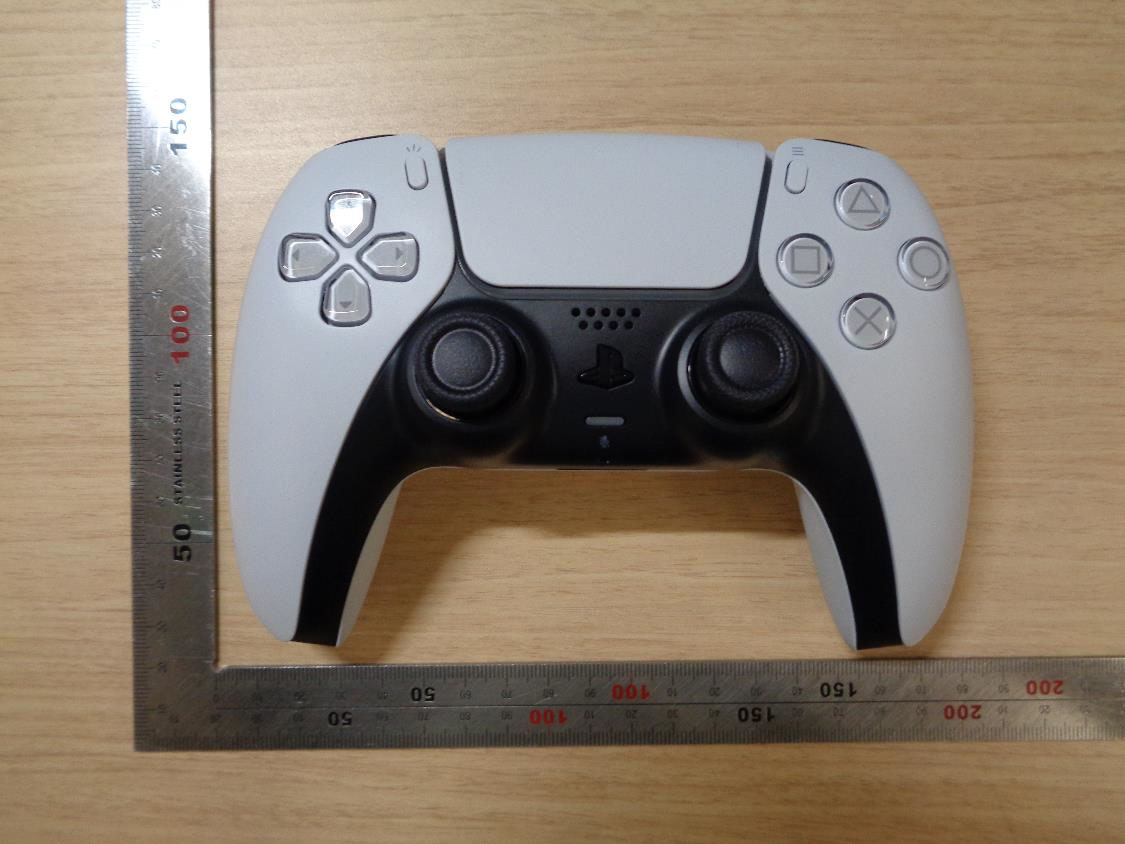

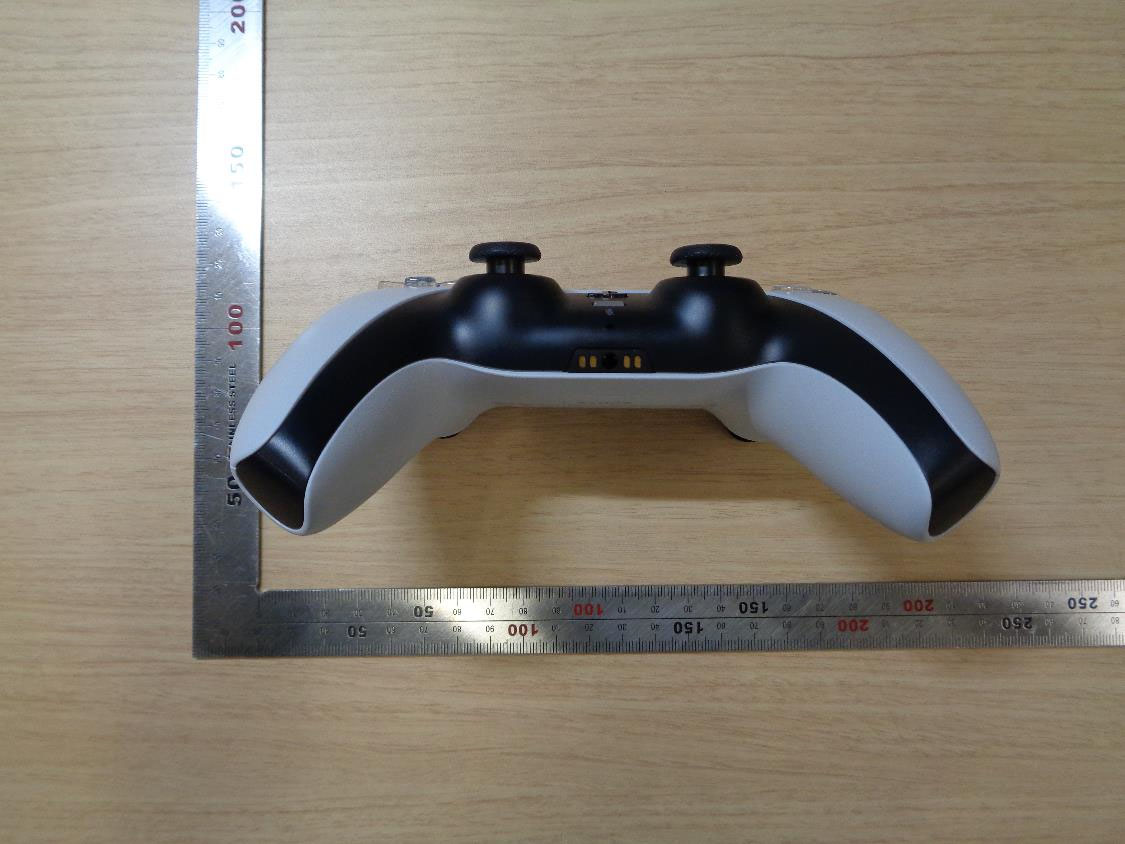

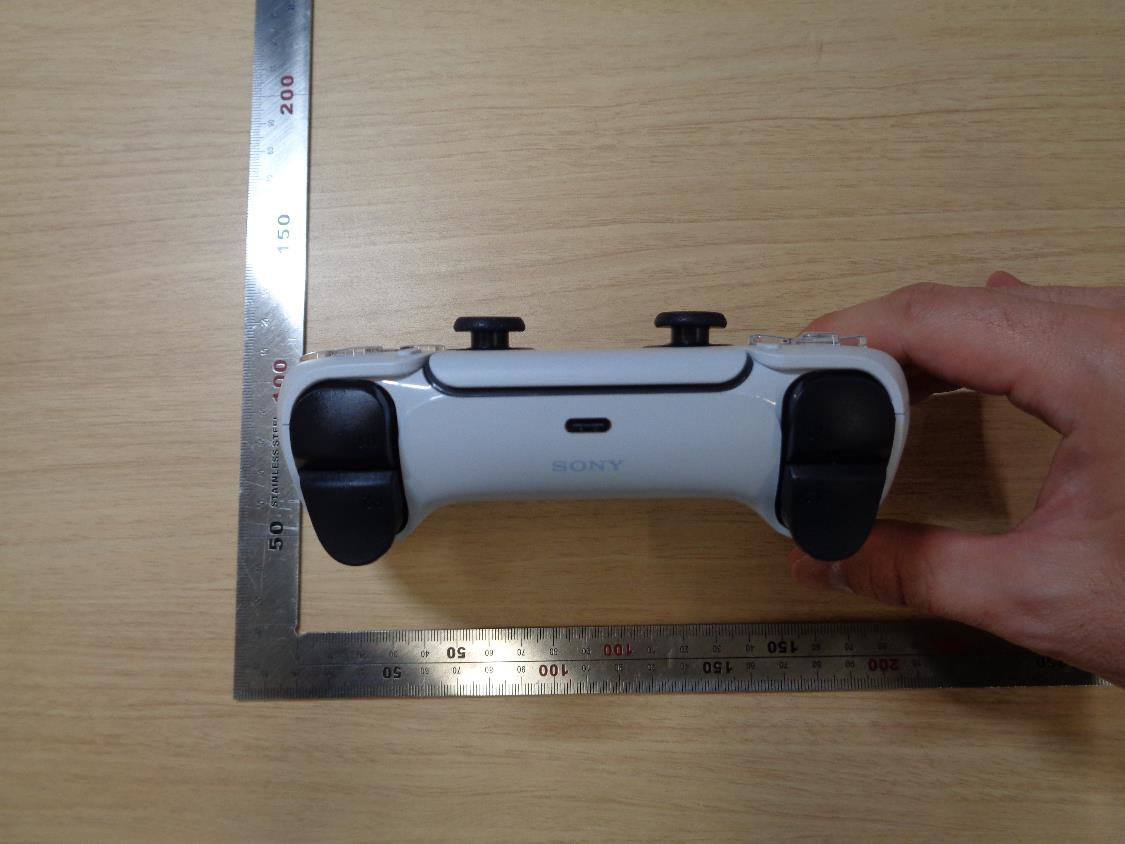

©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment

FCC label location Marking Area Top Marking Content: FCC ID: AK8CFIZCT1A Bottom

©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment ©Sony Interactive Entertainment RF Block Side – A Side – B ©Sony Interactive Entertainment ©Sony Interactive Entertainment

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp February 25, 2021 FCC ID: AK8CFIZCT1A To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless Controller, model: CFI-ZCT1W (FCC ID: AK8CFIZCT1A) of Sony Interactive Entertainment Inc. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power (Time average) was 1 mW So for this device: 1 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takayuki Shimada Leader of Ise EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 13698456H-A-R1 Page : 1 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 18.0 RADIO TEST REPORT Test Report No. : 13698456H-A-R1 Applicant : Sony Interactive Entertainment Inc. Type of EUT : Wireless Controller Model Number of EUT : CFI-ZCT1W FCC ID : AK8CFIZCT1A Test regulation : FCC Part 15 Subpart C: 2021 Test Result : Complied (Refer to SECTION 3.2) Date of test: February 9 to 21, 2021 Representative test engineer: Takeshi Hiyaji Engineer Consumer Technology Division Approved by: Takayuki Shimada Leader Consumer Technology Division CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provide d from the customer for this report is identified in Section 1. 10. This report is a revised version of 13698456H-A. 13698456H-A is replaced with this report. Test report No. : 13698456H-A-R1 Page : 2 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13698456H-A Revision Test report No. Date Page revised Contents - (Original) 13698456H-A February 25, 2021 - - 1 13698456H-A-R1 March 5, 2021 P37 Corrected data for MHz band 1 13698456H-A-R1 March 5, 2021 P51 Corrected Last Calibration Date for CE (MOS-41); 12/19/2019 → 12/06/2020 Test report No. : 13698456H-A-R1 Page : 3 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13698456H-A-R1 Page : 4 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures …

Text truncated - open the document above for the full version.

Test report No. : 13698456H-A-R1 Page : 53 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 13698456H-A-R1 Page : 54 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 13698456H-A-R1 Page : 55 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 1GHz (Horizontal: X-axis / Vertical: X-axis) Above 1GHz (Horizontal: Z-axis / Vertical: Z-axis) X-axis Y-axis Z-axis Test report No. : 13698456H-A-R1 Page : 56 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Antenna Terminal Conducted Tests Photo Test report No. : 13698456H-A-R1 Page : 57 of 57 Issued date : March 5, 2021 FCC ID : AK8CFIZCT1A UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Test Configuration and peripherals A A C 120 V / 60 Hz 1 B C D 2 3 4 : Standard Ferrite Core * Cabling and setup(s) were taken into consideration and test data was taken under worse case conditions. Description of EUT and Support equipment No. Item Model number Serial number Manufacturer Remark A Wireless Controller CFI-ZCT1W 0056 for CE, RE* 0055 for AT* Sony Interactive Entertainments Inc. EUT B Laptop PC X230 R9-W6R36 Lenovo - C AC Adapte r 45N0121 11S45N0121Z1ZHXU2CB96T Lenovo - D IN-EAR HEAD SET - - Sony Interactive Entertainment. Inc. For CE, RE* only List of cables used No. Name Length (m) Shield Remark Cable Connector 1 USB Cable 2.0 Shielde d Shielded - 2 DC Cable 1.8 Unshielde d Unshielded - 3 AC Cable 1.0 Unshielde d Unshielded - 4 Headset Cable 1.2 Unshielde d Unshielded For CE, RE* only *CE: Conducted Emission test, RE: Radiated Spurious Emission test, AT: Antenna Terminal Conducted Tests End of Report
