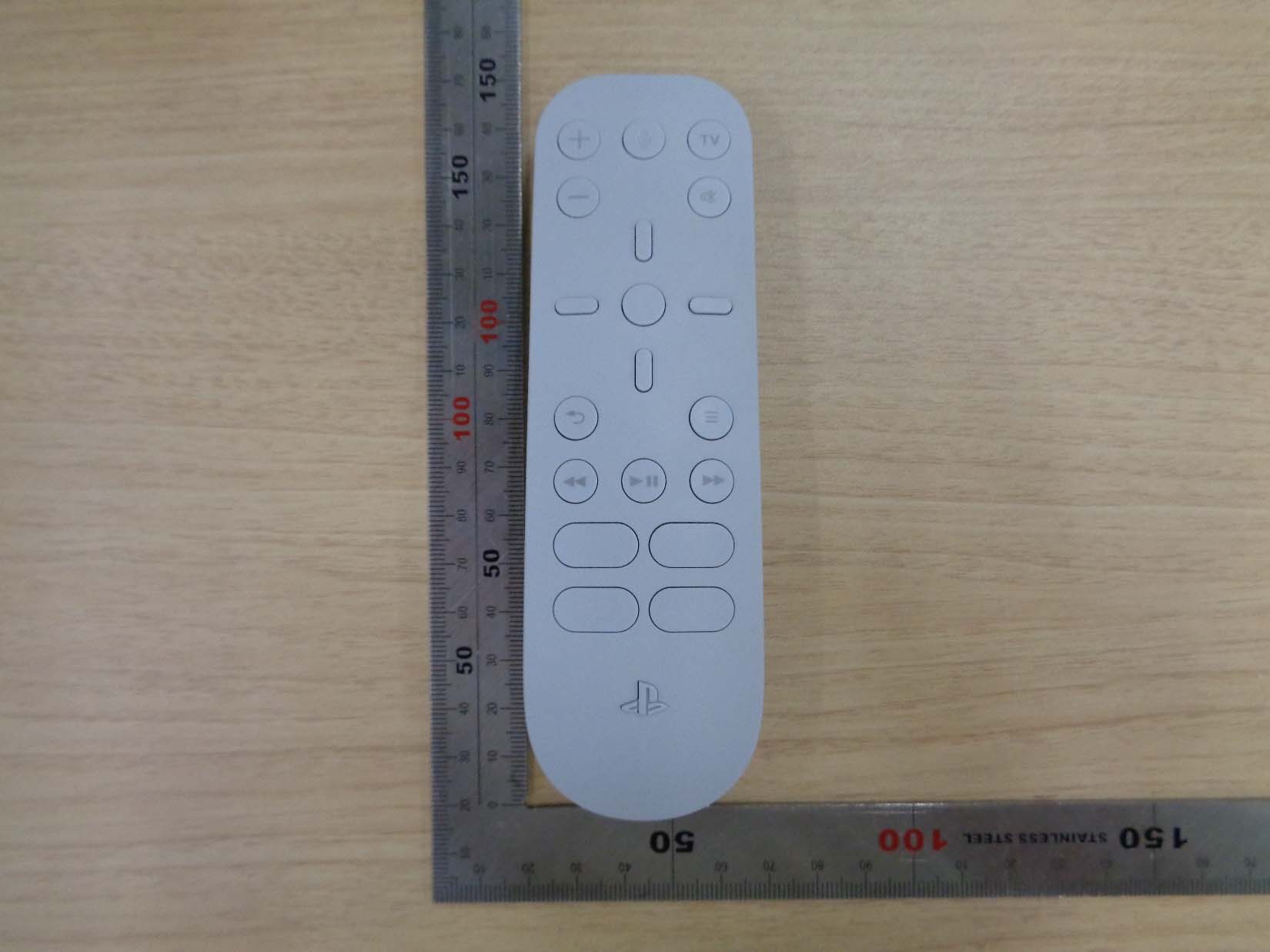

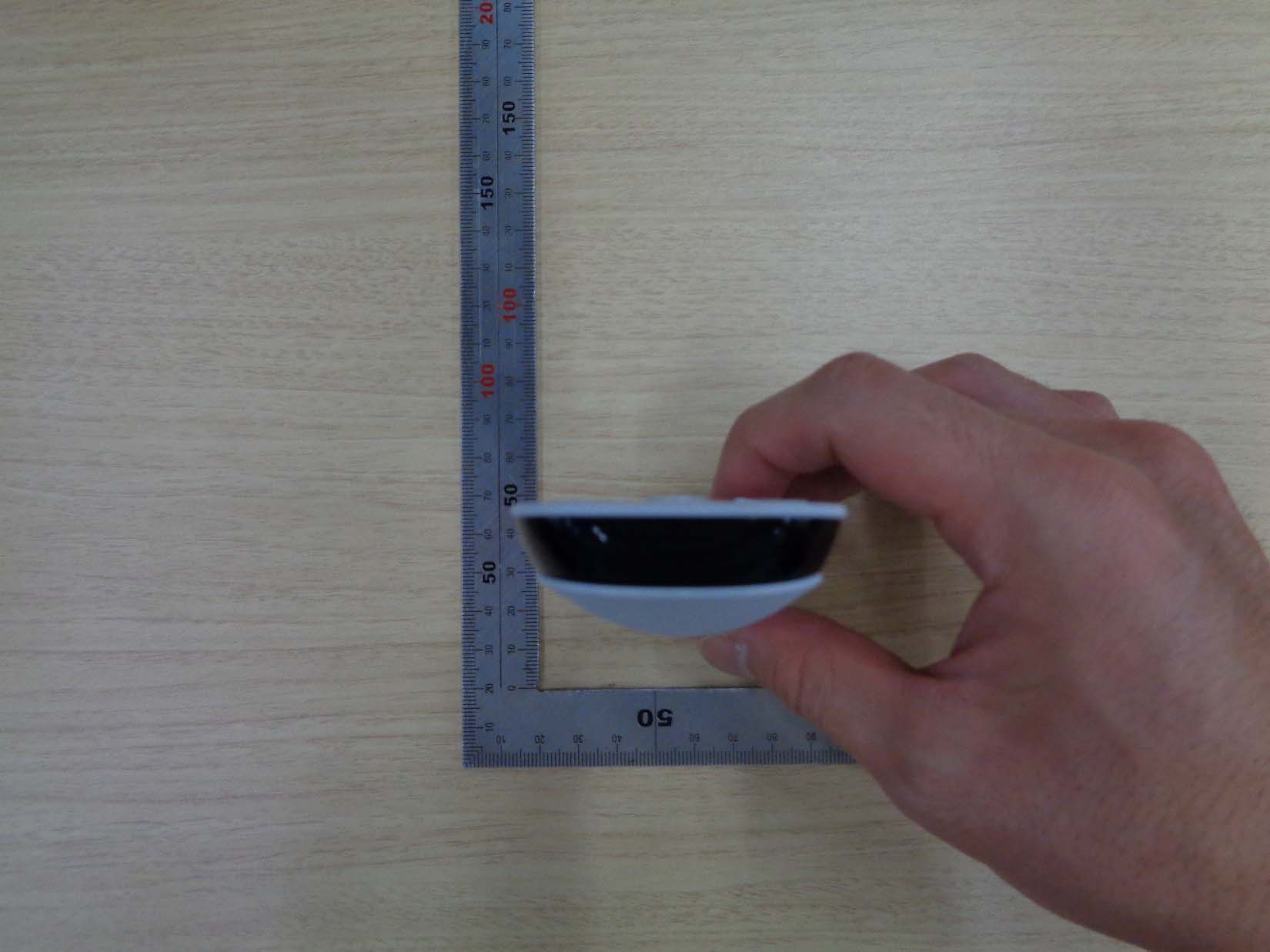

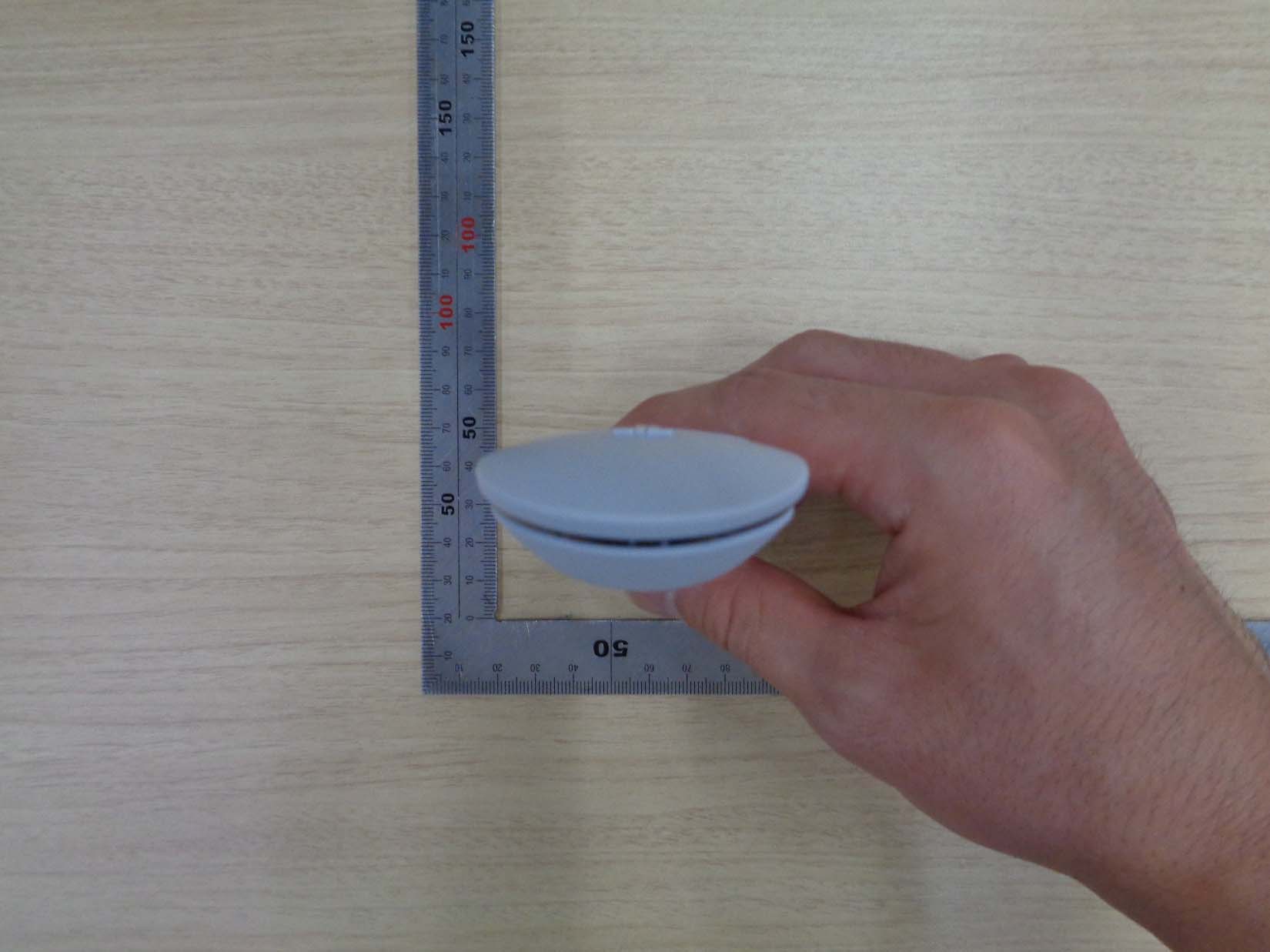

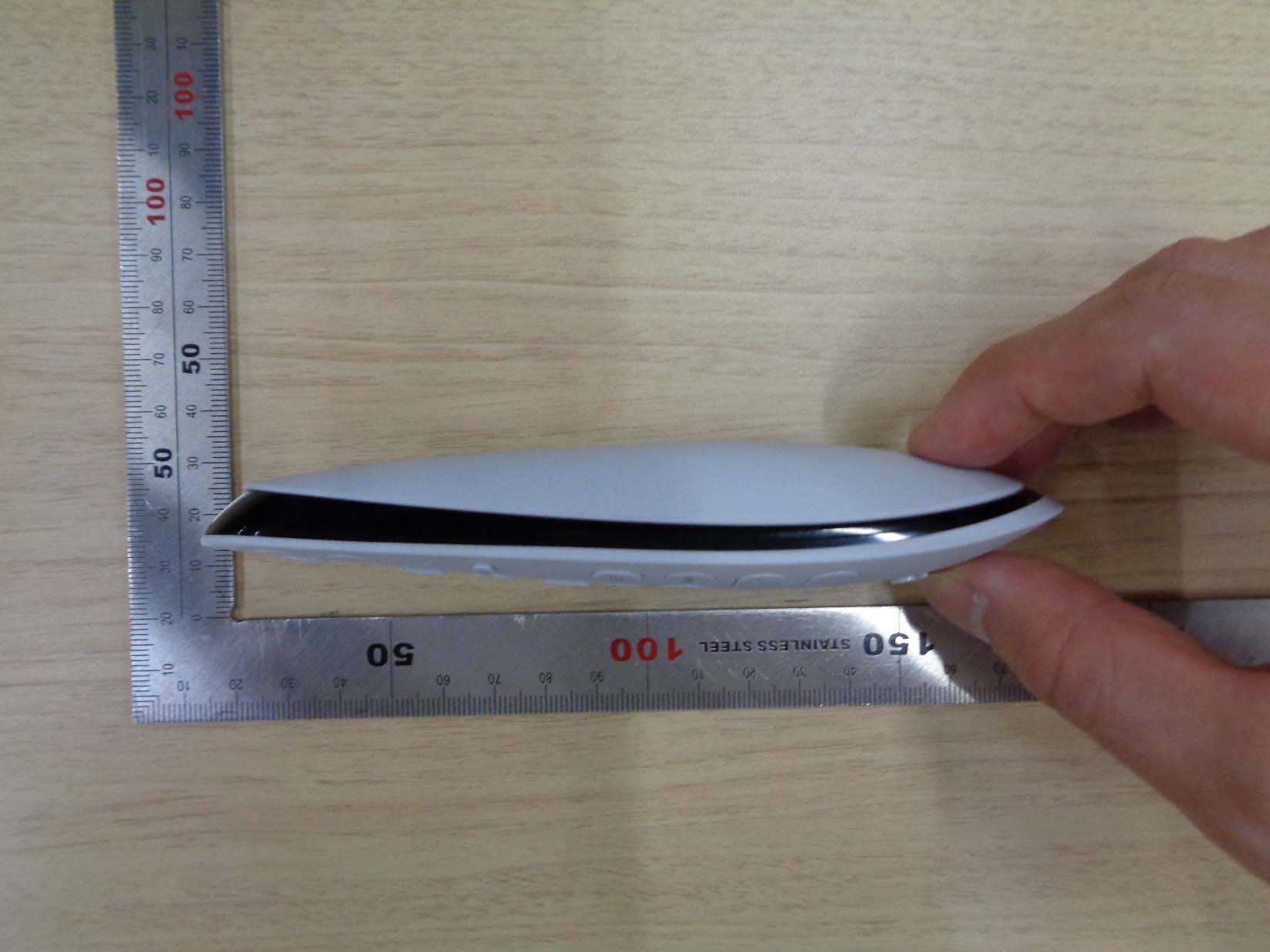

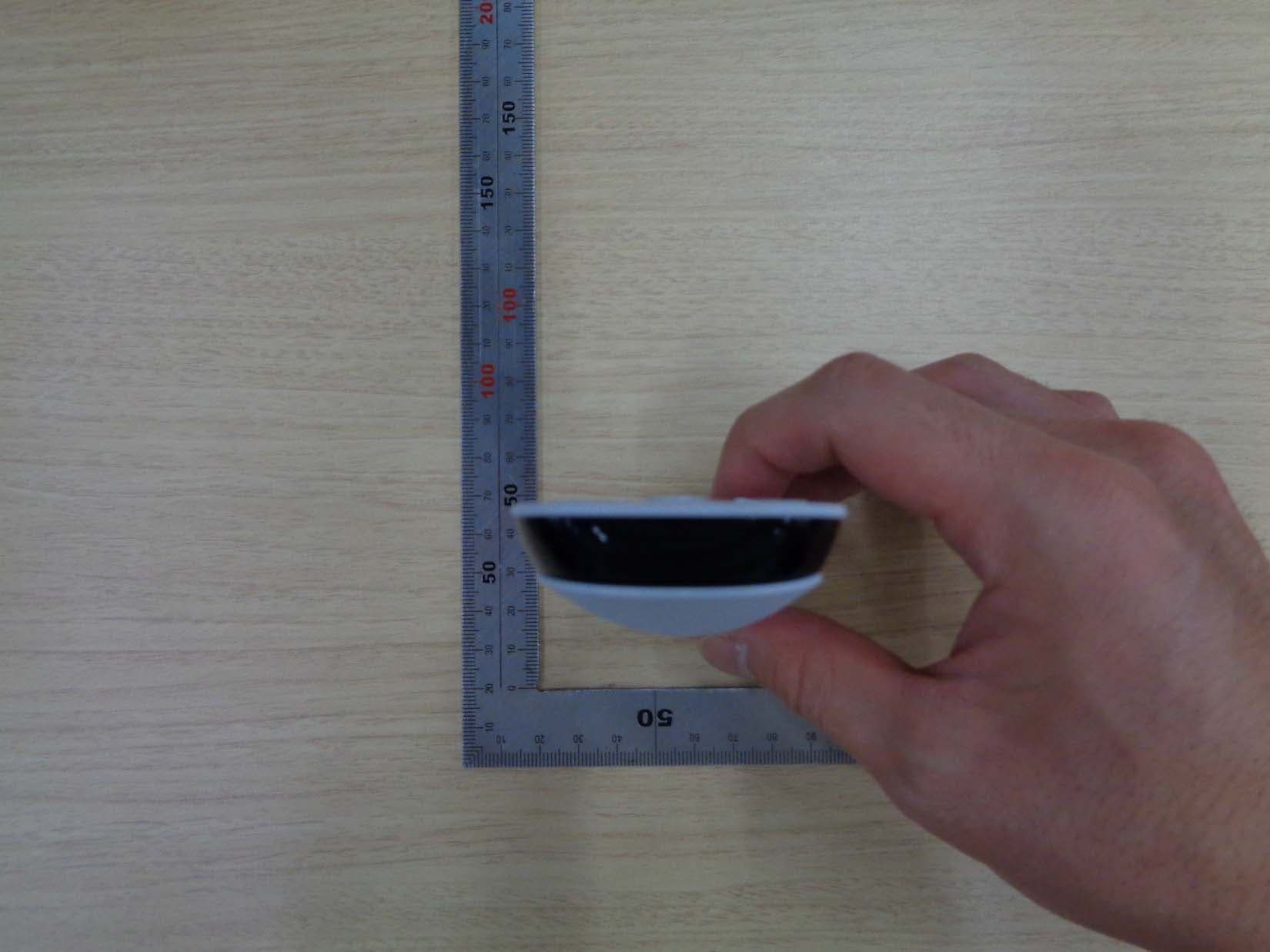

AK8CFIZMR1Remote Control

DUTP-DSN18ABK-Wx T-SAT-SSE-21 Media Remote CFI-ZMR1 “ ” is a registered trademark or trademark of Sony Interactive Entertainment Inc. “SONY” and “ ” are registered trademarks or trademarks of Sony Corporation. © 2020 Sony Interactive Entertainment Inc. Printed in China FCC and ISED notice This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If you have questions about this product, visit playstation.com/helpme. Supplier's Declaration of Conformity Trade Name: Model No.: Responsible Party: Address: Telephone No.: SONY CFI-ZMR1 Sony Electronics Inc. 16535 Via Esprillo, San Diego, CA 92127 U.S.A. 858-942-2230 This device complies with Part 15 of FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ENGLISH Use and handling •Do not expose the media remote to high temperatures, high humidity or direct sunlight. •Do not allow liquid or small particles to get into the product. •Do not put heavy objects on the product. •Never disassemble or modify the product. •Do not throw or drop the product, or otherwise expose it to strong physical impact. •Do not place any rubber or vinyl materials on the product exterior for an extended period of time. •When cleaning the product, use a soft, dry cloth. Do not use solvents or other chemicals. Battery use •Never throw batteries into a fire. •If you come into contact with material from a leaking battery, take the following actions: oIf the material gets into the eyes, do not rub. Immediately flush the eyes with clean water and seek medical attention. oIf the material comes into contact with the skin or clothes, immediately rinse the affected area with clean water. Consult your physician if inflammation or soreness develops. •Keep the product out of the reach of small children. Small children may swallow the batteries or small parts, which may inflict injury or cause an accident. •Do not use batteries other than those specified, and always replace with the same type of battery. Do not mix old and new batteries. •Insert batteries with the plus and minus ends in the correct direction. •Remove batteries when they have reached the end of their life, or if the media remote is to be stored for an extended period of time. •This product is shipped with non-rechargeable batteries. At the end of the batteries’ life please discard in accordance with local environmental laws. FRANÇAIS Déclaration de la FCC et de l’IC Cet équipement est conforme aux limites d’exposition aux radiofréquences FCC et ISED établies pour un environnement non contrôlé et respecte les exigences de conformité pour l’exposition aux RF FCC et pour l’exposition aux RF ISED établies par le CNR-102. Cet équipement possède des niveaux d’énergie RF très bas se conformant sans tests nécessaires aux taux d’absorption spécifique (SAR). Cet émetteur ne doit pas être utilisé conjointement ou placé avec tout autre émetteur ou antenne. Remarque Cette unité a été testée et jugée conforme aux normes stipulées par l’article 15 des règlements de la FCC et de l’ISED pour un appareil numérique de catégorie B. Ces normes sont établies afin d’offrir une protection raisonnable contre toute possibilité de brouillage préjudiciable dans une installation résidentielle. Cette unité produit, utilise et peut émettre une énergie radioélectrique, et si elle n’est pas installée et utilisée conformément aux instructions, pourrait causer un brouillage préjudiciable à la radiocommunication. Il est toutefois impossible de garantir qu’il n’y aura pas de brouillage préjudiciable dans une installation donnée. Si cette unité cause un brouillage préjudiciable à la réception radio ou télévisuelle, ce qui peut être déterminé en mettant l’appareil hors tension puis sous tension, l’utilisateur est encouragé à tenter de corriger le brouillage en prenant l’une ou plusieurs des mesures proposées suivantes : •Réorienter ou déplacer l’antenne de réception. •Éloigner l’unité du récepteur. •Connecter l’appareil à une prise sur un autre circuit que celui auquel le récepteur est connecté. •Demander de l’aide au détaillant ou à un technicien radio/télévision spécialisé. Aucun c…

Text truncated - open the document above for the full version.

FCC labellocation Marking Content:FCC ID:AK8CFIZMR1 Marking Area * Back ( Removed the rear panel )

RF Block

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp May 21, 2020 FCC ID: AK8CFIZMR1 To whom it may concern, We, UL Japan, Inc, hereby declare that Remote Control, model: CFI-ZMR1 (FCC ID: AK8CFIZMR1) of Sony Interactive Entertainment Inc. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power (Time average) was 1 mW So for this device: 1 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takayuki Shimada Leader of Ise EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 13325207H-A-R1 Page : 1 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 16.0 RADIO TEST REPORT Test Report No. : 13325207H-A-R1 Applicant : Sony Interactive Entertainment Inc. Type of EUT : Remote Control Model Number of EUT : CFI-ZMR1 FCC ID : AK8CFIZMR1 Test regulation : FCC Part 15 Subpart C: 2020 Test Result : Complied (Refer to SECTION 3.2) Date of test: April 20 and 21, 2020 Representative test engineer: Takafumi Noguchi Engineer Consumer Technology Division Approved by: Takayuki Shimada Leader Consumer Technology Division This report contains data that are not covered by the NVLAP accreditation. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 6. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. 7. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. 8. The information provided from the customer for this report is identified in SECTION 1. 9. This report is a revised version of 13325207H-A . 13325207H -A is replaced with this report. This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://japan.ul.com/resources/emc_accredited/ Test report No. : 13325207H-A-R1 Page : 2 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13325207H-A Revision Test report No. Date Page revised Contents - (Original) 13325207H-A May 21, 2020 - - 1 13325207H-A-R1 June 5, 2020 P49 Added note for Ferrite core Test report No. : 13325207H-A-R1 Page : 3 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13325207H-A-R1 Page : 4 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures & results ....…

Text truncated - open the document above for the full version.

Test report No. : 13325207H-A-R1 Page : 46 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 13325207H-A-R1 Page : 47 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 1GHz : (Horizontal: X-axis/ Vertical: X-axis) Above 1GHz : (Horizontal: X-axis/ Vertical: Z-axis) X-axis Y-axis Z-axis Test report No. : 13325207H-A-R1 Page : 48 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Test Configuration and peripherals For Radiated Spurious Emission test A * Setup was taken into consideration and test data was taken under worse case conditions. Description of EUT No. Item Model number Serial number Manufacturer Remarks A Remote Control CFI-ZMR1 P10300LTSD1000147 Sony Interactive Entertainment Inc. EUT Test report No. : 13325207H-A-R1 Page : 49 of 49 Issued date : June 5, 2020 FCC ID : AK8CFIZMR1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 For Antenna Terminal Conducted tests * Cabling and setup(s) were taken into consideration and test data was taken under worse case conditions. Description of EUT and Support equipment No. Item Model number Serial number Manufacturer Remarks A Remote Control CFI-ZMR1 P10300LTSD1000146 Sony Interactive Entertainment Inc. EUT B USB Jig USB-JIG UJ-02 Sony Interactive Entertainment Inc. - C Laptop PC X230 R9-W6R36 12/12 Lenovo - D AC Adaptor 92P1156 11S45N0121Z1ZHXU 2CB96T Lenovo - List of cables used No. Name Length (m) Shield Remarks Cable Connector 1 FFC Cable 0.09 Unshielde d Unshielded - 2 USB Cable 2.00 Shielde d Shielded - 3 DC Cable 1.80 Unshielde d Unshielded - 4 AC Cable 0.90 Unshielde d Unshielded - End of Report A B C D AC 120 V /60 Hz 1 2 3 4 : Standard Ferrite core
