AK8COM1Personal Communicator

Sony Group Corporation
Personal Communicator - FCC ID AK8COM1 - Sony Group Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 01, 2006
Application Purpose
Original Equipment
Date of Application
Jun 01, 2006
Equipment Note
Personal Communicator
Frequency Range
2412.00000000 - 2462.00000000
Company
Sony Group Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

    Ú3ONY#ORPORATION COM-1.US.2-668-392-11(2) 2 Owner’s Record The serial number is located inside battery compartment. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. COM-1 Serial No. _______________________ WARNING You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). COM-1.US.2-668-392-11(2) 3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If you have any questions about this product: Visit: http://www.sony.com/mylo Contact: Sony Customer Information Services Center at 1-(888)-476-6972 Write: Sony Customer Information Services Center 12451 Gateway Blvd., Ft. Myers, FL 33913 Model COM-1 Declaration of Conformity Trade Name: SONY Model No.: COM-1 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo San Diego, CA 92127 USA Telephone No.: 858-942-2230 RECYCLING LITHIUM-ION BATTERIES Lithium-ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http:// www.rbrc.org/ . Caution: Do not handle damaged or leaking Lithium-ion batteries.  7HATSINTHE"OX s 0ERSONALCOMMUNICATOR s (EADSET n(EADPHONES n/NETOUCHANSWERREMOTE CONTROLLER s 53"CABLE s 2ECHARGEABLEBATTERY s !#POWERADAPTOR s #$ 2/- CONTAININGTHE/PERATING )NSTRUCTIONS0$&lLEANDTHE SUPPLIEDSOFTWARE s "ATTERYCASE s 3TART UP'UIDETHISBOOK s #ARRYINGCASE 4HISh3TART UP'UIDEvPROVIDESSTEPSFORSETTINGUP YOUR#/- 0ERSONAL#OMMUNICATORANDAQUICK OVERVIEWOFHOWTOOPERATETHEUNIT&ORMOREDETAILED INFORMATIONABOUTYOURUNIT INCLUDINGTROUBLESHOOTING INFORMATION REFERTOTHE/PERATING)NSTRUCTIONS AVAILABLEASA0$&lLEONTHESUPPLIED#$ 2/-  PAGE  4HECOVERPAGEOFTHE/PERATING)NSTRUCTIONS0$&lLE ISSHOWNONTHERIGHT &OR$ETAILED)NFORMATION 5 COM-1.US.2-668-392-11(2) Table of Contents For Detailed Information ..............4 What’s in the Box ......................... 4 Overview ...................................... 6 Preparation The Parts of Your Personal Communicator ..........................7 The status bar .........................10 Using the keyboard ................ 12 Step 1: Preparing a Power Source ....................................13 Installing the supplied battery ...13 Charging the battery ...............14 Step 2: Setting up Your Personal Communicator ........................16 Turning on your unit .................16 Entering your information ........ 17 Wireless LAN Settings — Infrastructure Mode ............18 Connecting to wireless LAN in infrastructure mode ............. 19 Registering an access point ...20 Selecting a connection method ...................................20 Wireless LAN Settings — Ad Hoc Mode .....................21 Connecting to wireless LAN in Ad Hoc mode .....................22 Adding users to your Ad Hoc Contact list .............................22 Basic Operations The Home Menu ........................24 The Context Menu ..................... 25 What’s Up Screen ......................25 Info Screen ................................26 Things to Do With Your Personal Communicator Communication — Skype ..........27 Communication — Google Talk ........................28 Communication — Yahoo! Messenger ..............29 Communication — Ad Hoc Application .............30 Communication — Address Book .....................31 Web ........................................... 32 Music .........................................33 Photo .........................................34 Video .........................................35 Game .........................................36 Text ............................................ 36 Tools .......................................... 37 For More Information File Structures ...........................38 Folder structure of the internal memory ................................... 38 Folder structure of “Memory Stick Duo” ...............................40 Supplied CD-ROM ............…

Text truncated - open the document above for the full version.

External Photos

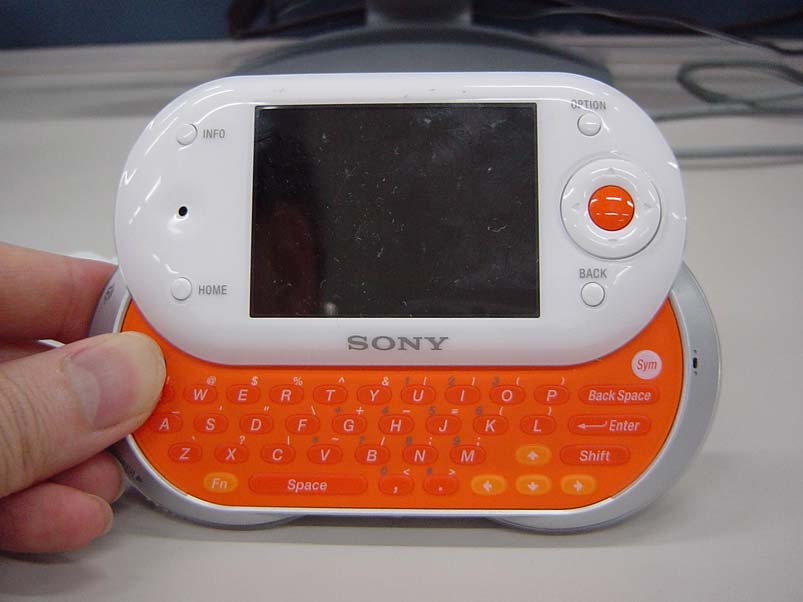

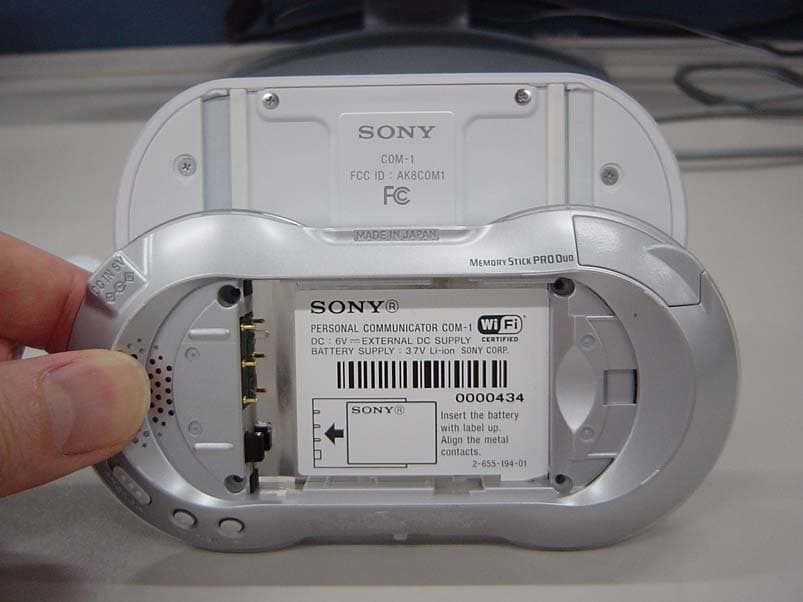

External Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 Front Rear External Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 Top Bottom External Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 Right Left

Internal Photos

Internal Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 Antenna 1 Antenna 2 Internal Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 Antenna 3 Antenna 4 Internal Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 Module Mount Location RF Module with Shield (Front) Internal Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 RF Module without Shield 1 (Front) RF Module without Shield 2 (Front) Internal Photo Sony Corporation PERSONAL COMMUNICATOR [COM-1] FCC ID: AK8COM1 RF Module (Rear)

RF Exposure Info

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Corporatoin Type of Equipment : Personal Communicator Model No. : COM-1 FCC ID: AK8COM1 Sony Corporatoin declares that Model : COM-1 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). The “COM-1“ has 16.79 mW of conducted Peak Output power and 14.45 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “COM-1“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 16.79 mW (Maximum peak output power) G = 0.86 Numerical Antenna gain; equal -0.65 dBi r =20.0 cm For: COM-1S = 0.00288 mW/cm 2 No. : 26JE0017-HO RF Exposure / SAR Statement

Test Report

Test report No. : 26JE0017-HO-A Page : 2 of 34 Issued date : May 23, 2006 FCC ID : AK8COM1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Conducted Emission......................................................................................................... 8 SECTION 6: Spurious Emission............................................................................................................ 9 SECTION 7: Bandwidth ....................................................................................................................... 10 SECTION 8: Maximum Peak Output Power ..................................................................................... 10 SECTION 9: Peak Power Density........................................................................................................ 10 APPENDIX 1: Photographs of test setup ............................................................................................ 11 Conducted Emission ............................................................................................................................11 Spurious Emission (Radiated) ............................................................................................................12 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................13 APPENDIX 2:Test instruments ............................................................................................................ 14 APPENDIX 3: Data of EMI test............................................................................................................ 15 Conducted Emission ............................................................................................................................15 6dB Bandwidth ....................................................................................................................................18 Maximum Peak Output Power...........................................................................................................20 Radiated Spurious Emission ...............................................................................................................22 Conducted Spurious Emission............................................................................................................28 Conducted emission Band Edge compliance .....................................................................................31 Power Density ......................................................................................................................................32 99%Occupied Bandwidth ...................................................................................................................34 Test report No. : 26JE0017-HO-A Page : 3 of 34 Issued date : May 23, 2006 FCC ID : AK8COM1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) SECTION 1: Client information Company Name : Sony EMCS Corporation Saitama TEC Address : Shinagawa INTERCITY C Tower, 2-15-3, Konan, Minato-ku, Tokyo 108-6201 Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5085 Contact Person : Kikuo Murata *Sony EMCS Corporation Saitama TEC is on behalf of the applicant: Sony Corporation. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Personal Communicator Model No. : COM-1 Serial No. : 64 for Antenna Terminal Conducted test 46 for Conducted Emission / Radiated Emission tests Rating : AC Adapter input: AC 120V/60Hz DC input : DC 6V (AC Adapter output) : DC 3.7V (Battery) Country of Manufacture : Japan Receipt Date of Sample : April 26, 2006 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: COM-1 (referred to as the EUT in this report) is the Personal Communicator. Clock frequency(ies) in the system : 32kHz, 22.5792MHz, 27.785MHz, 32MHz, 45.16MHz, 111MHz, 333MHz, 480MHz Equipment Type : Transceiver Frequency of Operation : 2412-2462MHz Bandwidth & Channel spacing : 25MHz & 5MHz Modulation : DSSS ITU code : G1D Power Contriol : No Antenna Type : Printed Inverted-F Antenna (UBA-CUA1010) Antenna Connector Type : 1-PEX MHF-2 (compatible with U.FL) Antenna Gain : -0.65dBi max Test report No. : 26JE0017-HO-A Page : 4 of 34 Issued date : May 23, 2006 FCC ID : AK8COM1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits: 2006 Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz: 2006 FCC 15.31 (e) This EUT provides stable voltage (DC3.1V, DC2.2V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 26JE0017-HO-A Page : 11 of 34 Issued date : May 23, 2006 FCC ID : AK8COM1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 26JE0017-HO-A Page : 12 of 34 Issued date : May 23, 2006 FCC ID : AK8COM1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Spurious Emission (Radiated) Front Rear Test report No. : 26JE0017-HO-A Page : 13 of 34 Issued date : May 23, 2006 FCC ID : AK8COM1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(19.04.06) Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis

Contact Information

Applicant

Kazuyuki Hori(Chief EMC/RF Compliance Specialist)
[email protected]81-50-3141-6220Fax: 81-50-3750-6540

Technical Contact

UL Apex Co., LtdHironobu Shimoji
[email protected]81-596-24-8116

4383-326 Asama-cho · Ise-shi, Mie-Ken · Japan

Non-Technical Contact

UL Apex Co., LtdKeijiro Kumagai
[email protected]81-596-24-8116

Test Firm

UL Japan, IncMitsuru Fujimura
[email protected]81-596-24-8116Fax: 81-596-24-8124

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz16.79 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter
