AK8CSK002Personal Entertainment Organizer w/ WLAN

Sony Personal Entertainment Organizer PEG-TJ37/TJ27 3-088-727-11 (1) 3-088-727-11 (1) Personal Entertainment Organizer PEG-TJ37 PEG-TJ27 © 2004 Sony Corporation Read This First Operating Instructions Setting up your CLIÉ™ handheld Basic operations of your CLIÉ™ handheld 1 2 Troubleshooting Using CLIÉ Manuals with your computer 4 CLIÉ™ handheld components Supplied applications 3 01US01COV.book Page 1 Friday, December 5, 2003 12:45 PM 2 Sony Personal Entertainment Organizer PEG-TJ37/TJ27 3-088-727-11 (1) The following manuals are included with your CLIÉ handheld. Refer to the following together with this manual. * You can read the manual on your computer using Adobe Reader. If Adobe Reader is not installed on your computer, install it from the supplied Installation CD-ROM. ** You can read the manual on your computer using an Internet browser. For questions about operations, refer to CLIE FAQ by tapping (HOME) and then tap (CLIE FAQ) on your CLIÉ handheld. Printed manual * If your CLIÉ handheld was purchased in Europe, the manual is not in printed format, but is included as a PDF file on the Installation CD-ROM. Read This First (Operating Instructions), this manual* Explains setup and operation of your CLIÉ handheld. For safe use, make sure you read the supplied “Safety & Regulations Guide”. Internet Connection Guide (for PEG-TJ37 only) Explains how to use the wireless LAN features of your CLIÉ handheld to the Internet. Manuals to be read on your computer The following manuals are automatically installed on your computer after you set up your CLIÉ handheld and computer. bFor details on each manual, refer to “Using CLIÉ Manuals with your computer” on page 42. Handbook (PDF format*) Explains the operation and features of your CLIÉ handheld. CLIÉ Application Manual (HTML format**) Explains how to use the supplied applications in detail. Troubleshooting Q&A (PDF format*) Helps in solving common problems that you may have while using your CLIÉ handheld. 01US01COV.book Page 2 Friday, December 5, 2003 12:45 PM 3 Sony Personal Entertainment Organizer PEG-TJ37/TJ27 3-088-727-11 (1) Before use Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. On the supplied software • Copyright laws prohibit reproducing the software or the software manual in whole or in part or renting the software without the permission of the copyright holder. • In no event will SONY be liable for any financial damage or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this product. • In the event a problem occurs with this software as a result of defective manufacturing, SONY will replace it at SONY’s option or issue a refund. However, SONY bears no other responsibility. • The software provided with this product cannot be used with equipment other than that which it is designated for use with. • Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice. • The software library incorporated in the CLIÉ handheld is based in part on the work of the Independent JPEG Group. NOTES • Sony does not support third party add-on applications. If you have a problem with a third party application, please contact the developer or publisher of that software. • The illustrations in this manual may differ from the actual software. • Explanations in this manual assume that you are familiar with basic operations of Windows ® . For how to use your computer and operating system, please refer to their respective manuals. Program © 2004 Sony Corporation, © 2004 PalmSource, Inc., or its subsidiaries. All rights reserved. Documentation © 2004 Sony Corporation 01US01COV.book Page 3 Friday, December 5, 2003 12:45 PM 4 Sony Personal Entertainment Organizer PEG-TJ37/TJ27 3-088-727-11 (1) Table of Contents Setting up your CLIÉ™ handheld Confirming the package contents . . . . . . . . . . . . . . . . 6 Setting up your CLIÉ™ handheld . . . . . . . 8 Charging your CLIÉ handheld. . . . . . . . . . . . . 8 Performing the initial setup after turning on your CLIÉ handheld for the first time . . . . . 9 Using your CLIÉ™ handheld with your computer . . . . . . . . . . . .16 Installing the software on your computer. . . 16 Registering your CLIÉ handheld. . . . . . . . . . 18 Connecting your CLIÉ handheld and computer via the USB cable . . . . . . . . . . . . . . . . . . . 19 Entering a user name for your CLIÉ handheld . . . . . . . . . . . . . . . . . 20 Installing the supplied applications on your CLIÉ™ handheld . . . . .21 Basic operations of your CLIÉ™ handheld Turning on/off your CLIÉ™ handheld . . . . . . .22 Turning on your CLIÉ handheld . . . . . . . . . . 22 Using the Jog Dial™ navigator and /(the Left/Right buttons) . . . . . 23 Starting an application . . . . . . .23 Other ways to start an application . . . . . . . . 25 Using Graffiti ® 2 writing to enter text. . . . . . 27 Entering text. . . . . . . . . . . . . . .27 Other ways to enter text . . . . . . . . . . . . . . . . 29 Synchronizing data between your CLIÉ handheld and computer (the HotSync ® operation). . . . .30 Using the camera . . . . . . . . . . .33 Restarting your CLIÉ™ handheld . . . . . . .35 Supplied applications Using CLIÉ Manuals with your computer Manuals Overview . . . . . . . . . . . . . . . . . . . . 42 Opening CLIÉ Manuals . . . . . . . . . . . . . . . . 44 Reading the PDF manuals on your computer . . . . . . . . . . . . . . . . . . . . . 45 Reading the HTML manual on your computer (CLIÉ Application Manual) . . . . . . . . . . . . 46 Troubleshooting Making a backup of the data or applications on your CLIÉ handheld . . . . 48 Frequently Asked Questions. . . . …

Text truncated - open the document above for the full version.

December 16, 2003 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SONY Corporation FCC ID: AK8CSK002 Part 15.247 Certification Gentlemen: Submitted herewith, on behalf of Sony Corporation, is an application for Part 15.247 Spread Spectrum Transmitter (DSS). Attached are the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description, parts list (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SONY Corporation

SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u

© 2002PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) CSK-002/U Label

SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. Entertainment Organizer w/ WLAN Model: CSK-002/u

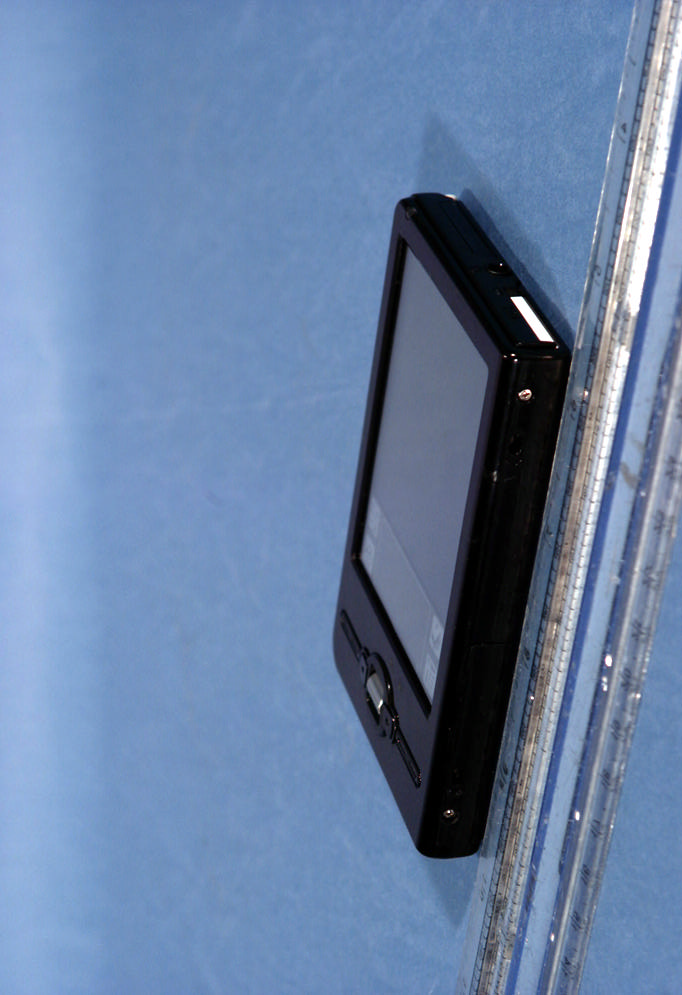

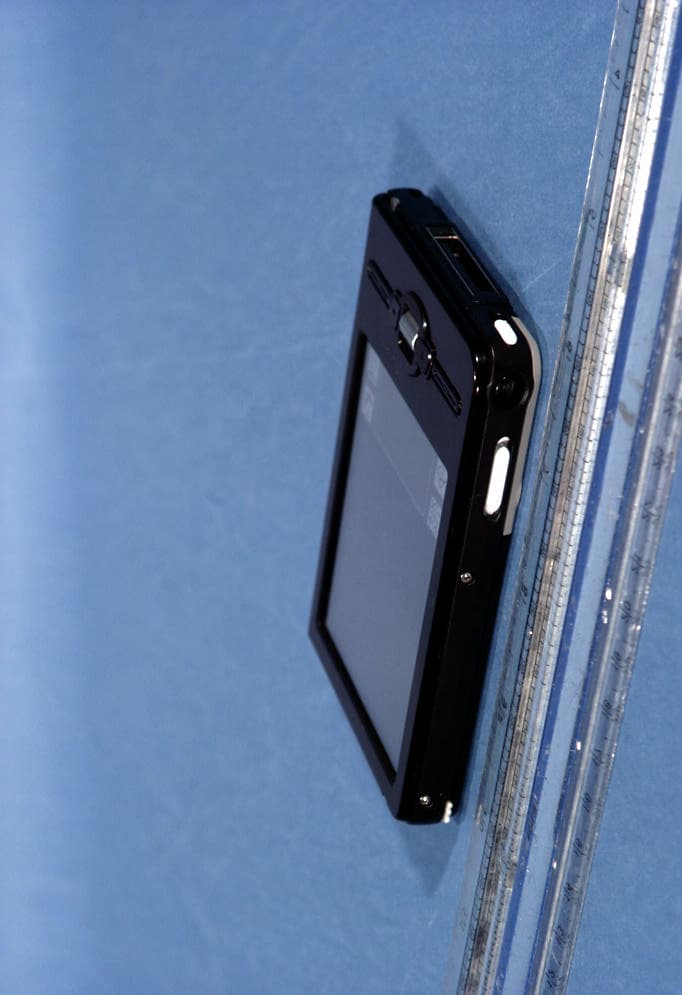

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231205609.AK8 Test Dates: Dec. 9-10, 2003 Phone Type: Personal Entertainment Organizer w/ WLAN FCC ID: AK8CSK002 Page 1 of 20 © 2003 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SONY Corporation Dates of Tests: December 9-10, 2003 6-7-35 Kitashinagawa Shinagawa-ku Test Report S/N: SAR.231205609.AK8 Tokyo, 141-0001 JAPAN Test Site: PCTEST Lab, Columbia MD FCC ID: AK8CSK002 APPLICANT: SONY Corporation EUT Type: Personal Entertainment Organizer w/ WLAN Tx Frequency: 2412 – 2462 MHz (DSSS) Rx Frequency Range: 2412 – 2462 MHz (DSSS) Max. RF Output Power: 22 mW (13.42 dBm) Max. SAR Measurement: 0.039 W/kg Front Side SAR; 0.227 W/kg Back Side SAR; 0.114 W/kg Top Side SAR Trade Name/Model(s): CSK-002/u FCC Classification: Part 15 Digital Transmission System (DTS) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: 063] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output is conducted. This device has been tested for SAR compliance for portable configurations. This device must not be co-located or operating with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231205609.AK8 Test Dates: Dec. 9-10, 2003 Phone Type: Personal Entertainment Organizer w/ WLAN FCC ID: AK8CSK002 Page 2 of 20 © 2003 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION.................................................................................3 2. SAR MEASUREMENT SETUP..............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM........................................................................................5 4. Probe Calibration Process..................................................................................................6 5. PHANTOM & EQUIVALENT TISSUES.................................................................................7 6. TEST SYSTEM SPECIFICATIONS.........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................9 8. TEST CONFIGURATION POSITION.................................................................................10 9. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.................................................................10 10. MEASUREMENT UNCERTAINTIES...................................................................................12 11. SYSTEM VERIFICATION..................................................................................................13 12. SAR TEST DATA SUMMARY............................................................................................14 13. SAR DATA SUMMARY...............................................................................................15-18 14. SAR TEST EQUIPMENT...................................................................................................18 15. CONCLUSION...............................................................................................................19 16. REFERENCES..................................................................................................................20 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-231205609.AK8 Test Dates: Dec. 9-10, 2003 Phone Type: Personal Entertainment Organizer w/ WLAN FCC ID: AK8CSK002 Page 3 of 20 © 2003 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protecti…

Text truncated - open the document above for the full version.

SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u SONY FCC ID: AK8CSK002 EUT Photographs © 2003 PCTEST Lab. 2.4 GHz Personal Entertainment Organizer WLAN PDA Model: CSK-002/u

Test report No. : 24DE0031-HO-1 Page : 11 of 38 Issued date : December 15, 2003 FCC ID : AK8CSK002 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 24DE0031-HO-1 Page : 12 of 38 Issued date : December 15, 2003 FCC ID : AK8CSK002 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Y-axis:Horizontal / Y-axis:Vertical) X-axis Y-axis Z-axis Test report No. : 24DE0031-HO-1 Page : 13 of 38 Issued date : December 15, 2003 FCC ID : AK8CSK002 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear
