AK8CUH100C1Computer Entertainment System

Safety Guide Guide de Sécurité 4-474-514-51(1) CUH-1001A 2 To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. This appliance is classified as a CLASS 1 LASER product under IEC60825-1:2007. FCC and IC notice This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20 cm (8 in) and more between the radiator and person's body (excluding extremities: hands, wrists, feet and ankles). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The wireless controller complies with FCC/IC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: WARNING 3 EN – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Photosensitivity/Epilepsy/Seizures A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your doctor before playing. IMMEDIATELY DISCONTINUE use and consult your doctor before resuming gameplay if you or your child experience any of the following health problems or symptoms: • dizziness, • altered vision, • eye or muscle twitches, • loss of awareness, • disorientation, • seizures, or • any involuntary movement or convulsion. RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR DOCTOR. Use and handling of video games to reduce the likelihood of a seizure • Use in a well-lit area and keep as far away as possible from the television screen. • Avoid large screen televisions. Use the smallest television screen available. If you have questions about this product, visit http://www.us.playstation.com/support or contact SCEA Consumer Services at 1-800-345-7669. You can also write to: Sony Computer Entertainment America LLC Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. Declaration of Conformity Trade Name :SONY Model No. :CUH-1001A Responsible Party :Sony Electronics Inc. Address :16530 Via Esprillo San Diego, CA 92127 U.S.A. Telephone No. :858-942-2230 This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 • Avoid prolonged use of the PlayStation ® 4 system. Take a 15-minute break during each hour of play. • Avoid playing when you are tired or need sleep. 3D images Some people may experience discomfort (such as eye strain, eye fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games on 3D televisions. If you experience such discomfort you should immediately discontinue use of your television until the discomfort subsides. SCE recommends that all viewers take regular breaks while watching 3D video, or playing stereoscopic 3D games. The length and frequency of necessary breaks may vary from person to person - please take breaks that are long enough to allow any feelings of discomfort to subside. If symptoms persist, consult your doctor. The vision of young children (especially those under 6 years old) is still under development. SCE recommends that you consult with a doctor (such as a pediatrician or eye doctor) before allowing a young child to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above. When using any 3D enabled device with your PS4™ system you should read the instruction manual for that device and check www.us.playstation.com/support/3D for updated information. Radio waves Radio waves may affec…

Text truncated - open the document above for the full version.

Testing Kit (for PlayStation ® 4) Instruction ManualDUH-T1000AA 4-474-522- 11 (1) EN WARNINGSŞ6QCXQKFGNGEVTKECNUJQEMFQPQVQRGPVJGECDKPGV4GHGTUGT XKEKPIVQSWCNKHKGF RGTUQPPGNQPN[ Ş%#76+10 Ŝ7UGQHEQPVTQNUQTCFLWUVOGPVUQTRGTHQTOCPEGQHRTQEGFWTGUQVJGTVJCP VJQUGURGEKHKGFJGTGKPOC[TGUWNVKPJC\CTFQWUTCFKCVKQPGZRQUW TG Ŝ6JGWUGQHQRVKECNKPUVTWOGPVUYKVJVJKURTQFWEVYKNNKPETGCUGG[GJC\CTF Ş6JKUCRRNKCPEGKUENCUUKHKGFCUC%.#55.#5'4RTQFWEVWPFGT +'% CLASS 1 LASER PRODUCTLASER KLASE 1LUOKAN 1 LASER LAITEKLASS 1 LASERAPPARAT Photosensitivity/Epilepsy/Seizures#XGT[UOCNNRGTEGPVCIGQHKPFKXKFWCNUOC[GZRGTKGPEGGRKNGRVKEUGK\WTGUQTDNCEMQWVUYJGPGZRQUGFVQEGTVCKPNKIJVRCVVGTPUQTHNCUJKPINKIJVU'ZRQUWTGVQEGTVCKPRCVVGTPUQTDCEMITQWPFUQPCVGNGXKUKQPUETGGPQTYJGPRNC[KPIXKFGQICOGUOC[VTKIIGTGRKNGRVKEUGK\WTGUQTDNCEMQWVUKPVJGUGKPFKXKFWCNU6JGUGEQPFKVKQPU OC[VTKIIGTRTGXKQWUN[WPFGVGEVGFGRKNGRVKEU[ORVQOUQTUGK\WTG UKPRGTUQPUYJQ JCXGPQJKUVQT[QHRTKQTUGK\WTGUQTGRKNGRU[+H[QWQTCP[QPGKP[QWTHCOKN[JCUCP GRKNGRVKEEQPFKVKQPQTJCUJCFUGK\WTGUQHCP[MKPFEQPUWNV[QWTRJ[UKEKCPDGHQTG RNC[KPI+//'&+#6'.;&+5%106+07'WUGCPFEQPUWNV[QWTRJ[UKEKCPDGHQTGT GUWOKPI ICOGRNC[KH[QWQT[QWTEJKNFGZRGTKGPEGCP[QHVJGHQNNQYKPIJ GCNVJRTQDNGOUQT U[ORVQOUŞFK\\KPGUUŞCNVGTGFXKUKQPŞG[GQTOWUENGVYKVEJGUŞNQUUQHCYCTGPGUUŞFKUQTKGPVCVKQPŞUGK\WTGUQTŞCP[KPXQNWPVCT[OQXGOGPVQTEQPXWNUKQP4'57/')#/'2.#;10.;10#22418#.1(;1742*;5+%+#07UGCPFJCPFNKPIQHXKFGQICOGUVQTGFWEGVJGNKMGNKJQQFQHCU GK\WTG Ş7UGKPCYGNNNKVCTGCCPFMGGRCUHCTCYC[CURQUUKDNGHTQO VJGVGNGXKUKQPUETGGP Ş#XQKFNCTIGUETGGPVGNGXKUKQPU7UGVJGUOCNNGUVVGNGXKUKQPU ETGGPCXCKNCDNG Ş#XQKFRTQNQPIGFWUGQHVJGU[UVGO6CMGCOKPWVGDTGCMFWT KPIGCEJJQWTQH RNC[ Ş#XQKFRNC[KPIYJGP[QWCTGVKTGFQTPGGFUNGGR Radio waves4CFKQYCXGUOC[CHHGEVGNGEVTQPKEGSWKROGPVQTOGFKECNFGXKEGU HQTGZCORNG RCEGOCMGTU YJKEJOC[ECWUGOCNHWPEVKQPUCPFRQUUKDNGKPLWTKGUŞ+H[QWWUGCRCEGOCMGTQTQVJGTOGFKECNFGXKEGEQPUWNV[QWT RJ[UKEKCPQTVJG OCPWHCEVWTGTQH[QWTOGFKECNFGXKEGDGHQTGWUKPIVJGYKTGNGUUPGVYQTMKPIHGCVWTG Ş&QPQVWUGVJGYKTGNGUUPGVYQTMKPIHGCVWTGKPVJGHQNNQYKPINQECVKQPU Ŝ#TGCUYJGTGYKTGNGUUPGVYQTMWUGKURTQJKDKVGFUWEJCUKPJQURKVCNU#DKFGD[ OGFKECNKPUVKVWVKQPTGIWNCVKQPUYJGPWUKPIVJGU[UVGOQPVJGKT RTGOKUGU Ŝ#TGCUPGCTHKTGCNCTOUCWVQOCVKEFQQTUCPFQVJGTV[RGUQHCWVQOCVGF GSWKROGPV 3D images5QOGRGQRNGOC[GZRGTKGPEGFKUEQOHQTV UWEJCUG[GUVTCKPG[G HCVKIWGQTPCWUGC  YJKNGYCVEJKPI&XKFGQKOCIGUQTRNC[KPIUVGTGQUEQRKE&ICOGU QP& VGNGXKUKQPU+H[QWGZRGTKGPEGUWEJFKUEQOHQTV[QWUJQWNFKOOGF KCVGN[FKUEQPVKPWG WUGQH[QWTVGNGXKUKQPWPVKNVJGFKUEQOHQTVUWDUKFGU5%'TGEQOOGPFUVJCVCNNXKGYGTUVCMGTGIWNCTDTGCMUYJKNGYCVEJKPI&XKFGQQT RNC[KPIUVGTGQUEQRKE&ICOGU6JGNGPIVJCPFHTGSWGPE[QHPGEG UUCT[DTGCMUOC[ XCT[HTQORGTUQPVQRGTUQPŜRNGCUGVCMGDTGCMUVJCVCTGNQPIGPQWIJVQCNNQYCP[ HGGNKPIUQHFKUEQOHQTVVQUWDUKFG+HU[ORVQOURGTUKUVEQPUWNV[QWTRJ[UKEKCP9JGPWUKPIC&GPCDNGFFGXKEGYKVJ[QWTVGUVKPIMKVTGCFVJG KPUVTWEVKQPOCPWCN HQTVJCVFGXKEGRTKQTVQWUG For customers in the U.S.A. and Canada6JKUGSWKROGPVEQORNKGUYKVJ(%%+%TCFKCVKQPGZRQUWTGNKOKVUUGVHQTVJHQTCP WPEQPVTQNNGFGPXKTQPOGPVCPFOGGVUVJG(%%TCFKQHTGSWGPE[ 4( 'ZRQUWTG )WKFGNKPGUKP5WRRNGOGPV%VQ1'6CPF455QHVJG+%TCFKQHTGSWGPE[ 4(  'ZRQUWTGTWNGU6JKUGSWKROGPVUJQWNFDGKPUVCNNGFCPFQRGTCVGFYKVJCVNGCUV EO KP CPFOQTGDGVYGGPVJGTCFKCVQTCPFRGTUQPœUDQF[ GZENWFKPIGZVTGOKVKGU JCPFUYTKUVUHGGVCPFCPMNGU 6JKUVTCPUOKVVGTOWUVPQVDGEQNQECVGFQTQRGTCVGFKPEQPLWPEV KQPYKVJCP[QVJGT CPVGPPCQTVTCPUOKVVGT016'6JKUGSWKROGPVJCUDGGPVGUVGFCPFHQWPFVQEQORN[YKVJVJGNKOKVUHQTC%NCUU$ FKIKVCNFGXKEGRWTUWCPVVQ2CTVQHVJG(%%TWNGU6JGUGNKOKVUCTGFGUKIPGFVQRTQXKFGTGCUQPCDNGRTQVGEVKQPCICKPUVJCTOHWNKPVGTHGTGPEGKPCTGUKFGPVKCN KPUVCNNCVKQP6JKUGSWKROGPVIGPGTCVGUWUGUCPFECPTCFKCVGT CFKQHTGSWGPE[GPGTI[ CPFKHPQVKPUVCNNGFCPFWUGFKPCEEQTFCPEGYKVJVJGKPUVTWEVK QPUOC[ECWUGJCTOHWN KPVGTHGTGPEGVQTCFKQEQOOWPKECVKQPU*QYGXGTVJGTGKUPQIWCT CPVGGVJCV KPVGTHGTGPEGYKNNPQVQEEWTKPCRCTVKEWNCTKPUVCNNCVKQP+HVJKUGSWKROGPVFQGUECWUG JCTOHWNKPVGTHGTGPEGVQTCFKQQTVGNGXKUKQPTGEGRVKQPYJKEJECPDGFGVGTOKPGFD[ VWTPKPIVJGGSWKROGPVQHHCPFQPVJGWUGTKUGPEQWTCIGFVQVT[ VQEQTTGEVVJG KPVGTHGTGPEGD[QPGQTOQTGQHVJGHQNNQYKPIOGCUWTGU Ŝ4GQTKGPVQTTGNQECVGVJGTGEGKXKPICPVGPPCŜ+PETGCUGVJGUGRCTCVKQPDGVYGGPVJGGSWKROGPVCPFTGEGKXGTŜ%QPPGEVVJGGSWKROGPVKPVQCPQWVNGVQPCEKTEWKVFKHHGTGPVHTQOVJCVVQYJKEJ VJGTGEGKXGTKUEQPPGEVGF Ŝ%QPUWNVVJGFGCNGTQTCPGZRGTKGPEGFTCFKQ68VGEJPKEKCPHQT JGNR ;QWCTGECWVKQPGFVJCVCP[EJCPIGUQTOQFKHKECVKQPUPQVGZRTGUUN[CRRTQXGFD[VJG RCTV[TGURQPUKDNGHQTEQORNKCPEGEQWNFXQKFVJGWUGTœUCWVJQTKV[VQQRGTCVGVJG GSWKROGPV +H[QWJCXGSWGUVKQPUCDQWVVJKURTQFWEVXKUKVJVVRYYYUEGF GXPGVGOCKN &GXGNQRGT5WRRQTVCVFGXAVQQNU"RNC[UVCVKQPUQP[EQOQTYTKVGVQ  5QP[%QORWVGT'PVGTVCKPOGPV#OGTKEC..%&GXGNQRGT5WRRQTV$TKFIGRQKPVG2CTMYC[5CP/CVGQ%#75# &GENCTCVKQPQH%QPHQTOKV[ 6TCFG0COG 510; /QFGN0Q &7*6## 4GURQPUKDNG2CTV[ 5QP['NGEVTQPKEU+PE#FFTGUU 8KC'URTKNNQ  5CP&KGIQ%#75# 6GNGRJQPG0Q 6JKUFGXKEGEQORNKGUYKVJ2CTVQHVJG(%%4WNGUCPF455)GP QH+%4WNGU 1RGTCVKQPKUUWDLGEVVQVJGHQNNQYKPIVYQEQPFKVKQPU  VJKUFGXKEGOC[PQV ECWUGJCTOHWNKPVGTHGTGPEGCPF  VJKUFGXKEGOWUVCEEGRVCP[ KPVGTHGTGPEG TGEGKXGFKPENWFKPIKPVGTHGTGPEGVJCVOC[ECWUGWPFGUKTGFQRGTC VKQP Pour les utilisateurs aux États-Unis et au Canada%GV×SWKRGOGPVGUVEQPHQTOGCWZNKOKVGU…

Text truncated - open the document above for the full version.

40.069±1.5 5±1.5 機銘板 Co-Pro実機 機銘板貼り付け位置

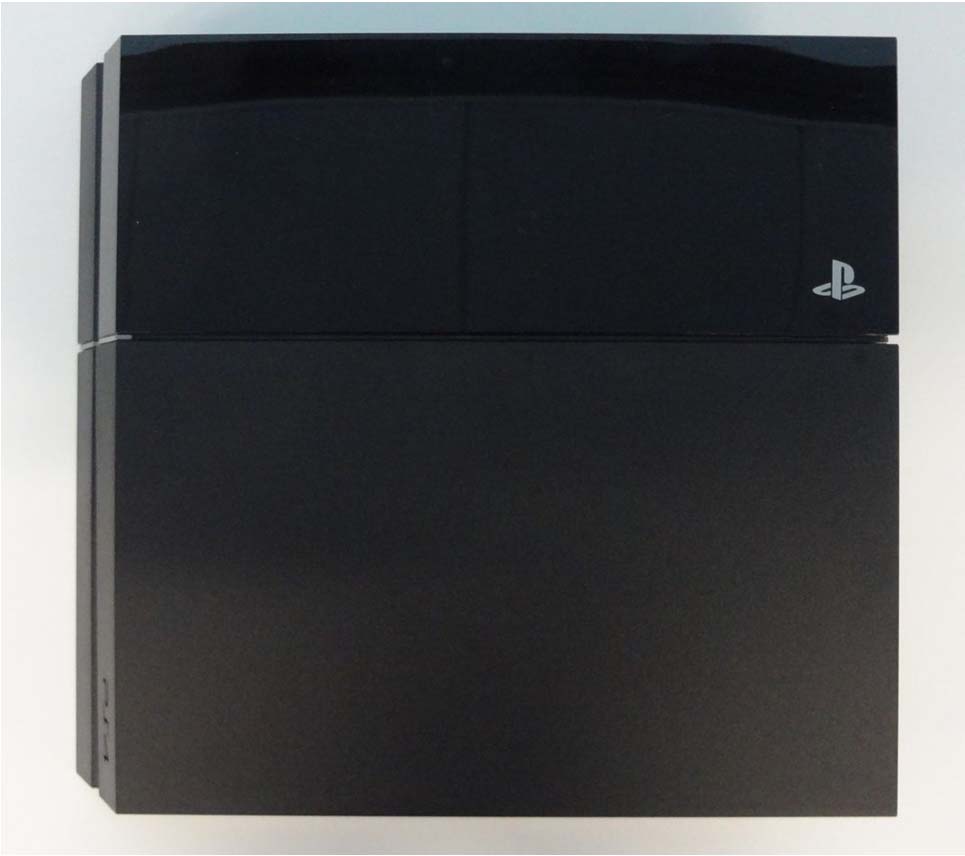

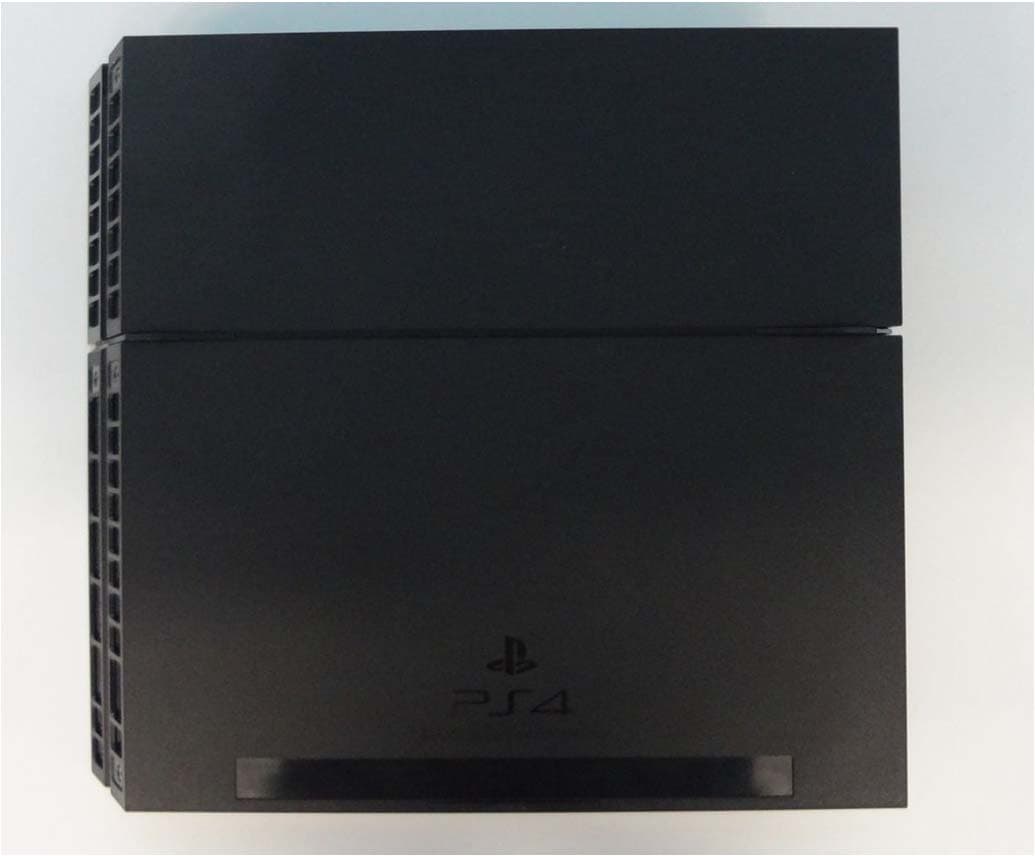

To p B o t t o m To p (without Shielding)

Applicant: Sony Computer Entertainment Inc. Type of Equipmen t: Computer Enternainment System *WLAN/Bluetooth(LE) part Model No. : CUH-1001A FCC ID: AK8CUH100C1 Sony Computer Entertainment Inc. declares that Model : CUH-1001A ⇒ complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “CUH-1001A“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 163.51 mW (Maximum peak output power) G = 3.99 Numerical Antenna gain; equal to6.01 dBi *1 r =20.0 c m For: CUH-1001A (WLAN part)S = 0.12980 mW/cm 2 *1: Antenna gain was calculated based on KDB662911D01, Directional antenna gain = G ANT + 10 log (N) dBi Where: G ANT is individual antenna gain, N is number of tansmit antenna [Reference] Bluetooth antenna does not have any correlation with WLAN antenna, but transmits simultaneously with WLAN antenna. If Bluetooth antenna has correlation with and transmits simultaneously with WLAN antenna, the formula is as follows: S = (P * G) / (4* π * r2) Where P = 2.00 mW (Maximum peak output power) G = 2.82 Numerical Antenna gain; equal to4.50 dBi r =20.0 cm For: CUH-1001A (Bluetooth part)S = 0.00112 mW/cm 2 Therefore, if Bluetooth antenna has correlation with and transmits simultaneously with WLAN antenna; S= 0.12980 mW/cm 2 + 0.00112 mW/cm 2 = 0.13092 mW/cm 2 No. : 10022574H RF Ex posure / MPE Calculation

Test report No. : 10022574H-A-R1 Page : 1 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10022574H-A-R1 Applicant : Sony Computer Entertainment Inc. Type of Equipment : Computer Entertainment System Model No. : CUH-1001A FCC ID : AK8CUH100C1 Test regulation : FCC Part 15 Subpart C: 2013 *WLAN, Bluetooth (LE) Part Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 10022574H-A. 10022574H-A is replaced with this report. Date of test: June 5 to 21, 2013 Representative test engineer: Takumi Shimada Engineer of WiSE Japan, UL Verification Service Approved by: Masanori Nishiyama Manager of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10022574H-A-R1 Page : 2 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10022574H-A Revision Test report No. Date Page revised Contents - (Original) 10022574H-A July 17, 2013 - - 1 10022574H-A-R1 July 18, 2013 4 Correction of the word: “electrical ratings” to “rating label” in Note *1 of Section 2.2 1 10022574H-A-R1 July 18, 2013 6 Addition of the statement on FCC 15B compliance 1 10022574H-A-R1 July 18, 2013 9 Correction of *1) sentence of “Details of Operating mode for WLAN” table Test report No. : 10022574H-A-R1 Page : 3 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Conducted Emission .......................................................................................................... 12 SECTION 6: Radiated Spurious Emission ............................................................................................ 13 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 15 APPENDIX 1: Data of EMI test .............................................................................................................. 16 Conducted Emission ......................................................................................................................... 16 6dB Bandwidth ................................................................................................................................. 22 Maximum Peak Output Power .......................................................................................................... 27 Radiated Spurious Emission ............................................................................................................. 31 Conducted Spurious Emission .......................................................................................................... 42 Power Density ................................................................................................................................... 46 99%Occupied Bandwidth ................................................................................................................. 54 APPENDIX 2: Test instruments ............................................................................................................. 57 APPENDIX 3: Photographs of test setup ............................................................................................... 58 Conducted Emission ......................................................................................................................... 58 Radiated Spurious Emission ............................................................................................................. 59 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 60 Test Configuration and peripherals ................................................................................................... 61 Test report No. : 10022574H-A-R1 Page : 4 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 1-7-1…

Text truncated - open the document above for the full version.

Test report No. : 10022574H-A-R1 Page : 58 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10022574H-A-R1 Page : 59 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10022574H-A-R1 Page : 60 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Test report No. : 10022574H-A-R1 Page : 61 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Test Configuration and peripherals * Cabling and setup were taken into consideration and test data was taken under worse case conditions. A 10 G B C F 21 D 3 4 9 6 8 7 5 AC 120V/60Hz AC 120V/60Hz AC120V/60Hz E H : Ferrite Core (Standard Attachment) Test report No. : 10022574H-A-R1 Page : 62 of 62 Issued date : July 17, 2013 Revised date : July 18, 2013 FCC ID : AK8CUH100C1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Description of EUT and Support equipment No Item Model number Serial number Manufacturer Remarks A Computer Entertainment System CUH-1001A 20689DD2A5A3 for AT* 1500008 for CE and RE* Sony Computer Entertainment EUT B Laptop PC X61 LV-R3VXK Lenovo - C Monitor VW26L+DTV2 0F LFMBBAI1333183 VISIO - D USB3.0 HDD HD-EG5 BE (500G) 8CV0A5K34118A63 SONY - E AC Adaptor 45N012 11S45N0121Z1ZHXU26P NX1 Lenovo - F Controller CUH-ZCT1U JD25GTJ01145 Sony Computer Entertainment - G Camera CUH-ZEY1 LK20GTC10901 Sony Computer Entertainment - H Earphone - - Sony Computer Entertainment - *AT: Antenna Terminal Conducted test, CE: Conducted Emission test, RE: Radiated Emission test List of cables used No Name Length (m) Shield Remarks Cable Connector 1 HDMI Cable 2.0 Shielded Shielded - 2 LAN Cable 2.0 Shielded Shielded - 3 USB Cable 1.5 Shielded Shielded - 4 USB Cable 1.0 Shielded Shielded - 5 AC Cable 1.5 Unshielded Unshielded - 6 DC Cable 1.8 Shielded Shielded - 7 AC Cable 1.8 Unshielded Unshielded - 8 AC Cable 1.0 Unshielded Unshielded - 9 Earphone Cable 1.2 Unshielded Unshielded - 10 USB Cable 2.0 Shielded Shielded - End of Report
