AK8CUHZCT1F1Wireless Controller

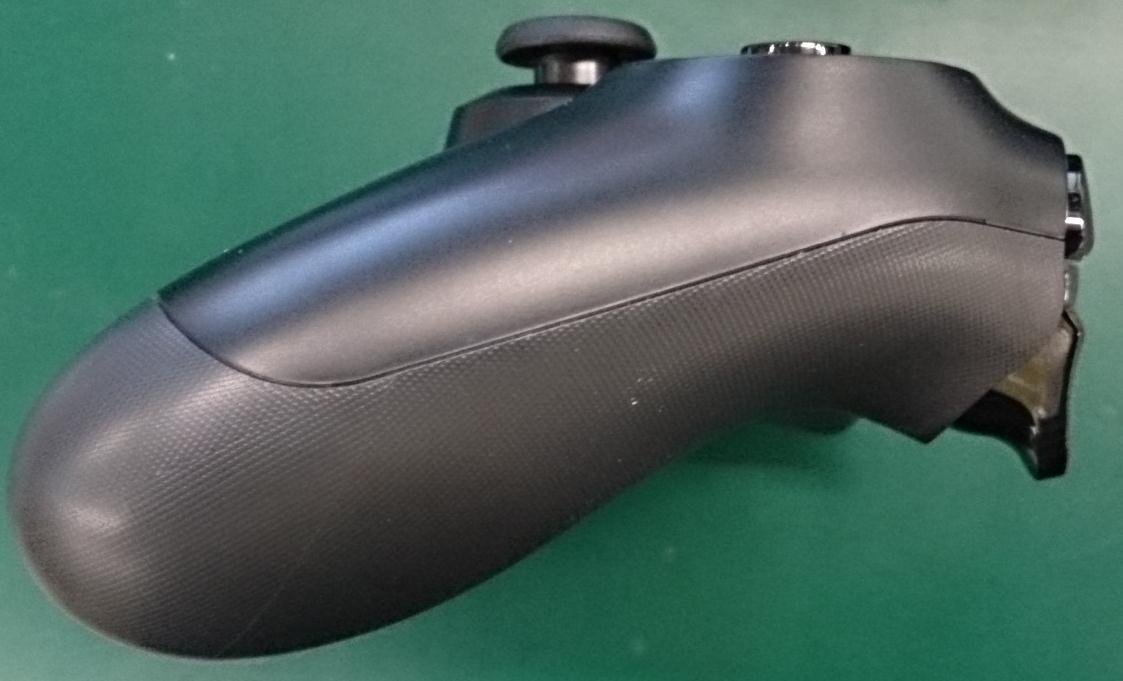

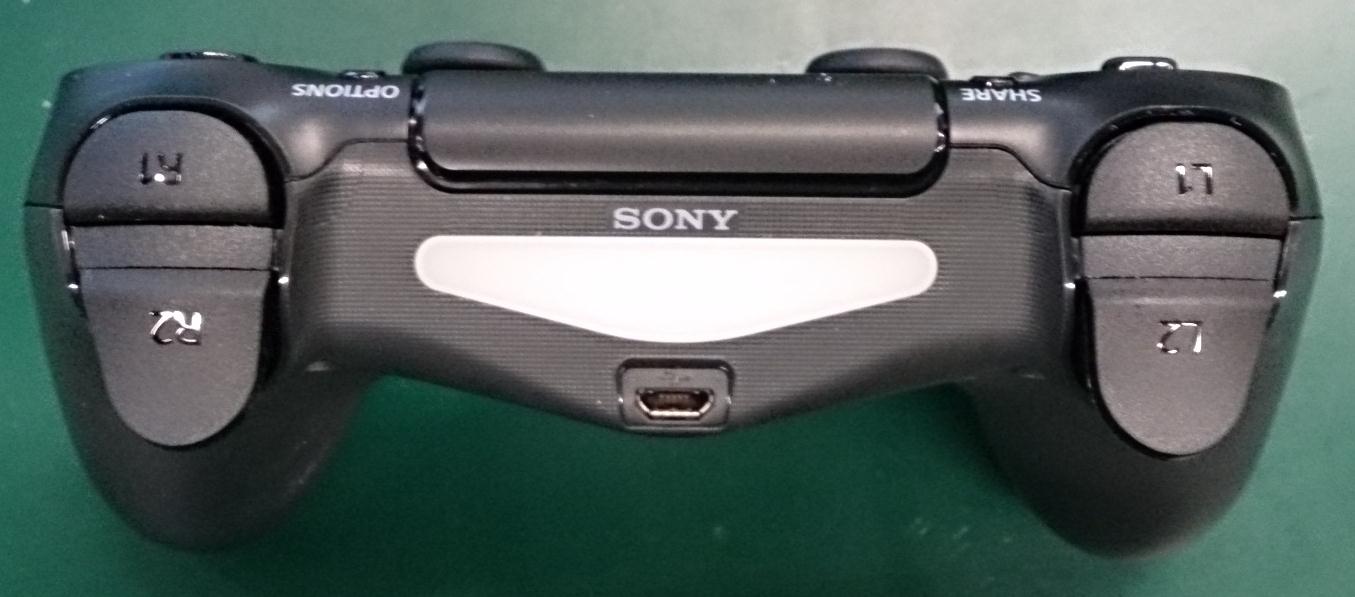

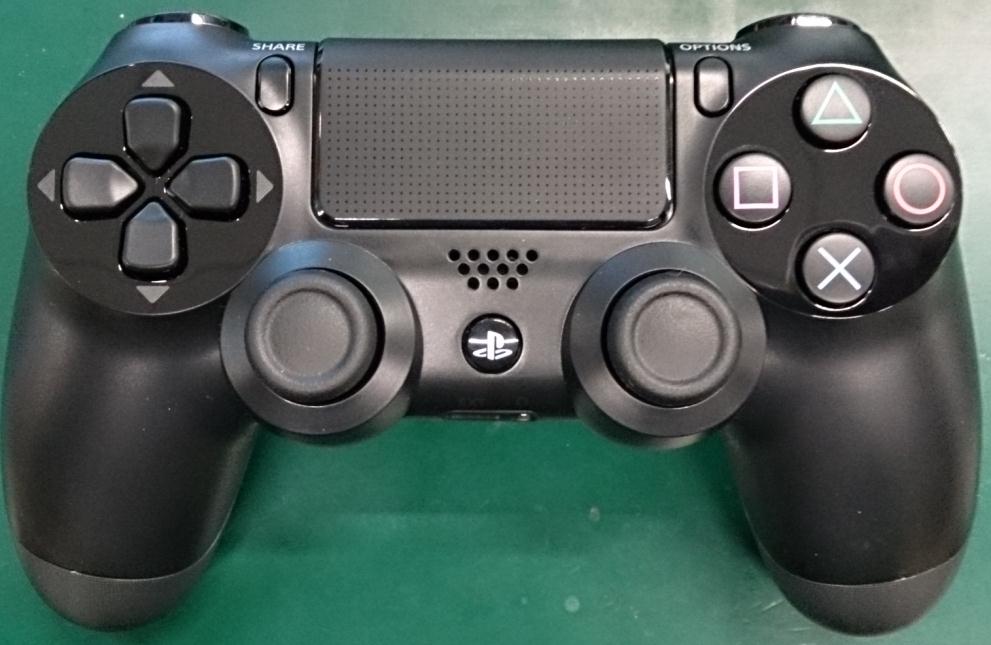

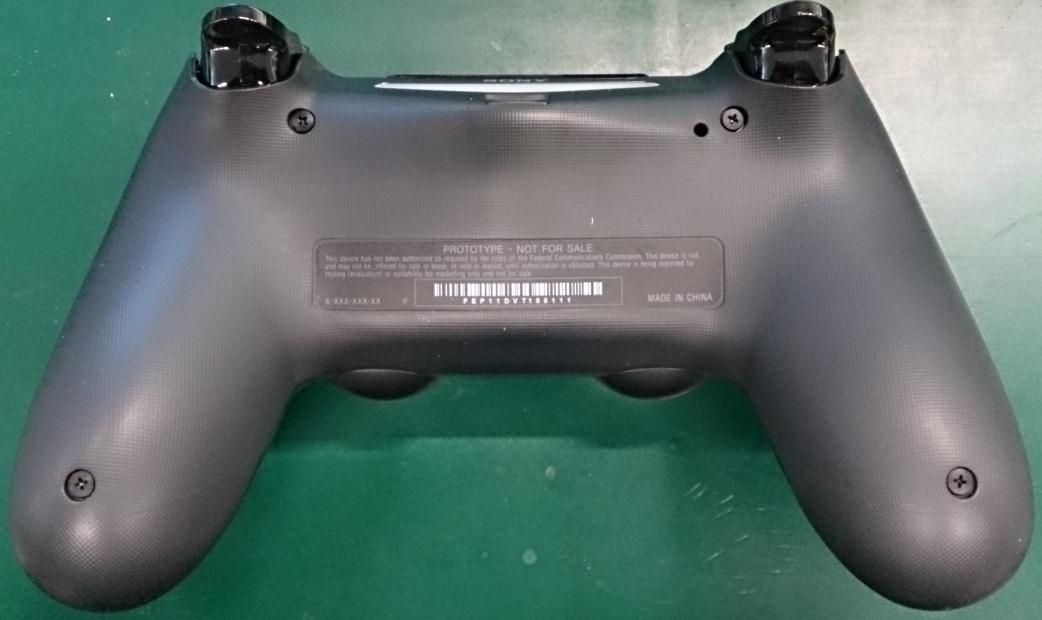

Outside Front Outside Rear Outside Top Outside Bottom Outside Right Outside Left

Label Location Label

Inside (1) Inside (2) Inside (3) PWB (Aside) PWB (Bside) Bluetooth Module Antenna Antenna (Bside) Photograph top bottom

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp March 28, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: AK8CUHZCT1F1 To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless Controller, model: CUH-ZCT1U (FCC ID: AK8CUHZCT1F1) of Sony Computer Entertainment Inc. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5 mm (minimum separation distance: 5mm was used in the calculation) and the measured maximum average output power was 1mW. So for this device: 1mW[measured maximum average output power]/5mm[minimum separation distance]*√2.48 = 0.3. *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Sincerely, Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan, UL Verification Service, UL Japan, Inc.

Test report No. : 10240262H-A-R1 Page : 1 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10240262H-A-R1 Applicant : Sony Computer Entertainment Inc. Type of Equipment : Wireless Controller Model No. : CUH-ZCT1U FCC ID : AK8CUHZCT1F1 Test regulation: FCC Part 15 Subpart C: 2013 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 10240262H-A. 10240262H-A is replaced with this report. Date of test: March 4 to 18, 2014 Representative test engineer: Takumi Shimada Engineer of WiSE Japan, UL Verification Service Approved by: Masanori Nishiyama Manager of WiSE Japan, UL Verification Service NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10240262H-A-R1 Page : 2 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10240262H-A Revision Test report No. Date Page revised Contents - (Original) 10240262H-A March 28, 2014 - - 1 10240262H-A-R1 April 1, 2014 4 Addition of “(except radio part)” to the item name: Maximum clock frequency in the system Test report No. : 10240262H-A-R1 Page : 3 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 17 Number of Hopping Frequency ........................................................................................................ 20 Dwell time ......................................................................................................................................... 22 Maximum Peak Output Power .......................................................................................................... 25 Radiated Spurious Emission ............................................................................................................. 27 Conducted Spurious Emission .......................................................................................................... 36 Conducted Emission Band Edge compliance ................................................................................... 48 99%Occupied Bandwidth ................................................................................................................. 50 APPENDIX 2: Test instruments ............................................................................................................. 52 APPENDIX 3: Photographs of test setup ............................................................................................... 53 Conducted Spurious Emission .......................................................................................................... 53 Radiated Spurious Emission ............................................................................................................. 54 Worst Case Position (Horizontal: Z-axis/ Vertical: Y-axis) ............................................................. 55 Test Configuration and peripherals ................................................................................................... 56 Test report No. : 10240262H-A-R1 Page : 4 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Bran…

Text truncated - open the document above for the full version.

Test report No. : 10240262H-A-R1 Page : 53 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Spurious Emission Photo 1 Photo 2 Test report No. : 10240262H-A-R1 Page : 54 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10240262H-A-R1 Page : 55 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis Test report No. : 10240262H-A-R1 Page : 56 of 56 Issued date : March 28, 2014 Revised date : April 1, 2014 FCC ID : AK8CUHZCT1F1 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Test Configuration and peripherals *Cabling and setup were taken into consideration and test data was taken under worse case conditions. Description of EUT and Support equipment No Item Model number Serial number Manufacturer Remarks A Wireless Controller CUH-ZCT1U 00127 for AT 00128 for RE Sony Computer Entertainment EUT B Laptop PC 2324A82(7P) 29759700 Lenovo - C AC Adapter 45N0121 11S45N012Z1ZHXU 2CB96T Lenovo - D Mouse X05-89304 4102 Microsoft - E IN-EAR HEAD SET - - Sony Computer Entertainment - F Test Jig - - Sony Computer Entertainment - *AT: Antenna Terminal Conducted test, RE: Radiated Emission test List of cables used No Name Length (m) Shield Remarks Cable Connector 1 USB Cable 1.5 Shielded Shielded - 2 DC Cable 1.8 Shielded Shielded - 3 AC Cable 1.0 Unshielded Unshielded - 4 USB Cable 0.8 Shielded Shielded - 5 IN-EAR HEAD SET Cable 1.2 Shielded Shielded - End of Report B C 2 3 E 5 A F 4 1 D : Ferrite Core (Standard Attachment) AC 120V/60Hz
