1 Sony CPDG/Semiconductor Biz.HSS Div./ID Dep. CXN5000 Module Installation Manual 2 EX.)The Image for installation of CXN5000 Module CXN5 000 Module Note PC Installed ins i de Note PC Cable: See next Page The followi ng sentences are added to the label of end product. “Contai n s Transmitter Modul e F CC ID : AK8CXN5000, IC: 409B-CXN5000” o r “Contai n s FCC ID: AK8CXN5000, IC: 409B -CXN5000” 3 Coupler s ide > 7 m m U.FL-2LP-068N2-A- Module s ide 10~40mm Sony Chemical & Informat ion Device Corporati o n A B AB coaxial cable

Sony Corporation 2009/08/27 Final Products Users Manual ○FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ○NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 2 ○This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. 3

Untitled 11/20/2009, 12:56 PM Change the STC date to 12/01/2009. BT Page 1

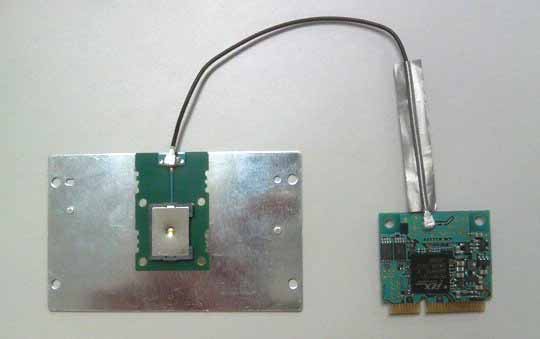

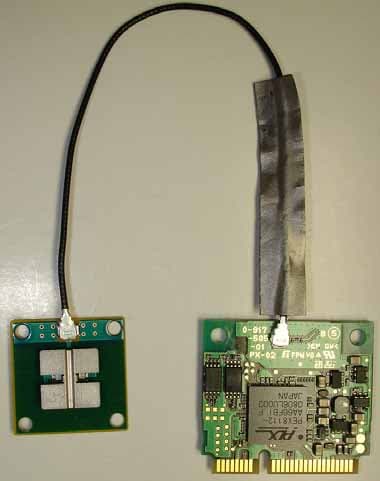

1 CXN5000 Module with Coupler Sony CPDG/Semiconductor Biz.HSS Div./ID Dep. 2 Radio Wave Containment Sheet:KG1510 Series TransferJet Coupler: RC-S629 Module:CXN5000 TransferJet Coupler: CXN5000CPRMPS(WHA9400-1632F), WHA9400-1632E Module:CXN5000 3 Radio Wave Containment Sheet:KG1510 SeriesModule: TransferJet Coupler: AJC-L08-02 Module:CXN5000

CXN5000 Module Product Label Sony CPDG/Semiconductor Biz.HSS Div./ID Dep. Module Label Label SpecificationTop of the Shield case Label Material: polyesterBinding mater i al: acrylic Thickness: 50u m G86000000000

Sony CPDG/Semiconductor Biz.HSS Div./ID Dep.

Bandwidth (Regulation: FCC 15.503(d) 519(b)) UL Japan, Inc. SHONAN No.3 Shield Room COMPANY : Sony Corporation REPORT No. : 29LE0155-SH-A Equipment : TransferJet Module REGULATION : FCC Part15SubpartF 503(d) 519(b) MODEL NUMBER : CXN5000 DATE : 2009/7/23 SERIAL NUMBER : 5000-01 TEMP./HUMI : 26 ̊C/46% POWER : DC3.3V TEST MODE : Transmitting Remarks : - ENGINEER : Tatsuya Arai 10dB Bandwidth: 756.5MHz (LIMIT: >500MHz) Occupied Bandwidth (99%) : 865.8MHz Start Frequency: 3480MHz Stop Frequency: 5480MHz UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 29LE0155-SH-A Company: Sony Corporation Equipment: TransferJet ModuleRegulation: FCC Part15F Section 15.519(c) Model : CXN5000 Test Distance : 3m / 0.5m / 0.3m Sample No.: 5000-01Date : 2009/7/21 2009/7/23 Power: DC3.3Temperature: 26deg.C25deg.C Mode: TransmittingHumidity: 62%49% ENGINEER : Tatsuya Arai Horizontal (RBW: 1MHz) No.FREQ READINGANTAMPCABLE Distance RESULT LIMITMARGIN Detector FactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB] 1500.0030.417.431.99.10.025.046.021.0QP 2960.0025.222.530.510.40.027.646.018.4QP 31607.0036.325.839.61.515.68.419.911.5RMS 41983.4437.526.539.91.815.610.331.921.6RMS 53084.0037.128.740.22.215.612.233.921.7RMS 64480.0045.931.039.82.615.624.153.929.8RMS 78960.0036.437.537.33.915.624.953.929.0RMS 813440.0035.640.136.94.620.023.433.910.5RMS No1-2:3m, 3-7: 0.5m, No.8: 0.3m Vertical (RBW: 1MHz ) No.FREQ READINGANTAMPCABLE Distance RESULT LIMITMARGIN Detector FactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB] 1500.0029.817.431.99.10.024.446.021.6QP 2960.0024.422.530.510.40.026.846.019.2QP 31606.0036.225.839.61.515.68.319.911.6RMS 41988.0036.426.539.91.815.69.231.922.7RMS 53095.0037.028.740.22.215.612.133.921.8RMS 64480.0045.331.039.82.615.623.553.930.4RMS 78960.0035.437.537.33.915.623.953.930.0RMS 813440.0035.540.136.94.620.023.333.910.6RMS No1-2:3m, 3-7: 0.5m, No.8: 0.3m Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Loss (Cable + ATT) - Distance Factor Distance Factor calculation 0.5m: 20*log (3.0[m]/0.5[m]) = 15.6[dB] 0.3m: 20*log (3.0[m]/0.3[m]) = 20.0[dB] LIMIT=EIRP Limit + 95.2 （15.503(k)） DATA OF RADIATION TEST (Regulation: FCC 15.519(c)) UL Japan, Inc. YAMAKITA NO.3 ANECHOIC CHAMBER Report No.: 29LE0155-SH-A Company: Sony Corporation Equipment: TransferJet ModuleRegulation: FCC Part15F Section 15.519(d) Model : CXN5000 Test Distance : 0.5m Sample No.: 5000-01Date : 2009/7/23 Power: DC3.3Temperature: 25deg.C Mode: TransmittingHumidity: 49% ENGINEER : Tatsuya Arai Horizontal (RBW: 1kHz) No.FREQ READING ANTAMP CABLE Distance RESULT LIMIT MARGIN Detector FactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB][dBuV/m ][dBuV/m][dB] 11237.4915.024.939.71.415.6-14.09.923.9RMS 21607.9613.725.839.61.615.6-14.19.924.0RMS Vertical (RBW: 1kHz) No.FREQ READING ANTAMP CABLE Distance RESULT LIMIT MARGIN Detector FactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB][dBuV/m ][dBuV/m][dB] 11238.0114.624.939.71.415.6-15.29.925.1RMS 21607.0913.825.839.61.515.6-15.29.925.1RMS Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Loss (Cable + ATT) - Distance Factor Distance Factor calculation: 20*log (3.0[m]/0.5[m]) = 15.6[dB] LIMIT=EIRP Limit + 95.2 （15.503(k)） DATA OF RADIATION TEST (Regulation: FCC 15.519(d)) UL Japan, Inc. YAMAKITA NO.1 ANECHOIC CHAMBER Report No.: 29LE0155-SH-A Company: Sony Corporation Equipment: TransferJet ModuleRegulation: FCC Part15F Section 15.519(e) Model : CXN5000 Test Distance : 0.5m Sample No.: 5000-01Date : 2009/7/21 Power: DC3.3Temperature: 26deg.C Mode: TransmittingHumidity: 62% ENGINEER : Tatsuya Arai Horizontal (RBW: 3MHz) No.FREQ READIN GANTAMP CABLE Distance RESULT LIMIT MARGIN Detector FactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB] [dBuV/m][dBuV/m ][dB] 14494.0058.531.039.82.615.636.770.834.0Peak Vertical (RBW: 3MHz) No.FREQ READINGANTAMP CABLE Distance RESULT LIMIT MARGIN Detector FactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB] [dBuV/m][dBuV/m ][dB] 14500.0057.831.039.82.615.636.070.834.7Peak Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Loss (Cable + ATT) - Distance Factor Distance Factor calculation :20*log (3.0[m]/0.5[m]) = 15.6[dB] LIMIT=EIRP ＋ 20log(RBW/50) + 95.2 （15.521(g)） DATA OF RADIATION TEST (Regulation: FCC 15.519(e)) Transmitter Timeout (Regulation: FCC 15.519(a)(1)) UL Japan, Inc. SHONAN No.3 Shield Room COMPANY : Sony Corporation REPORT No. : 29LE0155-SH-A Equipment : TransferJet Module REGULATION : FCC Part15SubpartF 519(a)(1) MODEL NUMBER : CXN5000 DATE : 2009/7/23 SERIAL NUMBER : 5000-04 TEMP./HUMI : 26 ̊C/46% POWER : DC3.3V TEST MODE : Transmitting Remarks : - ENGINEER : Tatsuya Arai Transmitter Timeout: 996.7ms (LIMIT: <10s) UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 29LE0155-SH-A Company: Sony Corporation Equipment: TransferJet ModuleRegulation: FCC Part15F Section 15.519(c) Model : CXN5000 Test Distance : 0.5m Sample No.: 5000-01Date : 2009/7/21 Power: DC3.3Temperature: 26deg.C Mode: TransmittingHumidity: 62% ENGINEER : Tatsuya Arai Horizontal (RBW: 1MHz) No. AntennaCableFREQ READING ANTAMPCABLE Distance RESULTLIMIT MARGIN Detector TypeTypeFactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB] 1114480.0045.931.039.82.615.624.153.929.8RMS 2124480.0045.031.039.82.615.623.253.930.7RMS 3214480.0045.331.039.82.615.623.553.930.4RMS 4314480.0045.331.039.82.615.623.553.930.4RMS Vertical (RBW: 1MHz ) No. AntennaCableFREQ READING ANTAMPCABLE Distance RESULTLIMIT MARGIN Detector TypeTypeFactorGAINLOSS Factor [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB] 1114480.0045.331.039.82.615.623.553.930.4RMS 2124480.0044.931.039.82.615.623.153.930.8RMS 3214480.0044.931.039.82.615.623.153.930.8RMS 4314480.0045.431.039.82.615.623.653.930.3RMS Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Loss (Cable + ATT) - Distance Factor Distance Factor calculati o0.5m: 20*log (3.0[m]/0.5[m]) = 15.6[dB] LIMIT=EIRP Limit + 95.2 （15.503(k)） DATA OF RADIATION TEST (Precheck Worst C…

Text truncated - open the document above for the full version.

FCC ID : AK8CXN5000 Test report No. : 29LE0155-SH-A Page : 2 of 24 Issued date : July 29, 2009 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 MF060b (09.01.08) Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Conducted emission 7 6 UWB bandwidth & Occupied bandwidth (99%) 7 7 Radiated Emission and Peak level of the Emission 8 8 Transmitter Timeout 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test data 17 APPENDIX 3: Test instruments 24 FCC ID : AK8CXN5000 Test report No. : 29LE0155-SH-A Page : 3 of 24 Issued date : July 29, 2009 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 MF060b (09.01.08) 1 Applicant information Company Name : Sony Corporation Address : 4-14-1 Asahi-cho, Atsugi-shi, Kanagawa-ken, 243-0014 Japan Telephone Number : +81-46-202-8997 Facsimile Number : +81-46-202-6230 Contact Person : Katsuya Kameoka 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : TransferJet Module Model No. : CXN5000 Serial No. : 5000-01 Rating : DC3.3V / 0.45A Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : July 17, 2009 2.2 Product description Model: CXN5000 (referred to as the EUT in this report) is a TransferJet Module. The EUT has some similar model, BB00-1, AA00-1 and AAA0-1. The differences between BB00-1 and AA00-1 are belows. 1. AA00-1 is eliminated two Logic ICs. 2. AA00-1 is put the 0ohm resistance differ from BB00-1. AAA0-1 bundled items for AA00-1 and CXN5000CPRMPS (WHA9400-1632F/ WHA9400-1632E). *) BB00-1 was used for the test. Equipment type : Transceiver Frequency of operation : 4480MHz Clock frequency : 20MHz Effective Bandwidth (not 10dB Bandwidth) : 560MHz Type of modulation : DSSS Antenna type : TransferJet Coupler Antenna connector type : U-FL Antenna gain : CXN5000CPRMPS (WHA9400-1632F / WHA9400-1632E): [email protected] RC-S629: [email protected] AJC-L08-02: [email protected] ITU code : Q7D Operation temperature range : -20 ~ +70 deg.C. FCC 15.31 (e) The RF Module has its own regulator. The RF Module is constantly provided voltage (DC3.3V, DC1.8V) through its own regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 The EUT has a unique coupling/antenna connector U-FL. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : AK8CXN5000 Test report No. : 29LE0155-SH-A Page : 4 of 24 Issued date : July 29, 2009 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 MF060b (09.01.08) 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart F: 2009, final revised on February 27, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart F Ultra-Wideband Operation Section 15.519 Technical requirements for hand held UWB systems * The EUT complies with FCC Part 15 Subpart B: 2009, final revised on February 27, 2009. 3.2 Procedures & Results (Hand held UWB systems) Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 FCC 15.505(a) FCC 15.207 - N/A 11.5dB 0.22816MHz, L1, QP Complied UWB Bandwidth ANSI C63.4:2003 FCC 15.503 (a) FCC 15.503 (d) FCC 15.519 (b) ConductedN/A - Complied Radiated Emission ANSI C63.4:2003 FCC 15.521 (d) 15.519 (c) (d) Radiated N/A 10.5dB 13440.00MHz, Horizontal Complied Peak level of the Emission ANSI C63.4:2003 FCC 15.521 (e) (g) FCC 15.209 FCC 15.519 (e) Radiated N/A 34.0dB 4494.00MHz, Horizontal Complied Transmitter Timeout ANSI C63.4:2003 FCC 15.519 (a) (1) ConductedN/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted - N/A * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : AK8CXN5000 Test report No. : 29LE0155-SH-A Page : 5 of 24 Issued date : July 29, 2009 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 MF060b (09.01.08) 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 anechoic chamber ( ± ) No.2 anechoic chamber ( ± ) No.3 anechoic chamber ( ± ) Conducted emission 150kHz-30MHz 3.0 dB 2.7 dB 2.8 dB Radiated emission (3m) 30-300MHz 4.4 dB 4.3 dB 4.5 dB 300-1000MHz 4.3 dB 4.2 dB 4.5 dB 1GHz< 5.7 dB 5.6 dB 5.6 dB Conducted emission test The data listed in this test report has enough margin, more than site margin. Radiated emission test The data listed in this test report has enough margin, more than site margin. 3.5 Test location UL Japan, Inc. Shonan EMC Lab. 1-22-3, Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 No.1/ No.2/ No.3 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on April 17, 2009 (Registration No.: 697847). IC Registration No. : 2973D-1 (No1 anechoic chamber) 2973D-2 (No2 anechoic chamber) 2973D-3 (No3 anechoic chamber) Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.1 Shielded room 6.8 x 4.1 x 2.7 No.2 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.2 Shielded roo…
