AK8CXN5100TransferJet Module

2012/01/10SonyPDSG/Semiconductor Biz.Analog LSI Business Div./CLP Dep. CXN5100 Module Installation Manual EX.) The Image for installation of CXN5100 Module CXN5100 module Coupler(antenna) cable Only the coupler (LDA5M4G4815L-301 or LDA5 M4G4820L-302) which received approval with CXN5100 can be used. By using another coupler mentioned above, addi tional measurement with the coupler and application to FCC will be needed based on ”Permissive Change Policies”. The product which equips CXN5100 should provide : - stable power supply of DC3.3V and 1.8V to CXN5100- the SDIO interface (version 2.00) to CXN5100 FCC Contains Transmitter Module FCC ID:AK8CXN5100 or Contains FCC ID:AK8CXN5100 The following sentences are added to the label and of end product. This device complies with Part 15 of F CC Rules . Operation is subject to the following two conditions: (1) this dev ice may not cause interference, and (2) this device must accept any interf erence, including interference that may cause undesired operati on of this device. If there is any other required sentences to the end product fr om FCC, It should be added to the user manual. The following sentences are added to the user manual of end product. FCC Contains Transmitter Module FCC ID:AK8CXN5100 or Contains FCC ID:AK8CXN5100 FCC WARNINGChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

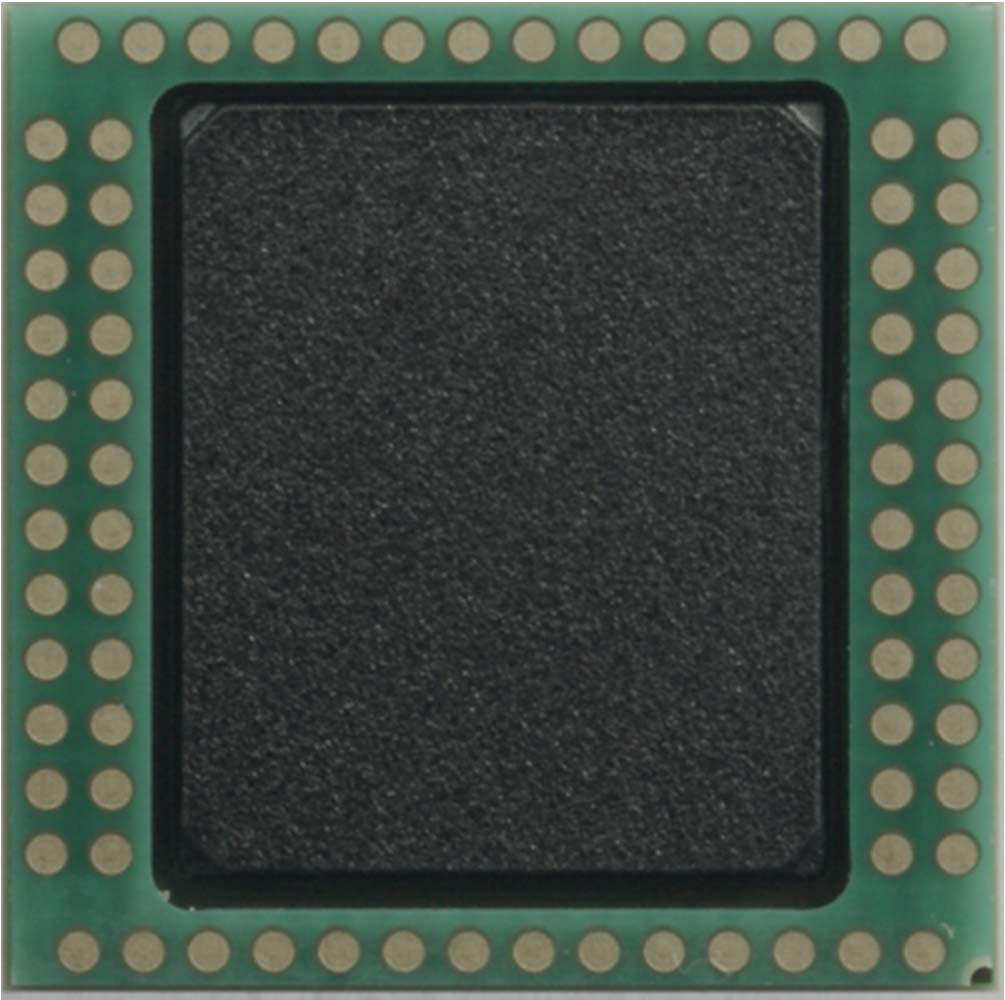

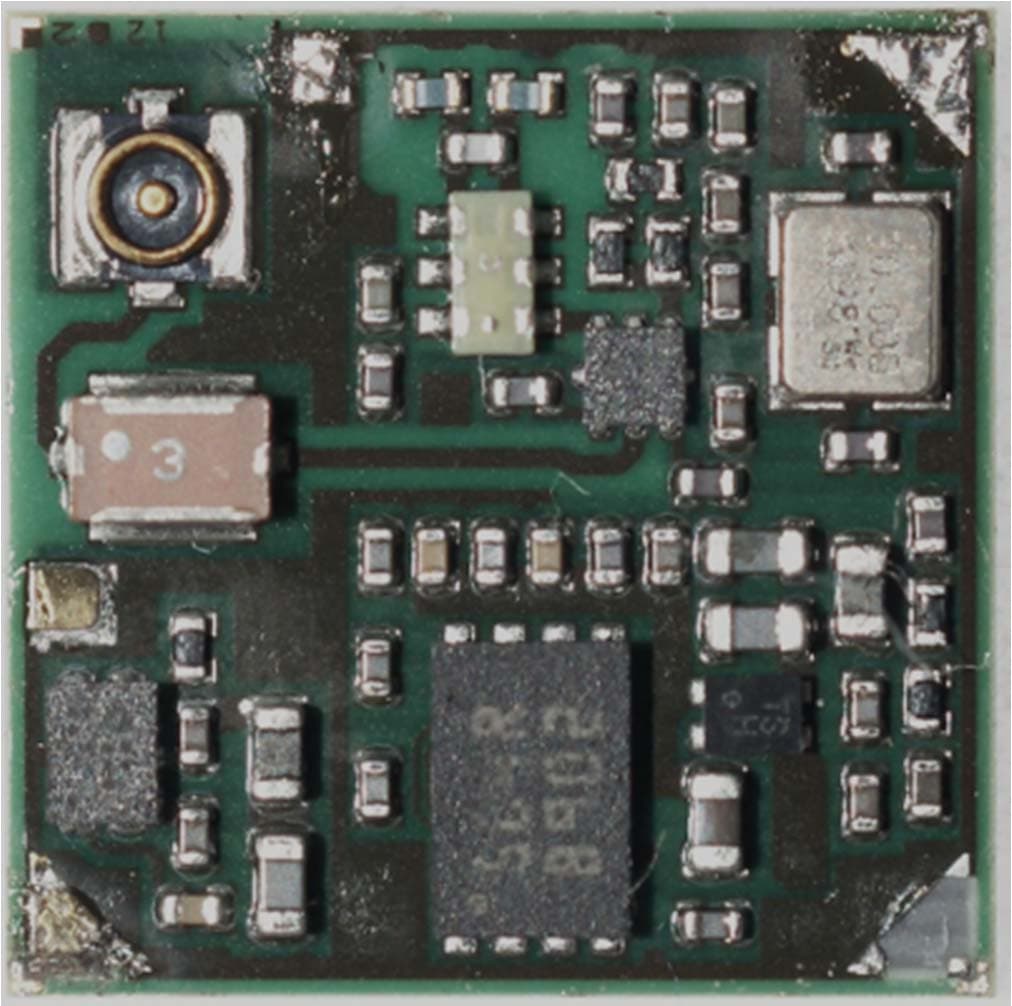

1 Sony Proprietary & Confidential CXN5100Pictures Nov. 15, 2011Sony Corporation 2 Sony Proprietary & Confidential Front with Shield 3 Sony Proprietary & Confidential Front without Shield 4 Sony Proprietary & Confidential Back

1 Sony Proprietary & Confidential CXN5100Module with Coupler Nov. 15, 2011Sony Corporation 2 Sony Proprietary & Confidential 20mm RF Cable with Coupler RF Cable: 20mm Module: CXN5100 TransferJet Coupler:LDA5M4G4815L-301 TransferJet Coupler:LDA5M4G4820L-302 3 Sony Proprietary & Confidential 200mm RF Cable with Coupler RF Cable: 200mm TransferJet Coupler:LDA5M4G4815L-301 TransferJet Coupler:LDA5M4G4820L-302 Module: CXN5100

1 Sony Proprietary & Confidential CXN5100Label(Marking) Information ( FCC ) Nov. 18, 2011Sony Corporation 2 Sony Proprietary & Confidential Module Label(Marking) Example This Picture shows the module label information, actually it is a “Laser Making” on a shield case of the module. The FCC ID / IC Number of this modul e is shown on the user manual of the final product based on KDB No.784748 Section 2.2 because of the reasons below; - FCC ID / IC Number character length will be over 9.6mm (the shield case width). Minimu m character pitch of the Laser maker we use is 0.68mm. - And also, the size of this modular transmitter is too small for the FCC ID / IC Number to be readable. So, please refer to the user manual of the final product. If the FCC ID / IC Number is not visible when the module is installed inside anothe r device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module : If FCC ID / IC Number is not visible, The FCC ID / IC Number will also be displayed on th e host device. Please refer to the installation manual. 9.6 mm 9.6 mm DirectionDisplay Lot Number Manufacturer’s Logo Model Name M/N : CXN5100 FCC ID: AK8CXN5100 Minimum character size of the Laser Maker is pitch 0.68mm, height 0.80mm 2.72mm 0.5 4.76mm 7.98mm(11 characters + gap) gap IC: 409B-CXN5100 10.2mm (15 characters)11.56mm (17 characters) 3 Sony Proprietary & Confidential EoF

11/10/2008 1 784748 D01 Labelling Part 15 &18 Guidelines v07 Federal Communications Commission Office of Engineering and Technology Laboratory Division Guidelines for Labelling and User Information for Devices Subject to Part 15 and Part 18 1. General This document provides a guide to the applicable rule sections for labelling, and information provided to users, required for authorization of Part 15 and Part 18 Radio Frequency (RF) equipment. Labelling is determined by the type of equipment authorization procedure, or procedures, required for a specific RF device. The procedure is determined by the rule parts regulating the specific type of equipment. In some cases, multiple authorization procedures may be required (see 7.Multiple Authorization Procedures below). Initially, a determination of the applicable equipment authorization procedure or procedures (Verification, Declaration of Conformity (DoC) or Certification) for the specific RF equipment must be made. The following provide references to the pertinent rule Subpart sections for equipment authorization procedures; and the pertinent information and/or the specific equipment authorization procedure required for different types of equipment: • Part 2 Subpart J - General equipment authorization procedures applicable for all types of equipment; • Part 15 Subpart A (Section 15.3) - General definitions of unlicensed unintentional and intentional radiators; digital Class A and Class B devices; • Part 15 Subpart B (Section 15.101) – Equipment authorization procedures for unintentional radiators; • Part 15 Subpart C (Section 15.201), Subpart D (Section 15.305), Subpart E (Section 15.405), Subpart F (Section 15.505) and Subpart G (Section 15.607) - Identify applicable procedures for intentional radiators; • Part 18 Subpart B (Section 18.203) - General information regarding applications and authorizations for industrial, scientific and medical (ISM) equipment. For information about purchasing and/or to view the Commission’s rules and regulations online: http://wireless.fcc.gov/rules.html 11/10/2008 2 784748 D01 Labelling Part 15 &18 Guidelines v07 2. Labelling Requirements for Part 15 Devices: 2.1 Verification The specific labelling requirements for a device subject to the Verification procedure are contained in Section 15.19(a). These labelling requirements are: If the device is subject only to Verification, include a label bearing a unique identifier (Section 2.954) and one of three compliance statements specified in Section 15.19(a). If the labelling area for the device is so small, and/or it is not practical to place the compliance statement on the device, then the statement can be placed in the user manual or product packaging (Section 15.19(a)(5)). However, the device must still be labelled with the unique identifier (Verification). Generally, devices smaller than the palm of the hand are considered too small for the compliance statement. 2.2 Certification If the device is subject to Certification: (1) Section 2.925 contains information on identification of the equipment; (2) include a label bearing an FCC Identifier (FCC ID) (Section 2.926) and (3) include the appropriate compliance statement in Section 15.19(a). If the device is considered too small and therefore it is impractical (smaller than the palm of the hand) to display the compliance statement, then the statement may be placed in the user manual or product packaging. However, the device must still be labelled with the FCC ID. If the device is unquestionably too small for the FCC ID to be readable (smaller than 4-6 points), the FCC ID may be placed in the user manual. However, it must be determined that the device itself is too small – the label area allocated to the FCC ID may not be reduced because of over crowded identification of other product and regulatory information. An electronic display of the FCC ID (see 9. Electronic Labelling below) may be used for Certification of Section 15.212 modular transmitters and software defined radios (Section 2.944). 2.3 Declaration of Conformity (DoC): The labelling requirements for a device subject to the DoC procedure are specified in Section 15.19(b). The label should include the FCC logo along with the Trade Name and Model Number, which satisfies the unique identifier requirement of Section 2.1074 if it represents the identical equipment tested for DoC compliance. For personal computers assembled from authorized components, the following additional text must also be included: “Assembled from tested components,” “Complete system not tested.” When the device is so small and/or when it is not practical to place the required additional text on the device, the text may be placed in the user manual or pamphlet supplied to the user. However, the FCC logo, Trade Name, and Model Number must still be displayed on the device (Section 15.19(b)(3)). 11/10/2008 3 784748 D01 Labelling Part 15 &18 Guidelines v07 Part 15 Declaration of Conformity (DoC) Label Examples Equipment certified as software defined radio may use a means that readily displays the FCC ID on an electronic display screen, instead of labelling the device (Section 2.925 (e)). 3. Labelling Requirements for Part 18 Devices: Equipment that intentionally generates radio frequency energy for non-telecommunications functions for industrial, scientific, medical (ISM) or other purposes must be authorized and labelled according to the procedures outlined in Part 2, Subpart J, Sections 18.203 and 18.209. Non-consumer ISM equipment is authorized under the Verification procedure. Consumer ISM equipment is authorized under either the Declaration of Conformity or Certification procedure, except that consumer ultrasonic equipment generating less than 500 watts and operating below 90 KHz is subject to the Verification procedure. Labelling for Verification requires a unique identifier (Section 2.954) to facilitate positive identification of the Verified device. The identification should not be con…

Text truncated - open the document above for the full version.

1 Sony Proprietary & Confidential CXN5100Pictures Nov. 15, 2011Sony Corporation 2 Sony Proprietary & Confidential Front with Shield 3 Sony Proprietary & Confidential Front without Shield 4 Sony Proprietary & Confidential Back

1 Sony Proprietary & Confidential CXN5100Module with Coupler Nov. 15, 2011Sony Corporation 2 Sony Proprietary & Confidential 20mm RF Cable with Coupler RF Cable: 20mm Module: CXN5100 TransferJet Coupler:LDA5M4G4815L-301 TransferJet Coupler:LDA5M4G4820L-302 3 Sony Proprietary & Confidential 200mm RF Cable with Coupler RF Cable: 200mm TransferJet Coupler:LDA5M4G4815L-301 TransferJet Coupler:LDA5M4G4820L-302 Module: CXN5100

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: Sony Corporation Type of Equipment : TransferJet module Model No. : CXN5100 FCC ID: AK 8CXN5100 Sony Corporation declares that M odel : TransferJet module complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “CXN5100“ has 0.23 mW of EIRP. This kind of equipment is below 60/frequency[MHz] W (TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CXN5100“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P (EIRP)) / (4* π * r 2 ) Where P = 0.23 mW (EIRP) r =20.0 cm *P= Peak Power Densit y [-35.4dBm/M Hz (0.000288mW /M Hz)] * Occupied Bandwidth (99%) [784.1058M Hz] = 0.23mW For: CXN5100S = 0.00005 mW/cm 2 No. : 31JE0261-SH-01-A RF Exposure / SAR Statement

FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 2 of 26 Issued date : November 17, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Conducted emission 7 6 UWB bandwidth & Occupied bandwidth (99%) 7 7 Radiated Emission and Peak level of the Emission 8 8 Transmitter Timeout 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test data 17 APPENDIX 3: Test instruments 25 FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 3 of 26 Issued date : November 17, 2011 Revised date : December 14, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant information Company Name : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Telephone Number : +81-3-6748-2111 Contact Person : Akihiro Koyama Telephone and Facsimile Number of Contact Person : TEL: +81-3-5448-4019 FAX: +81-3-5448-3992 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : TransferJet module Model No. : CXN5100 Serial No. : 4 Rating : DC3.3V, 1.8V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : June 14, 2011 2.2 Product description Model: CXN5100 (referred to as the EUT in this report) is a TransferJet module. Equipment type : Transceiver Frequency of operation : 4200 - 4760MHz Center frequency: 4480MHz (used only 1ch) Clock frequency : 20MHz Effective Bandwidth (not 10dB Bandwidth) : 560MHz Type of modulation : DSSS Antenna type : TransferJet Coupler Antenna connector type : JSC Antenna gain @4.48GHz : Antenna gain (without cable loss) Type A (LDA5M4G4820L-302): -9.71dBi Type B (LDA5M4G4815L-301): -12.7dBi Antenna cable loss Type A: 0.1364dB, Type B: 1.364dB ITU code : Q7D Operation temperature range : -20 ~ +70 deg.C. FCC 15.31 (e) The RF Module is provided with stable power supply DC 3.3V and 1.8V from the host device and has power supply regulator which provides DC1.2V, therefore, the equipment complies power supply regulation. FCC Part 15.203 The EUT has a unique coupling/antenna connector JSC. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 4 of 26 Issued date : November 17, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart F: 2011, final revised on July 8, 2011 and effective August 8, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart F Ultra-Wideband Operation Section 15.519 Technical requirements for hand held UWB systems *The revision on November 17, 2011 does not influence the test specification applied to the EUT. * The EUT complies with FCC Part 15 Subpart B: 2011, final revised on July 8, 2011 and effective August 8, 2011 3.2 Procedures & Results (Hand held UWB systems) Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 FCC 15.505(a) FCC 15.207 - N/A 29.8dB 0.18428MHz, N, QP Complied UWB Bandwidth ANSI C63.4:2003 FCC 15.503 (a) FCC 15.503 (d) FCC 15.519 (b) ConductedN/A - Complied Radiated Emission ANSI C63.4:2003 FCC 15.521 (d) 15.519 (c) (d) RadiatedN/A 9.3dB 1596.00MHz, Vertical Complied Peak level of the Emission ANSI C63.4:2003 FCC 15.521 (e) (g) FCC 15.209 FCC 15.519 (e) RadiatedN/A 35.4dB 4620.00MHz, Vertical Complied Transmitter Timeout ANSI C63.4:2003 FCC 15.519 (a) (1) ConductedN/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05. 3.3 Addition to standard Item Test Procedure Specification RemarksWorst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted - N/A * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 5 of 26 Issued date : November 17, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency rangeNo.1 SAC*1/SR*2 (±)No.2 SAC/SR (±) No.3 SAC/SR (±) Conducted emission (AC Mains) AMN/LISN 150kHz-30MHz3.0 dB 2.7 dB 3.1 dB Radiated emission 30MHz-300MHz4.7 dB 4.5 dB 4.7 dB 300MHz-1GHz4.5 dB 4.6 dB 4.6 dB 1GHz-18GHz4.8 dB 4.8 dB 4.8 dB 18GHz-40GHz4.4 dB 4.2 dB 4.2 dB *1: SAC=Semi-Anechoic Chamber *2: SR= Shielded Room is applied besides radiated emission Conducted emission test The data listed in this test report has enough margin, more than site margin. Radiated emission test The data listed in this test report has enough margin, more than site margin. 3.5 Test location UL Japan, Inc. Shonan EMC Lab. 1-22-3, Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 No.1/ No.2/ No.3 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on April 17, 2009 (Registration No.: 697847). IC Registration No. : 2973D-1 (No1 anechoic chamber) 2973D-2 (No2 anechoic chamber) 2973D-3 (No3 anechoic chamber) Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.1 Shielded room 6.8 x 4.1 x 2.7 No.2 Semi-anechoic chamber 20…

Text truncated - open the document above for the full version.

DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/22 Company: Sony CorporationMode: Transmitting Kind of EUT: TransferJet ModuleReport No.: 31JE0261-SH-01-A-R1 Model No.: CXN5100Power: DC 3.3V Serial No.: 4Temp./Humi.: 26deg.C / 61%RH Remarks: ANT:A(2.0mm), Cable:A(20mm) Limit1 : FCC 15C(15.207) ClassB QP Limit2 : FCC 15C (15.207) ClassB AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-06 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530 .2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1500022.8---13.135.9---66.056.030.1---N 20.1842821.3---13.134.4---64.254.229.8---N 30.2758918.0---13.131.1---60.950.929.8---N 40.4960913.0---13.126.1---56.046.029.9---N 50.806507.1---13.120.2---56.046.035.8---N 61.315712.1---13.115.2---56.046.040.8---N 70.1500021.9---13.135.0---66.056.031.0---L1 80.1920720.5---13.133.6---63.953.930.3---L1 90.2832317.7---13.130.8---60.750.729.9---L1 100.4994713.0---13.126.1---56.046.029.9---L1 110.808307.5---13.120.6---56.046.035.4---L1 121.311092.3---13.115.4---56.046.040.6---L1 17 Bandwidth (Regulation: FCC 15.503(d) 519(b)) UL Japan, Inc. SHONAN No.5 Shield Room COMPANY : Sony Corporation REPORT No. : 31JE261-SH-01-A-R1 Equipment : TransferJet module REGULATION : FCC Part15SubpartF 503(d) 519(b) MODEL NUMBER : CXN5100 DATE : 2011/6/17 SERIAL NUMBER : 4 TEMP./HUMI : 26°C/61% POWER : DC3.3V TEST MODE : Transmitting Remarks : - ENGINEER : Tatsuya Arai 10dB Bandwidth: 707.580MHz (LIMIT: >500MHz) Occupied Bandwidth (99%) : 784.1058MHz 18 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31JE0261-SH-01-A-R1 Company: Sony Corporation Equipment: TransferJet moduleRegulation: FCC Part15F Section 15.519(c) Model: CXN5100Test Distance: 0.5m / 0.3m / 0.1m Sample No.: 4Date : 2011/6/14 : 2011/6/15 : 2011/6/16 Power: DC3.3VTemperature: 26deg.C: 25deg.C : 26deg.C Mode: TransmittingHumidity: 54%: 53%: 51% ENGINEER : Shinichi Takano Horizontal (RBW: 1MHz) No.FREQ READINGANTAMPCABLE DistanceLIMITMARGIN Detector FactorGAINLOSS Factor3mEIRPEIRP [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBm][dBm][dB] 11500.0038.225.040.71.515.68.4-86.8-75.311.5RMS 21920.0038.626.840.81.715.610.7-84.5-63.321.2RMS 33080.0038.029.041.12.315.612.6-82.6-61.321.3RMS 44607.0042.231.041.52.815.619.0-76.2-41.334.9RMS 55994.0037.033.541.03.115.617.0-78.2-41.336.9RMS 67820.0038.437.641.03.815.623.2-72.0-41.330.7RMS 710330.0037.439.439.84.215.625.6-69.6-41.328.3RMS 814361.0037.641.239.65.020.024.2-71.0-61.39.7RMS 917920.0038.448.139.35.629.523.3-71.9-61.310.6RMS No1-7: 0.5m, No.8: 0.3m, No.9: 0.1m Vertical (RBW: 1MHz ) No.FREQ READINGANTAMPCABLE DistanceLIMITMARGIN Detector FactorGAINLOSS Factor3mEIRPEIRP [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBm][dBm][dB] 11596.0040.125.440.81.515.610.6-84.6-75.39.3RMS 21920.0037.826.840.81.715.69.9-85.3-63.322.0RMS 33080.0037.429.041.12.215.611.9-83.3-61.322.0RMS 44609.0042.431.041.52.815.619.2-76.0-41.334.7RMS 55995.0037.233.541.03.115.617.2-78.0-41.336.7RMS 66720.0037.635.440.63.415.620.2-75.0-41.333.7RMS 710334.8037.539.439.84.215.625.7-69.5-41.328.2RMS 814368.0037.541.239.65.020.024.1-71.1-61.39.8RMS 917920.0039.248.139.35.629.524.1-71.1-61.39.8RMS No1-7: 0.5m, No.8: 0.3m, No.9: 0.1m Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Cable Loss - Distance Factor Distance Factor calculation 0.5m: 20*log (3.0[m]/0.5[m]) = 15.6[dB] 0.3m: 20*log (3.0[m]/0.3[m]) = 20.0[dB] 0.1m: 20*log (3.0[m]/0.1[m]) = 29.5[dB] RESULT (EIRP) = RESULT (3m field strength) - 95.2 DATA OF RADIATION TEST (Regulation: FCC 15.519(c)) RESULT RESULT 19 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31JE0261-SH-01-A-R1 Company: Sony Corporation Equipment: TransferJet moduleRegulation: FCC Part15F Section 15.519(c) Model: CXN5100Test Distance: 3m Sample No.: 4Date : 2011/6/16 Power: DC3.3VTemperature: 26deg.C Mode: TransmittingHumidity: 51% ENGINEER : Shinichi Takano Emissions from digital circuitry (limits in Section 15.209) Horizontal No.FREQ READINGANTAMPLOSS Distance RESULTLIMIT MARGIN Detector FactorGAINFactor3m [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB] 1448.0022.916.531.99.40.016.946.029.1QP Vertica l No.FREQ READINGANTAMPLOSS Distance RESULTLIMIT MARGIN Detector FactorGAINFactor3m [MHz][dBuV][dB][dB][dB][dB][dBuV/m] [dBuV/m][dB] 1448.0023.216.531.99.40.017.246.028.8QP Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Loss (Cable + ATT) - Distance Factor DATA OF RADIATION TEST (Regulation: FCC 15.519(c)) 20 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31JE0261-SH-01-A-R1 Company: Sony Corporation Equipment: TransferJet moduleRegulation: FCC Part15F Section 15.519(d) Model: CXN5100Test Distance: 0.5m Sample No.: 4Date : 2011/6/15 Power: DC3.3VTemperature: 25deg.C Mode: TransmittingHumidity: 53% ENGINEER : Shinichi Takano Horizontal (RBW: 1kHz) No.FREQ READING ANTAMP CABLE DistanceLIMIT MARGIN Detector FactorGAINLOSS Factor3mEIRPEIRP [MHz][dBuV][dB][dB][dB][dB][dBuV/m ][dBm][dBm][dB] 11236.0515.224.341.01.415.6-15.7-110.9-85.325.6RMS 21609.6913.325.540.81.515.6-16.1-111.3-85.326.0RMS Vertical (RBW: 1kHz) No.FREQ READING ANTAMP CABLE DistanceLIMIT MARGIN Detector FactorGAINLOSS Factor3mEIRPEIRP [MHz][dBuV][dB][dB][dB][dB][dBuV/m ][dBm][dBm][dB] 11238.8614.724.341.01.415.6-16.2-111.4-85.326.1RMS 21608.5714.225.540.81.515.6-15.2-110.4-85.325.1RMS Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + Cable Loss - Distance Factor Distance Factor calculation: 20*log (3.0[m]/0.5[m]) = 15.6[dB] RESULT (EIRP) = RESULT (3m field strength) - 95.2 DATA OF RADIATION TEST (Regulation: FCC 15.519(d)) RESULT RESULT 21 UL Japan, Inc. SHONAN NO.3 ANECHOIC CHAMBER Report No.: 31JE0261-SH-01-A-R1 Company: Sony Corporati…

Text truncated - open the document above for the full version.

FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 2 of 26 Issued date : November 17, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Table of Contents Page 1 Applicant Information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 6 5 Conducted emission 7 6 UWB bandwidth & Occupied bandwidth (99%) 7 7 Radiated Emission and Peak level of the Emission 8 8 Transmitter Timeout 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test data 17 APPENDIX 3: Test instruments 25 FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 3 of 26 Issued date : November 17, 2011 Revised date : December 14, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 1 Applicant information Company Name : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Telephone Number : +81-3-6748-2111 Contact Person : Akihiro Koyama Telephone and Facsimile Number of Contact Person : TEL: +81-3-5448-4019 FAX: +81-3-5448-3992 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : TransferJet module Model No. : CXN5100 Serial No. : 4 Rating : DC3.3V, 1.8V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : June 14, 2011 2.2 Product description Model: CXN5100 (referred to as the EUT in this report) is a TransferJet module. Equipment type : Transceiver Frequency of operation : 4200 - 4760MHz Center frequency: 4480MHz (used only 1ch) Clock frequency : 20MHz Effective Bandwidth (not 10dB Bandwidth) : 560MHz Type of modulation : DSSS Antenna type : TransferJet Coupler Antenna connector type : JSC Antenna gain @4.48GHz : Antenna gain (without cable loss) Type A (LDA5M4G4820L-302): -9.71dBi Type B (LDA5M4G4815L-301): -12.7dBi Antenna cable loss Type A: 0.1364dB, Type B: 1.364dB ITU code : Q7D Operation temperature range : -20 ~ +70 deg.C. FCC 15.31 (e) The RF Module is provided with stable power supply DC 3.3V and 1.8V from the host device and has power supply regulator which provides DC1.2V, therefore, the equipment complies power supply regulation. FCC Part 15.203 The EUT has a unique coupling/antenna connector JSC. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 4 of 26 Issued date : November 17, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart F: 2011, final revised on July 8, 2011 and effective August 8, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart F Ultra-Wideband Operation Section 15.519 Technical requirements for hand held UWB systems *The revision on November 17, 2011 does not influence the test specification applied to the EUT. * The EUT complies with FCC Part 15 Subpart B: 2011, final revised on July 8, 2011 and effective August 8, 2011 3.2 Procedures & Results (Hand held UWB systems) Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted Emission ANSI C63.4:2003 FCC 15.505(a) FCC 15.207 - N/A 29.8dB 0.18428MHz, N, QP Complied UWB Bandwidth ANSI C63.4:2003 FCC 15.503 (a) FCC 15.503 (d) FCC 15.519 (b) ConductedN/A - Complied Radiated Emission ANSI C63.4:2003 FCC 15.521 (d) 15.519 (c) (d) RadiatedN/A 9.3dB 1596.00MHz, Vertical Complied Peak level of the Emission ANSI C63.4:2003 FCC 15.521 (e) (g) FCC 15.209 FCC 15.519 (e) RadiatedN/A 35.4dB 4620.00MHz, Vertical Complied Transmitter Timeout ANSI C63.4:2003 FCC 15.519 (a) (1) ConductedN/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05. 3.3 Addition to standard Item Test Procedure Specification RemarksWorst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 RSS-Gen 4.6.1 RSS-Gen 4.6.1 Conducted - N/A * Other than above, no addition, exclusion nor deviation has been made from the standard. FCC ID : AK8CXN5100 Test report No. : 31JE0261-SH-01-A-R1 Page : 5 of 26 Issued date : November 17, 2011 UL Japan, Inc. SHONAN EMC LAB. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 3.4 Uncertainty The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Item Frequency rangeNo.1 SAC*1/SR*2 (±)No.2 SAC/SR (±) No.3 SAC/SR (±) Conducted emission (AC Mains) AMN/LISN 150kHz-30MHz3.0 dB 2.7 dB 3.1 dB Radiated emission 30MHz-300MHz4.7 dB 4.5 dB 4.7 dB 300MHz-1GHz4.5 dB 4.6 dB 4.6 dB 1GHz-18GHz4.8 dB 4.8 dB 4.8 dB 18GHz-40GHz4.4 dB 4.2 dB 4.2 dB *1: SAC=Semi-Anechoic Chamber *2: SR= Shielded Room is applied besides radiated emission Conducted emission test The data listed in this test report has enough margin, more than site margin. Radiated emission test The data listed in this test report has enough margin, more than site margin. 3.5 Test location UL Japan, Inc. Shonan EMC Lab. 1-22-3, Megumigaoka, Hiratsuka-shi, Kanagawa-ken 259-1220 JAPAN Telephone number : +81 463 50 6400 Facsimile number : +81 463 50 6401 No.1/ No.2/ No.3 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on April 17, 2009 (Registration No.: 697847). IC Registration No. : 2973D-1 (No1 anechoic chamber) 2973D-2 (No2 anechoic chamber) 2973D-3 (No3 anechoic chamber) Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 Semi-anechoic chamber 20.6 x 11.3 x 7.65 Maximum measurement distance: 10m No.1 Shielded room 6.8 x 4.1 x 2.7 No.2 Semi-anechoic chamber 20…

Text truncated - open the document above for the full version.

DATA OF CONDUCTED EMISSION TEST UL Japan,Inc. Shonan EMC Lab. No.3 Shielded Room Date : 2011/06/22 Company: Sony CorporationMode: Transmitting Kind of EUT: TransferJet ModuleReport No.: 31JE0261-SH-01-A-R1 Model No.: CXN5100Power: DC 3.3V Serial No.: 4Temp./Humi.: 26deg.C / 61%RH Remarks: ANT:A(2.0mm), Cable:A(20mm) Limit1 : FCC 15C(15.207) ClassB QP Limit2 : FCC 15C (15.207) ClassB AVEngineer:: Minoru Nakatake Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LIS…
