AK8DKCC200XDKC-C200X Digital Still Camera with Bluetooth

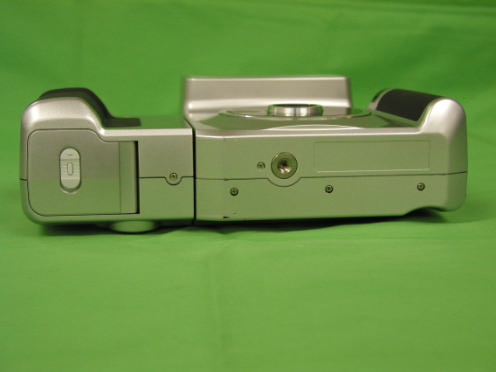

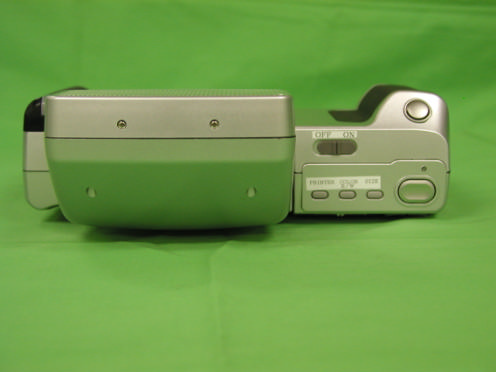

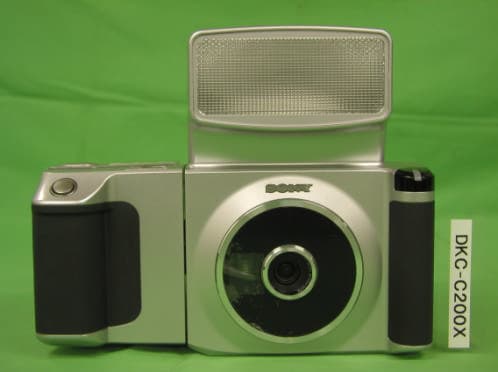

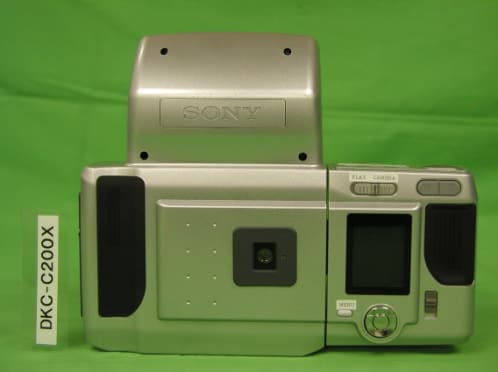

External Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Front View Rear View External Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Left Side View Right Side View External Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Top View Bottom View

Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Bluetooth Module (Front) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Bluetooth Module (Front) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Bluetooth Module (Rear) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Open View (Front) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Open View(Back) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Open View(front) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Circuit Board with Shield Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Circuit Board (Rear) Internal Photo Sony Corporation Model: DKC-C200X FCC ID: AK8DKCC200X Front View of Circuit Board

FCC ID: AK8DKCC200X Additional information in accordance with requirements of FCC 15.247 and FCC Public Notice DA 00-705 1. Frequencies tested Frequencies for the test are 2402 MHz, 2441 MHz and 2480 MHz as specified in 15.31(m). 2. Antenna requirement The Bluetooth transceivers are used for picture data transmission between digital still camera and digital photo printer. The antenna is a chip antenna and is permanently mounted on a printed electronic circuit board in the camera and printer. It is impossible for end user to replace it. This antenna configuration complies with the requirement of FCC 15.203. The antenna information is submitted in a separate document in Exhibits. 3. AC conducted noise The AC line conducted interference measurement is carried out in accordance with ANSI C63.4-2001 and the compliance are reported in the test report. 4. Carrier frequency separation The measurement is carried out in accordance with FCC Public Notice DA 00-705 and the compliance is reported in the test report. 5. Hopping frequency requirements The number of hopping frequencies is measured in accordance with FCC Public Notice DA 00-705 and reported the compliance in the test report. On pseudorandom frequency hopping sequence the following is an example of a 79 hopping sequence in data transmission mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 20, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 16, 49, 28, 22, 34, 02, 19, 06, 17, 51, 32, 36, 14, 04, 12, 26, 18, 24, 38, 08, 30, 65, 10 Example of a hopping sequence in inquiry mode: 47, 08, 71, 63, 57, 02, 61, 45, 55, 59, 10, 73, 65, 69, 43, 27, 00, 77, 04, 67, 37, 06, 31, 75, 33, 39, 51, 29, 40, 14, 35, 49 Example of a hopping sequence in paging mode: 08, 57, 68, 70, 51, 02, 42, 40, 04, 61, 44, 46, 63, 14, 50, 48, 16, 65, 52, 54, 67, 18, 58, 56, 20, 53, 60, 62, 55, 06, 66, 64 The requirement of equal hopping frequency use is met by a unique generation of the hopping sequence specified in the Bluetooth Standard as follows; The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) is the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronization with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 us. The clock has a cycle of about one day (23 hours and half). In most case it is implemented as 28 bits counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions and XOR-operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behavior; The first connection between the two devices is established, because a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection is established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, the period between the two transmissions are longer than the minimum resolution of the clock (312.5 us). The hopping sequence always differs from the first one. For the generation of the inquiry and page hop sequences the same procedures as described above, but this time with different input vectors. For the inquiry hop sequence, a predefined fixed address is always used. This results on the same 32 frequencies used by all devices doing an inquiry but every time with a different start frequency and phase in this sequence. For the page hop sequence, the device address of the paged unit is used as input vector. This results in the use of a subset of 32 frequencies which is specific for that initial state of the connection establishment between the two units. A page to different devices would result in a different subset of 32 frequencies. 6. Dwell time Dwell times are measured in accordance with FCC Public Notice DA 00-705 and reported the compliance in the test report. 7. 20 dB bandwidth The 20 dB bandwidth is measured in accordance with FCC Public Notice DA 00-705 and reported the compliance in the test report. 8. Receiver input bandwidth and hopping capability The input bandwidth of the receiver is limited to 1 MHz by a bandpass filter at the IF stage. It complies with the transmitter bandwidth at each hopping frequency. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence. The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection uses these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection is followed in any case. That means, a repeated packet is not sent on the same frequency, it is sent on the next frequency of the hopping sequence. 9. Peak output power The peak output power is measured in accordance with FCC Public Notice DA 00-705 and reported the compliance in the test report. 10. Defact EIRP limit The maximum gain of antenna used in DKC-C200X i…

Text truncated - open the document above for the full version.

Test report No. : 23BE0019-HO-9 Page : 2 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.) 3 SECTION 3: Test specification, procedures and results 5 SECTION 4: Operation of E.U.T. during testing 7 SECTION 5: Conducted Emission, Section 15.207 9 SECTION 6: Carrier Frequency Separation, Section 15.247 (a)(1) 9 SECTION 7: 20dB Bandwidth, Section 15.247(a)(1) 10 SECTION 8: Number of Hopping Frequency, Section 15.247(a)(1)(iii) 10 SECTION 9: Dwell time, Section 15.247(a)(1)(iii) 10 SECTION 10: Maximum Peak Output Power, Section 15.247(b)(1) 10 SECTION 11: Band Edge Compliance, Section 15.247(c) 11 SECTION 12: Spurious Emission , Section 15.247(c) 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test instruments 12 APPENDIX 3: Data of EMI test 12 Test report No. : 23BE0019-HO-9 Page : 3 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1: Client information Company name : Sony Corporation Brand name : SONY Address : 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo 141-0001 JAPAN Telephone Number : +81-46-230-5603 Facsimile Number : +81-46-230-6354 Contact Person : Kazuo Aihara SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Still Camera Model No. : DKC-C200X Serial No. : 59810047, 59810048 Rating : DKC-C200X : AC Adaptor (DC+8.4V), Ni-MH Battery (DC + 4.8V) Alkaline Battery (DC+6V) Country of Manufacture : Japan Receipt Date of Sample : January 6, 2003 Condition of EUT : Production prototype 2.2 Product Description Model: DKC-C200X (referred to as the EUT in this report) is the Digital Still Camera. The clock frequency used in EUT is 96.016044MHz (ASIC), 48.008022MHz(USB), 14.31818MHz(NTSC), 17.734450MHz (PAL). Test report No. : 23BE0019-HO-9 Page : 4 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Equipment Type : Transceiver Frequency characteristics : from 2400 MHz to 2483.5 MHz Number of channels and spacing : 79 channels / 1MHz Modulation : GFSK Antenna Gain : Max: 3.56dBi, AVG: -3.40dBi Antenna Type : External Ground, Ceramic chip, lambda/4, YCE-5226 (Yokowo) Temperature Range : 5 degree C. to 35 degree C. ITU code : F1D *FCC Part 15.31(e) Verification of Input Power: The host device DKC-C200X provide the stable power-supply (DC 8.4/4.8/6V); and the Digital Still Camera complies power supply regulation. *FCC Part 15.203 Antenna requirement The antenna built in the DKC-C200X is a chip antenna and is permanently mounted by soldering on a printed electronic circuit board in DKC-C200X. It is impossible for end users to replace it, because a special tool is necessary for removal of the antenna. Test report No. : 23BE0019-HO-9 Page : 5 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3: Test specification, procedures and results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C Section 15.207 and Section15.247 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted emission limits; general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5Mhz, 5725-5850MHz 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 Conducted Emission ANSI C63.4:2001 Section 15.207 N/A N/A 19.7dB 0.2715MHz, L1 Complied 2 Carrier Frequency Separation ANSI C63.4:2001 Section15.247(a)(1) Conducted N/A N/A Complied 3 20dB Bandwidth ANSI C63.4:2001 Section15.247(a)(1) Conducted N/A N/A Complied 4 Number of Hopping Frequency ANSI C63.4:2001 Section15.247(a)(1)(iii) Conducted N/A N/A Complied 5 Dwell time ANSI C63.4:2001 Section15.247(a)(1)(iii) Conducted N/A N/A Complied 6 Maximum Peak Output Power ANSI C63.4:2001 Section15.247(b)(1) Conducted N/A N/A Complied 7 Band Edge Compliance ANSI C63.4:2001 Section15.247(c) Conducted N/A N/A Complied 8 Spurious Emission ANSI C63.4:2001 Section15.247(c) Conducted / Radiated N/A 5.9dB 288.05MHz Horizontal Complied These tests were also referred to FCC Public Notice DA 00-705 "Guidance on Measurement for Frequency Hopping Spread Spectrum Systems. 3.3 Additions to standards No addition, deviation or exclusion has been made from standards. 3.4 Confirmation A-Pex International Co., Ltd. hereby confirms that E.U.T. , in the configuration tested, complies with the specifications FCC Part15 Subpart C Section 15.207 and Section 15.247. Test report No. : 23BE0019-HO-9 Page : 6 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 3.5 Uncertainty Conducted Emission The measurement uncertainty (with a 95% confidence level) for this test was + 1.3dB. The data listed in this test report has enough margin, more than the site margin. Spurious Emission(Radiated) The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is + 4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is + 5.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is + 6.6dB. The data listed in this test report may exceed the test limit because it does not have enough margi…

Text truncated - open the document above for the full version.

Test report No. : 23BE0019-HO-9 Page : 13 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted emission (DXC-C200X) Test report No. : 23BE0019-HO-9 Page : 14 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Spurious Emission (Radiated) (DKC-C200X) Test report No. : 23BE0019-HO-9 Page : 15 of 53 Issued date : January 23, 2003 FCC ID : AK8DKCC200X A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Other tests except Conducted emission and Spurious Emission (Radiated) (DKC-C200X)
