US FR ES Digital Surround Headphone System © 2006 Sony Corporation Operating Instructions Mode d’emploi Manual de instrucciones 2-649-139-11(1) MDR-DS6000 2 US WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For the customers in the USA Owner’s Record The model number is located at the bottom of the processor and the left inner side of the headband. The serial number is located at the bottom of the processor and the inner side of the battery compartment. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. MDR-DS6000 Processor DP-RF6000 Headphones MDR-RF6000 Serial No. Processor Headphones NOTE The transmitter (Processor) must not be co-located or operated in conjunction with any other antenna or transmitter. The transmitter (Processor) complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The transmitter (Processor) should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs). NOTICE FOR THE CUSTOMERS IN THE U.S.A. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/ TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For the customers in the Canada Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The transmitter (Processor) complies with IC radiation exposure limits set forth for uncontrolled equipment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. The transmitter (Processor) should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs). 3 US For the customers in the USA and Canada RECYCLING NICKEL METAL HYDRIDE BATTERIES Nickel Metal Hydride batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Nickel Metal Hydride batteries. US Table Of Contents Main Features .............................. 4 Checking the Components and Accessories .............................. 6 Location and Function of Parts ..7 Front Panel of the Processor ..............7 Rear Panel of the Processor ...............8 Headphone Part Descriptions ...........9 Charging the Supplied Rechargeable Nickel-metal Hydride Battery ...................... 10 Inserting the supplied rechargeable nickel-metal hydride battery ....... 10 Charging .............................................11 Checking the battery power ............13 Using the headphones with alkaline batteries (sold separately) ............ 14 Connecting the Headphone System .................................... 15 Connecting the processor to digital components ....................... 15 Connecting the processor to analog components ....................... 16 Listening to a Connected Component ............................. 18 Using Additional Headphones ...23 Replacing the Ear Pads ............ 24 Troubleshooting ........................ 25 Precautions ................................ 29 Specifications ............................ 30 4 US Main Features The MDR-DS6000 is a digital surround headphone system using 2.4 GHz wireless digital transmission* 1 . You can enjoy multi-channel surround sound with headphones by simply connecting the digital surround processor to a DVD device or a digital satellite/TV receiver, etc., with the supplied optical digital connecting cable. •Compatibility of MDR-DS6000 with a wide variety of audio formats. Compatible with Dolby Digital* 2 , Dolby Pro Logic II* 2 , DTS* 2 and MPEG-2 AAC* 2 formats. (Can play media marked with “Dolby Digital Surround EX” and “DTS-ES”.) •Wireless headphones using a digital radio frequency transmission system which reproduces uncompressed transmission sound, resistant to external noise and interference. •Wireless transmission means you can use these headphones anywhere indoors without worrying about things getting in the way. (Range: Up to approx. 30 m)* 3 •Superior “Virtualphones Technology”* 4 creates a surround sound field within the headphones with realistic presence. •Built-in audio compression function for easy listening even in the bursting and whispering sound by compressing the dynamic range. •Built-in digital through…

Text truncated - open the document above for the full version.

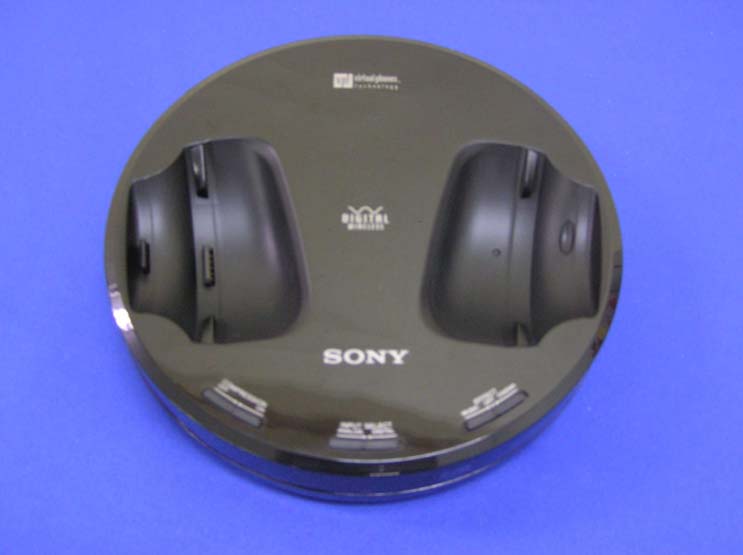

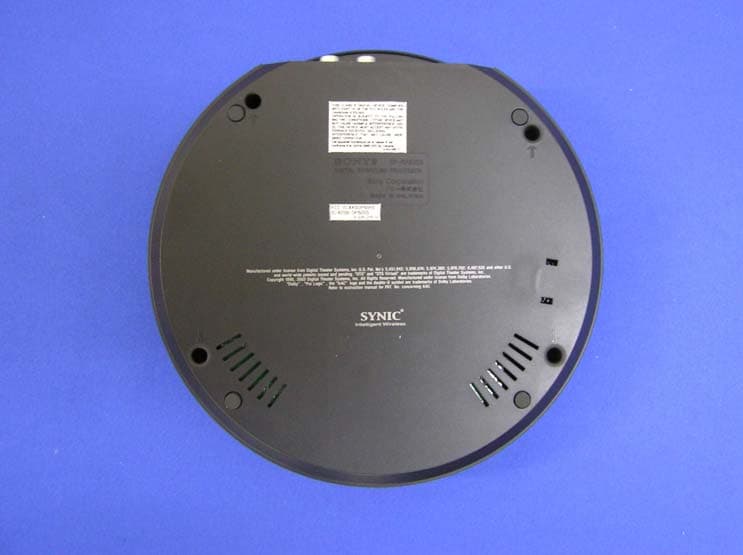

External Photo Sony Corporation Transmitter (Model: DP-RF6000) FCC ID: AK8DP6000 Top Bottom External Photo Sony Corporation Transmitter (Model: DP-RF6000) FCC ID: AK8DP6000 Front Back External Photo Sony Corporation Transmitter (Model: DP-RF6000) FCC ID: AK8DP6000 Side 1 Side 2

Label Location Sony Corporation Transmitter (Model: DP-RF6000) FCC ID: AK8DP6000

Internal Photo Sony Corporation Transmitter (Model: DP-RF6000) FCC ID: AK8DP6000 TX-RF Unit Over View Internal Photo Sony Corporation Transmitter (Model: DP-RF6000) FCC ID: AK8DP6000 TX-RF Unit (Top) TX-RF Unit (Bottom)

Test report No. : 26CE0113-HO-1b Page : 1 of 43 Issued date : December 16, 2005 FCC ID : AK8DP6000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) RADIO TEST REPORT Test Report No. : 26CE0113-HO-1b Applicant : Sony EMCS Corporation Saitama TEC Type of Equipment : Digital Surround Processor Model No. : DP-RF6000 FCC ID : AK8DP6000 Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247 : 2005 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: ______________________________ ______________________________ Yutaka Yoshida EMC Services Mitsuru Fujimura EMC Services ______________________________ Kenichi Adachi EMC Services Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Services November 24 to December 3, 2005 Test report No. : 26CE0113-HO-1b Page : 2 of 43 Issued date : December 16, 2005 FCC ID : AK8DP6000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information ............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.)........................................................................................ 3 SECTION 3: Test specification, procedures & results......................................................................... 4 SECTION 4: Operation of E.U.T. during testing .................................................................................7 SECTION 5: Conducted Emission......................................................................................................... 9 SECTION 6: Spurious Emission .......................................................................................................... 10 SECTION 7: Bandwidth ....................................................................................................................... 10 SECTION 8: Maximum Peak Output Power ..................................................................................... 11 SECTION 9: Peak Power Density........................................................................................................ 11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Conducted Emission ............................................................................................................................12 Spurious Emission (Radiated) ............................................................................................................13 APPENDIX 2:Test instruments ............................................................................................................ 14 APPENDIX 3: Data of EMI test............................................................................................................ 15 Conducted Emission ............................................................................................................................15 6dB Bandwidth ....................................................................................................................................18 Maximum Peak OutPut Power...........................................................................................................20 Radiated Spurious Emission...............................................................................................................22 Conducted Spurious Emission............................................................................................................37 Conducted emission Band Edge compliance .....................................................................................40 Power Density ......................................................................................................................................41 99%Occupied Bandwidth ...................................................................................................................43 Test report No. : 26CE0113-HO-1b Page : 3 of 43 Issued date : December 16, 2005 FCC ID : AK8DP6000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Sony EMCS Corporation Saitama TEC Brand name : SONY Address : Shinagawa INTERCITY C Tower, 2-15-3 Konan, Minato-ku, Tokyo 108-6201, Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5962 Contact Person : Kikuo Murata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Surround Processor Model No. : DP-RF6000 Serial No. : 5000320 Country of Manufacture : Malaysia Rating : DC 9.0V (RF Module DC3.3V) : AC 120V/ 60Hz(AC-S906T) Receipt Date of Sample : November 2, 2005 Condition of EUT : Production Prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description M/N: DP-RF6000 is a Digital Stereo Transmitter. Operating frequency : 2412MHz to 2462MHz Bandwidth & Channel spacing : 12MHz & 5MHz Clock frequencies in the system : 44MHz, 5MHz, 12.288MHz (Crystal) Modulation : DSSS, QPSK Antenna Type : Monopole Antenna Antenna Gain : -4 dBi Mode of operation : Simplex ITU Code : G1D FCC 15.31 (e) This EUT provides stable voltage (DC3.3V) constantly to RF Mo…

Text truncated - open the document above for the full version.

Test report No. : 26CE0113-HO-1b Page : 12 of 43 Issued date : December 16, 2005 FCC ID : AK8DP6000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 26CE0113-HO-1b Page : 13 of 43 Issued date : December 16, 2005 FCC ID : AK8DP6000 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear
