AK8DPRF6500Digital surround processor

Operating Instructions ______ Mode d’emploi ____________ Manual de instrucciones ____ Digital Surround Headphone System © 2011 Sony Corporation 4-267-263-72(1) MDR-DS6500 US FR ES _ 2 US WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. For customers in the USA Owner’s Record The model number is located at the bottom of the processor and both side of the headband. The serial number is located at the bottom of the processor and right inner side of the headband. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. MDR-DS6500 Processor DP-RF6500 Headphones MDR-RF6500 Serial No. Processor __________________________ Headphones ________________________ The following FCC statement applies only to the version of this model manufactured for sale in the USA. Other versions may not comply with FCC technical regulations NOTE This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/ TV technician for help. For the state of California, USA only Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/ perchlorate Perchlorate material: Lithium battery contains perchlorate CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. − − − − 3 US For customers in Canada Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. The following FCC/IC statement applies only to the version of this model manufactured for sale in the USA and Canada. Other versions may not comply with FCC/IC technical regulations. This headphones comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). This processor complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This processor has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). US FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 US Table Of Contents Main Features ...................................5 Checking the Components and Accessories .....................................6 Location and Function of Parts........7 Processor Part Descriptions ....................... 7 Headphones Part Descriptions .................. 9 Charging the Headphones ............ 10 Checking the remaining battery power ...................................................... 12 Connecting the Headphone System ......................................... 13 Connecting the processor to digital components ............................................ 13 Connecting the processor to analog components ............................................ 14 Listening to a Connected Component ................................. 16 Replacing the Ear Pads .................. 23 Troubleshooting ............................ 24 Precautions .................................... 28 Specifications ................................. 29 5 US The MDR-DS6500 is a digital surround headphone system that allows you to enjoy the surround sound field of a BD/DVD or other multi-channel source wirelessly. You can enjoy multi-channel surround sound with headphones by simply connecting the digital surround processor to a BD/DVD device, digital satellite/TV receiver, GAME device or other device with the supplied cable. 7.1ch VPT (Virtualphones Technology) * 1 reproduces the three-dimensional surround of multi-channel speakers. Large size 40 mm driver units for premium movie theater sound quality. Wireless transmission means you can use these headphones anywhere indoors without …

Text truncated - open the document above for the full version.

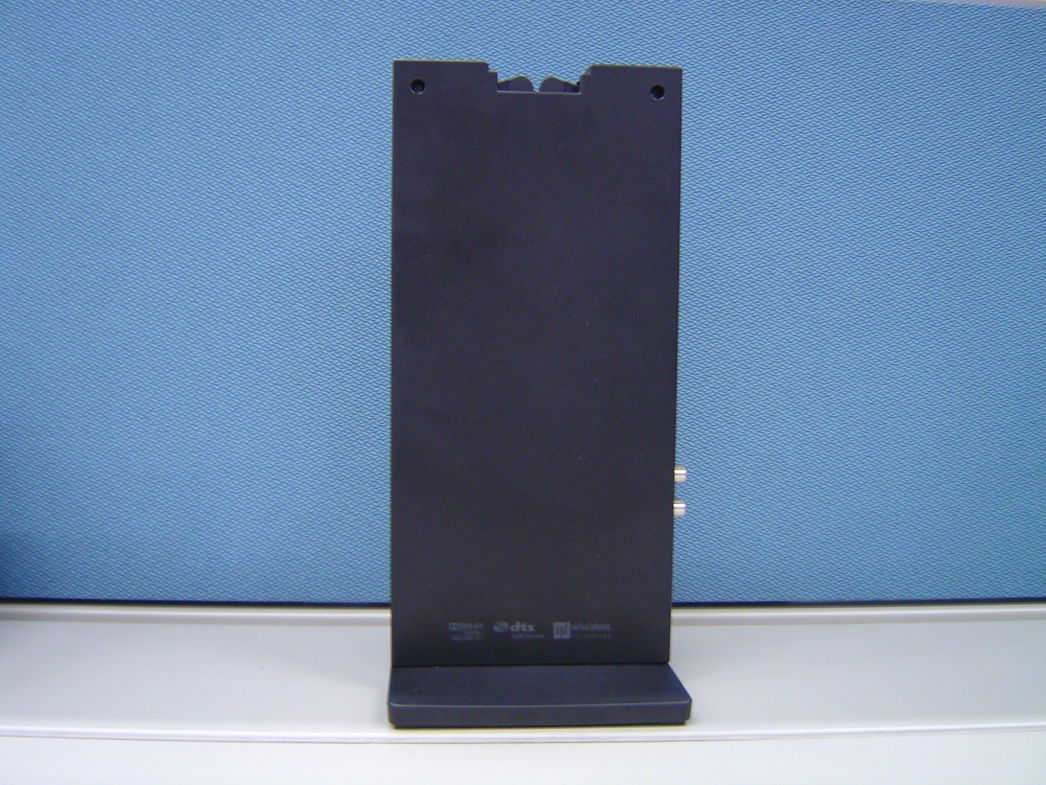

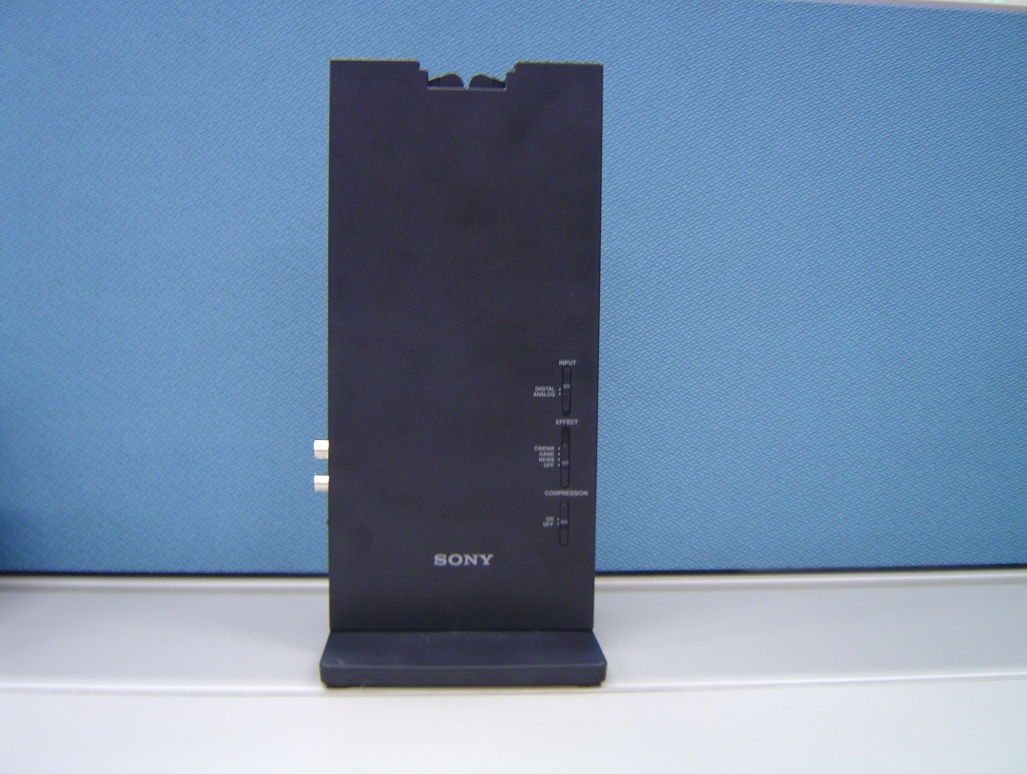

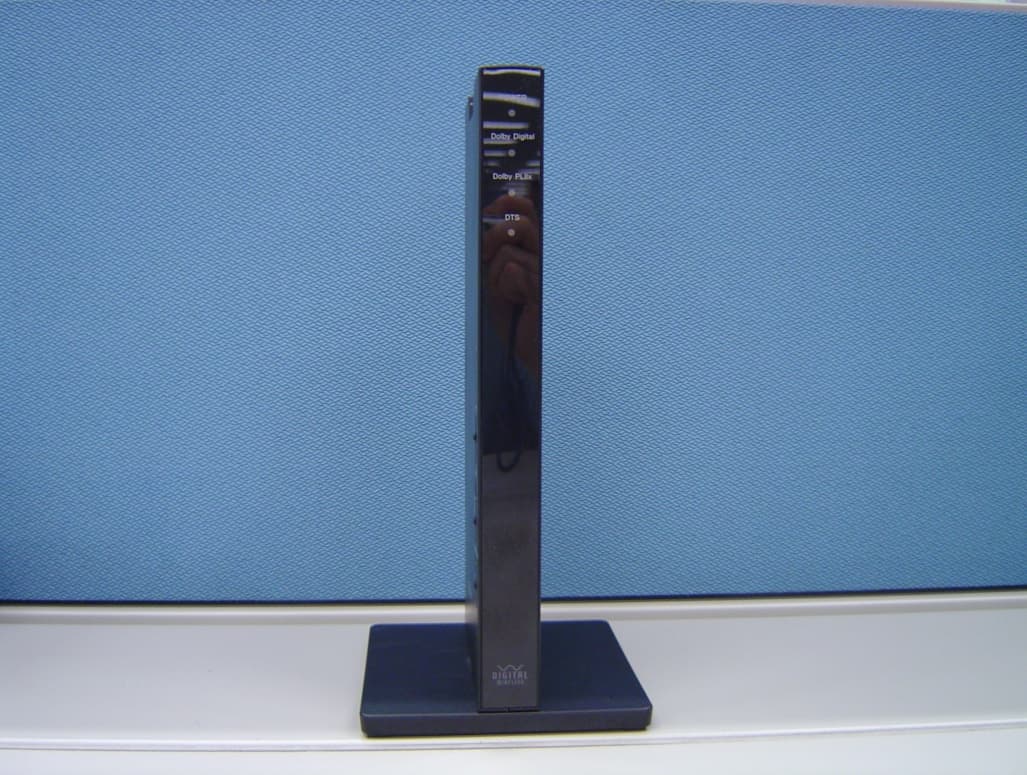

DP-RF6500 Front Back Side Side To p Bottom

DP-RF6500 Label and Label location

DP-RF6500 / Internal Photos PWB of Wireless block Close-up

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Applicant: Sony Corporation Type of Equipment : Digital Surround Processor Model No. : DP-RF6500 FCC ID: AK8DPRF6500 Sony Corporation declares that M odel : Digital Surround Processor complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “DP-RF6500“ has 1.5 mW of conducted Peak Output power and 0.29 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “DP-RF6500“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.50 mW (M aximum peak output power) G = 0.19 Numerical Antenna gain; equal -7.21 dBi r =20.0 cm For: DP-RF6500S = 0.00006 mW/cm 2 No. : 31DE0280-SH-01-A RF Exposure / SAR Statement

Test report No. : 31DE0280-SH-01-A Page : 1 of 34 Issued date : January 31, 2011 Revised date : March 1, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 31DE0280-SH-01-A Applicant : Sony Corporation Type of Equipment : Digital Surround Processor Model No. : DP-RF6500 FCC ID : AK8DPRF6500 Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: January 23 – 27, 2011 Tested by: ______________________________ Hikaru Shirasawa Engineer of WiSE Japan, UL Verification Service Approved by : ______________________________ Go Ishiwata Assistant Manager of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". MF058d (12.01.11) Test report No. : 31DE0280-SH-01-A Page : 2 of 34 Issued date : January 31, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 3 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Conducted emission .......................................................................................... 10 SECTION 6: Radiated emission ............................................................................................. 11 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 13 SECTION 8: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 13 SECTION 9: Maximum peak output power .......................................................................... 13 SECTION 10: Peak power density ......................................................................................... 13 Contents of APPENDIXES ....................................................................................................... 14 APPENDIX 1: Photographs of test setup ............................................................................... 15 APPENDIX 2: Test data .......................................................................................................... 18 APPENDIX 3: Test instruments ............................................................................................. 34 Test report No. : 31DE0280-SH-01-A Page : 3 of 34 Issued date : January 31, 2011 Revised date : March 1, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Brand Name : Sony Address : Shinagawa INTERCITY C Tower, 2-15-3 Konan, Minato-ku, Tokyo 108-6201, Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5996 Contact Person : Shigeru Higai SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Surround Processor Model No. : DP-RF6500 Serial No. : Refer to the Section 4.2 Rating : DC6V (AC Adaptor: AC100-240V, 50/60Hz) Country of Mass-production : Malaysia Receipt Date of Sample : January 6, 2011 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: DP-RF6500, referred to as the EUT in this report, is the Digital Surround Processor. Model No: MDR-DS6500 is the Wireless Stereo Headphone System. MDR-DS6500 consists of DP-RF6500 (Digital Surround Processor) and MDR-RF6500 (Wireless Stereo Headphones). General Specification Clock frequency(ies) in the system : DSP 24.576MHz&258MHz, Micom clock 8MHz, DD converter 380kHz, DIR 12.288MHz, Crystal 22.576649MHz, Master clock 11.2896MHz Radio Specification Equipment type : Transceiver Frequency of operation : 2408MHz-2473MHz Bandwidth & channel spacing : 3MHz & 5MHz Type of modulation : MSK Transmit power : 10mW Power control : None Method of frequency generation : Synthesize r Operating voltage : DC 2.8V, 3.2V Antenna type : Pattern Antenna Antenna Gain : -7.21dBi Antenna connector type : Integral Operation temperature range : 5 ~ +35 deg.C. Regulator : Yes Test report No. : 31DE0280-SH-01-A Page : 4 of 34 Issued date : January 31, 2011 Revised date : March 1, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC 15.31 (e) The RF Module has its own regulator. The RF Module is constantly provided voltage (DC2.8V, 3.2V) through its own regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 It is impossible for end …

Text truncated - open the document above for the full version.

DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/01/25 Company： Sony CorporationMode： Transmitting(2408MHz) Kind of EUT： Digital Surround Processor Report No. :31DE0280-SH-01-A Model No.： DP-RF6500 Power :AC120V/60Hz SinglePhase Serial No.： 21 Temp./Humi.： 20deg.C./25% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer：： Hikaru Shirasawa Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530.2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 100 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1594524.2---13.237.4---65.455.428.0---N 20.2046029.7---13.242.9---63.453.420.5---N 30.3021022.1---13.235.3---60.150.124.8---N 40.5092519.318.613.232.531.856.046.023.514.2N 53.8705521.019.013.534.532.556.046.021.513.5N 65.2972718.116.913.631.730.560.050.028.319.5N 70.1595824.2---13.237.4---65.455.428.0---L1 80.2051528.7---13.241.9---63.353.321.4---L1 90.3099021.2---13.234.4---59.949.925.5---L1 100.5090519.919.113.233.132.356.046.022.913.7L1 113.8678520.118.313.533.631.856.046.022.414.2L1 125.2931720.817.213.634.430.860.050.025.619.2L1 18 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/01/25 Company： Sony CorporationMode： Transmitting(2438MHz) Kind of EUT： Digital Surround Processor Report No. :31DE0280-SH-01-A Model No.： DP-RF6500 Power :AC120V/60Hz SinglePhase Serial No.： 21 Temp./Humi.： 20deg.C./25% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer：： Hikaru Shirasawa Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530.2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 100 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1511925.7---13.238.9---65.955.927.0---N 20.2032529.5---13.242.7---63.453.420.7---N 30.3053122.0---13.235.2---60.050.024.8---N 40.5097819.218.613.232.431.856.046.023.614.2N 54.5876019.018.513.532.532.056.046.023.514.0N 65.2806018.417.413.632.031.060.050.028.019.0N 70.1556024.1---13.237.3---65.655.628.3---L1 80.2039528.9---13.242.1---63.453.421.3---L1 90.3046020.6---13.233.8---60.150.126.3---L1 100.5087519.719.013.232.932.256.046.023.113.8L1 114.5839021.920.613.535.434.156.046.020.611.9L1 125.2969520.819.513.634.433.160.050.025.616.9L1 19 DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Shonan EMC Lab. No.2 Shielded Room Date : 2011/01/25 Company： Sony CorporationMode： Transmitting(2473MHz) Kind of EUT： Digital Surround Processor Report No. :31DE0280-SH-01-A Model No.： DP-RF6500Power :AC120V/60Hz SinglePhase Serial No.： 21 Temp./Humi.： 20deg.C./25% Remarks: - Limit1 : FCC 15C(15.207) QP Limit2 : FCC 15C(15.207) AVEngineer：： Hikaru Shirasawa Calculation:Result[dBuV]=Reading[dBuV]+C.Fac(LISN+Cable+ATT)[dB] LISN:SLS-03 Limit1(QP) Limit2(AV) N(PK) N(QP/AV) L1(PK) L1(QP/AV) Frequency [MHz] RFI Voltage [dBuV] .1530.2.3.5.7123571020 0 10 20 30 40 50 60 70 80 90 100 No. Freq. ReadingReading C.Fac ResultsResultsLimitLimitMarginMargin PhaseCommentNo. Freq. <QP><AV> C.Fac <QP><AV><QP><AV><QP><AV>PhaseCommentNo. [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 10.1530025.5---13.238.7---65.855.827.1---N 20.2035529.5---13.242.7---63.453.420.7---N 30.3060021.9---13.235.1---60.050.024.9---N 40.5095519.418.713.232.631.956.046.023.414.1N 53.8730021.320.213.534.833.756.046.021.212.3N 65.2806018.317.313.631.930.960.050.028.119.1N 70.1524325.4---13.238.6---65.855.827.2---L1 80.2050528.4---13.241.6---63.453.421.8---L1 90.3057520.9---13.234.1---60.050.025.9---L1 100.5101019.819.213.233.032.456.046.023.013.6L1 113.8726021.920.413.535.433.956.046.020.612.1L1 125.2993021.019.913.634.633.560.050.025.416.5L1 20 Test Report No.: 31DE0280-SH-01-A Page :21/ 34 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date Temperature / Humidity26deg.C. / 35 % EngineerHikaru Shirasawa ModeT x 2011/1/27 [MHz] 1.903 1.829 1.909> 0.500 Limi t [MHz] > 0.500 > 0.500 Transmitting(2473MHz) -6dB Bandwidth 2473.0000 -6dB Bandwidth Transmitting(2408MHz)Transmitting(2438MHz) Freq. [MHz] 2408.0000 2438.0000 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No. : 31DE0280-SH-01-A Page :22/ 34 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date2011/1/27 Temperature / Humidity26deg.C.35 % EngineerHikaru Shirasawa ModeTx ChFreq.P/M (PK)CableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2408.0-9.461.259.971.761.5030.00100028.24 Mid2438.0-9.761.269.971.471.4030.00100028.53 High2473.0-10.681.269.970.551.1430.00100029.45 Sample Calculation: Result = Reading + Cable Loss (supplied by customer) + Atten. Loss * In the above table, factor 0.0dB represents no use of Atten. and/or Filter. *The test result is rounded off to one or two decimal places, so some differences might be observed. Peak Output Power (Conducted) ResultLimit UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Test Report No.: 31DE0280-SH-01-A Pa ge :23/ 34 Test placeUL Japan, Inc. Shonan EMC Lab. No.2 Semi Anechoic Cham bNo.3 Semi Anechoic Chamber Date Temperature / Humidity20deg.C. , 25%24deg.C. , 30% Enginee rHikaru Shirasawa ModeTx, 2408 MH z PolarityFrequencyDetectorReadingAnt.Fac.LossGainResultLimitMarginHeightAngleRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m] [dBuV/m][dB][cm][deg.] Hori.195.395 QP21.716.48.831.715.243.528.311368…

Text truncated - open the document above for the full version.

Test report No. : 31DE0280-SH-01-A Page : 15 of 34 Issued date : January 31, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Conducted emission Test report No. : 31DE0280-SH-01-A Page : 16 of 34 Issued date : January 31, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Below 1GHz Test report No. : 31DE0280-SH-01-A Page : 17 of 34 Issued date : January 31, 2011 FCC ID : AK8DPRF6500 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Above 1GHz
