AK8DRBT1Bluetooth Earset

Operating Instructions Manual de instrucciones Bluetooth ® Earset System 2-186-671-11(1) © 2004 Sony Corporation Printed in Korea DR-BT1K THIS PRODUCT IS MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING SONY U.S. PATENTS: 4,429,194; 4,736,435; 4,668,842; AND OTHER PATENTS ISSUED OR PENDING IN U.S. AND OTHER COUNTRIES English Owner’s Record The model and serial number are located at the rear of the Bluetooth earset and at the belt clip of the Bluetooth earset adaptor. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. DR-BT1K Bluetooth earset : DR-BT1 Bluetooth earset adaptor : DRC-BT1 Serial No. Bluetooth earset: ------------------------ Bluetooth earset adaptor: ------------------ WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/ TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by SONY is under license. Nokia is a registered trademark of Nokia Corporation. N Getting started Unpacking Check that you have the following items: • Bluetooth earset (1) • Hanger (Size S) (1) R • Bluetooth earset adaptor (1) •AC power adaptor (1) •Car Air-vent clip (1) •Warranty (1) •Operating Instructions (1) Identifying Bluetooth earset R L 1 23 4 5 6 7 8 1Hanger 2Multifunction button Controls various functions of the Bluetooth earset. 3LED indicator Indicates the status of the Bluetooth earset. 4VOLUME + 5VOLUME - 6Pipe microphone 7Housing 8Contact terminal Bluetooth earset adaptor 1 3 4 5 6 2 1LED indicator Indicates the status of the Bluetooth earset adaptor. 2Power on button 3Pairing / Power off button 4Contact pin 5Belt clip 6DC IN 4.5 V jack Charging the units The Bluetooth earset contains a rechargeable Lithium- Ion battery and the Bluetooth earset adaptor contains a Nickel-Metal Hydride battery, which should be charged before using for the first time. 1Dock the Bluetooth earset with the Bluetooth earset adaptor. 2Connect the supplied AC power adaptor to DC IN 4.5 V jack on the Bluetooth earset adaptor. When the AC power adaptor connected to an AC outlet, both units will turn off automatically. 3Make sure that the indicator lights up green. Charging is completed in about 2.5 hours* and the indicator goes off. *Time required to fully charge empty battery. Notes •Charge in an environmental temperature of between 0 ̊C and 40 ̊C (between 32 ̊F and 104 ̊F). •Avoid exposure to temperature extremes, direct sunlight, moisture, sand, dust or mechanical shock. Never leave in a car parked in the sun. •Use only the supplied AC power adaptor. Do not use any other AC power adaptor. Polarity of the plug Recommended accessory Car Multi-Voltage DC Adaptor : DCC-E345 Buy Sony Accessories at URL : http://www.sony.com/sonyaccessories or call 1-888-559-7669 (SONY) Charging and usage hours It is usage time from fully charged. BluetoothBluetooth earsetearset adaptor <DR-BT1><DRC-BT1> Talk time7 hours5 hours (up to) Standby time160 hours100 hours (up to) Time stated above may vary, depending on the temperature or conditions of use. Note Charge the built-in rechargeable battery or if the LED indicator is still off after charging the built-in rechargeable battery, take the Bluetooth earset and Bluetooth earset adaptor to a Sony dealer for replace- ment of the rechargeable battery. To DC IN 4.5 jack AC power adaptor (supplied) To an AC outlet Both indicators light up green For the customers in the USA – Recycling of battery in Bluetooth earset RECYCLING LITHIUM-ION BATTERIES Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Lithium-Ion batteries. –Recycling of battery in Bluetooth earset a…

Text truncated - open the document above for the full version.

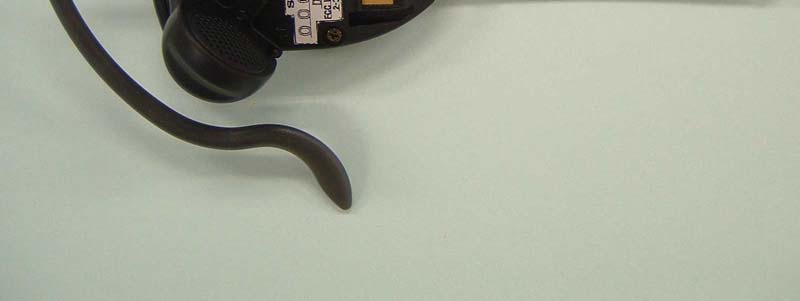

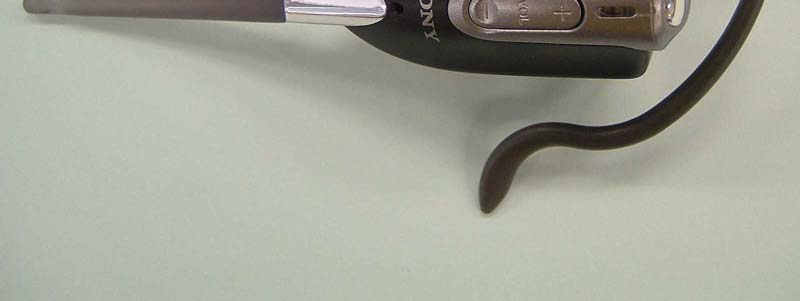

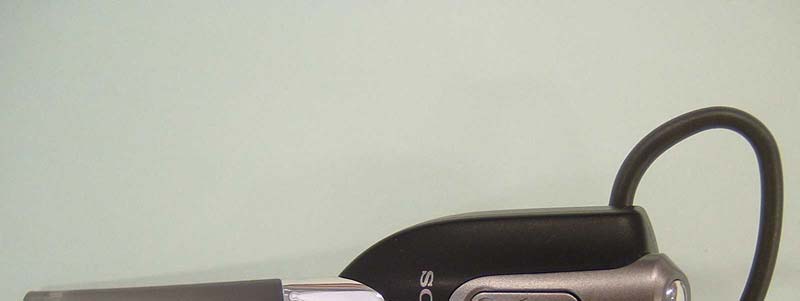

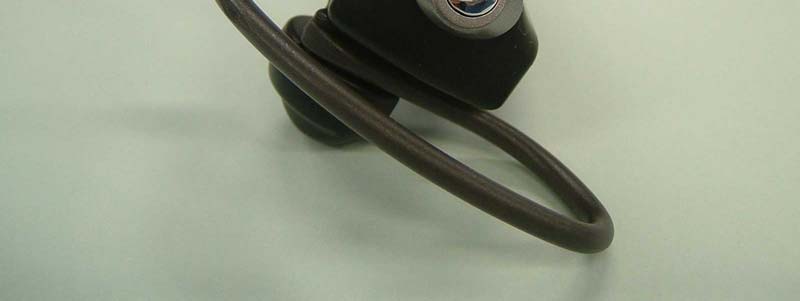

External Photo Sony Corporation Bluetooth earset (Model: DR-BT1) FCC ID: AK8DRBT1 External Photo Sony Corporation Bluetooth earset (Model: DR-BT1) FCC ID: AK8DRBT1 External Photo Sony Corporation Bluetooth earset (Model: DR-BT1) FCC ID: AK8DRBT1

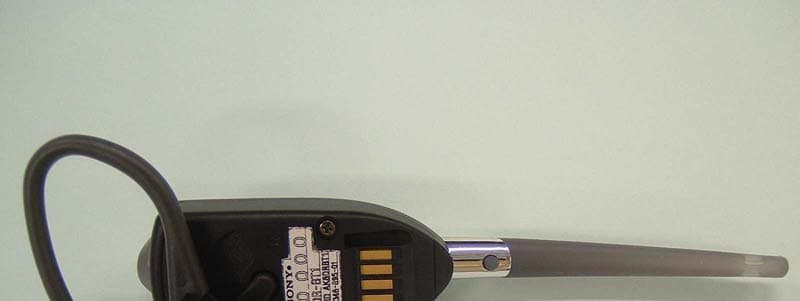

Label Location Sony Corporation Bluetooth earset (Model: DR-BT1) FCC ID: AK8DRBT1

Internal Photo Sony Corporation Bluetooth earset (Model: DR-BT1) FCC ID: AK8DRBT1 Internal Photo Sony Corporation Bluetooth earset (Model: DR-BT1) FCC ID: AK8DRBT1

Test report No. : 24FE0298-HO-1 Page : 2 of 34 Issued date : August 18, 2004 FCC ID : AK8DRBT1 Revised date : August 19, 2004 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information .................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 5 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 8 SECTION 5: Spurious Emission 15.247(c).................................................................................................... 9 SECTION 6: Bandwidth, Section 15.247(a)(1) ............................................................................................. 9 SECTION 7: Maximum Peak Output Power, Section 15.247(b)(1) ......................................................... 10 SECTION 8: Carrier Frequency Separation, Section15.247(a)(1) ........................................................... 10 SECTION 9: Number of Hopping Frequency, Section 15.247(a)(1)(iii)................................................... 10 SECTION 10: Dwell time, Section 15.247(a)(1)(iii) .................................................................................... 10 APPENDIX 1: Photographs of test setup .................................................................................................... 11 Spurious Emission (Radiated) ............................................................................................................................... 11 Worst Case Position (Y-axis:Horizontal / Y-axis:Vertical)..................................................................................13 APPENDIX 2:Test instruments .................................................................................................................... 14 APPENDIX 3: Data of EMI test.................................................................................................................... 15 Carrier Frequency Separation(FHSS)..................................................................................................................15 20dB Bandwidth(FHSS) ........................................................................................................................................17 Number of Hopping Frequency(FHSS) ................................................................................................................19 Maximum Peak Output Power(FHSS) .................................................................................................................24 Radiated Spurious Emission(FHSS) .....................................................................................................................25 Conducted Spurious Emission (FHSS).................................................................................................................31 99% Occupied Bandwidth(FHSS) ........................................................................................................................35 Test report No. : 24FE0298-HO-1 Page : 3 of 34 Issued date : August 18, 2004 FCC ID : AK8DRBT1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company Name : Sony EMCS Corporation Address : Shinagawa INTERCITY C Tower 2-15-3 Konan Minato-ku, Tokyo, Japan 108-6201 Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5962 Contact Person : Kikuo Murata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Earset Model No. : DR-BT1 Serial No. : 000000 Rating : DC3.7V Country of Manufacture : Korea Receipt Date of Sample : July 30, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description Model No: DR-BT1 (referred to as the EUT in this report) is the Bluetooth Earset. The details Clock frequency 16MHz Feature of EUT Headset / mobilephone Headset / adapter and mobilephone The details Equipment Type Bluetooth Earset Frequency band Lower limit 2400MHz Upper limit 2483.5MHz Frequency of Operation 2402 – 2480MHz Bandwidth & Channel spacing 79MHz(Hopping) & 1MHz Type of Modulation FHSS Duty cycle 100% Antenna Type Chip Antenna (Murata Manufacturing Co.,Ltd. LDA31) Antenna Gain 2400: -8.5dBi, 2442: -7.3dBi, 2484: -6.7dBi Transmit Power 1mW Mode of Operation Duplex Method of Frequency Generation Synthesizer ITU code F7W Operating voltage (Inner) DD-con: DC2.8V, (Battery voltage: DC2.8-3.9V) Operating Temperature 0 to +40deg.C. Test report No. : 24FE0298-HO-1 Page : 4 of 34 Issued date : August 18, 2004 FCC ID : AK8DRBT1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) FCC 15.31 (e) This EUT provides stable voltage constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 24FE0298-HO-1 Page : 5 of 34 Issued date : August 18, 2004 FCC ID : AK8DRBT1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 3: Test specification, procedur…

Text truncated - open the document above for the full version.

Test report No. : 24FE0298-HO-1 Page : 11 of 34 Issued date : August 18, 2004 FCC ID : AK8DRBT1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Spurious Emission (Radiated) Front Rear Test report No. : 24FE0298-HO-1 Page : 12 of 34 Issued date : August 18, 2004 FCC ID : AK8DRBT1 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Worst Case Position (Y-axis:Horizontal / Y-axis:Vertical) X-axis Y-axis Z-axis
