AK8DTPT1001PSP Development Tool

DTP-H1500A DTP-L1500A 2-591-231-12(2) Instruction manual SCE CONFIDENTIAL DTP-H1500 A DTP-L1500 A Testing Tool This manual contains safety precautions for the prevention of accidents, and instructions for the use and handling of this product. Read this manual carefully and use the product in a safe manner. After reading the manual, store it in an accessible location for future reference. 2-591-231-12(2) 2 DTP-H1500A DTP-L1500A 2-591-231-12(2) WARNING WARNING To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Use the supplied AC adaptor only. If you use other types, it may cause fire, electrical shocks or a malfunction. Laser specifications UMD TM Wave length:655-665 nm Power:max 0.28 mW Type:Semiconductor, continuous DVD-ROM Wave length:640-660 nm (DVD) 775-805 nm (CD) Power:max 0.3 mW (DVD) 0.23 mW (CD) Type:Semiconductor, continuous For customers in the U.S.A. and Canada CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beams used in the DVD- ROM and UMD™ drives are harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. This label is located on the DVD-ROM laser protective housing inside the enclosure. For customers in the U.S.A. CAUTION Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial enviroment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. FCC Radio-Frequency Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and body. This transmitter must not be co-located or operating in conjunction with any antenna or transmitter. Owner’s Record The model and serial numbers are located on the side of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call for technical assistance at the number shown in "Contact information" on the back cover of this instruction manual. Model No. DTP-H1500 A DTP-L1500 A Serial No.______________ For customers in Canada This Class A digital apparatus complies with Canadian ICES-003. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Pour les utilisateurs au Canada Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Le terme “IC” avant le numéro d’homologation ne signifie seulement que les normes d’Industrie Canada ont été respectées. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. WARNING 3 DTP-H1500A DTP-L1500A 2-591-231-12(2) WARNING For customers in Europe CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beams used in the DVD- ROM and UMD™ drives are harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. This label is located on the DVD-ROM laser protective housing inside the enclosure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER product marking is located on the side of the product. This equipment complies with EN55022 CLASS B and EN55024 for use in the following areas: residential, business, and light-industrial. This equipment has been tested and found to comply with the limits set out in the R&TTE Directive using a connection cable shorter than 3 metres. Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation. If this unit is affected by static electricity or burst-noise, it may not work correctly. WARNING For customers in Korea 0 4 1 2 4 DTP-H1500A DTP-L1500A 2-591-231-12(2) For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or those described in the instruction manual and adhere to them. USE Power sources This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those units designed to operate from battery power, or other sources, refer to the operating instructions. Overloading Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock. Liquid and foreign objects Never push objects of any kind into the unit through openings as they may touch dangerous voltage points or short out parts t…

Text truncated - open the document above for the full version.

Instruction manual SCE CONFIDENTIAL DTP-T1000 A Development Tool This manual contains safety precautions for the prevention of accidents, and instructions for the use and handling of this product. Read this manual carefully and use the product in a safe manner. After reading the manual, store it in an accessible location for future reference. 2-515-713-13(1) 2 WARNING WARNING To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Use the supplied AC adaptor only. If you use other types, it may cause fire, electrical shocks or a malfunction. Laser specifications UMD TM Wave length:655-665 nm Power:max 0.28 mW Type:Semiconductor, continuous DVD-ROM Wave length:640-660 nm (DVD) 775-805 nm (CD) Power:max 0.3 mW (DVD) 0.23 mW (CD) Type:Semiconductor, continuous For customers in the U.S.A. and Canada CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beams used in the DVD- ROM and UMD™ drives are harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. This label is located on the DVD-ROM laser protective housing inside the enclosure. For customers in the U.S.A. CAUTION Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial enviroment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. FCC Radio-Frequency Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and body. This transmitter must not be co-located or operating in conjunction with any antenna or transmitter. Owner’s Record The model and serial numbers are located on the side of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call for technical assistance at the number shown in "Contact information" on the back cover of this instruction manual. Model No. DTP-T1000 A Serial No.______________ For customers in Canada This Class A digital apparatus complies with Canadian ICES-003. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Pour les utilisateurs au Canada Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Le terme “IC” avant le numéro d’homologation ne signifie seulement que les normes d’Industrie Canada ont été respectées. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. WARNING 3 WARNING For customers in Europe CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beams used in the DVD- ROM and UMD™ drives are harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. This label is located on the DVD-ROM laser protective housing inside the enclosure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER product marking is located on the side of the product. This equipment complies with EN55022 CLASS B and EN55024 for use in the following areas: residential, business, and light-industrial. This equipment has been tested and found to comply with the limits set out in the R&TTE Directive using a connection cable shorter than 3 metres. Audio and picture distortion may occur if this equipment is positioned in close proximity to any equipment emitting electromagnetic radiation. If this unit is affected by static electricity or burst-noise, it may not work correctly. WARNING For customers in Korea 0 4 1 2 Dit apparaat bevat een vast ingebouwde batterij die niet vervangen hoeft te worden tijdens de levensduur van het apparaat. Raadpleeg uw leverancier indien de batterij toch vervangen moet worden. De batterij mag alleen vervangen worden door vakbekwaam servicepersoneel. Gooi de batterij niet weg maar lever deze in als klein chemisch afval (KCA). Lever het apparaat aan het einde van de levensduur in voor recycling, de batterij zal dan op correcte wijze verwerkt worden. 4 For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or those described in the instruction manual and adhere to them. USE Power sources This unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those units designed to operate from battery power, or other sources, refer to the operating instructions. Overloadin…

Text truncated - open the document above for the full version.

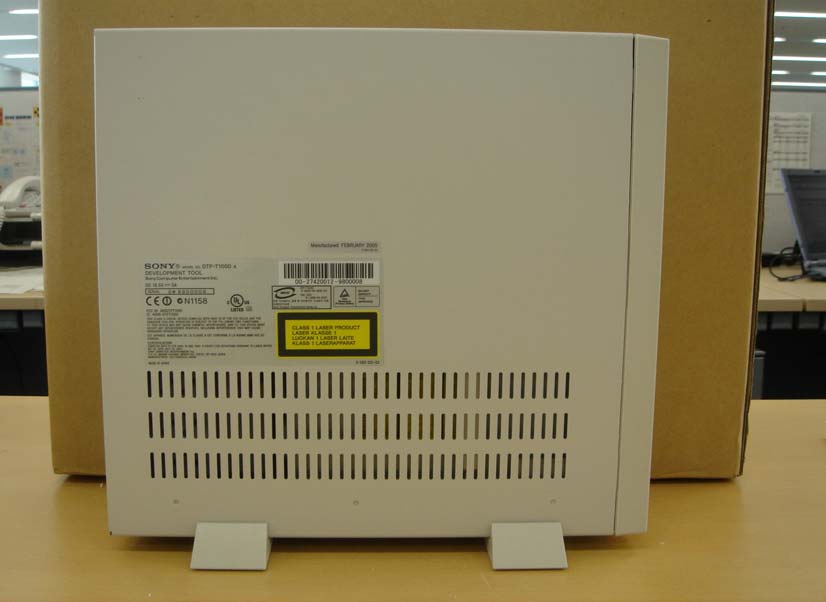

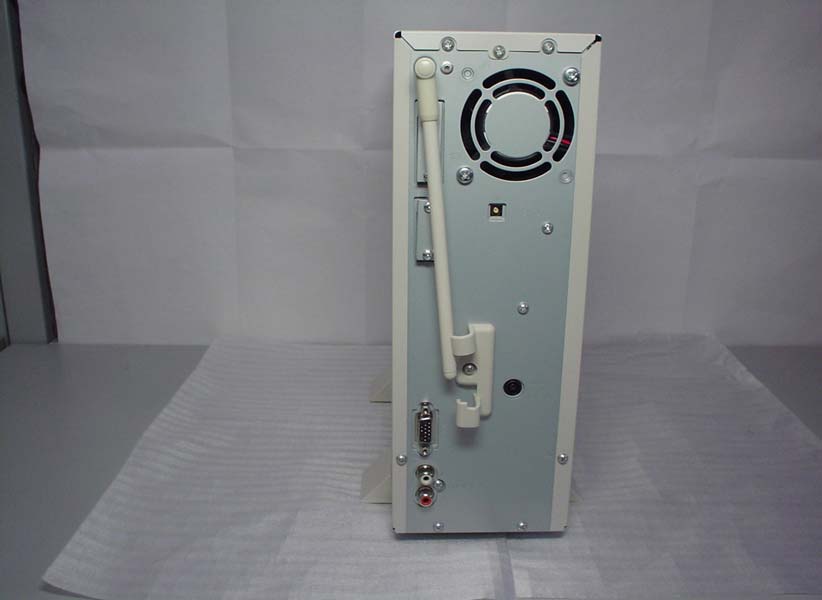

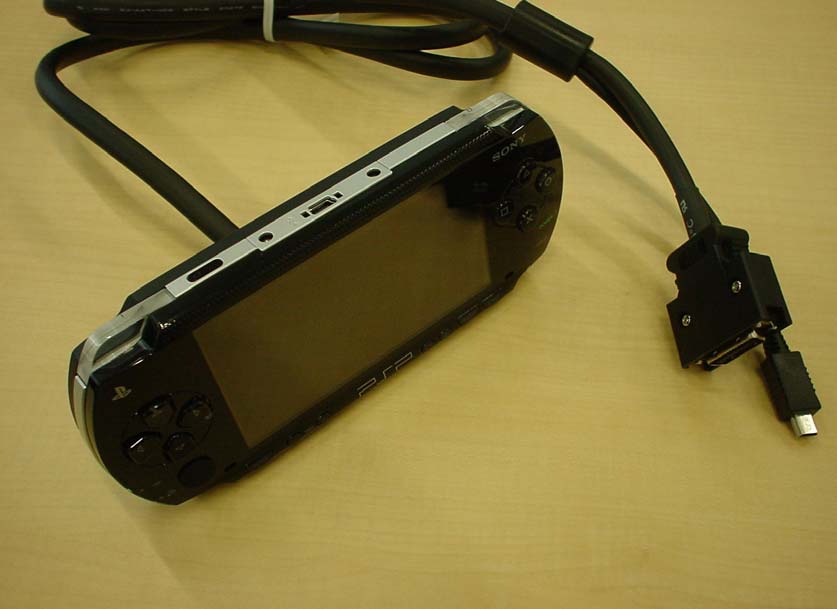

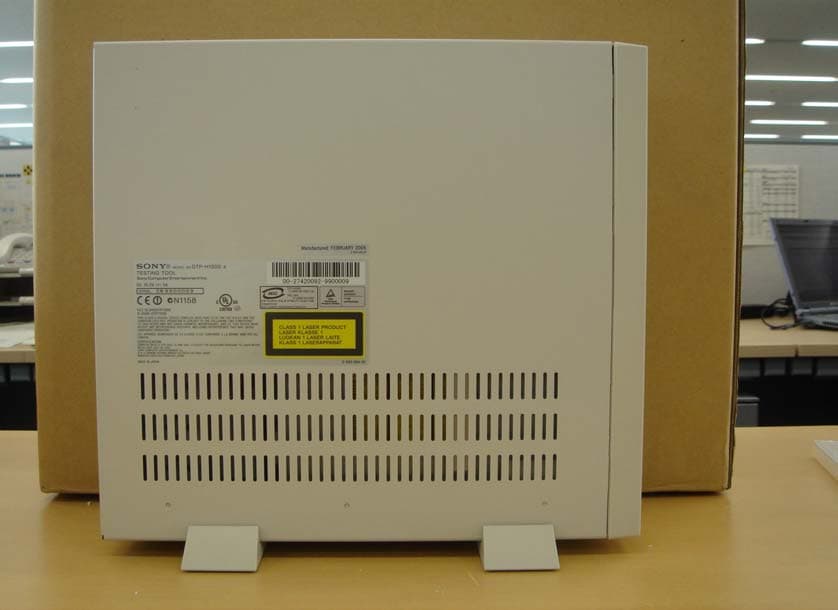

PHOTO DOCUMENTATION for Development Tool, DTP-T1000 (External) Sony Computer Entertainment Inc. Photo 1 Outside-Front Photo 2 Outside-Rear Photo 3 Outside-Left Side Photo 4 Outside-Right Side Photo 5 Outside-Top Photo 6 Outside-Bottom Photo 7 Controller - Outside PHOTO DOCUMENTATION for Testing Tool, DTP-H1500 and DTP-L1500 (External) Sony Computer Entertainment Inc. Photo 1 Outside-Front Photo 2 Outside-Rear Photo 3 Outside-Left Side Photo 4 Outside-Right Side Photo 5 Outside-Top Photo 6 Outside-Bottom Photo 7 Controller - Outside

PHOTO DOCUMENTATION for Development Tool, DTP-T1000 (Internal) Sony Computer Entertainment Inc. Photo 1 Inside-Left Photo 2 Inside-Right Photo 3 Location of WLAN Module Photo 4 TWL-001 PWB with WLAN Module is connected to TMU-001 PWB (Main PWB) WLAN Module WLAN Module Photo 5 TDD-001 PWB - a Photo 6 TDD-001 PWB - b Photo 7 TMU-001 PWB - a Photo 8 TMU-001 PWB - b Photo 9 TWL-001 PWB - a Photo 10 TWL-001 PWB - b Photo 11 WLAN Module Block - a Photo 12 WLAN Module Block - b Photo 13 TUC-001 PWB - a Photo 14 TUC-001 PWB - b Photo 15 TSW-001 PWB - a Photo 16 TSW-001 PWB - b Photo 17 Controller - Inside Photo 18 Controller - TPC-001PWB - a Photo 19 Controller - TPC-001PWB - b PHOTO DOCUMENTATION for Testing Tool, DTP-H1500 and DTP-L1500 (Internal) Sony Computer Entertainment Inc. Photo 1 Inside-Left Photo 2 Inside-Right Photo 3 Location of WLAN Module Photo 4 TWL-001 PWB with WLAN Module is connected to TMU-002 PWB (Main PWB) WLAN Module WLAN Module Photo 5 TDD-001 PWB - a Photo 6 TDD-001 PWB - b Photo 7 TMU-002 PWB - a Photo 8 TMU-002 PWB - b Photo 9 TWL-001 PWB - a Photo 10 TWL-001 PWB - b Photo 11 WLAN Module Block - a Photo 12 WLAN Module Block - b Photo 13 TUC-001 PWB - a Photo 14 TUC-001 PWB - b Photo 15 TSW-001 PWB - a Photo 16 TSW-001 PWB - b Photo 17 Controller - Inside Photo 18 Controller - TPC-001PWB - a Photo 19 Controller - TPC-001PWB - b

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 Issue Date : April 27, 2005 Page 1 of 1 RF Exposure Calculation Exposure of Humans to RF Fields Requirements Applicant : Sony Computer Entertainment Inc. Type of Equipment : PSP Development Tool (IEEE802.11b WLAN) Model No. : DTP-T1000 FCC ID : AK8DTPT1001 IC : 409B-DTPT1001 Regulations Applied : CFR 47 FCC 15.247(b)(5) References Documents : CFR 47 FCC 1.1307(b), 1.1310, 2.1093 and OET65 Supplement C RF Exposure Calculations : The following power density, calculated at 20cm from the radiated element, is in accordance with FCC OET65 Appendix B Table(B) “Limit for General Population / Uncontrolled Exposure”. The maximum permissible exposure level is defined with 1mW/cm 2 . The power density can be calculated as below: Where: R = 20 cm P = 2.25 mW(3.52dBm)(Max. conducted output power at antenna terminal) G = 3.16(numeric gain) = 5.0 dBi(Max. antenna Gain) S = calculated exposure level at 20 cm Then maximum power density generated at 20 cm is 0.0016 mW/cm 2 Summary: The EUT complies with the RF exposure requirement of the above regulation. Masaaki Takahashi Senior Manager JQA EMC Engineering Dept. 2 4/*RGPSπ= SGPRπ4/*=Q

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA File No. : 400-41032 Issue Date : April 27, 2005 Page 1 of 146 EMI TEST REPORT JQA File No. : 400-41032 Model No. : DTP-T1000, DTP-H1500 and DTP-L1500 Type of Equipment : PSP Development Tool (IEEE802.11b WLAN) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 : Industry Canada RSS-210 Issue 5(inc. Amendment) FCC ID : AK8DTPT1001 IC : 409B-DTPT1001 Applicant : Sony Computer Entertainment Inc. Address : 2-6-21 Minami-Aoyama, Minato-ku, Tokyo, 107-0062 Japan Manufacturer : Sony Computer Entertainment Inc. Address : 2-6-21 Minami-Aoyama, Minato-ku, Tokyo, 107-0062 Japan Received date of EUT : April 8, 2005 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 2 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 5 1.2 General Information 5 - 6 1.3 Test Condition 7 – 13 1.4 EUT Modifications / Deviation from Standard 14 1.5 Test results 15 - 16 1.6 Summary 17 1.7 Test Configuration / Operation of EUT 18 - 19 1.8 EUT Arrangement (Drawing) 20 1.9 Preliminary Test and Test-setup (Drawings) 21 – 29 1.10 EUT Arrangement (Photographs) 30 – 34 JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 3 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION 2 Test Data (EUT 1 data) 2.1 Channel Separation N/A 2.2 Minimum Hopping Channel N/A 2.3 Occupied Bandwidth 35 - 58 2.4 Dwell Time N/A 2.5 Peak Output Power (Conduction) 59 2.6 Peak Output Power (Radiation) N/A 2.7 Peak Power Density (Conduction) 60 - 71 2.8 Peak Power Density (Radiation) N/A 2.9 Spurious Emissions (Conduction) 72 - 76 2.10 Spurious Emissions (Radiation) 77 - 83 2.11 AC Power Line Conducted Emissions 84 2.12 RF Exposure Compliance N/A 2.13 Spurious Emissions for Receiver (Radiation) 85 - 87 2.14 AC Power Line Conducted Emissions for Receiver 88 JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 4 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION 3 Test Data (EUT 2 data) 3.1 Channel Separation N/A 3.2 Minimum Hopping Channel N/A 3.3 Occupied Bandwidth 89 - 112 3.4 Dwell Time N/A 3.5 Peak Output Power (Conduction) 113 3.6 Peak Output Power (Radiation) N/A 3.7 Peak Power Density (Conduction) 114 - 125 3.8 Peak Power Density (Radiation) N/A 3.9 Spurious Emissions (Conduction) 126 - 130 3.10 Spurious Emissions (Radiation) 131 - 137 3.11 AC Power Line Conducted Emissions 138 3.12 RF Exposure Compliance N/A 3.13 Spurious Emissions for Receiver (Radiation) 139 - 141 3.14 AC Power Line Conducted Emissions for Receiver 142 4 Appendix Test instruments List 143 – 146 JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 5 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION 1. DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart B and C Radiated Spurious Emissions and Industry Canada IC RSS-210 (inc. amendment) Test procedure : The tests were performed with reference to the FCC Public Notice DA 00-705, released March 30, 2000. The test set-up was made in accordance to the general provisions of ANSIC63.4-2003. 1.2 GENERAL INFORMATION 1.2.1 Test facility : JQA Safety & EMC Center EMC Engineering Department is recognized under ISO/IEC 17025 by NVLAP and VLAC. 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 Open Area Test Site Industry Canada No.: IC4126-4 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2005) JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 6 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : PSP Development Tool (IEEE802.11b WLAN) 2) Product Type : Prototype 3) Category : Transceiver(DSSS type) 4) EUT Authorization : Certification 5) FCC ID : AK8DTPT1001 IC : 409B-DTPT1001 6) Trade Name : SONY 7) Model No. : DTP-T1000 8) Operating Frequency Range : 2412 MHz - 2462 MHz 9) Highest Frequency Used in the EUT : 2462 MHz 10) RF Output Power : 3.52dBm(measured value) 11) Serial No. : SJ0005279, SJ000589 12) Date of Manufacture : None 13) Power Rating : 19.5VDC (external) The EUT was also operated with the AC adaptor (Model:DTP-H100, Input:100-240VAC 50/60Hz, Output:19.5VDC by Sony Computer Entertainment Inc.) 14) EUT Grounding : None Note : This application is based on two products DTP-T1000(PSP Development Tool) and DTP-H1500(Testing Tool). The DTP-H1500 is a simplified version of the DTP-T1000, therefore DTP-T1000 has been chosen as representative test sample, including a AC/DC adaptor, provided by the manufacturer. The above mentioned Tool is a modified version of the previous tested and approved product, as described on the application FCC ID:AK8DTPT1000. Two samples were tested; EUT 1: DTP-L1500 is similar to…

Text truncated - open the document above for the full version.

JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 31 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (position 1) - - Rear view (position 1) - JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 32 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (position 2) - - Rear view (position 2) - JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 33 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (position 3) - - Rear view (position 3) - JQA File No. :400-41032 FCC ID:AK8DTPT1001 IC:409B-DTPT1001 Model No. :DTP-T1000 Issue Date :April 27, 2005 Standard :CFR 47 FCC Rules Part 15 Page 34 of 146 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR AC POWER LINE CONDUCTED EMISSION MEASUREMENT Photograph present configuration with maximum emission - Front view - - Side View -
