DWM-02N flyer (GB) 4-585-171-01 (1) CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. When you dispose of the battery, you must obey the law in the relative area or country. IMPORTANT The name plate is located on the battery holder inside of the grip. WARNING Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. If the transmitter develops an abnormally high temperature, a burning odor or smoke during use, remove the battery holder and stop using the transmitter immediately. Take care not to burn your fingers when removing the battery holder as the batteries may be very hot at this time. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. For the customers in the U.S.A. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which  the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.  Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of part 15 of FCC Rules. If you have any questions about this product, you may call; Sony Customer Information Service Center 1-800-222-7669 or http://www.sony. com/ Declaration of Conformity Trade Name: SONY Model: DWM-02N Responsible party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-924-2230 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Use of Sony wireless devices is regulated by the Federal Communications Commission as described in Part 74 subpart H of the FCC regulations and users authorized thereby are required to obtain an appropriate license. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). For the customers in Canada CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. DWM-02N has been tested and found to comply with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This device operates on a no-protection no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. Please consult Industry Canada’s document CPC-2-1-28, Optional Licensing for Low-Power Radio Apparatus in the TV Bands, for details. For the customers in Europe This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents. Before operating this unit, please read the separate R&TTE precautions document. Voor de klanten in Europa Lees voordat u het apparaat gaat gebruiken eerst het aparte document met waarschuwingen m.b.t. radio- en telecommunicatieontvangstapparatuur (R&TTE). För kunder i Europa Innan du använder den här enheten ska du läsa det separata dokumentet om försiktighetsåtgärder enligt R&TTE-direktivet. Para clientes na Europa Antes de utilizar esta unidade, leia o documento R&TTE fornecido e…

Text truncated - open the document above for the full version.

Digital Wireless Microphone Operating Instructions DWM-02N 4-585-174-01 (1) © 2015 Sony Corporation 2 Table of Contents Features ...................................................................... 3 Parts Identification ................................................... 4 Power Supply ............................................................. 5 Installing the Batteries ........................................... 5 Attaching the Supplied Accessories ......................... 6 Replacing the Identification Ring .......................... 6 Setting the Transmission Channel ........................... 7 Selecting the Group/Channel ................................. 7 Using the Cross Remote ............................................ 8 Pairing With a Receiver ......................................... 8 Using the Encrypted Transmission Function ......... 9 Using Secure Key Mode (SECURE KEY) ............ 9 Using Password Mode (PASSWORD) ................ 10 Using a USB Keyboard ........................................... 11 Basic Menu Operations .......................................... 11 Setting Menus .......................................................... 12 Naming of Microphone (NAME) ........................ 12 Selecting the Frequency Band (BAND) .............. 12 Selecting the Group/Channel (GP/CH) ............... 12 Setting the RF Output Power (RF POWER) ....... 12 Setting the Audio Input Level (INPUT LEVEL) ............................................................. 12 Low-cut Filter Setting (LCF) ............................... 13 Power Save Setting (POWER SAVE) ................. 13 Setting the Battery Type (BATTERY TYPE) ..... 13 Displaying the Accumulated Use Time (TIME) ............................................................... 13 Setting the Encrypted Transmission Function (ENCRYPTION) ............................................... 13 Setting the audio codec mode (CODEC MODE) .............................................................. 13 Setting the maximum RF output power (MAX RF POWER) .......................................... 14 Generating an Internal Signal (INTERNAL SG) ..................................................................... 14 Locking the POWER Switch (POWER SW LOCK) ............................................................... 14 Cross Remote (RF REMOTE) ............................. 14 Setting the Brightness of the Display (BRIGHTNESS) ................................................ 14 Automatic Dimming of the Display (DIMMER MODE) .............................................................. 15 Resetting Parameters to Their Factory Settings (FACTORY PRESET) ...................................... 15 Displaying the Software Version (VERSION) .... 15 Block Diagram ......................................................... 16 Troubleshooting ....................................................... 17 Important Notes on Operation .............................. 18 Notes on Using the Microphone .......................... 18 On Cleaning ......................................................... 18 Specifications ........................................................... 19 Carrier Frequencies and Channel Steps ............... 20 3 Features The DWM-02N is a digital wireless microphone that features an interchangeable microphone capsule unit design, and is intended for use in UHF synthesized wireless microphone systems. The DWM-02N can be used in vocal performances, interviews, speeches, and a variety of other applications. What is DWX? DWX refers to Sony’s new digital wireless microphone system. The DWX series reflects Sony’s extensive expertise in professional microphones and sound design. It represents a successful blend of Sony know-how, wireless technology renowned for stability, and cutting-edge digital audio technology. In addition to realizing the high sound quality possible with a digital system, the DWX series supports multi- channel simultaneous operation, encrypted transmission, and metadata transmission for monitoring the status of multiple transmitters. Using a main link and a separate additional link, remote control of transmitters from the receiver is also possible. With its many advanced features, the system has the potential to revolutionize the workflow of professional applications. What is WiDIF-HP? WiDIF-HP (WiDIF: Wireless Digital Interface Format, HP: High Profile) is a wireless digital audio interface format developed by Sony. It enables highly secure transmission with high sound quality and low system latency, and supports simultaneous multi-channel operation. What is Cross Remote? Cross Remote is a system that allows transmitters to be monitored and controlled from a receiver and the Wireless Studio control software installed on a computer connected to the receiver. For example, the settings of a transmitter worn under clothing can be easily changed over the wireless link. Wide RF carrier frequency range The DWM-02N microphone covers an extremely wide RF carrier frequency range. Depending on the model, the transmitter can cover bandwidths between 48-MHz and 72-MHz (e.g., 72-MHz with the CE42 1) ) — much wider than 24-MHz of the analog wireless microphone system. This remarkably wide coverage on a single model offers cost efficiency and operational convenience, because it allows one microphone to be operated in many different areas. 1) Carrier frequencies differ depending on the model. Interchangeable microphone capsule Coupled with a Sony microphone capsule unit (not supplied), the DWM-02N can be used in vocal performances, interviews, speeches, and a variety of other applications. You can mount a microphone capsule unit by simply screwing it onto the capsule mounting area at the top of the DWM-02N. The capsule mounting area has standard dimensions with a diameter of 31.3 mm and a pitch of 1.0 mm (1.25"/28 thread pitch). Capability of accepting wide range of sound pressure level For details, see “Setting the Audio Input…

Text truncated - open the document above for the full version.

Sony EMCS Corporation 30 Ibarajima Ohya-cho Inazawa-shi, Aichi 492-8545 Japan Date: August 4, 2015 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: Sony Corporation FCC ID: AK8DWM02N To whom it may concern: We, the undersigned, hereby authorize Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Hideo Nomura Senior Manager Product Safety Section, Quality Assurance Department 3, Sony EMCS Corporation

Sony EMCS Corporation 30 Ibarajima Ohya-cho Inazawa-shi, Aichi 492-8545 Japan Request for Confidentiality Date: August 21, 2015 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : AK8DWM02N Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts List The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Hideo Nomura Senior Manager Product Safety Section, Quality Assurance Department 3, Sony EMCS Corporation

Sony EMCS Corporation 30 Ibarajima Ohya-cho Inazawa-shi, Aichi 492-8545 Japan Request for Short-Term Confidentiality Date: August 21, 2015 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : AK8DWM02N Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Hideo Nomura Senior Manager Product Safety Section, Quality Assurance Department 3, Sony EMCS Corporation

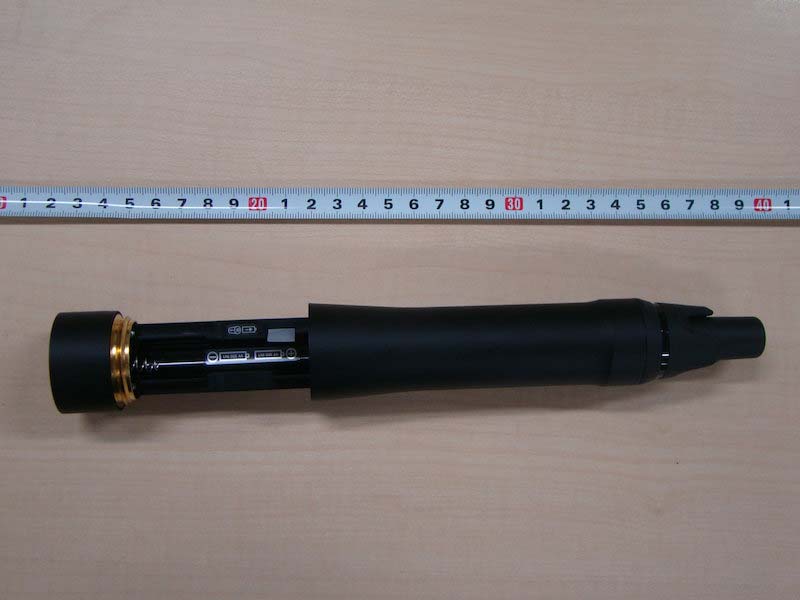

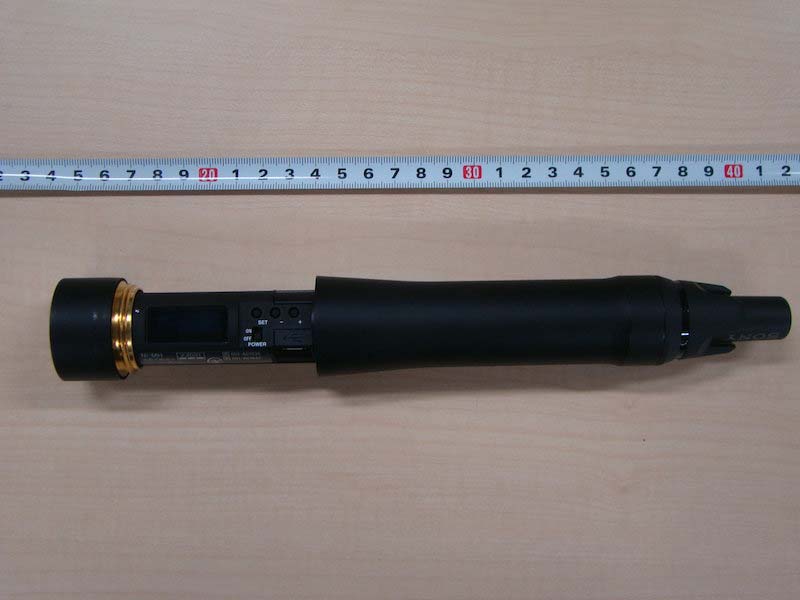

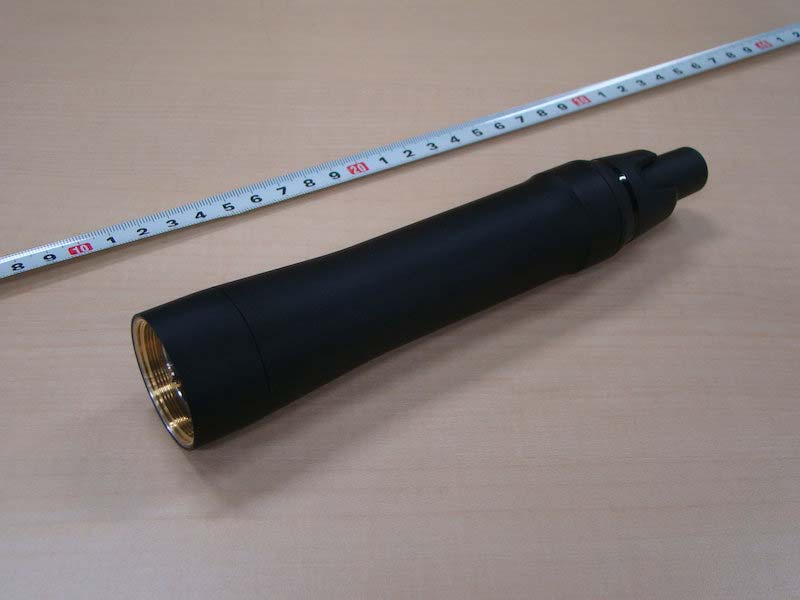

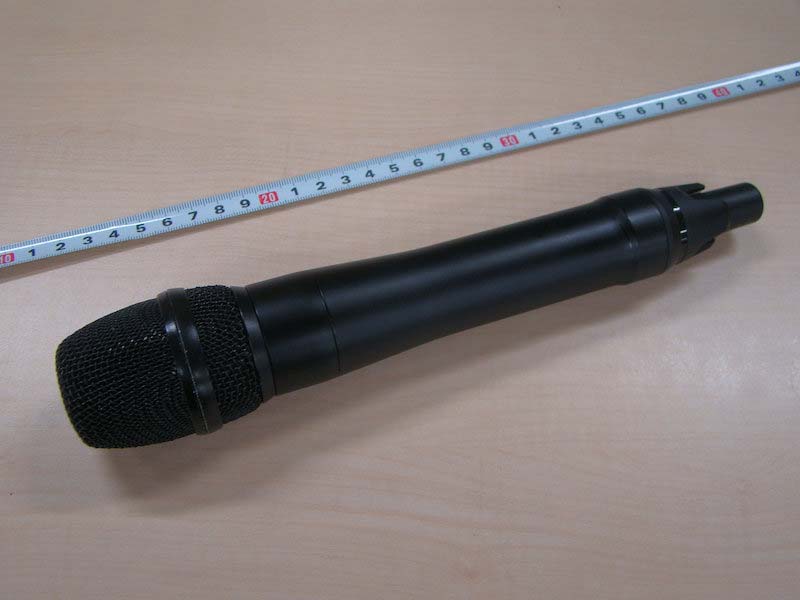

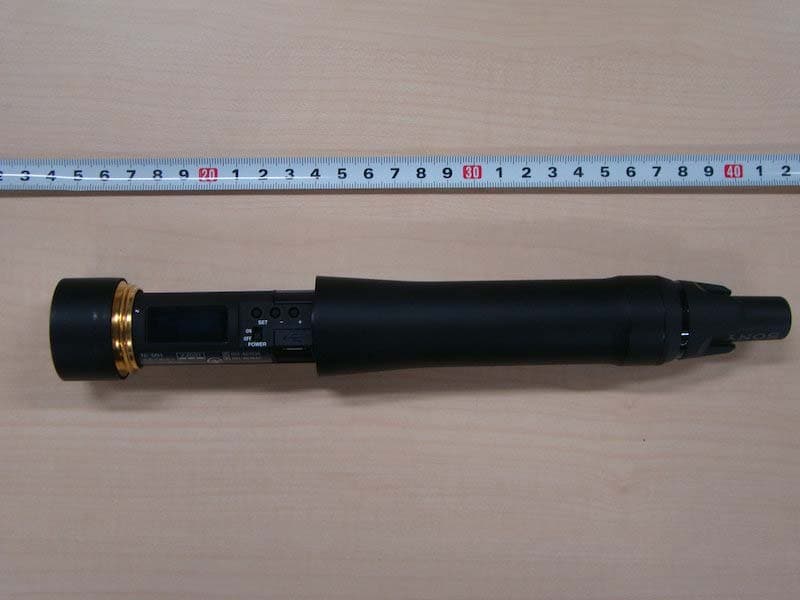

Outline photograph document: Model DWM-02N Fig.1: Microphone head attached Fig.2: Top side view Outline photograph document: Model DWM-02N Fig.3: Bottom side view Fig.4: Front side view Outline photograph document: Model DWM-02N Fig.5: Rear side view Fig.6: Display and switches

DWM-02N Outline drawing Unscrew and slide the cylindrical Model Number Label (Upper) Model Number Label (Lower) DWM-02N Model Number Label Label Upper (U14) Label Upper (U30) Label Upper (U42) Label Lower (for all frequencies)

Inner structure document: Model DWM-02N Fig.1: Removed the Grip Fig.2: Removed the board CN-3630 Inner structure document: Model DWM-02N Fig.3: Side A of board CN-3630 Fig.4: Side B of board CN-3630 Inner structure document: Model DWM-02N Fig.5: Removed the board AU-356 Fig.6: Side A of board AU-356 Inner structure document: Model DWM-02N Fig.7: Side B of board AU-356 Fig.8: Removed the Grip (Middle) Inner structure document: Model DWM-02N Fig.9: Grip (Middle) seen from the MIC head side Fig.10: Grip (Middle) seen from the main unit side Inner structure document: Model DWM-02N Fig.11: Removed the Battery case Fig.12: Front side of the Battery case Inner structure document: Model DWM-02N Fig.13: Rear side of the Battery case Fig.14: Removed the Antenna, Board RF-165, Board AN-38 Inner structure document: Model DWM-02N Fig.15: Antenna Fig.16: Side A of board RF-165 Inner structure document: Model DWM-02N Fig.17: Side B of board RF-165 Fig.18: Side A of Board AN-38 Inner structure document: Model DWM-02N Fig.19: Side B of Board AN-38 Fig.20: Removed the Board DPR-357 Inner structure document: Model DWM-02N Fig.21: Side A of Board DPR-357 Fig.22: Side B of Board DPR-357 Inner structure document: Model DWM-02N Fig.23: Removed the shield case Fig.24: Removed the electromagnetic absorber sheet Inner structure document: Model DWM-02N Fig.25: Removed the OEL display

Test report No. : 10686939H-C-R1 Page : 2 of 32 Issued date : March 16, 2015 Revised date : September 30, 2015 FCC ID : AK8DWM02N UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10686939H-C Revision Test report No. Date Page revised Contents - (Original) 10686939H-C March 16, 2015 - - 1 10686939H-C-R1 September 30, 2015 P.4 Correction of clock frequency of IC602, 603, 604, 605, 607 1 10686939H-C-R1 September 30, 2015 P.5 Correction of channel spacing of Radio microphone part 1 10686939H-C-R1 September 30, 2015 P.9 Addition of explanatory for operating mode Test report No. : 10686939H-C-R1 Page : 3 of 32 Issued date : March 16, 2015 Revised date : September 30, 2015 FCC ID : AK8DWM02N UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Field strength of spurious radiation ................................................................................ 11 SECTION 6: Antenna terminal tests, Emission Bandwidth and Frequency stability ....................... 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 RF power output ................................................................................................................................ 13 Emission Bandwidth ......................................................................................................................... 14 Spurious emissions at antenna terminals ........................................................................................... 17 Field strength of spurious radiation ................................................................................................... 26 Frequency stability ............................................................................................................................ 29 APPENDIX 2: Test instruments ............................................................................................................. 30 APPENDIX 3: Photographs of test setup ............................................................................................... 31 Radiated Spurious Emission ............................................................................................................. 31 Worst Case Position .......................................................................................................................... 32 Test report No. : 10686939H-C-R1 Page : 4 of 32 Issued date : March 16, 2015 Revised date : September 30, 2015 FCC ID : AK8DWM02N UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sony EMCS Corporation Address : 30 Ibarajima Ohya-cyo, Inazawa-shi, Aichi-ken, 492-8545 ,JAPAN Telephone Number : +81-50-3807-4243 Facsimile Number : +81-50-3807-4306 Contact Person : Youhei Hisano *Remarks Sony EMCS Corporation (Subsidiary Company Name) is on behalf of the applicant: Sony Corporation. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Wireless Microphone Model No. : DWM-02N Serial No. : Refer to 4.2 in this report. Rating : DC 3.0V (2 x AA batteries) Receipt Date of Sample : February 11, 2015 Country of Manufacture : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model: DWM-02N (referred to as the EUT in this report) is a Digital Wireless Microphone. General Specification Clock frequency(ies) in the system : X401 8MHz X202 12.288MHz X2001 16MHz X801 (TCXO) 19.2MHz IC602, 603, 604, 605, 607 1250 - 1500kHz IC606 1300kHz IC202 600 - 1000kHz IC500 250kHz X802 (VCO: change by a transmission frequency) (14) 470.125-541.875MHz (30) 566.125-607.875MHz, 614.125-637.875MHz (42) 638.125-697.875MHz Test report No. : 10686939H-C-R1 Page : 5 of 32 Issued date : March 16, 2015 Revised date : September 30, 2015 FCC ID : AK8DWM02N UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radio Specification (Radio microphone part) Radio type : Transmitter Modulation type : π/4 shift QPSK Emission designator : 192KG1D, 192KG1E Necessary bandwidth : 192kHz, Manufacturer defined Channel spacing : 25kHz Frequency of operation : (14) 470.125-541.875MHz (30) 566.125-607.875MHz, 614.125-637.875MHz (42) 638.125-697.875MHz RF power : High: 50mW, Middle: 10mW, Low: 1mW Antenna type : 1/4 Lambda Monopole antenna (helical type) Antenna gain : 2.14dBi Power Supply (radio part input) : DC 2.8V, DC 3.0V, DC 5.0V AF Specification : 40Hz – 18000Hz, Maximum input: -24dBV (MIC level, ATT 0dB) Operating temperature : 0 deg. C to 50 deg. C Radio Specification (RF remote part) Radio Type : Transceiver Modulation type : DSSS Frequency of Operation : 2405MHz to 2480MHz Channel spacing : 5MHz Method of frequency generation : Synthesizer Power Supply (radio part input) : DC 2.8V Antenna Type : Chip antenna Antenna Gain : -3.0dBi max Operating temperature : 0 deg. C to 50 deg. C *This test report applies for Radio microphone part. …
