AK8DWMW038802.11B/G/N WLAN MODULE

User Manual SONY 802.11bgn WLAN Module MODEL DWM-W038 The purpose of this manual is to explain correct way how to integrate module DWM-W038 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. The SONY 802.11bgn WLAN Module, model DWM-W038 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Regulatory Information Operational Information Wireless Interoperability The end product integrating this module is designed to be interoperable with any wireless LAN product that is based on direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) radio technology and to comply with the following standards. ･IEEE Std 802.11b Standard on 2.4GHz Wireless LAN ･IEEE Std 802.11g Standard on 2.4GHz Wireless LAN ･IEEE Std 802.11n Standard on 2.4GHz Wireless LAN Safety The end product integrating this module, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this device, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The end product integrating this module operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of the end product integrating this module may be restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of such situations include the following: ･Using the end product integrating this module onboard airplanes, or ･Using the end product integrating this module in any other environment where the risk of interference with other devices or services is perceived or identified as being harmful. If uncertain of the policy that applies to the use of wireless devices in a specific organization or environment (an airplane, for example), ask for authorization to use the end product integrated into this module before turning it on. USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labeling SONY WiFi module DWM-W038 labelled as below. FCC ID: AK8DWMW038 The proposed with FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: AK8DWMW038” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Canada-Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. L ‘ utilization de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (E…

Text truncated - open the document above for the full version.

Sony EMCS Corporation, Kisarazu TEC 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Date: April 15, 2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Sony EMCS Corporation, Kisarazu TEC 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Mitsutoshi Oono, Senior Manager Product Compliance Department Quality & Procurement Group Sony EMCS Corporation Kisarazu TEC REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Sony EMCS Corporation, Kisarazu TEC 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Date: April 15, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: AK8DWMW038 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Mitsutoshi Oono, Senior Manager Product Compliance Department Quality & Procurement Group Sony EMCS Corporation Kisarazu TEC

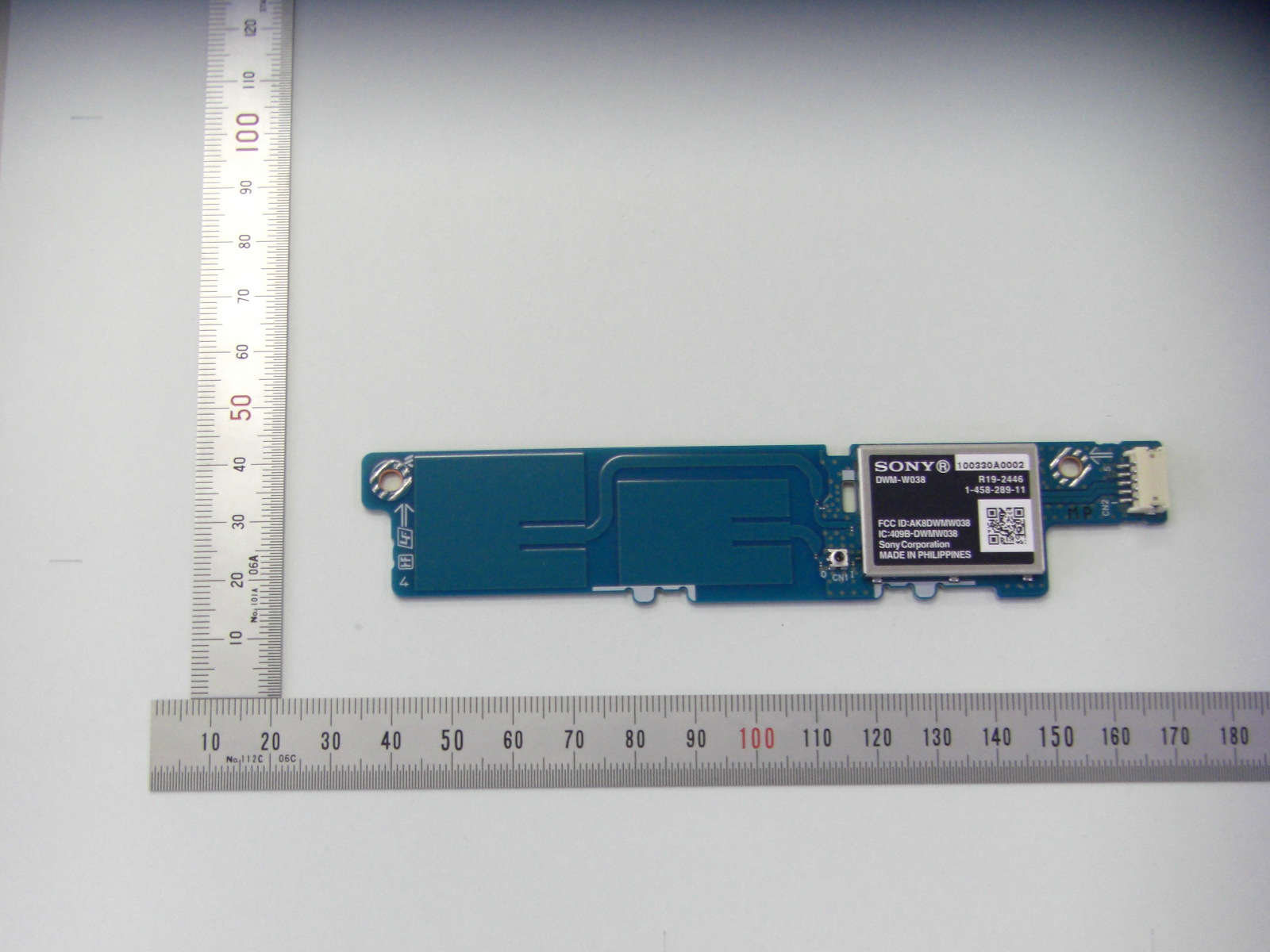

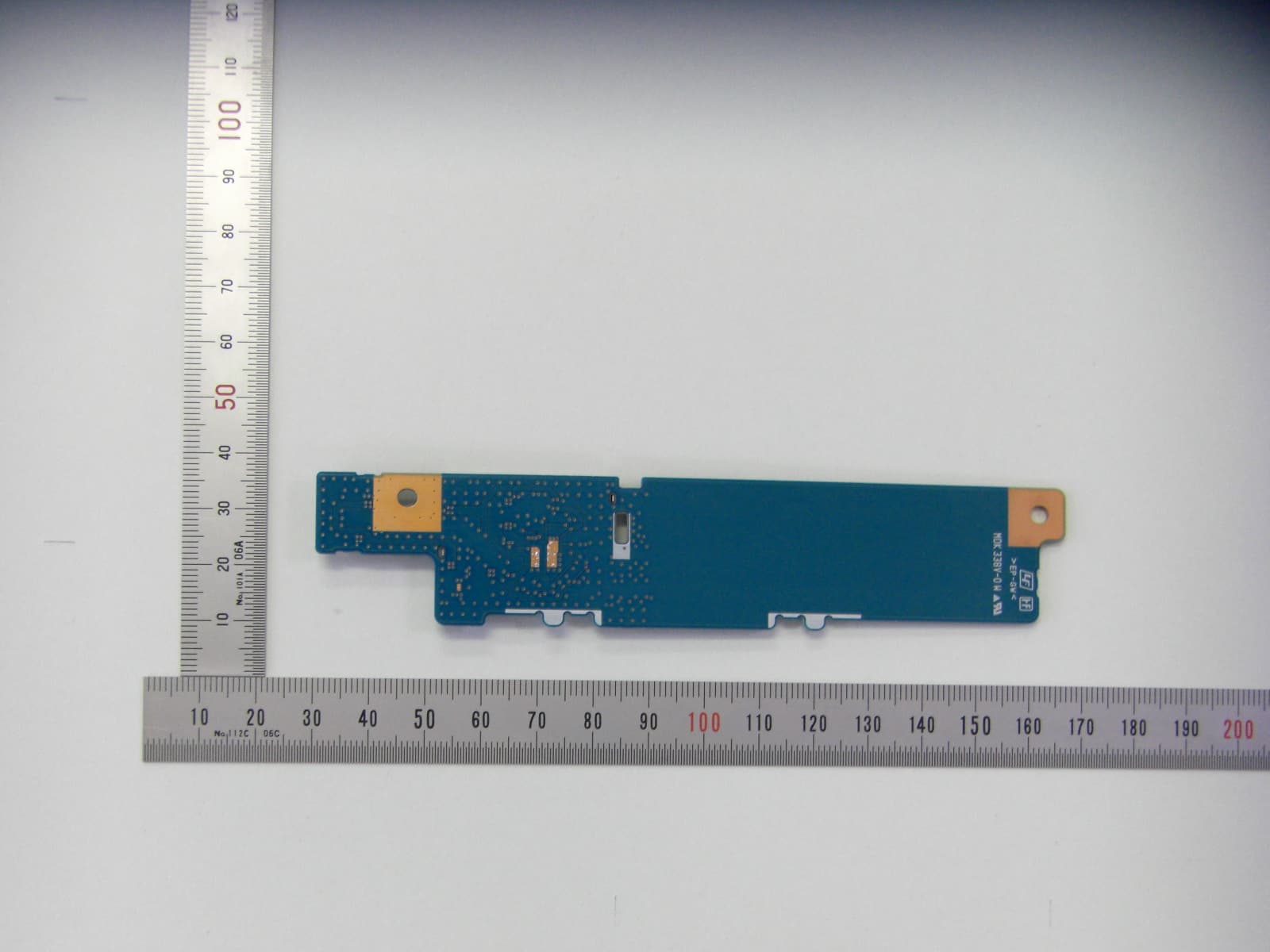

DWM-W038 FCC ID: AK8DWMW038 IC: 409B-DWMW038 External Photo

DWM-D038 FCC ID: AK8DWMW038 IC: 409B-DWMW-38 Label & Label location

DWM-W038 FCC ID: AK8DWMW038 IC: 409B-DWMW038 Internal Photo

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR 802.11B/G/N WLAN MODULE MODEL NUMBER: DWM-W038 FCC ID: AK8DWMW038 IC: 409B-DWMW038 REPORT NUMBER: 10J13147-1 ISSUE DATE: APRIL 13, 2010 Prepared for SONY CORPORATION 1-7-1 KONAN, MINATO-KU, TOKYO 108-0075, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10J13147-1 DATE: APRIL 13, 2010 FCC ID: AK8DWMW038 IC ID: 409B-DWMW038 Page 2 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/13/2010 Initial Issue T. Chan REPORT NO: 10J13147-1 DATE: APRIL 13, 2010 FCC ID: AK8DWMW038 IC ID: 409B-DWMW038 Page 3 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................5 2. TEST METHODOLOGY..........................................................................................................6 3. FACILITIES AND ACCREDITATION.....................................................................................6 4. CALIBRATION AND UNCERTAINTY....................................................................................6 4.1. MEASURING INSTRUMENT CALIBRATION................................................................6 4.2. SAMPLE CALCULATION...............................................................................................6 4.3. MEASUREMENT UNCERTAINTY.................................................................................6 5. EQUIPMENT UNDER TEST...................................................................................................7 5.1. DESCRIPTION OF EUT.................................................................................................7 5.2. MAXIMUM OUTPUT POWER........................................................................................7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS................................................................7 5.4. SOFTWARE AND FIRMWARE......................................................................................7 5.5. WORST-CASE CONFIGURATION AND MODE...........................................................7 5.6. DESCRIPTION OF TEST SETUP..................................................................................8 5.6.1. Radiated Emissions................................................................................................8 5.6.2. Line Conducted Test.............................................................................................10 6. TEST AND MEASUREMENT EQUIPMENT........................................................................12 7. ANTENNA PORT TEST RESULTS......................................................................................13 7.1. 802.11b MODE.............................................................................................................13 7.1.1. 6 dB BANDWIDTH................................................................................................13 7.1.2. 99% BANDWIDTH................................................................................................16 7.1.3. OUTPUT POWER.................................................................................................19 7.1.4. AVERAGE POWER..............................................................................................20 7.1.5. POWER SPECTRAL DENSITY...........................................................................21 7.1.6. CONDUCTED SPURIOUS EMISSIONS..............................................................24 7.2. 802.11 g MODE IN THE 2.4 GHz BAND......................................................................30 7.2.1. 6 dB BANDWIDTH................................................................................................30 7.2.2. 99% BANDWIDTH................................................................................................33 7.2.3. OUTPUT POWER.................................................................................................36 7.2.4. AVERAGE POWER..............................................................................................37 7.2.5. POWER SPECTRAL DENSITY...........................................................................38 7.2.6. CONDUCTED SPURIOUS EMISSIONS..............................................................41 7.3. 802.11HT 20 MODE IN THE 2.4 GHz BAND...............................................................45 7.3.1. 6 dB BANDWIDTH................................................................................................45 7.3.2. 99% BANDWIDTH................................................................................................48 7.3.3. OUTPUT POWER.................................................................................................51 7.3.4. AVERAGE POWER..............................................................................................52 7.3.5. POWER SPECTRAL DENSITY...........................................................................53 7.3.6. CONDUCTED SPURIOUS EMISSIONS..............................................................56 REPORT NO: 10J13147-1 DATE: APRIL 13, 2010 FCC ID: AK8DWMW038 IC ID: 409B-DWMW038 Page 4 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. RADIATED TEST RESU…

Text truncated - open the document above for the full version.

REPORT NO: 10J13147-1 DATE: APRIL 13, 2010 FCC ID: AK8DWMW038 IC ID: 409B-DWMW038 Page 85 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 10J13147-1 DATE: APRIL 13, 2010 FCC ID: AK8DWMW038 IC ID: 409B-DWMW038 Page 86 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 10J13147-1 DATE: APRIL 13, 2010 FCC ID: AK8DWMW038 IC ID: 409B-DWMW038 Page 87 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4701C 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
