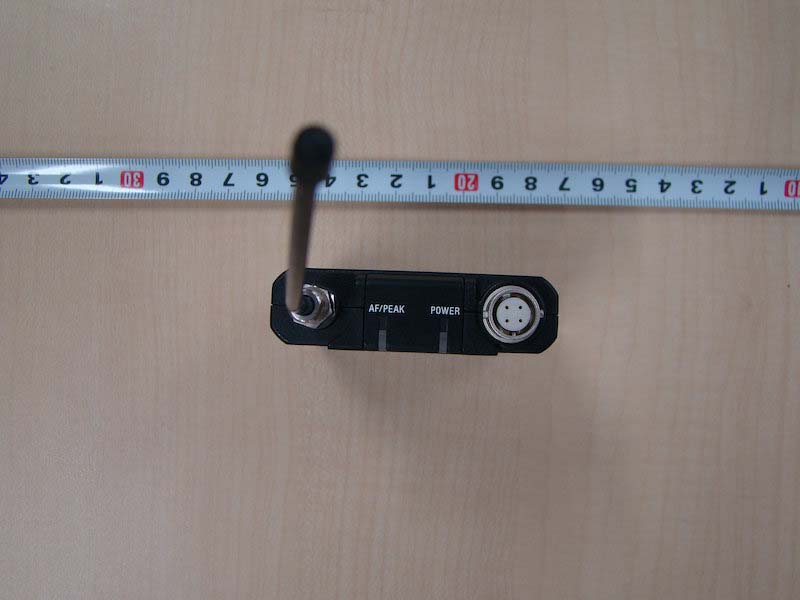

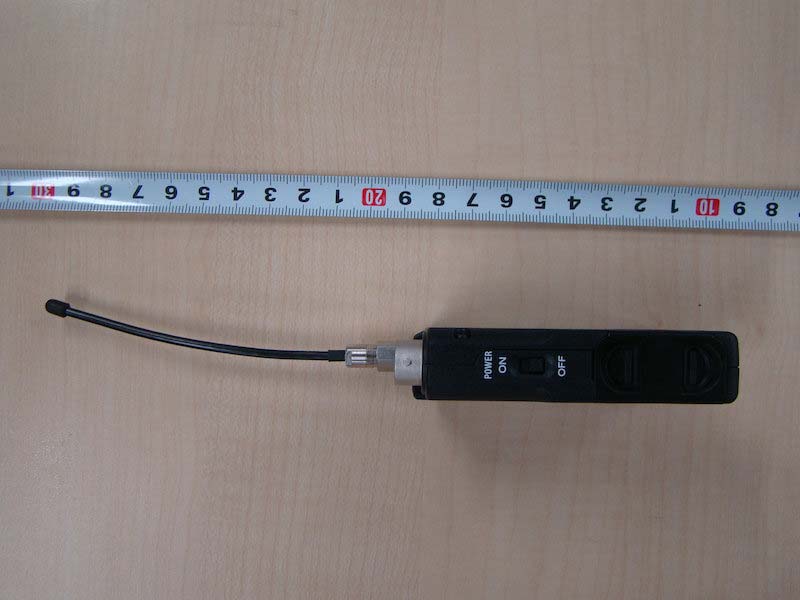

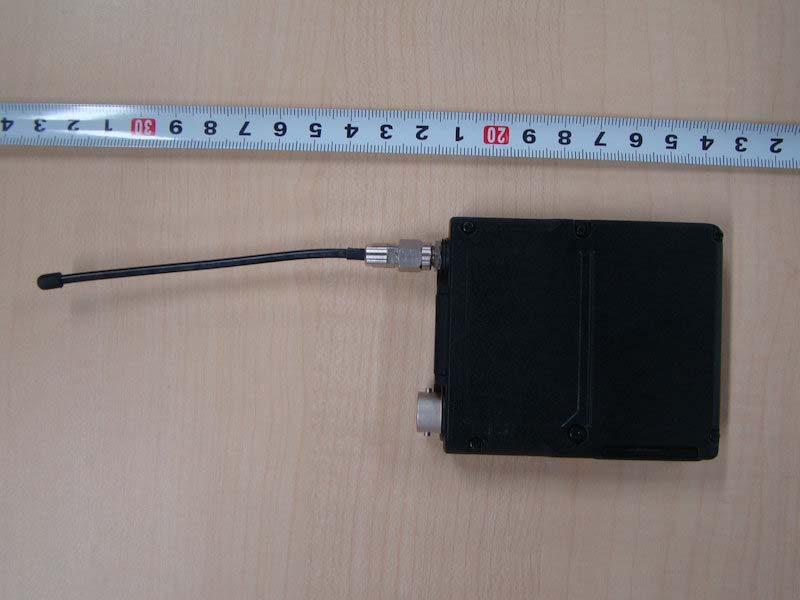

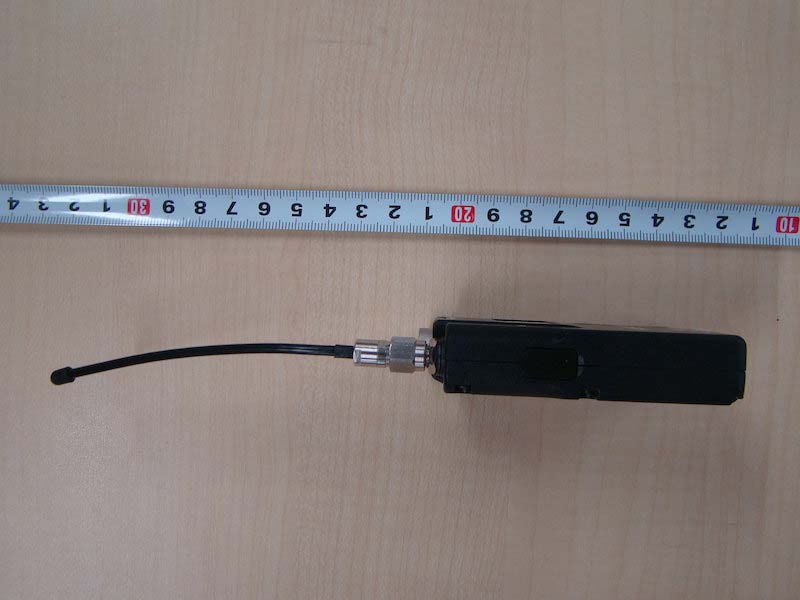

Outline photograph document: Model DWT-B01NI Fig.1: Front side view Fig.2: Rear side view Outline photograph document: Model DWT-B01NI Fig.3: Top side view Fig.4: Bottom side view Outline photograph document: Model DWT-B01NI Fig.5: Right side view Fig.6: Left side view

DWT-B01NI Outline drawing Model Number Label DWT-B01NI Model Number Label Label (14UC)

Test report No. : 10938940H-A-R1 Page : 2 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10938940H-A Revision Test report No. Date Page revised Contents - (Original) 10938940H-A October 8, 2015 - - 1 10938940H-A-R1 October 30, 2015 P.5 Correction of Power Supply (radio part input) of Radio Specification (Radio microphone part) Test report No. : 10938940H-A-R1 Page : 3 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Field strength of spurious radiation ................................................................................ 11 SECTION 6: Antenna terminal tests, Emission Bandwidth and Frequency stability ....................... 12 APPENDIX 1: Data of Radio test ........................................................................................................... 13 RF power output ......................................................................................................................... 13 Emission Bandwidth ................................................................................................................... 14 Spurious emissions at antenna terminals ................................................................................. 17 Field strength of spurious radiation .......................................................................................... 26 Frequency stability ..................................................................................................................... 29 APPENDIX 2: Test instruments ............................................................................................................. 30 APPENDIX 3: Photographs of test setup ............................................................................................... 31 Radiated Spurious Emission ...................................................................................................... 31 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .................................................... 32 Test report No. : 10938940H-A-R1 Page : 4 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sony EMCS Corporation Address : 8-4, Shiomi Kisarazu-shi, Chiba, 292-0834 Japan Telephone Number : +81-438-37-4704 Facsimile Number : +81-438-37-4705 Contact Person : Youhei Hisano *Remarks Sony EMCS Corporation (Subsidiary Company Name) is on behalf of the applicant: Sony Corporation. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Wireless Transmitter Model No. : DWT-B01NI Serial No. : Refer to 4.2 in this report. Rating : DC 3.0V (2 x AA batteries) Receipt Date of Sample : August 8, 2015 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model: DWT-B01NI (referred to as the EUT in this report) is a Digital Wireless Transmitter. General Specification Clock frequency(ies) in the system : X400 8MHz X202 12.288MHz X2000 16MHz X801 (TCXO) 19.2MHz IC600, 601, 700, 720, 721 1250 – 1500kHz IC702 1300kHz IC202 600 - 1000kHz IC606 250kHz VCO802 (VCO: change by a transmission frequency) (14) 470.125-541.875MHz Test report No. : 10938940H-A-R1 Page : 5 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radio Specification (Radio microphone part) Radio type : Transmitter Modulation type : π/4 shift QPSK Emission designator : 192KG1D, 192KG1E Necessary bandwidth : 192kHz, Manufacturer defined Channel spacing : 25kHz Frequency of operation : (14) 470.125-541.875MHz RF power : High: 50mW, Middle: 10mW, Low: 1mW Antenna type : 1/4 Lambda Monopole antenna (whip type) Antenna gain : 2.14dBi Power Supply (radio part input) : DC 2.8V, DC 3.0V, DC 3.1V AF Specification : 40Hz – 18000Hz, Maximum input: -24dBV (MIC level, ATT 0dB) Operating temperature : 0 deg. C to 50 deg. C Radio Specification (RF remote part) Radio Type : Transceiver Modulation type : DSSS Frequency of Operation : 2405MHz to 2480MHz Channel spacing : 5MHz Method of frequency generation : Synthesizer Power Supply (radio part input) : DC 2.8V Antenna Type : Chip antenna Antenna Gain : -1.0dBi max Operating temperature : 0 deg. C to 50 deg. C *This test report applies for Radio microphone part. Test report No. : 10938940H-A-R1 Page : 6 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC …

Text truncated - open the document above for the full version.

Test report No. : 10938940H-A-R1 Page : 31 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10938940H-A-R1 Page : 32 of 32 Issued date : October 8, 2015 Revised date : October 30, 2015 FCC ID : AK8DWTB01NI UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
