AK8FMT50UDFM Stereo Transmitter

DCC-FMT50UD_UC [US, FR, ES] 3-270-324-11(1) © 2007 Sony Corporation Printed in ChinaDCC-FMT50UD 3-270-324- 11 (1) Car FM Stereo T ransmitter Operating InstructionsMode d’emploiManual de instrucciones For customers who purchased this product in the USAPlease register this product on line athttp://www.sony.com/productregistration.Proper registration will enable us to send you periodic mailings aboutnew products, services, and other important announcements.Registering your product will also allow us to contact you in theunlikely event that the product needs adjustment or modification.Thank you. 7 Reattach the end of the plug by turning it clockwise firmly. Notes • Use of a higher amperage fuse may cause serious damage or fire. • Do not use a piece of wire instead of a fuse. • If the replaced fuse blows again, consult your dealer. PrecautionsOn safety• Do not connect or operate this unit, a car radio, or a portable device whiledriving or waiting at a traffic signal. Park in a safe place first. • Unplug this unit from the cigarette lighter socket whenever the engine ofthe car is not running. Depending on the car type, even if the ignition keyis off, the power supply may not turn off automatically. In this case, thismay cause unnecessary car battery consumption. • When not in use, unplug this unit from the cigarette lighter socket andstore in a safe place where it will not interfere with your driving or becomeentangled in parts of the car interior (seat, door, etc.). To disconnect theunit, grasp the unit and pull it. Never pull the cord connected to the unit. • Should any liquid or solid object fall into the unit, disconnect the unitfrom the cigarette lighter socket and the equipment and have the unitchecked by qualified personnel before operating it any further. Installation• Do not place this unit in a location where it is: – subject to extreme high temperature. – subject to direct sunlight or near a heat source. – subject to mechanical vibration or shock. – subject to excessive dust. • Be sure to fully secure the connected device connected to the unit toavoid moving when braking. Operation• Never yank or pull the cables. This may cause malfunctions or wire breaks. • To prevent damage, be careful not to drop or hit the unit. This may causea mechanical shock or malfunctions to the unit. • This unit may become warm while using. This is not a malfunction. • After using, disconnect the unit from the cigarette lighter socket and the equipment. On charging• Make sure the current and voltage of the USB rechargeable device match the outlet. • For safety, if the input current is too high, the unit will automatically shut down. • To avoid short-circuiting, do not allow the terminals of the unit orconnector to touch any metal object. • Note that data stored in the portable audio device connected to this unitmay be lost or damaged if the engine is started or stopped with this unitinserted into the cigarette lighter socket. Tr oubleshooting Should any problem persist after you have made the following checks,consult your nearest Sony dealer.There is no sound from the portable audio device to the car radio.❒ This unit is not fully plugged into the cigarette lighter socket.c Insert this unit correctly and securely. ❒ This unit is not fully connected to the portable audio device.c Connect this unit correctly and securely. ❒ The transmission frequency of the unit and the FM car radio do not coincide.c Set both the unit and the FM car radio to the same frequency. ❒ There is no sound from the connecting portable audio device.c Start playback on the portable audio device. c Set the volume control of the portable audio device as high aspossible but not so high that the audio signal becomes distorted. The volume is low.❒ The volume of the portable audio device is set too low.c Set the volume control of the portable audio device as high aspossible but not so high that the audio signal becomes distorted.If sound is still low, turn the volume up on the car radio. The sound is distorted.❒ The input signal is too high.c If you connected to the LINE OUT jack on the portable audio device,disconnect and reconnect to the headphone jack. ❒ The bass boost function on the portable audio device is on.c Cancel the bass boost function. Noise is generated.❒ The frequency of the unit does not coincide with the FM car radio.c Set the unit and the FM car radio to the same frequency. ❒ The reception from this unit is not good.c Route the antenna cable for the unit inside the car. Position theantenna close to the car antenna, or stabilize the antenna cable withthe magnet to the passenger’s seat rail, and so on. This may help toimprove the reception from this unit. ❒ The FM car radio receives a broadcast signal.c Select an empty frequency (a non-broadcast frequency, indicated bya static hissing sound). ❒ The selected frequency is occupied or the signal is jammed.c Select another open frequency which is less influenced by jamming(a non-broadcast frequency, indicated by a static hissing sound). The sound is interrupted.❒ The signal is jammed locally.c Select another frequency which is less influenced by jamming (anon-broadcast frequency, indicated by a static hissing sound). The frequency display window does not light.❒ This unit is not completely plugged into the cigarette lighter socket.c Insert this unit correctly and securely. ❒ Depending on the car type, the engine must be started for electriccurrent to flow to the cigarette lighter socket.c Start the engine. ❒ The fuse is blown.c Replace the fuse. Charging is not available.❒ The rechargeable device selecting switch is not set correctly.c Set it correctly according to the device you use. ❒ Your portable audio device does not support the USB charging function.c Refer to “USB rechargeable models,” catalogue or home page. SpecificationsTransmission system multiplex stereo Transmission frequency 88.1 MHz – 107.9 MHz (0.1 MHz step) Electric strength less than 250 μV/m (3 m) Power voltage…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 7, 2007 RE: Sony Corporation FCC ID: AK8RMT50UD After a review of the submitted information, I have a few comments on the above referenced Application. Depending on your responses, kindly understand there may be additional comments. 1) FYI....Due to various concerns recently seen about proper authority being given to others for FCC matters, the agency letter should be signed by someone traceable to have the proper authority. For instance, the FCC site shows Hiroaki Asano as the correct contact of authority for FCC matters. Therefore the agency letters should be signed by him, or alternatively a letter showing who he has “deputized” to sign on his behalf may be provided as well. Please correct this in future applications. 2) FYI...Part of the IC form provided are from version 8, and others much earlier. We are currently using version 12. Please update in future applications. 3) FYI...Permit But Ask information has been submitted to the FCC. 4) FYI.....We have submitted the required information to the FCC through their “Permit But Ask” Procedure. We are awaiting their ok to continue processing the application or for any questions they may have. Please note that we must obtain FCC’s approval prior to issuing the grant. 5) FYI....IC form should cite standard as RSS-210 and type of device should include “Wireless Audio Device”. 6) It does not appear that the top and bottom of each board is provided for the internal photos. Please provide. 7) Please explain /document the length of the antenna cable. 8) References in the manual for IC should cites RSS-210. Please correct. 9) Given the leaky coax capability of this device, please note that the FCC has been very cautious of leaky-coax style of 15.239 radiators. Last year we saw the FCC require different types of tests and then later change their mind. They have not been very forth coming on how to handle this type of device since that time. It may be that the FCC may desire additional testing in-vehicle, on a ground plane, or another configuration. We will need to await their response to determine if additional testing/configurations are necessary. The FCC has been very concerned with Leaky-coax style devices and many times has very specific ideas on what tests they want done. We will need to wait and see in this instance. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2 July 25, 2007 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Inquiry: ---Reply from Customer on 07/19/2007--- Kindly note that the report was previously reviewed by ATCB. Also, please note that the report provide did contain both 99% and 20 dB bandwidth measurements. This particular lab has always included both since IC has a 99% requirement as well. You will see 20 dB bandwidth results on the pages directly following the 99%. In addition, due to concerns with the methods, the lab has updated the report to clarify the detectors. See section 5.4 of the modified report provided with this email. Please confirm if this application is now acceptable for Certification. Thank You, Tim Response: Go ahead and grant after you review all exhibits. Please note that further review may performed and based on final exhibits in the filin g. Submit a reference of this KDB inquiry into the filing. Thanks. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. From: Generic Office of Engineering Technology <[email protected]> Subject: Response to Inquiry to FCC (Tracking Number 173757) To: [email protected]

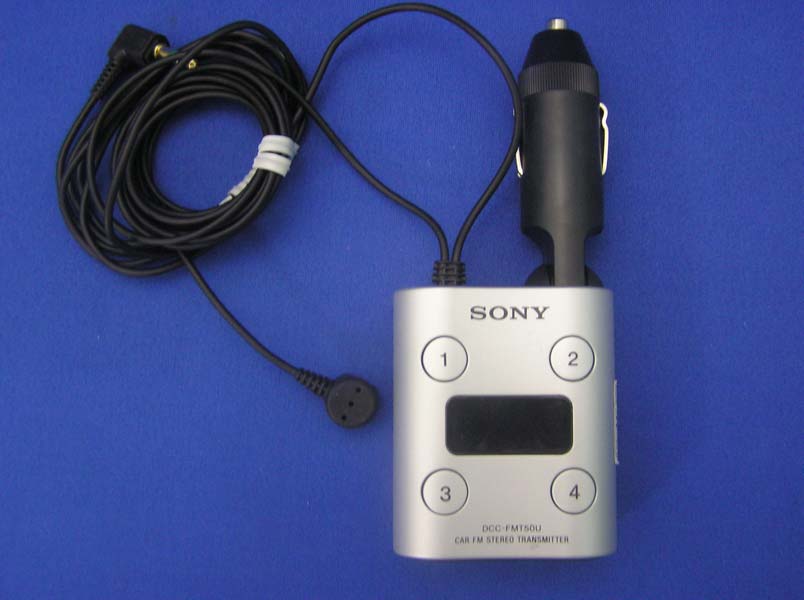

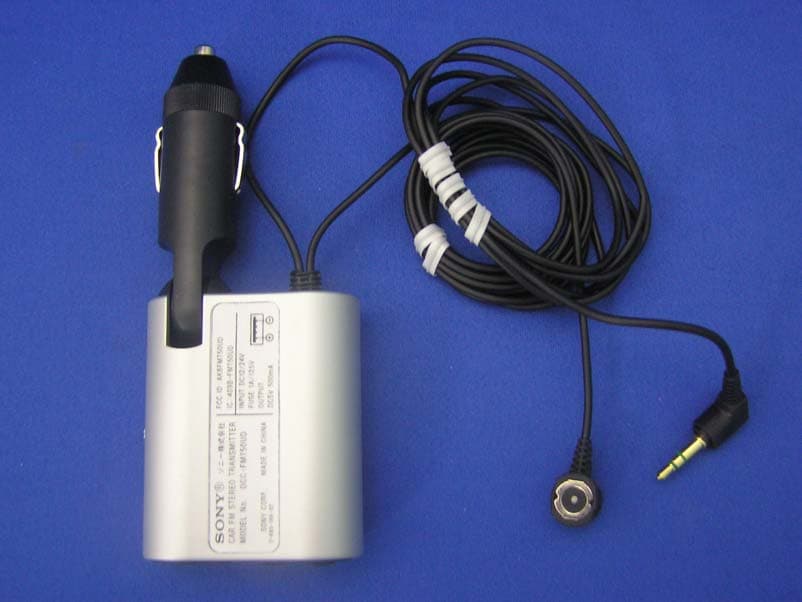

External Photo Sony Corporation Car FM Stereo Transmitter[DCC-FMT50UD] FCC ID: AK8FMT50UD Front Rear External Photo Sony Corporation Car FM Stereo Transmitter[DCC-FMT50UD] FCC ID: AK8FMT50UD Top Bottom External Photo Sony Corporation Car FM Stereo Transmitter[DCC-FMT50UD] FCC ID: AK8FMT50UD Right Left

Label Location FCC and IC label here.

Internal Photo Sony Corporation Car FM Stereo Transmitter[DCC-FMT50UD] FCC ID: AK8FMT50UD Main PWB(Top) Main PWB(Bottom) Internal Photo Sony Corporation Car FM Stereo Transmitter[DCC-FMT50UD] FCC ID: AK8FMT50UD USB PWB(Top) USB PWB(Bottom)

Test report No. : 27IE0314-HO-A-R1 Page : 2 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information .................................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)................................................................................................ 3 SECTION 3: Test specification, procedures & results ................................................................................ 4 SECTION 4: Operation of E.U.T. during testing ......................................................................................... 7 SECTION 5: 200kHz Band Width and 20 dB Bandwidth........................................................................... 9 SECTION 6: Emissions from the Intentional radiator and Spurious Emissions .................................... 10 APPENDIX 1: Photographs of test setup .................................................................................................... 11 Spurious Emissions ................................................................................................................................................... 11 Worst Case Position .................................................................................................................................................. 17 APPENDIX 2: Data of EMI test.................................................................................................................... 18 200kHz Bandwidth ................................................................................................................................................... 18 20dB Bandwidth ....................................................................................................................................................... 22 Emissions from the Intentional radiators ............................................................................................................... 26 Spurious Emissions ................................................................................................................................................... 32 Spurious Emissions(Band Edge).............................................................................................................................. 50 APPENDIX 3:Test instruments .................................................................................................................... 56 Test report No. : 27IE0314-HO-A-R1 Page : 3 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Client information Company Name : Sony Corporation Address : Shinagawa INTERCITY C Tower, 2-15-3, Minato-ku, Tokyo, 108-6201, Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5962 Contact Person : Kikuo Murata SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car FM Stereo Transmitter Model No. : DCC-FMT50UD Serial No. : U1 Rating : DC12/24V *Tests were performed with DC12V, as the carrier levels were same with DC12V and DC24Vat pre-check. Country of Manufacture : China Receipt Date of Sample : May 5, 2007 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: DCC-FMT50UD (referred to as the EUT in this report) is the Car FM Stereo Transmitter. Equipment Type : Transmitter Frequency of operation : 88.1-107.9MHz Other Clock Frequency : DD Converter : 0.1MHz (for power supply) Micon Clock (LCD) : 4.19MHz FM Transmitter IC : 7.6MHz Type of modulation : FM Bandwidth & Channel spacing : 200kHz & 0.1MHz Antenna Type : Lead Antenna Operating voltage (inner) : DC 5V Test report No. : 27IE0314-HO-A-R1 Page : 4 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2007 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.239 Operation in the band 88-108MHz: 2007 FCC 15.31 (e) This EUT provides stable voltage (DC5V) to the radio part constantly. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement The antenna is not removable from EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 27IE0314-HO-A-R1 Page : 5 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin *0) Results 1 200kHz Bandwidth FCC Part 2 Section 2.1049 Section 15.239(a) N/A 104.6kHz 98.0MHz, Ver. Complied 2 Emissions from the Intentional radiators FCC Part 2 Section 2.1046 Section 15.239(b) N/A 1.5dB, AV 107.900MHz, Ver. Complied 3 Spurious Emissions FCC Part 2 Section 2.1053 Section 15.239 (c) N/A 5.6dB, QP 108.000MHz, Ver. Complied 4 20dB Bandwidth ANSI C63.4:2003 Section 15.215(c) N/A N/A Complied Note: UL Japan, Inc.’s EMI Work Procedures No. QPM05 and QPM15. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *These tests were performed without any deviations from test procedure except for addition…

Text truncated - open the document above for the full version.

Test report No. : 27IE0314-HO-A-R1 Page : 18 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test 200kHz Bandwidth UL Japan, Inc. Head Office EMC Lab. No.3 and No.4 Semi Anechoic Chamber COMPANY : Sony Corporation REGULATION: Fcc Part15 Subpart C Section 15.239(a) EQUIPMENT : Car FM Stereo Transmitter PROCEDURE: Fcc Part2 Section 2.1049 MODEL : DCC-FMT50UD TEST DISTANCE: 3 m S/ N : U1DATE: 05/10/2007 , 05/11/2007 POWER : DC12V TEMPERATURE: 24 deg.C , 21 deg.C MODE : Transmiting (88.1/98.0/107.9MHz ) HUMIDITY: 42 % , 37% : Audio Signal of a typical audio fileENGINEER : Takumi Shimada , Motoya Imura ipod(A1199) No.FREQLIMITMARGIN HORVERHORVER [MHz][kHz][kHz][kHz] 188.184.083.8200.0116.0116.2 298.088.089.6200.0112.0110.4 3107.991.886.0200.0108.2114.0 ipod(A1136) No.FREQLIMITMARGIN HORVERHORVER [MHz][kHz][kHz][kHz] 188.180.881.0200.0119.2119.0 298.087.495.4200.0112.6104.6 3107.986.290.8200.0113.8109.2 Network Walkman(NW-A805) No.FREQLIMITMARGIN HORVERHORVER [MHz][kHz][kHz][kHz] 188.178.481.6200.0121.6118.4 298.091.294.6200.0108.8105.4 3107.985.694.6200.0114.4105.4 [kHz] RESULT [kHz] RESULT [kHz] RESULT Test report No. : 27IE0314-HO-A-R1 Page : 19 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 200kHz Bandwidth ipod (A1199) Ch:Low/HOR Ch:Low/VER Ch:Mid/HOR Ch:Mid/VER Ch:High/HOR Ch:High/VER Test report No. : 27IE0314-HO-A-R1 Page : 20 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 ipod (A1136) Ch:Low/HOR Ch:Low/VER Ch:Mid/HOR Ch:Mid/VER Ch:High/HOR Ch:High/VER Test report No. : 27IE0314-HO-A-R1 Page : 21 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Network Walkman (NW-A805) Ch:Low/HOR Ch:Low/VER Ch:Mid/HOR Ch:Mid/VER Ch:High/HOR Ch:High/VER Test report No. : 27IE0314-HO-A-R1 Page : 22 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 20dB Bandwidth UL Japan, Inc. Head Office EMC Lab. No.3 and No.4 Semi Anechoic Chamber COMPANY : Sony Corporation REGULATION: FCC Part15. Section 15.215 （ｃ） EQUIPMENT : Car FM Stereo Transmitter TEST DISTANCE: 3 m MODEL : DCC-FMT50UD DATE: 05/10/2007 , 05/11/2007 S/ N : U1 TEMPERATURE: 24 deg.C , 21 deg.C POWER : DC12VHUMIDITY: 42 % , 37% MODE : Transmitting (88.1/98.0/107.9MHz )ENGINEER : Takumi Shimada , Motoya Imura : Audio Signal of a typical audio file ipod(A1199) No.FREQLIMITMARGIN HORVERHORVER [MHz][kHz][kHz][kHz] 188.184.285.4--- 298.095.296.2--- 3107.993.888.4--- ipod(A1136) No.FREQLIMITMARGIN HORVERHORVER [MHz][kHz][kHz][kHz] 188.185.285.2--- 298.097.697.0--- 3107.990.892.6--- Network Walkman(NW-A805) No.FREQLIMITMARGIN HORVERHORVER [MHz][kHz][kHz][kHz] 188.187.085.2--- 298.0101.497.2--- 3107.989.893.0--- [kHz] RESULT [kHz] RESULT [kHz] RESULT Test report No. : 27IE0314-HO-A-R1 Page : 23 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 20dB Bandwidth ipod (A1199) Ch:Low/HOR Ch:Low/VER Ch:Mid/HOR Ch:Mid/VER Ch:High/HOR Ch:High/VER Test report No. : 27IE0314-HO-A-R1 Page : 24 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 ipod (A1136) Ch:Low/HOR Ch:Low/VER Ch:Mid/HOR Ch:Mid/VER Ch:High/HOR Ch:High/VER Test report No. : 27IE0314-HO-A-R1 Page : 25 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Network Walkman (NW-A805) Ch:Low/HOR Ch:Low/VER Ch:Mid/HOR Ch:Mid/VER Ch:High/HOR Ch:High/VER Test report No. : 27IE0314-HO-A-R1 Page : 26 of 56 Issued date : May 28, 2007 Revised date : July 18, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Emissions from the Intentional radiators ipod (A1199) Transmitting mode DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2007/05/10 Company : Sony Corporation Report No. : 27IE0314-HO Kind of EUT : Car FM Stereo Transmitter Power : DC 12V Model No. : DCC-FMT50UD Temp./Humi. : 24deg.C. / 42% Serial No. : U1 Operator : Takumi Shimada Mode / Remarks : Transmitting mode with ipod(M/N:A1199) 88.1MHz / 98.0MHz / 107.9MHz Max-Axis LIMIT : FCC15.239/15.209(Intentional 88-108MHz) 3m, below 1GHz, 88-108MHz:PK, Ohter:QP FCC15.239/15.209(Intentional 88-108MHz) 3m, below 1GHz, 88-108MHz:AV, Ohter:QP CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< AV/PEAK DATA >> Horizontal Vertical Horizontal Vertical 30M300M50M70M100M200M 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comme…

Text truncated - open the document above for the full version.

Test report No. : 27IE0314-HO-A Page : 11 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Spurious Emissions ipod (A1199) Transmitting mode Front Rear Test report No. : 27IE0314-HO-A Page : 12 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emissions ipod (A1199) Transmitting + Charging mode Front Rear Test report No. : 27IE0314-HO-A Page : 13 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emissions ipod (A1136) Transmitting mode Front Rear Test report No. : 27IE0314-HO-A Page : 14 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emissions ipod (A1199) Transmitting + Charging mode Front Rear Test report No. : 27IE0314-HO-A Page : 15 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emissions Network Walkman (NW-A805) Transmitting mode Front Rear Test report No. : 27IE0314-HO-A Page : 16 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emissions Network Walkman (NW-A805) Transmitting + Charging mode Front Rear Test report No. : 27IE0314-HO-A Page : 17 of 56 Issued date : May 28, 2007 FCC ID : AK8FMT50UD UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position ipod (A1199) : (Hor : X-Axis, Ver : Z- Axis) ipod (A1136) : (Hor : Y- Axis, Ver : Y- Axis) Network Walkman (NW-A805) : (Hor : Y- Axis, Ver : Z- Axis) X-Axis Y-Axis Z-Axis
