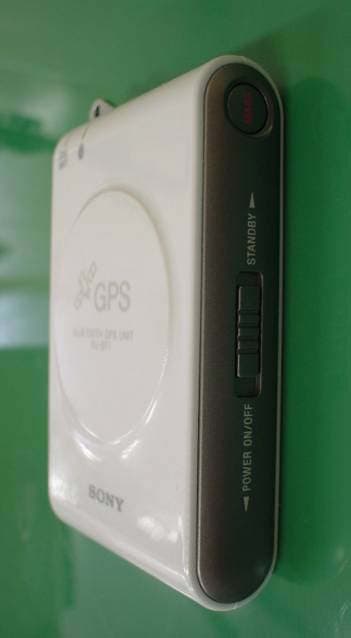

AK8GUBT1Bluetooth GPS Unit

Sony Group Corporation
Bluetooth GPS Unit - FCC ID AK8GUBT1 - Sony Group Corporation
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jun 01, 2004
Application Purpose
Original Equipment
Date of Application
Jun 01, 2004
Equipment Note
Bluetooth GPS Unit
Frequency Range
2402.00000000 - 2480.00000000
Company
Sony Group Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) GU-BT1  2004 Sony Corporation Owner’s Record The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. GU-BT1Serial No. Bluetooth GPS Unit 2-067-182-01 (1) 2 Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) Warning CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. –In order to comply with FCC radio-frequency radiation exposure guidelines for an uncontrolled exposure, this device and its antenna must not be co-located or operating in conjunction with any other antenna transmitter. 3 Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) Table of contents Introduction ......................................................................................................................... 4 Confirming the package contents ..................................................................................... 5 Location of controls ............................................................................................................6 Inserting a battery ............................................................................................................... 7 How to use this unit Before inserting batteries ................................................................................................... 9 Turning on this unit .......................................................................................................... 10 Other functions .................................................................................................................12 Specifications ..................................................................................................................... 14 4 Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) Introduction This unit is able to determine its current location. Connecting this unit to a Sony Personal Entertainment Organizer (hereafter referred to as CLIÉ handheld) with Bluetooth communication capability allows you to indicate your current location on the “Leplan” map, and to display the distance and route to a destination. For details about display items and functions of “Leplan,” refer to the “Application manual.” About Bluetooth communication Bluetooth communication is a new wireless technology for the personal network market. It is the leading standard technology for small scale, close distance communication at low cost, achieved without the need for complicated cable connections. GU-BT1 has the following features. Bluetooth support enables wireless communication with your CLIÉ handheld within a range of about 10 m (32.8 ft.). (The actual range will vary depending on factors such as obstacles between devices, magnetic fields around devices such as a microwave oven, static electricity, interference, radio wave conditions, reception sensitivity or antenna performance, operating system or software application, etc.) Devices that can be used with GU-BT1 For information on the Bluetooth compatible devices, refer to our official Sony CLIÉ Web site: Customers in USA, Canada and Mexico: http://www.ita.sel.sony.com/support/clie/access/ Customers in Asia-Pacific countries: http://vaio-online.sony.com/clie/ 5 Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) Confirming the package contents Please confirm that all the following accessories are included in the package. •Bluetooth GPS unit (1) •AA dry battery (2) •Strap (1) •CD-ROM (1) (Application installation disc) •Operating Instructions (1) •Application manual (1) • Warranty card (1) Use the strap to avoid dropping your Bluetooth GPS unit Attaching the strap 6 Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) Location of controls POWER O N / OFF STAN DBY MAR K BLUETOO TH GPS UNIT G U- BT1 1 GPS/BATT LED 2 Bluetooth LED 3 CLEAR button (on the back of this unit) 4 MARK button 5 POWER ON/OFF STANDBY switch Receptor for the GPS signals 7 Actual total number:Sony GU-BT1 (US) 2-067-182-01 (1) Inserting a battery Insert 2 AA dry batteries (supplied) (Sony AA alkaline batteries or nickel hydrogen rechargable batteries recommended) OPEN 1Slide the cover down and lift open. 2Insert 2 AA dry batteries. Insert with the + and – terminals of the batteries aligned with the + and – marks of this unit. 3Close the cover and slide it back into position until it clicks. continue to next page t You can use the batteries in this unit for about 12 hours continuou…

Text truncated - open the document above for the full version.

Cover Letter(s)

1 Mike Kuo From: Takahashi Masanori [[email protected]] Sent: June022004Wednesday 2:57 AM To: Mike Kuo Cc: Mika Kaneko Subject: Re: Sony Corporation, FCC ID: AK8GUBT1, Assessment NO.: AN04T3914 Internal Photo2.pdf Dear Mr. M.Kuo This is our answer that I received your question in this morning. > Question #1: The internal photos provided are not clear. PCB component > values can not be read. Please provide clear internal photos. In addition, > please provide internal photos by removing the metal plate on the PCB. Answer #1 : I send to you new Exhibit of Internal Photograph. Please refer to appendix document. > Question #2: Based upon product specification sheet, this is Class 2 > Bluetooth device so output power of 4dBm ( 2.5mW ) is expected. However, > based upon the test report, the highest conducted output power is measured > as -1.45dBm ( 0.7mW ). Please explain. Answer #2 : Yes, This is class2 of Bluetooth device. The max output power of Bluetooth class2 is specified from -6dBm to +4dBm. And the maximum output setup of the manufacturer of the GPS Unit is same as actual measurement. I will correspond to this matter in a hurry. If you have more question, please contact me any time. I would like to get certification today. with Best regards, ---------------------------------------------------------------------------- ----- JAPAN QUALITY ASSURANCE ORGANIZATION EMC Engineering Dept. Testing Div. Masanori Takahashi Tel: +81-3-3416-0193 Fax: +81-3-3416-8290 E-mail: [email protected] --------------------------------------------------------------------------- ------- ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Cc: "Mika Kaneko" <[email protected]> Sent: Wednesday, June 02, 2004 2:40 AM Subject: FW: Sony Corporation, FCC ID: AK8GUBT1, Assessment NO.: AN04T3914 > It is delay by TCB, no express service fee will be charged. > > M.Kuo > > -----Original Message----- 2 > From: Compliance Certification Services [mailto:[email protected]] > Sent: Tuesday, June 01, 2004 10:12 AM > Subject: Sony Corporation, FCC ID: AK8GUBT1, Assessment NO.: AN04T3914 > > > Question #1: The internal photos provided are not clear. PCB component > values can not be read. Please provide clear internal photos. In addition, > please provide internal photos by removing the metal plate on the PCB. > > Question #2: Based upon product specification sheet, this is Class 2 > Bluetooth device so output power of 4dBm ( 2.5mW ) is expected. However, > based upon the test report, the highest conducted output power is measured > as -1.45dBm ( 0.7mW ). Please explain. > > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

External Photos

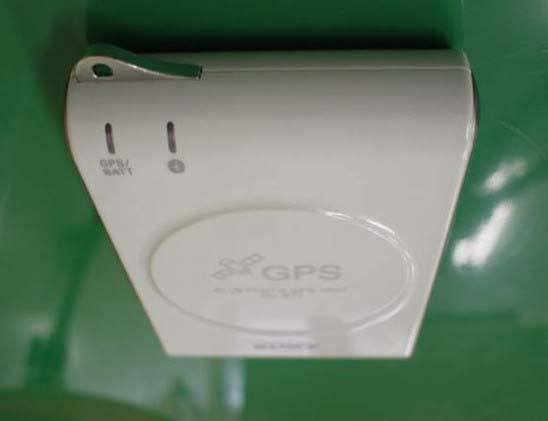

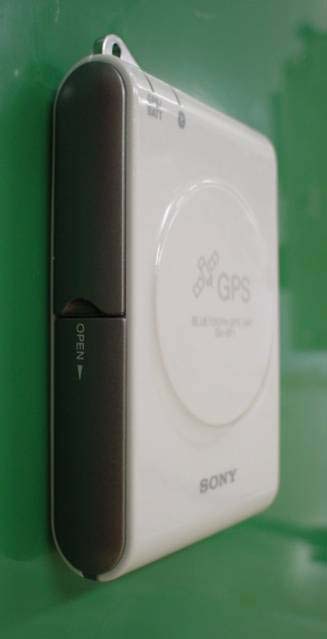

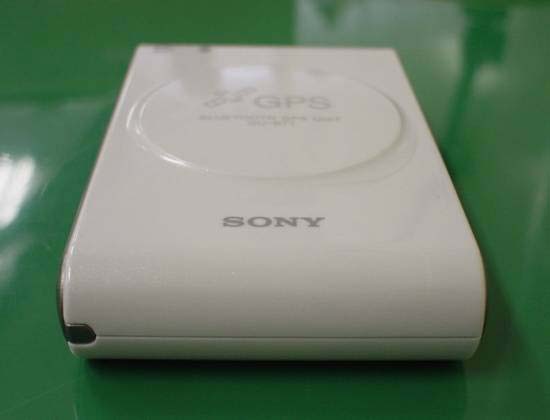

External Photograph Front View Rear View Left-side view Right-side view Top view Bottom view

Internal Photos

Internal Photo : POWER PWB A-side Internal Photo : POWER PWB A-side Up side Bottom side Internal Photo : POWER PWB B-side Internal Photo : ANTENNA PWB A-side Internal Photo : ANTENNA PWB B-side

Test Report

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA APPLICATION NO.: 400-40010 Issue Date : April 21, 2004 Page 1 of 66 EMI TEST REPORT JQA APPLICATION NO. : 400-40010 Model No. : GU-BT1 Type of Equipment : BLUETOOTH GPS UNIT Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : AK8GUBT1 Applicant : Sony Corporation Address : W Building Shibaura Tec. 1-8-15 Konan, Minato-ku, Tokyo, 108-0075 Japan Manufacturer : Sony Corporation Address : W Building Shibaura Tec. 1-8-15 Konan, Minato-ku, Tokyo, 108-0075 Japan Received date of EUT : April 8, 2004 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 2 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 4 1.2 General Information 4 1.3 Test Condition 5 – 11 1.4 EUT Modifications / Deviation from Standard 12 1.5 Test results 13 - 14 1.6 Summary 15 1.7 Test Configuration / Operation of EUT 16 1.8 EUT Arrangement (Drawing) 17 1.9 Preliminary Test and Test-setup (Drawings) 18 – 26 1.10 EUT Arrangement (Photographs) 27 - 28 C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 3 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION 2 Test Data 2.1 Channel Separation 29 2.2 Minimum Hopping Channel 30 – 31 2.3 Occupied Bandwidth 32 – 34 2.4 Average Time of Occupancy 35 – 37 2.5 Peak Output Power (Conduction) 38 2.6 Peak Output Power (Radiation) 39 2.7 Peak Power Density (Conduction) 40 - 42 2.8 Peak Power Density (Radiation) N/A 2.9 Spurious Emissions (Conduction) 43 - 48 2.10 Spurious Emissions (Radiation) 49 - 59 2.11 AC Power Line Conducted Emissions N/A 2.12 RF Exposure Compliance 60 2.13 Spurious Emissions for Receiver (Radiation) 61 – 62 2.14 AC Power Line Conducted Emissions for Receiver N/A 3 Appendix Test instruments List 63 - 66 C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 4 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart B and Subpart C Test procedure : The tests were performed with reference to the FCC Public Notice DA 00-705, released March 30, 2000. The test set-up was made in accordance to the general provisions of ANSIC63.4-2001. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2004) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : BLUETOOTH GPS UNIT 2) Product Type : Pre-production 3) Category : Spread Spectrum Transmitter(FHSS) 4) EUT Authorization : Certification 5) FCC ID : AK8GUBT1 6) Trade Name : SONY 7) Model No. : GU-BT1 8) Operating Frequency Range : 2402 MHz - 2480 MHz 9) Highest Frequency Used in the EUT : 2480 MHz 10) RF Output Power : -1.45 dBm 11) Serial No. : No.44 12) Date of Manufacture : - 13) Power Rating : DC 3.0V (size “AA” Battery x 2) 14) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 5 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of Channel Separation x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11 Attenuator AU18 Antenna N/A 1.3.2 The measurement of Minimum Hopping Channel x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11 Attenuator AU18 Antenna N/A 1.3.3 The measurement of Occupied Bandwidth x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11 Attenuator AU18 Antenna N/A C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 6 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of Average Time of Occupancy x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11 Attenuator AU18 Antenna N/A 1.3.5 The measurement of Peak Output Power and Density (Conduction) x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11 Attenuator AU18 Antenna N/A Power Meter AU03 Power Sensor AU04 Signal Generator SG03 C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No.…

Text truncated - open the document above for the full version.

Test Setup Photos

JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 27 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission C O P Y JQA Application No. :400-40010 FCC ID :AK8GUBT1 Model No. :GU-BT1 Issue Date :April 21, 2004 Standard :CFR 47 FCC Rules Part 15 Page 28 of 66 JAPAN QUALITY ASSURANCE ORGANIZATION C O P Y

Contact Information

Applicant

Kazuyuki Hori(Chief EMC/RF Compliance Specialist)
[email protected]81-50-3141-6220Fax: 81-50-3750-6540

Test Firm

Japan Quality Assurance Org.Tetsuo Kato
@.81-(03)-3416-0111Fax: 81-(03)-3416-9691

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz700.00 µW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance requirements.
