AK8HT1Stereo Transmitter

©2004 Sony Corporation 4-252-491-12(1) Mini Hi-Fi Component System Operating Instructions Owner’s Record The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. ______________ Serial No. ______________ MHC-GX750/GX450/GX250 MHC-RG555/RG551S/RG444S/ RG441/RG333/RG222/ RG221/RG121/RG100 MHC-RX550 2 GB To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent fire, do not cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don’t place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior. Don’t throw away the battery with general house waste, dispose of it correctly as chemical waste. NOTICE FOR THE CUSTOMERS IN THE U.S.A. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION The use of optical instruments with this product will increase eye hazard. WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. NOTICE FOR THE CUSTOMERS IN CANADA CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION The use of optical instruments with this product will increase eye hazard. WARNING Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. 3 GB NOTICE FOR THE CUSTOMERS IN THE U.S.A. (MHC-GX750 only) If you have any questions about this product, you may call; Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/ The Number below is for the FCC related matters only. Regulatory Information NOTICE FOR THE CUSTOMERS IN THE CANADA (MHC-GX750 only) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Son utilisation est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioeléctrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. NOTICE FOR THE CUSTOMERS IN THE U.S.A AND CANADA (MHC-GX750 only) Replace the AC power adaptor with model AC-GSX100 only, if replacement is necessary. Except for European model ENERGY STAR ® is a U.S. registered mark. As an E NERGY S TAR ® partner, Sony Corporation has determined that this product meets the E NERGY STAR ® guidelines for energy efficiency. Declaration of Conformity Trade Name:SONY Model No.:HCD-GX750 Responsible Party:Sony Electronics Inc. Address:16450 W. Bernardo Dr, San Diego, CA 92127 U.S.A. Telephone No.:858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 GB How to use this manual........................... 5 Playable discs.......................................... 5 Getting Started Hooking up the system............................ 7 Setting the clock.................................... 10 CD/MP3 – Play Loading a disc ....................................... 11 Playing a disc ........................................ 11 — Normal Play/Shuffle Play Playing repeatedly................................. 13 — Repeat Play Creating your own program .................. 14 — Program Play Tuner Presetting radio stations ........................ 15 Listening to the radio ............................ 16 — Preset Tuning — Manual Tuning Using the Radio Data System (RDS).... 17 (European model only) Tape – Play Loading a tape....................................... 18 Playing a tape ........................................ 18 Tape – Recording Recording your favorite CD tracks on a tape.........................…

Text truncated - open the document above for the full version.

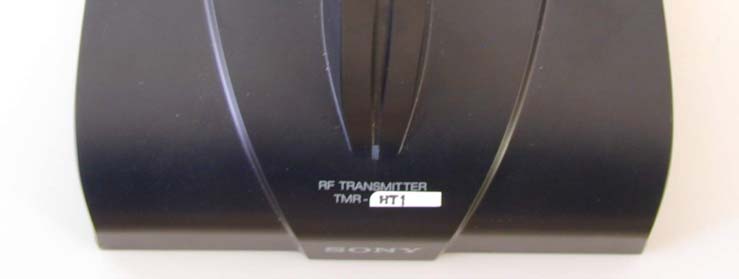

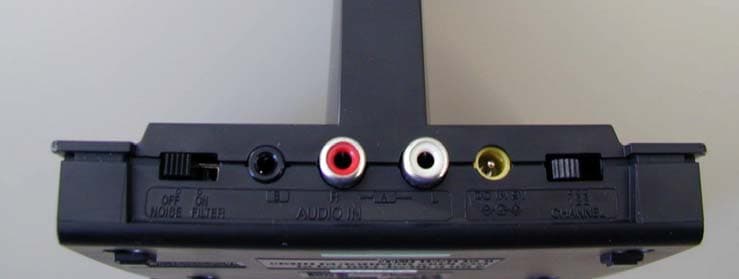

External Photo Sony Corporation Transmitter of Mini Hi-Fi Component System FCC ID: AK8HT1 Front Rear External Photo Sony Corporation Transmitter of Mini Hi-Fi Component System FCC ID: AK8HT1 Right Left External Photo Sony Corporation Transmitter of Mini Hi-Fi Component System FCC ID: AK8HT1 Top Bottom

Internal Photo Sony Corporation Transmitter of Mini Hi-Fi Component System FCC ID: AK8HT1 Module front (Shielded) Module front (Not Shielded) Internal Photo Sony Corporation Transmitter of Mini Hi-Fi Component System FCC ID: AK8HT1 Module rear

FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 2 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 5 4 MEASUREMENT UNCERTAINTY 6 5 SUMMARY OF TESTS 7 5.1 §15.207 Conducted Emissions (Limit by CISPR Pub.22 Class B) 7 5.2 §15.249 (a) & (d) Field Strength (Radiated Emissions) 8 5.3 26dB Bandwidth 8 Contents of Appendixes 9 APPENDIX 1: Photographs of test setup 10 APPENDIX 2: Test Data 12 APPENDIX 3: Test instruments 30 FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 3 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 1 GENERAL INFORMATION Applicant Company Name : Sony EMCS Corporation Kisarazu TEC Brand Name : SONY Address : 8-4 Shiomi, Kisarazu-shi, Chiba-ken, 292-0834 Japan Telephone Number : +81 438 37 3982 Facsimile Number : +81 438 37 4069 Contact Person : Shunichi Yamamoto ([email protected]) Type of Equipment : RF Transmitter Model No. : TMR-HT1 Serial No. : 8 Rating : DC8.5-10.0V (AC Adaptor: 120V/60Hz) Receipt Date of Sample : February 13, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Country of manufacture : China Regulation(s) : FCC Part15 Subpart C, Section 15.249: 2003 Test Site : UL Apex No.2 Open Site 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2001). 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on December 8, 2000 (Registration No.: 99354). NVLAP Lab. code : 200441-0 FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 4 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 2 PRODUCT DESCRIPTION Model: TMR-HT1 (referred to as the EUT in this report) is a RF Transmitter. The clock frequencies used in EUT: 412.7MHz, 7.6MHz Frequency band : 913.6 – 914.4MHz Number of channels : 3 Modulation : FM Antenna type : 1/4 λ Monopole Antenna Gain : ≤2.14 dBi Operating Voltage : DC8.5-10.0V (RF module: DC5V) Operating temperature : 0 - 40 deg. C. ITU code : F3E *FCC Part15.31 (e) The RF Transmitter provides RF module with stable power supply (DC5V), and the power is not changed when voltage of the RF Transmitter is varied. Therefore, the RF Transmitter complies power supply regulation. *FCC Part15.203 The RF Transmitter unit and its antenna comply with this requirement since this antenna is soldered in RF module directly and it cannot be dismounted by end users. *The RF Transmitter has ports of pin jack and mini-plug. Measurement was performed with pin jack input, because these ports have the same shield characteristic and it is assured they would have the same result. These ports are not used for connection at the same time. *The noise filter of RF Transmitter has no influence on emission test. FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 5 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: Transmitting mode (CH 1: 913.6MHz, CH 2: 914.0MHz, CH3: 914.4MHz) 3.2 Configuration of Tested System *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model number Serial number Manufacturer FCC ID Remarks A RF Transmitter TMR-HT1 8 SONY AK8HT1 EUT B CD Player D-EJ2000 - SONY - - C AC Adapter AC-GSX100 - SONY - - D AC Adapter AC-ES305K - SONY - - E Remote Controller RM-MC32EL - SONY - - List of cables used No. Name Length (m) Shield Backshell material 1 DC Cable 2.0 Unshielded Polyvinyl chloride 2 Audio Cable 1.0 Shielded Polyvinyl chloride 3 DC Cable 1.8 Unshielded Polyvinyl chloride 4 Audio Cable 0.8 Unshielded Polyvinyl chloride 5 AC Cable 3.0 Unshielded Polyvinyl chloride A: EUT B AC120V/60Hz AC100V/50Hz D C 2 1 3 E 4 Front View (Conducted emission) Front View (Radiated emission) Top View (Conducted emission) TopView(Radiated emission) A: EUT D C 2 1 3 B E 4 A: EUT D 2 1 3 B E 4 C 5 A: EUT B AC120V/60Hz AC100V/50Hz D C 2 1 3 E 4 5 FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 6 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) 4 MEASUREMENT UNCERTAINTY Conducted emission test The measurement uncertainty (with a 95% confidence level) for this test was ±1.3dB. The data listed in this test report has enough margin, more than site margin. Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.8dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±6.6dB. Although the data is unable to be considered the measurement uncertainty, EUT passed this test. FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 7 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, As…

Text truncated - open the document above for the full version.

FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 10 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Conducted emission FCC ID : AK8HT1 Sony Test report No. : AF04049-1 Page : 11 of 30 Issued date : March 8, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(10.04.03) Radiated emission
