AK8IJ1001SNBTEnergy Storage System

Energy Storage System “IJ1001SNBT” 19 Open the cargo and Take out the en ergy storage server from outer enclosure Take out the energy storage server from the outer enclosure. Copyright Sony Energy Devices Corporation Take out Energy Storage System “IJ1001SNBT” 20 Open the energy storage server using screw driver and install the lithium ion battery module Open the cargo of lithium ion battery Copyright Sony Energy Devices Corporation Not in use Fuse Bar Battery Energy Storage System “IJ1001SNBT” 21 Open the energy storage server using screw driver and install the lithium ion battery module Remove 5pcs of the screw described bellow. Copyright Sony Energy Devices Corporation The screw removed won’t be used. It can be disposed. After remove the screw Energy Storage System “IJ1001SNBT” 22 Open the energy storage server using screw driver and install the lithium ion battery module fix the jig-1 using new screw ① on 6 position. Copyright Sony Energy Devices Corporation Jig-1 Screw ：① Low head screw （ M3 × 8 ㎜）× 6pcs Energy Storage System “IJ1001SNBT” 23 Open the energy storage server using screw driver and install the lithium ion battery module fix the jig-2 using new screw ① and ② . Copyright Sony Energy Devices Corporation Screw ① Screw ② Completed photo Jig-2 Jig-2 Jig-1 Screw ：① Low head screw （ M3 × 8 ㎜）× 1pcs ② Low head screw （ M4 × 10 ㎜）× 2pcs Energy Storage System “IJ1001SNBT” 24 Open the energy storage server using screw driver and install the lithium ion battery module Remove the screw 4position bellow. Copyright Sony Energy Devices Corporation Front Rear Top cover The screw removed won’t be used. It can be disposed. Energy Storage System “IJ1001SNBT” 25 Open the energy storage server using screw driver and install the lithium ion battery module Remove the top cover. Copyright Sony Energy Devices Corporation Push the connecter to inside Completed photo Energy Storage System “IJ1001SNBT” 26 Open the energy storage server using screw driver and install the lithium ion battery module Remove the screw 8 position bellow. Copyright Sony Energy Devices Corporation Side cover × 2 Front Rear The screw removed won’t be used. It can be disposed. Energy Storage System “IJ1001SNBT” 27 Open the energy storage server using screw driver and install the lithium ion battery module Remove the side cover. Copyright Sony Energy Devices Corporation Take out Energy Storage System “IJ1001SNBT” 28 Open the energy storage server using screw driver and install the lithium ion battery module Remove the jig-6 after remove the screw . Copyright Sony Energy Devices Corporation Jig-6 Front Side The screw removed won’t be used. It can be disposed. Energy Storage System “IJ1001SNBT” 29 Open the energy storage server using screw driver and install the lithium ion battery module Remove the jig-6 after remove the screw . Copyright Sony Energy Devices Corporation Jig-6 Take out Energy Storage System “IJ1001SNBT” 30 Open the energy storage server using screw driver and install the lithium ion battery module Install the lithium ion battery module to the energy storage server. Copyright Sony Energy Devices Corporation Energy Storage System “IJ1001SNBT” 31 Open the energy storage server using screw driver and install the lithium ion battery module Fixing the lithium ion battery module to the energy storage server. Copyright Sony Energy Devices Corporation Screw ③ Front Top Screw ③ Screw ：③ Screw （ M4 × 10mm ）× 5pcs Energy Storage System “IJ1001SNBT” 32 Open the energy storage server using screw driver and install the lithium ion battery module Fixing the lithium ion battery module to the energy storage server. Copyright Sony Energy Devices Corporation Screw ④ Screw ④ Screw ④ Screw ④ Screw ⑤ Screw ⑤ Jig-6 Screw ：④ Screw （ M4 × 8 ㎜）× 8pcs ⑤ Screw （ M4 × 8 ㎜ 黒）× 3pcs Energy Storage System “IJ1001SNBT” 33 Open the energy storage server using screw driver and install the lithium ion battery module Insert the connecter bellow. Copyright Sony Energy Devices Corporation Side Indication 【 B ＋】 Energy Storage System “IJ1001SNBT” 34 Open the energy storage server using screw driver and install the lithium ion battery module Insert the connecter bellow. Copyright Sony Energy Devices Corporation Side Indication 【 B －】 Energy Storage System “IJ1001SNBT” 35 Open the energy storage server using screw driver and install the lithium ion battery module Insert the end connecter. Copyright Sony Energy Devices Corporation End connecter Completed photo Energy Storage System “IJ1001SNBT” 36 Open the energy storage server using screw driver and install the lithium ion battery module Insert the side cover. Copyright Sony Energy Devices Corporation Side panel × 2 Insert Energy Storage System “IJ1001SNBT” 37 Open the energy storage server using screw driver and install the lithium ion battery module Fixing the screw 8 position bellow. Copyright Sony Energy Devices Corporation Screw ：⑥ Screw （ M4 × 10 ㎜ Black ）× 8pcs Front Rear

User Manual 1 Sony Energy Devices Corporation 2012.4 Rev.5 Energy Storage System MODEL : IJ1001SNBT Energy Storage System “IJ1001SNBT” 2 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuantto part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interf erence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit d ifferent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.This equipment complies with FCC radiation exprosure limits set forth for an uncontrolled environment andmeets the FCC radio frequency （ RF ） Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation （ MPE ） . But it is desireable that it should be installed and operated keeping the radiotor at least 20cm or more away from person’s body （ excluding extremities: hands, wrists, feet and ankles ） . FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void user’sauthority to operate the equipment. Copyright Sony Energy Devices Corporation Energy Storage System “IJ1001SNBT” 3 Table of Contents Important Safety Information Read the firstSafety instructions The Energy Storage Sysytem How the system worksThe system structure The Energy Storage System Installation Parts IncludedOther Parts and Tools RequiredInstall procedureOn site software update (if necessary)Commissioning The Energy Storage System Activation Connecting to the Internet.Activating Energy Storage System for Field Trial. Copyright Sony Energy Devices Corporation Energy Storage System “IJ1001SNBT” 4 Important Information Read the first SAVE THESE INSTRUCTIONS– This manual contains important instructions for Model(s) IJ1001SNBT that shall be followed during installation and maintenance of the system.To reduce the risk of electrical shock, and to ensure the safe installation and operation of the Energy storage system, the following safety symbols appear throughout this document to indicate dangerous condition and important safety instructions. WARNING! This indicates a situation where failure to follow instructions may be a safety hazard or cause equipment malfunction. Use extreme caution and followinstructions carefully. NOTE : This indicated information particularly important for optimal system operation. Follow instructions closely. Safety Instructions ・ Perform all electrical installations in accordance with all local electrical codes and the National Electrical Code （ NFC ） , ANSI/NFPA 70. ・ Be aware that only qualified personnel should install and/or replace the Energy storage system. ・ Do not attempt to repair the Energy storage system; it contains user-serviceable parts. If it fails, please contact Sony Customer service to obtain an product number and start the replacement process. Tampering with or opening the Energy storage system will void the warranty. ・ Before installing or using the Energy storage system, please read all instructions and cautionary markings in the technical description and on the Energy storage system. ・ Do NOT disconnect the Power cables from the Energy storage system without off the connection box. Copyright Sony Energy Devices Corporation Energy Storage System “IJ1001SNBT” 5 The Energy storage system The Energy storage system is the world’s most technologically advanced energy storage system for utility-interactive applications. This manual details the safe installation and operation of the energy storage system.The three key elements of the Energy storage system are : ・ the energy storage system including Sony original lithium ion battery ・ the wireless communication system （ WiFi ） ・ the web-based monitoring and analysis system This integrated system maximizes energy efficiency, increases system reliability, and simplified design,installation and management. Copyright Sony Energy Devices Corporation PCS Distribution Panel Connection Box Powermeter PV Energy storage system Energy Storage System “IJ1001SNBT” 6 The Energy Storage System How the system WorksThis Energy storage system charges the integrated lithium ion battery from electrical utility gridthrough the distribution panel automatically when the battery’s capacity is not full and its charging period is controlled by the home energy management system （ HEMS ） which is specially by Sony Corporation. This Energy storage system outputs the electricity to electrical utility grid through the distributionpanel when determine the signal from HEMS. HEMS cr eates more efficiency control of the electrical power. To equalize the power demand to save the peak value so that the contract price is able to be saved andit’s benefit for the house owner. The system structureThis Energy storage system is integrated lithium ion battery, AC-DC converter and DC-AC inverters.General block diagram is bellow. Copyright Sony Energy Devices Corporation Battery Micro Processer AC-DC Converter Power sense Power sense Grid PowerIn/Out Circuit protector Circuit Protector DC-AC Inverter Circuit protector Energy Stor…

Text truncated - open the document above for the full version.

Energy Storage System “IJ1001SNBT” 38 Open the energy storage server using screw driver and install the lithium ion battery module Fixing the top cover. Copyright Sony Energy Devices Corporation Insert the antenna cable Top cover Front Energy Storage System “IJ1001SNBT” 39 Open the energy storage server using screw driver and install the lithium ion battery module Fixing the top cover. Copyright Sony Energy Devices Corporation Screw ：⑥ Screw （ M4 × 10 ㎜ Black ）× 4pcs Rear Energy Storage System “IJ1001SNBT” 40 Set the outer enclosure to the wall Make a hole for conduit inside the bellow area. Copyright Sony Energy Devices Corporation 177.8㎜(7in)25.4㎜(1in) 25.4 ㎜ (1in) 304.8 ㎜ (12in) Hole(1.06in) Energy Storage System “IJ1001SNBT” 41 Set the outer enclosure to the wall Fixing the outer enclosure to the wall 4 bolts. Copyright Sony Energy Devices Corporation Ground Keep the distance 30cm or moreFrom the ground Bolt : For Wood Wall Diameter 3/8 inch Length : 3-1/4 inch For Concrete Diameter 3/8 inch Length 3 inch Energy Storage System “IJ1001SNBT” 42 Install the energy storage box into the outer enclosure Install the energy storage server to the outer enclosure. Copyright Sony Energy Devices Corporation Install Energy Storage System “IJ1001SNBT” 43 Install the energy storage box into the outer enclosure Wiring 8 position bellow. Copyright Sony Energy Devices Corporation Completed photo Energy Storage System “IJ1001SNBT” 44 Install the energy storage box into the outer enclosure Wiring ground terminal using the grounding cable from outer enclosure to the energy storage server. Copyright Sony Energy Devices Corporation Ground terminal Completed photo Energy Storage System “IJ1001SNBT” 45 Install the energy storage box into the outer enclosure Check the circuit protector. Copyright Sony Energy Devices Corporation Confirm the circuit protector is off OFF OFF Energy Storage System “IJ1001SNBT” 46 Install the energy storage box into the outer enclosure Insert the fuse bar. Copyright Sony Energy Devices Corporation Fuse bar Screw ：⑦ Screw （ M3 × 8 ㎜ Black ）× 2pcs Energy Storage System “IJ1001SNBT” 47 Install the energy storage box into the outer enclosure Insert the front panel of the server. Copyright Sony Energy Devices Corporation Front panel Energy Storage System “IJ1001SNBT” 48 Install the energy storage box into the outer enclosure Fixing the jig-3. Copyright Sony Energy Devices Corporation Jig-3 Screw ：⑧ Screw （ M5 × 10 ㎜）× 2pcs Energy Storage System “IJ1001SNBT” 49 Install the energy storage box into the outer enclosure Fixing the jig-4,5. Copyright Sony Energy Devices Corporation Jig-4 Jig-5 Screw ：⑧ Screw （ M5 × 10 ㎜）× 4pcs Jig-5 Jig-4 Completed photo Completed Energy Storage System “IJ1001SNBT” 50 Assemble the WiFi antenna to the outer enclosure Wear metal parts and fix the metal pipe. Copyright Sony Energy Devices Corporation Antenna ※ Insert the pipe then lock the connector Antenna BOX Screw out Wear metal parts CK-34Z U-0418-S1 Metal connector Metal Pipe Insert antenna cable Energy Storage System “IJ1001SNBT” 51 Assemble the WiFi antenna to the outer enclosure Fix the pipe to the outer enclosure. Copyright Sony Energy Devices Corporation Connector and Pipe Connect screw Outer Enclosure Straight Liquid tight Connector 3/4" Trade Size Liquid tight Flexible Steel Conduit 3/4" Trade Size Energy Storage System “IJ1001SNBT” 52 Assemble the WiFi antenna to the outer enclosure Connect to the antenna cable and fix the cable inside the outer enclosure. Copyright Sony Energy Devices Corporation Fixed using tie Completed Cable from the energy storage server Cable from the antenna ※ Insert the pipe then lock the connector Energy Storage System “IJ1001SNBT” 53 Set the connecting box and conduit Overview Set the connecting box to the wall and conduit from the energy storage system and to distribution panel.Branch circuit inside the distribution panel required UL489 Listed, rated 240Vac, 30A, Time delay. 3 Cables are used, LI(Red) and N(White) connected to 120V, 60Hz.L2(Black) and N connected to 120V, 60Hz. Before start the installation, please refer to the next page. Copyright Sony Energy Devices Corporation Branch circuit UL489 Listed, 240V, 30A, Time delay Connecting Box UL Listed, 30A L1NL2GND AC120V, 60HzAC120V, 60Hz Energy Storage System “IJ1001SNBT” 54 Set the connecting box and conduit Remarks The field-wiring terminals shall be connected using the following wire types: AC connections: 18 in./lbs. - 22 in./lbs. tightening torque#10 AWG - #14 AWG wire type – rated 90C Copper Equipment Electrode Terminal: 75 in./lbs. – 88 in./lbs. tightening torque#8 AWG - #10 AWG wire type – rated 90C Copper Limits of accuracy of frequency measurement (+ 0.1 Hz)Limits of accuracy of Voltage measurement (+ 6 V)For conduit hubs, use only UL Listed rain tight for entry into the enclosure.AC output / neutral is not bonded to ground. The AC input and AC output circuits are isolated from the enclosure and that system grounding, if required by Section 250 of the National Electrical Code, ANSI/NFPA 70, is the responsibility of the installer.The National Electrical Code, ANSI/NFPA 70 wiring methods are to be used. use if needed The following pressure terminal connectors / component terminal assemblies are allowed / provided for field installation with this unit. Manufacturer : OSADA Co., Ltd (E121961) Model #Type : OK-147-3P Acceptable wire gauges : 16-10 AWG Copyright Sony Energy Devices Corporation Energy Storage System “IJ1001SNBT” 55 Set the connecting box and conduit Remarks This charge controller / inverter is intended to charge batteries of the following type 51.2V Li-ion type only.This inverter is intended for operation in an environment having a maximum ambient temperature of60 degrees C. CAUTION To reduce the risk of fire, connect only to a circuit provided with 30 amperes maximum branch-circuit over current protection in accordance with the National Electrical Code,ANSI/NFPA 70. Units with an integral ground…

Text truncated - open the document above for the full version.

Energy Storage System “IJ1001SNBT” 57 Set the connecting box and conduit Wiring 4 position bellow. Copyright Sony Energy Devices Corporation Grounding Energy Storage System “IJ1001SNBT” 58 Set the connecting box and conduit Tie the cables follow the bellow instruction and add some of magnetic core. Copyright Sony Energy Devices Corporation Tie the cables Add the magnetic core provided by Sony Energy Storage System “IJ1001SNBT” 59 Set the connecting box and conduit Set the front door then Completed. Copyright Sony Energy Devices Corporation Energy Storage System “IJ1001SNBT” 60 Copyright Sony Energy Devices Corporation On site software updateBecause of preinstalled software in factory, normally it is not r equired to install any software. But in some cases, software update may be required on site. On site software update procedure is as follows. 1.2.3. TBD Energy Storage System “IJ1001SNBT” 61 Copyright Sony Energy Devices Corporation Commissioning CAUTION : Connect the energy storage system to the electrical utility grid only after receiving prior approval from the utility company. CAUTION : Be aware that only qualified personnel should must connect the energy storage system to the electrical utility grid. CAUTION : Ensure that all AC and DC wiring is correct. Ensure that none of the AC and DC wires are pinched or damaged. Ensure that all junction boxes are properly closed The Energy Storage System Activation Connecting to the Internet 1. Confirm that there is a home router with wireless LAN working in the residence. 2. Connect with the home router using WPS. Please follow a procedure below. (as same as normal WPS operation) 1. Turn ON the circuit protector located behind of the energy storage server. ( RED ARROWS ) 2. Wait for booting the Energy Storage Server.3. Push WPS button on the home router.4. (Within 2 minutes) Push WPS button located behind of the energy storage server. ( BLUE ARROW )※ While WPS period, WiFi LED is blinking. After that, if WiFi LED stays turning ON, WLAN setting is successfully completed.If pattern of blinking is changed,there is some error on WPS.Please try again from step 1.(turn OFF Energy Storage Server once) 62 WiFi Charge Discharge The Energy Storage System Activation Activating Energy Storage System for Field Trial 1. Turn ON the Energy Storage Server and wait for boot.2. Confirm that the Energy Storage System is already connected to the Internet. (WPS is already done) 3. Access to the cloud server to register the Energy Storage System, using Installer Web Application. Installer Web Application is the same one for HEMS Gateway.Please follow a procedure below. (as same as one for HEMS Gateway) 1. Login to the installer application. (need installer account and password) 63 Enter installer account and password.Then push “Login” button. 2. Input SI Setup ID.3. Confirm SI Setup ID. 64 Input SI Setup IDThen push OKIf SI Setup ID is correct,then push OK 4. Go to registration process of Energy Storage System (called “Battery” in this application).5. Scan barcode which is labeled on transparent acrylic board inside the outer enclosure. 65 Push “Register New Gateway” If there is no barcode scanner, you can input barcode directly.(080046xxxxxxxxxx) Then push “OK” 6. Confirm that Energy Storage System is powered on (called “Battery” in this application). 66 7. After waiting for a while ※ , it is successfully registered. Confirm that Energy Storage System which is newly registered is listed in Registered Gateways and its status is online.※ If Energy Storage System is already booted and ready, it is around 10-15 seconds.But if you supply power in step6, it takes around 5 minutes. 67 APPENDIX 68 Energy Storage System “IJ1001SNBT” 69 Copyright Sony Energy Devices Corporation How to Power ON/OFF the Energy Storage System Power ON : Turn ON the circuit protector located behind of the energy storage server inside the outer enclosure. Power OFF : Turn OFF the breakers Energy Storage System “IJ1001SNBT” 70 Copyright Sony Energy Devices Corporation Indicator LEDs Energy Storage ServerInverter There are five inverters in the outer enclosure. Each inverter has a LED indicator at the center of side panel of one. WiFi Charge Discharge <Normal condition> WiFi Charge Discharge or WiFi Charge Discharge or Startup LED Operation (beginning of discharge):One minute after DC power is first applied to the inverter, six short green blinks indicate a successful inverter startup sequence. Six short red blinks after DC power is first applied to the inverter indicate a failure during inverter startup.Post-Startup LED Indications: Flashing Orange – Producing powerFlashing Red – Not producing power GFDI Fault:A solid red status LED when DC power has been cycled, indicates the inverter has detected a ground fault (GFDI) error.

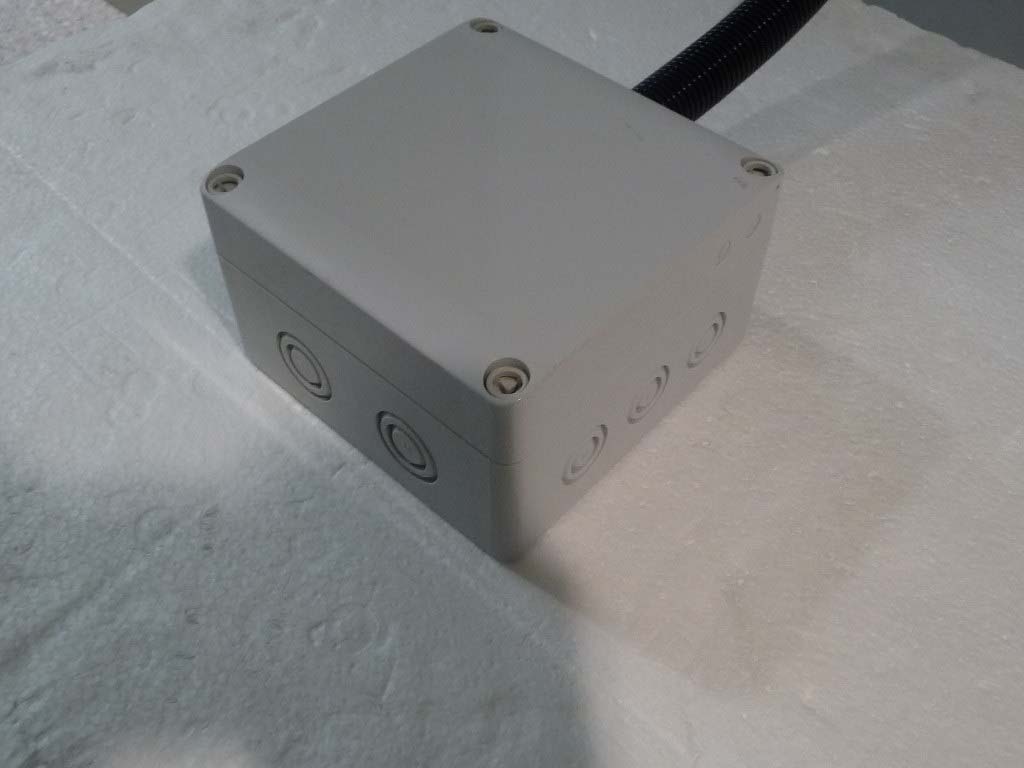

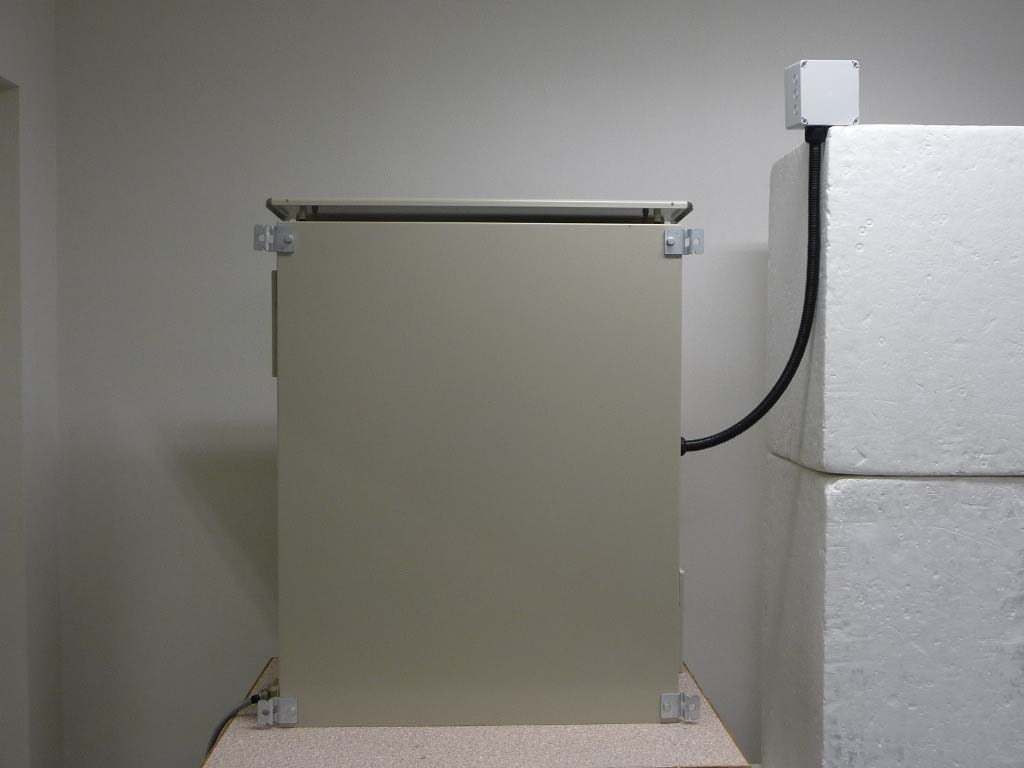

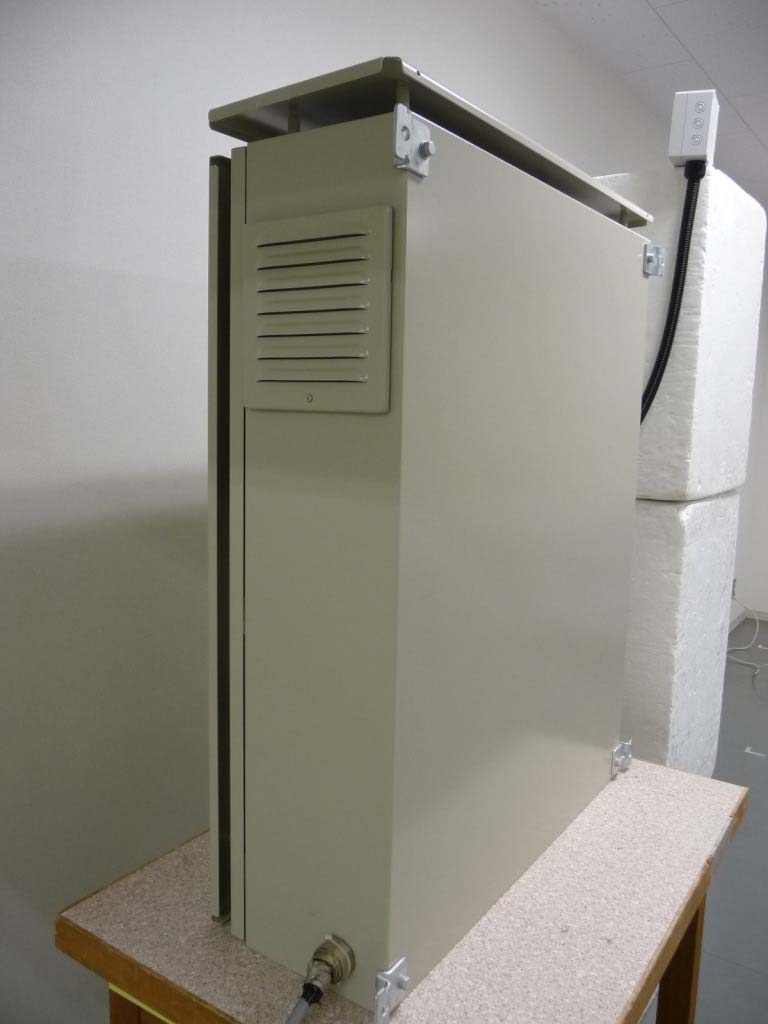

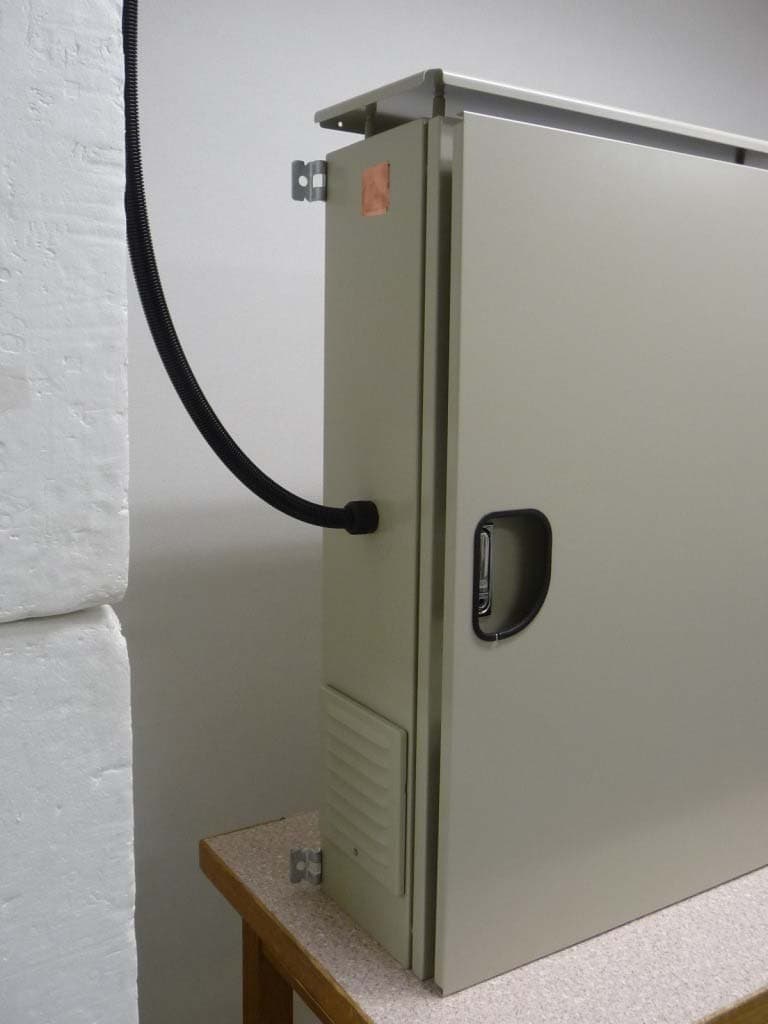

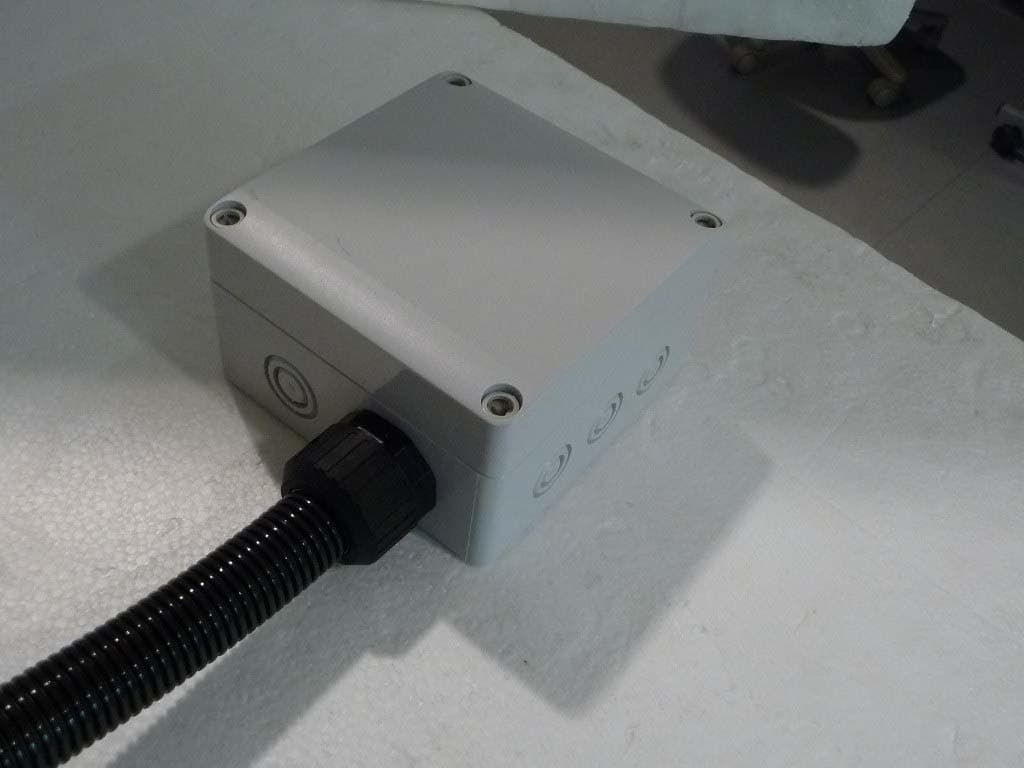

External Photo Sony Corporation Energy Storage System Model: IJ1001SNBT Front Rear External Photo Sony Corporation Energy Storage System Model: IJ1001SNBT Side 1 External Photo Sony Corporation Energy Storage System Model: IJ1001SNBT Side 2 External Photo Sony Corporation Energy Storage System Model: IJ1001SNBT Antenna Antenna

Label Energy Storage System Label position 130mm 100mm (20mm) (60mm)

Gemini-P Antenna cable Introduction WiFi Module Antenna Terminal wireless module (take off Top cover) Internal Photo Sony Corporation Energy Storage System Model: IJ1001SNBT Over View Pipe Antenna Antenna BOX Connector Antenna cable Internal Photo Sony Corporation Energy Storage System Model: IJ1001SNBT Antenna Antenna cable setup (wear Top cover) (pipe setup) () Assembly image

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applica nt: S ony Energy Devices Corporation T ype of Equipment : Energy Storage System M odel No. : IJ1001SNBT FCC ID: AK 8IJ1001SNBT Sony Energy D evices Corporation declares that M odel : Energy Storage System complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “IJ1001SNBT“ has 184.08 mW of conducted Peak O utput power and 146.22 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “IJ1001SNBT“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 184.08 mW (M aximum peak output power) G = 0.79 Numerical Antenna gain; equal -1.00 dBi r =20.0 cm For: IJ1001SNBTS = 0.02909mW/cm 2 No. : 32DE0237-SH-01-A RF Ex posure / SAR Statement

Test report No. : 32DE0237-SH-01-A Page : 2 of 84 Issued date : April 27, 2012 Revised date : May 11, 2012 FCC ID : AK8IJ1001SNBT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32DE0237-SH-01-A Revision Test report No. Date Page revised Contents - (Original) 32DE0237-SH-01-A April 27, 2012 - - 1 32DE0237-SH-01-A May 11, 2012 P1-2, 6 P6: Correction of frequency range for radiated emission Test report No. : 32DE0237-SH-01-A Page : 3 of 84 Issued date : April 27, 2012 FCC ID : AK8IJ1001SNBT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted emission ......................................................................................... 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ............................................. 9 SECTION 7: Maximum peak output power ....................................................................... 10 SECTION 8: Spurious emission (Antenna port conducted) .............................................. 10 SECTION 9: Radiated emission .......................................................................................... 11 SECTION 10: Peak Power density ...................................................................................... 12 Contents of APPENDIXES ................................................................................................... 13 APPENDIX 1: Test data ...................................................................................................... 14 APPENDIX 2: Test instruments .......................................................................................... 82 APPENDIX 3: Photographs of test setup ............................................................................ 83 Test report No. : 32DE0237-SH-01-A Page : 4 of 84 Issued date : April 27, 2012 FCC ID : AK8IJ1001SNBT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Energy Devices Corporation Brand Name : SONY Address : 2 Toinokuchi, Motomiya, Motomiya-shi, Fukushima 969-1180 Japan Telephone Number : +81-243-33-4643 Facsimile Number : +81-243-33-4469 Contact Person : Noriyasu Kikuchi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Energy Storage System Model No. : IJ1001SNBT Serial No. : 0800461001B5F415 Rating : AC output voltage:240V Operating freqency:60Hz AC output current: 4.375A AC output power: 1.05kW Receipt Date of Sample : February 7, 2012 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: IJ1001SNBT (referred to as the EUT in this report) is an Energy Storage System. Clock frequency(ies) in the system : 40MHz Radio specification Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : Bandwidth: 20MHz (IEEE 802.11b, 11g, 11n-HT20) / 40MHz (IEEE 802.11n-HT40) Channel spacing: 5MHz Type of modulation : DSSS: CCK, DQPSK, DBPSK OFDM: 64QAM, 16QAM, QPSK, BPSK Antenna type : Dipole Antenna connector type : U.FL Antenna gain with cable loss : -1.0 dBi ITU code : D1D, G1D Operation temperature range : 0 to +60 deg.C. FCC 15.31 (e) The RF transmitter has its own regulator. The RF transmitter is constantly provided voltage (DC3.3V) through its own regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 The EUT has an external antenna connector, but it is installed by the professionals. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 32DE0237-SH-01-A Page : 5 of 84 Issued date : April 27, 2012 FCC ID : AK8IJ1001SNBT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT has been tested for compliance with FCC Part 15 Subpart B: 2012. Refer to the test report: 32DE0237-SH-01-B. 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A 3.2dB Freq.: 0.15000MHz Detector: Average Phase: L2 Mode: Tx 2412MHz, IEEE 802.11b Complied 6dB bandwidth ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(2) & 15.209 ConductedN/A * See data Complied Maximum peak output power ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (b)(3) & 15.209 ConductedN/A Complied Spurious emission & Restricted band edges ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 3.1dB Freq.: 2400.000MH…

Text truncated - open the document above for the full version.

Test report No. : 32DE0237-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hi…

Text truncated - open the document above for the full version.
