AK8IRF303JWireless LAN Card

Installation Description IRF303J shall be installed in Location Free TV, model: LF-X5. When IRF303J is installed in a product, we shall consider the following points; 1. Since IRF303J owns its FCC ID Number/IC Number, we shall affix an exterior label on the outside of the product if the FCC ID/IC Number is not visible. The exterior label shall use wording such as either "Contains Transmitter Module FCC ID:AK8IRF303J/IC Number:409B- IRF303J" or "Contains FCC ID:AK8IRF303J/IC Number:409B-IRF303J". 2. IRF303J complies with requirements of sub-sections 15.203, 15.205, 15.207 and 15.247 in FCC Rules Part 15. We shall install IRF303J in accordance with their requirements. IRF303J complies with requirements of the sub-section 2.1093. When installers install IRF303J into a product, they shall ensure that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines in accordance with the sub-section 15.247(b)(5) in FCC Rules Part 15. 3. Special Accessory (Shielded tape) must be patched for RF inference. Please refer to the following picture. Shielded tape Shielded tape 4. IRF303J is to be installed only by the professionals as shown in below figure. Note: Antenna cable length: Antenna 1: 5cm Antenna 2: 19cm Antenna 2 (HFT18) Antenna 1 (HFT18) IRF303J 5. RF exposure requirements: For portable equipment: The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. IRF303J has been tested and found to comply with the Federal Communications Commission (FCC) guidelines on radio frequency energy (RF) exposures. The maximum SAR levels tested for IRF303J has been show to be 0.533 W/kg at Body. For mobile equipment: This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs).

-1- IRF303J PRELIMINALY 2.4GHz Band Wireless LAN Transceiver Unit General Description IRF303J, Wireless LAN module, is compliant with 802.11b/g standard. IRF303J is designed for AV transmission, and it’s high performance enable 54Mbps high-bit data rate communication. Feature - Support QoS - Hardware-Based MAC Access Protocol - Low packet error rate Specifications - Host Interface: Mini PCI Standard 1.0 - Standard: IEEE802.11b/g compliant - Radio Signal Type: Direct Sequence Spread Spectrum (DSSS) Orthogonal Frequency Division Multiplexing (OFDM) - Wireless Data Rate: 802.11b=1/2/5.5/11Mbps 802.11g=6/9/12/18/24/36/48/54Mbps - Frequency Band: 2400-2483.5MHz - Channel Support: ch1-ch11 - Data Modulation Techniques: BPSK (1Mbps), QPSK (2Mbps), CCK (5.5/11Mbps) OFDM (6/9/12/18/24/36/48/54Mbps) - Operating Range: 660ft (Outdoor, Line of sight) 100ft (Indoor) - Media Access Protocol: Ad-Hoc (Peer-to-Peer) Infrastructure - Security: WEP (Key Length 40/128/256bit) / AES / WPA (PSK) - Power Voltage: 3.3V (+/-5%) - Dimensions: 90.0 x 32.0 x 4.6mm - Weight: Approx.12g - Operating Temperature Range: -0C to +50C Sony reserves the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other right. Application circuits shown, if any, are typical examples illustrating the operation of the devices. Sonycannot assume responsibility for any problems arising out of the use of these circuits. -2- IRF303J NOTIFICATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the use is encouraged to try to correct the interference by one or more of the following measures: Reoriented or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different fromthat t which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC WARNIG Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For customers in the United States This product contains mercury. Disposal of this product may be regulated if sold in the United States. For disposal or recycling information, please contact your localauthorities or the Electronics Industries Alliance (http://eiae.org). This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation *This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: For portable equipment: The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy(RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. IRF303J has been tested and found to comply with the Federal Communications Commission (FCC) guidelines on radio frequency energy (RF) exposures. The maximum SAR levels tested for IRF303J has been show to be 0.533 W/kg at Body. For mobile equipment: This equipment complies with FCCradiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65.This equipment should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs). -3- IRF303J Electrical Characteristics Vdd=3.3V, Ta=25C SymbolMinTypMaxUnits Output powerP out2-17-dBm Supply currentIddtx2-730-mA Iddrx-390400mA ftol-100+10ppm Modulation Accuracy(64QAM)EVM2-4.3-% SensitivityRx_Sens2--71-dBm Parameter 54Mbps Rx Center Frequency Tolerance Tx 54Mbps 54Mbps -4- IRF303J Antenna Unit:mm - Model Name: HFT18 - Type: Film Antenna - Gain (Peak): 2.4GHz_Band : +1.9dBi(Typ) - Connector Type: U.FL -5- IRF303J Dimension 90.0 32.0 4.1 16.8 5.5 0.6 3.6 1.0

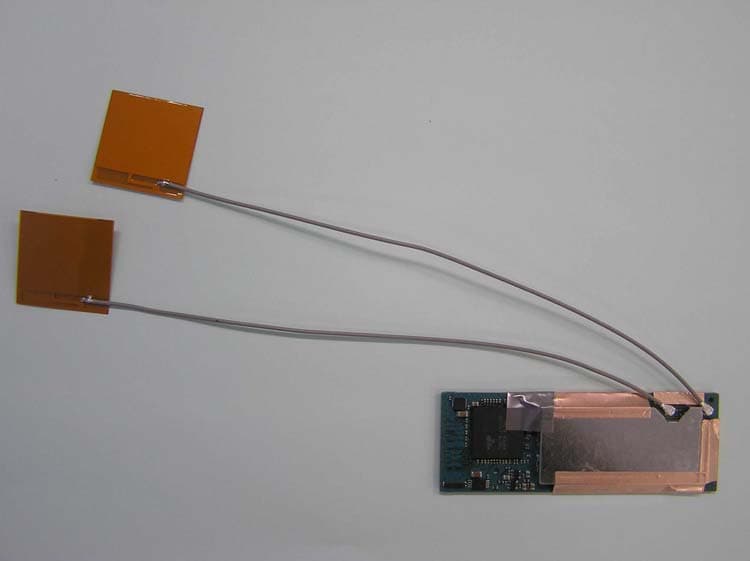

Photo Sony Corporation Model: IRF303J FCC ID: AK8IRF303J IC Number: 409B-IRF303J Front View of Wireless LAN Module with Antenna (HFT18) and Shielding

Photo Sony Corporation Model: IRF303J FCC ID: AK8IRF303J IC Number: 409B-IRF303J Front View of Wireless LAN Module Rear View of Wireless LAN Module

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Corporation Type of Equipment: Wireless LAN Module Model No. : IRF303J FCC ID: AK8IRF303J RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “IRF303J“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* * r 2 ) Where P = 62.95mW (Maximum peak output power) G = 1.55Numerical Antenna gain; equal to1.90 r =20.0 cm For: IRF303J S = 0.01940mW/cm 2 No. : 25EE0063-HO-1 RF Exposure / SAR Statement

Test report No. : 25EE0063-HO-3 Page : 2 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information...............................................................................................................................................3 SECTION 2 : Equipment under test .........................................................................................................................................4 SECTION 3 : Requirements for compliance testing defined by the FCC ..............................................................................5 SECTION 4 : Dosimetry assessment setup ...............................................................................................................................5 SECTION 5 : Test system specifications...................................................................................................................................9 SECTION 6 : Measurement outline ........................................................................................................................................10 SECTION 7 : Test setup of EUT .............................................................................................................................................12 SECTION 8 : Measurement uncertainty ................................................................................................................................16 SECTION 9 : Simulated tissue liquid parameter ...................................................................................................................17 SECTION 10 : System validation data....................................................................................................................................19 SECTION 11 : Evaluation procedure .....................................................................................................................................20 SECTION 12 : Exposure limit .................................................................................................................................................21 SECTION 13 : SAR Measurement results..............................................................................................................................22 SECTION 14 : Equipment & calibration information ..........................................................................................................28 SECTION 15 : References........................................................................................................................................................29 APPENDIX 1 : Photographs of test setup ............................................................................................................................ 30 APPENDIX 2 : SAR Measurement data............................................................................................................................... 37 APPENDIX 3: Validation Measurement data...................................................................................................................... 68 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713).......................................................................................... 71 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1684).................................................................... 81 Test report No. : 25EE0063-HO-3 Page : 3 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : Sony Corporation Brand Name : SONY Address : Gate City Osaki West Tower Osaki East Tec. 1-11-1 Osaki Shinagawa-ku, Tokyo141-0032, Japan Telephone Number : 81-3-5435-3977 Facsimile Number : 81-3-5435-3963 Contact Person : Masaki Nishimura Test report No. : 25EE0063-HO-3 Page : 4 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test 2.1 Identification of EUT APPLICANT : Sony Corporation Type of Equipment : Wireless LAN Module Model No. : IRF303J Serial No. : 062 Country of Manufacture : Japan Receipt Date of Sample : January 17, 2005 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Category Identified : Portable device 2.2 Product description of EUT (Module) Tx Frequency : 2412-2462MHz(802.11b/g) Modulation : DSSS,OFDM Rating : DC3.3V / 0.81A Max.Output Power Tested : 17.99dBm Peak Conducted 2.3 Product description of EUT (Antenna) Antenna Type : Film Antenna Antenna Gain : 1.9dBi (Max) Antenna 2 Antenna 1 Antenna 2 Antenna 1 Test report No. : 25EE0063-HO-3 Page : 5 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagn…

Text truncated - open the document above for the full version.

Test report No. : 25EE0063-HO-3 Page : 30 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1 : Photographs of test setup Test report No. : 25EE0063-HO-3 Page : 31 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Left Front Test report No. : 25EE0063-HO-3 Page : 32 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Antenna 2 Right Front Test report No. : 25EE0063-HO-3 Page : 33 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Antenna 1 Left Side Test report No. : 25EE0063-HO-3 Page : 34 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Aantenna 2 Right Side Test report No. : 25EE0063-HO-3 Page : 35 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Antenna 1 Left Back Test report No. : 25EE0063-HO-3 Page : 36 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Antenna 2 Right Back

Test report No. : 25EE0063-HO-3 Page : 37 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data Test report No. : 25EE0063-HO-3 Page : 38 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 IRF303J / Body / Left Front (Antenna 1) / 11.b / 2437MHz Crest factor: 1 Medium: M2450 (σ = 2 mho/m, ε r = 48.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1684; ConvF(4.14, 4.14, 4.14); Calibrated: 2004/09/02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.171 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.317 W/kg SAR(1 g) = 0.128 mW/g; SAR(10 g) = 0.0484 mW/g Maximum value of SAR = 0.128 mW/g Reference Value = 9.86 V/m Power Drift = -0.1 dB Test Date = 01/17/04 Ambient Temperature = 25.0 degree.c Liquid Temperature = Before 22.9 degree.C , After 22.9 degree.C Test report No. : 25EE0063-HO-3 Page : 39 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 IRF303J / Body / Left Side (Antenna 1) / 11.b / 2437MHz Crest factor: 1 Medium: M2450 (σ = 2 mho/m, ε r = 48.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1684; ConvF(4.14, 4.14, 4.14); Calibrated: 2004/09/02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.115 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.435 W/kg SAR(1 g) = 0.159 mW/g; SAR(10 g) = 0.052 mW/g Maximum value of SAR = 0.16 mW/g Reference Value = 7.88 V/m Power Drift = -0.1 dB Test Date = 01/17/04 Ambient Temperature = 25.0 degree.c Liquid Temperature = Before 22.9 degree.C , After 22.9 degree.C Test report No. : 25EE0063-HO-3 Page : 40 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 IRF303J / Body / Left Back (Antenna 1) / 11.b / 2437MHz Crest factor: 1 Medium: M2450 (σ = 2 mho/m, ε r = 48.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1684; ConvF(4.14, 4.14, 4.14); Calibrated: 2004/09/02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.0301 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0463 W/kg SAR(1 g) = 0.0261 mW/g; SAR(10 g) = 0.0137 mW/g Maximum value of SAR = 0.0282 mW/g Reference Value = 2.47 V/m Power Drift = -0.2 dB Test Date = 01/17/04 Ambient Temperature = 25.0 degree.c Liquid Temperature = Before 22.9 degree.C , After 22.9 degree.C Test report No. : 25EE0063-HO-3 Page : 41 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 IRF303J / Body / Left Side (Antenna 1) / 11.b / 2412MHz Crest factor: 1 Medium: M2450 (σ = 2 mho/m, ε r = 48.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1684; ConvF(4.14, 4.14, 4.14); Calibrated: 2004/09/02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.162 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.405 W/kg SAR(1 g) = 0.149 mW/g; SAR(10 g) = 0.0501 mW/g Maximum value of SAR = 0.17 mW/g Reference Value = 1.54 V/m Power Drift = 0.4 dB Test Date = 01/17/04 Ambient Temperature = 25.0 degree.c Liquid Temperature = Before 22.9 degree.C , After 22.9 degree.C Test report No. : 25EE0063-HO-3 Page : 42 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 IRF303J / Body / Left side (Antenna 1) / 11.b / 2462MHz Crest factor: 1 Medium: M2450 (σ = 2 mho/m, ε r = 48.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1684; ConvF(4.14, 4.14, 4.14); Calibrated: 2004/09/02 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.249 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.67 W/kg SAR(1 g) = 0.235 mW/g; SAR(10 g) = 0.0773 mW/g Maximum value of SAR = 0.255 mW/g Reference Value = 2.69 V/m Power Drift = -0.2 dB Test Date = 01/17/04 Ambient Temperature = 25.0 degree.c Liquid Temperature = Before 22.9 degree.C , After 22.9 degree.C Test report No. : 25EE0063-HO-3 Page : 43 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, …

Text truncated - open the document above for the full version.

Test report No. : 25EE0063-HO-3 Page : 71 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713) Test report No. : 25EE0063-HO-3 Page : 72 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 73 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 74 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 75 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 76 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 77 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 78 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 79 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 80 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 81 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1684) Test report No. : 25EE0063-HO-3 Page : 82 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 83 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 84 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 85 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 86 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 87 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 88 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 89 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 25EE0063-HO-3 Page : 90 of 90 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124

Test report No. : 25EE0063-HO-1 Page : 2 of 64 Issued date : January 24, 2005 FCC ID : AK8IRF303J UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information ...............................................................................................................3 SECTION 2: Equipment under test (E.U.T.)...........................................................................................3 SECTION 3: Test specification, procedures & results............................................................................4 SECTION 4: Operation of E.U.T. during testing ....................................................................................6 SECTION 5: Conducted Emission............................................................................................................8 SECTION 6: Spurious Emission ...............................................................................................................9 SECTION 7: Bandwidth ..........................................................................................................................10 SECTION 8: Maximum Peak Output Power ........................................................................................10 SECTION 9: Peak Power Density...........................................................................................................10 APPENDIX 1: Photographs of test setup ...............................................................................................11 Conducted Emission ................................................................................................................................................. 11 Spurious Emission (Radiated) ................................................................................................................................. 12 …
